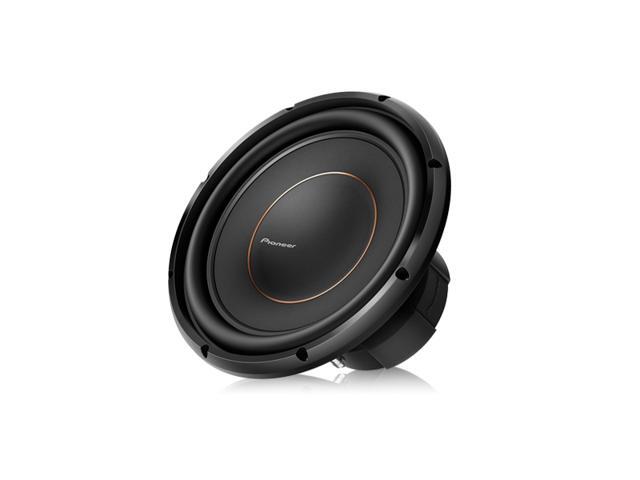

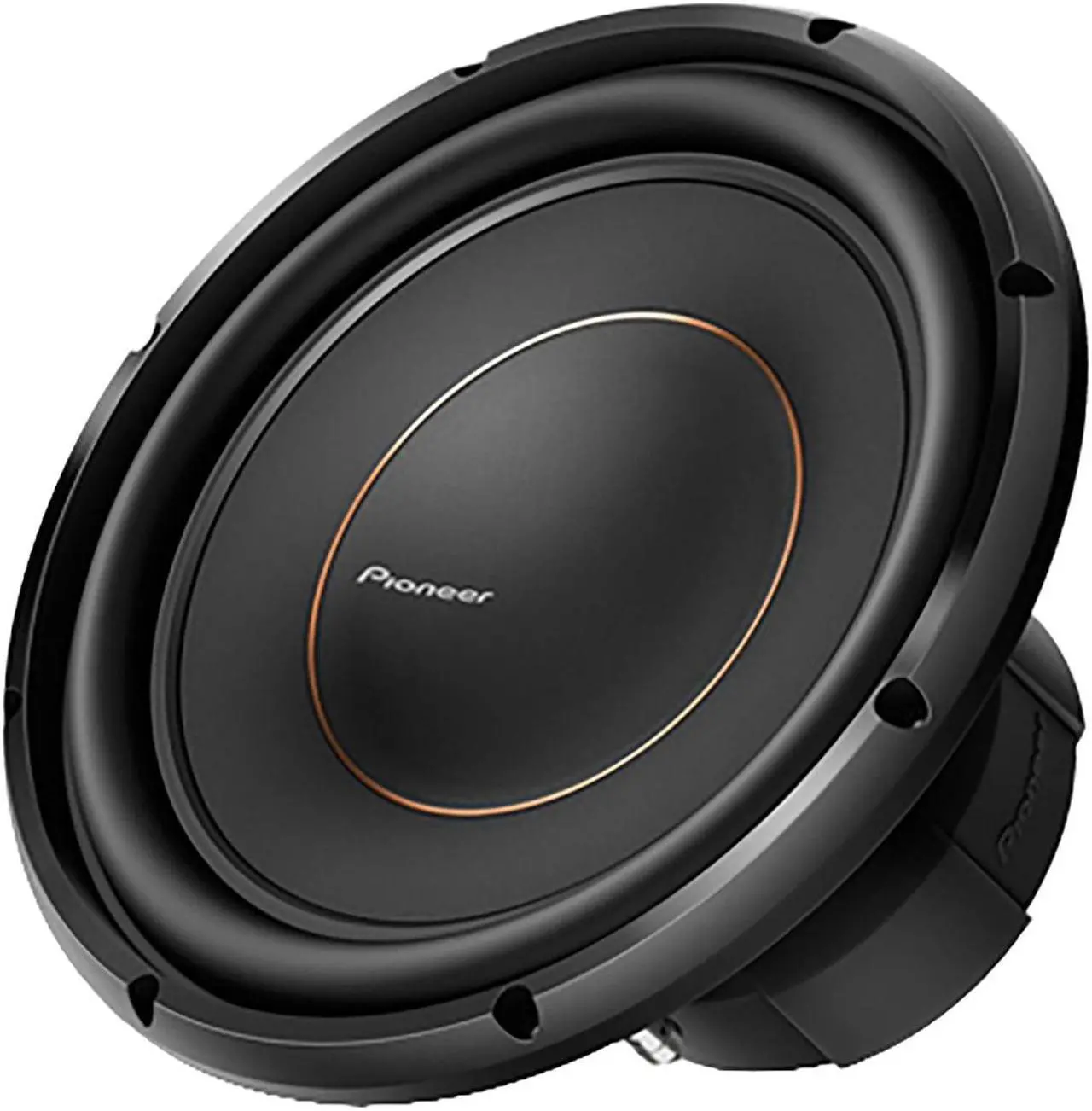

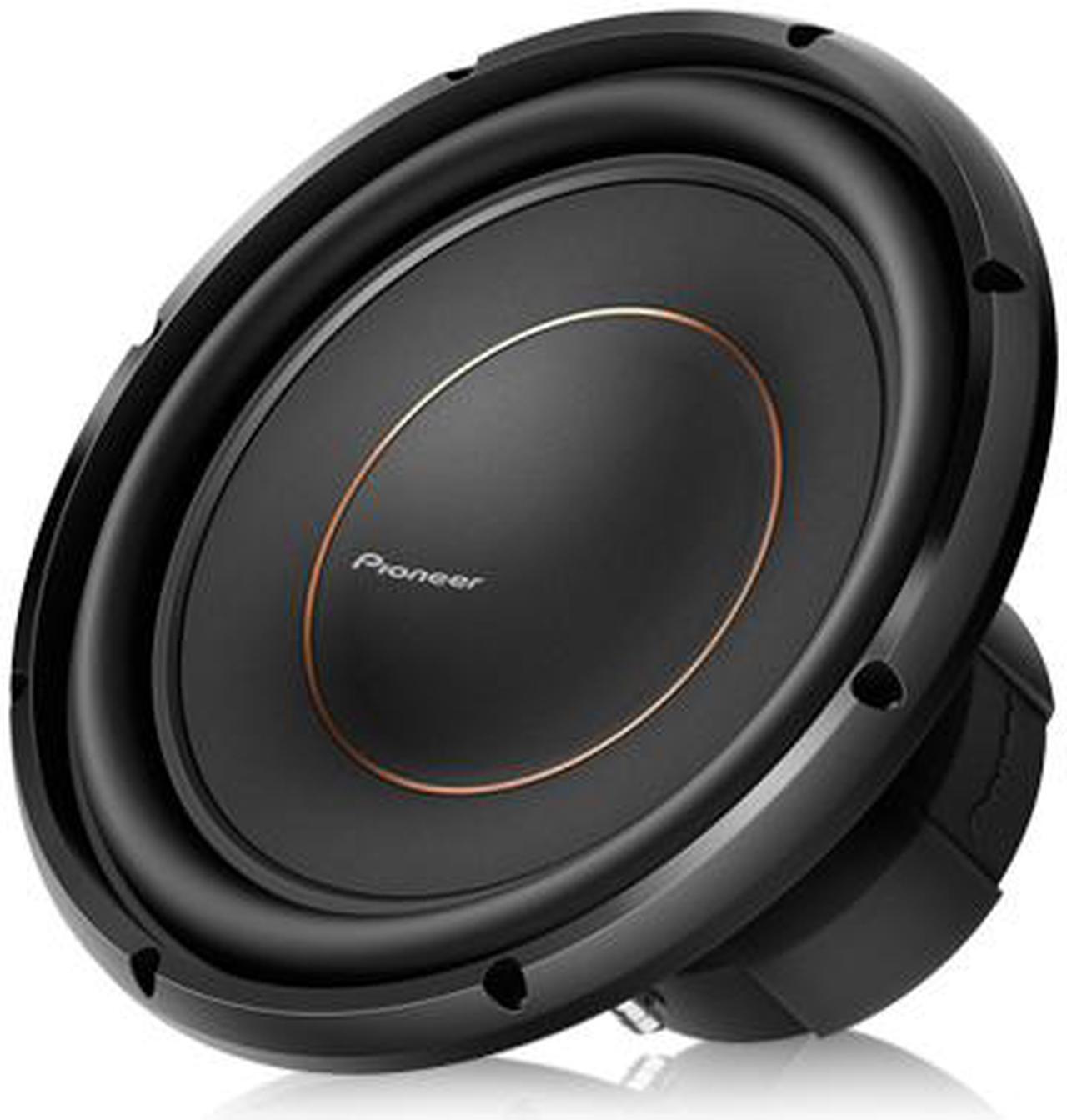

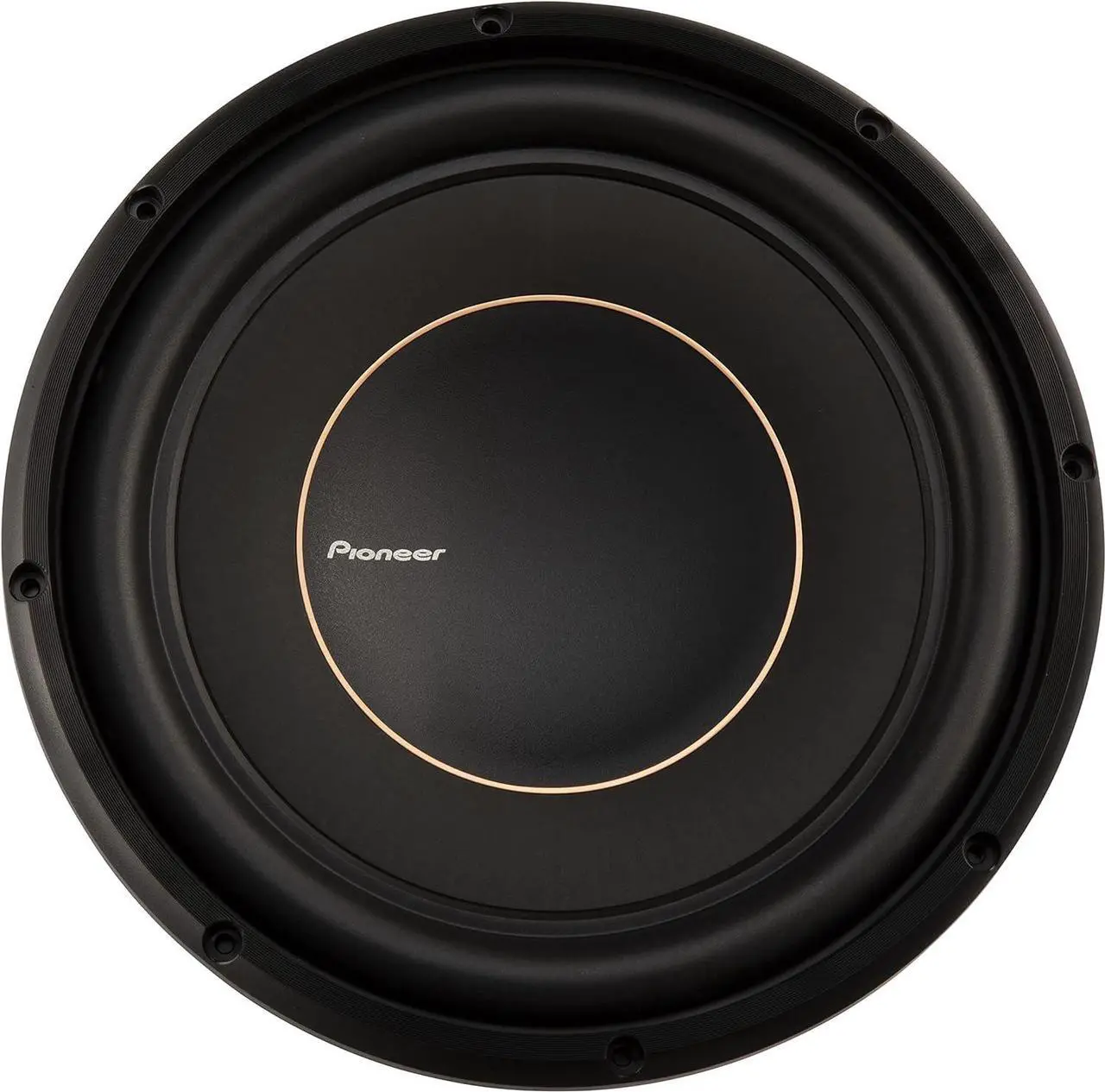

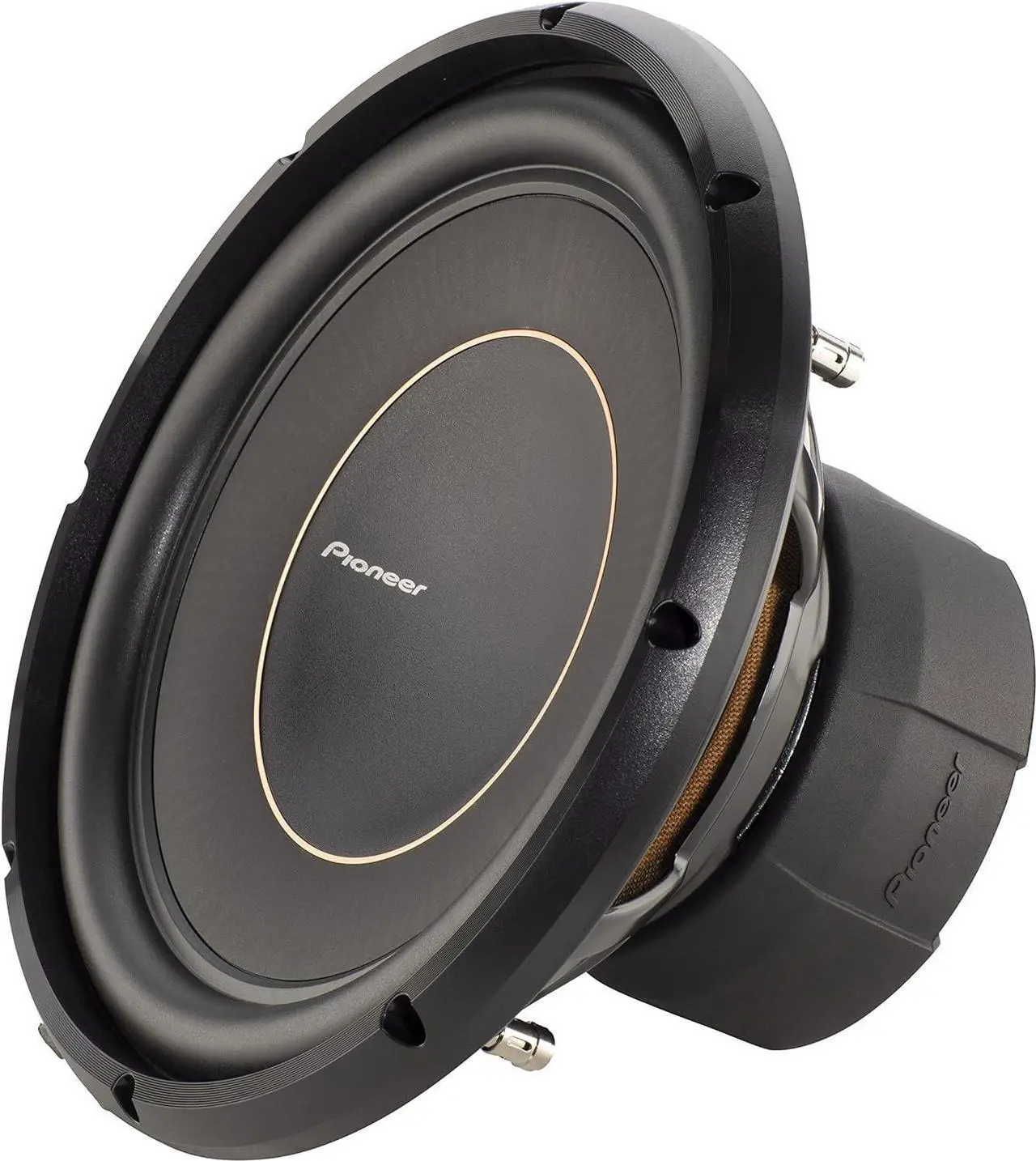

Pioneer TS-D12D4 12” Dual 4 ohms Voice Coil Subwoofer

Pioneer TS-D12D4 12" 2000W Max Power Dual 4 Ohm Voice Coil Car Subwoofer

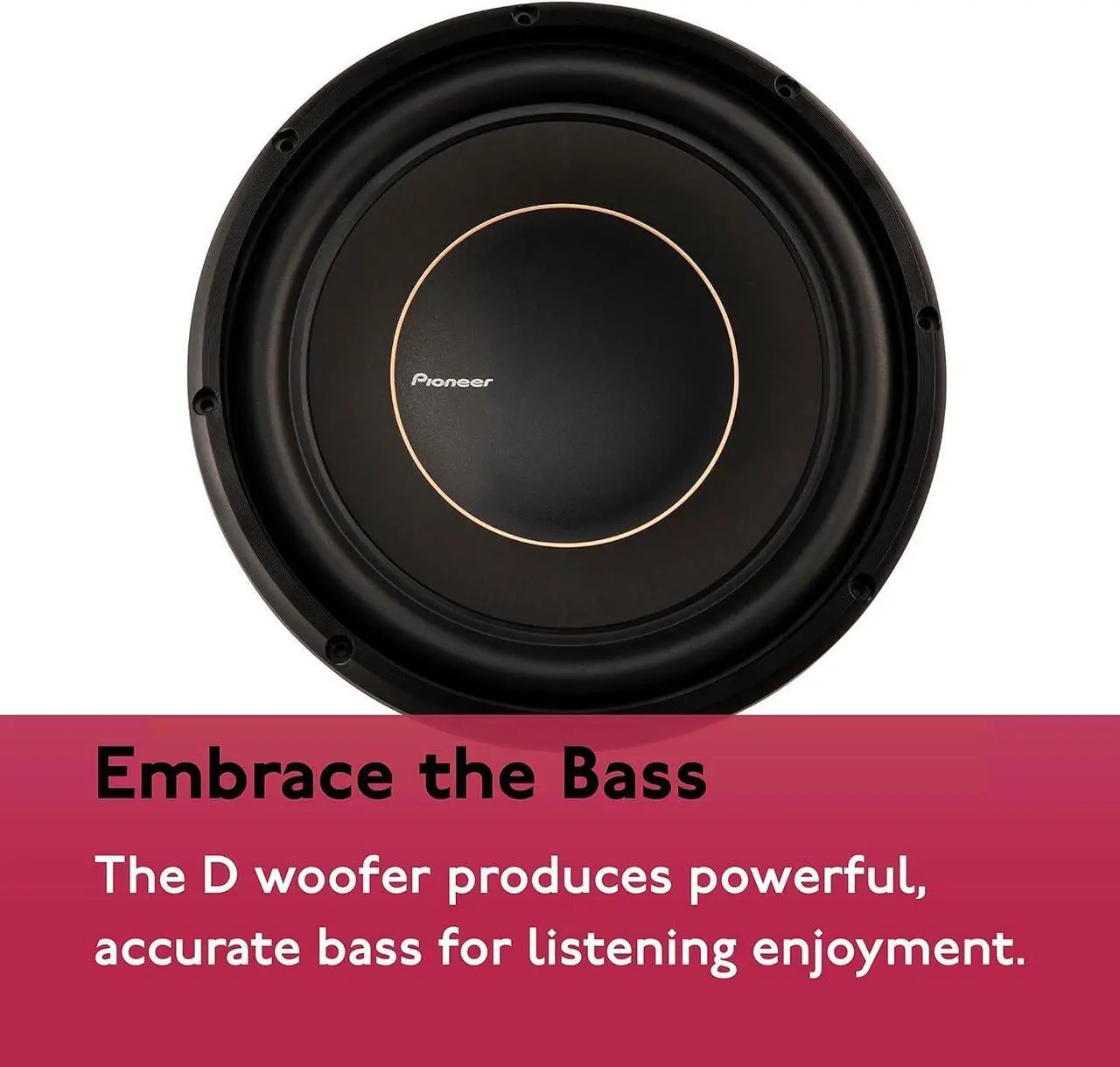

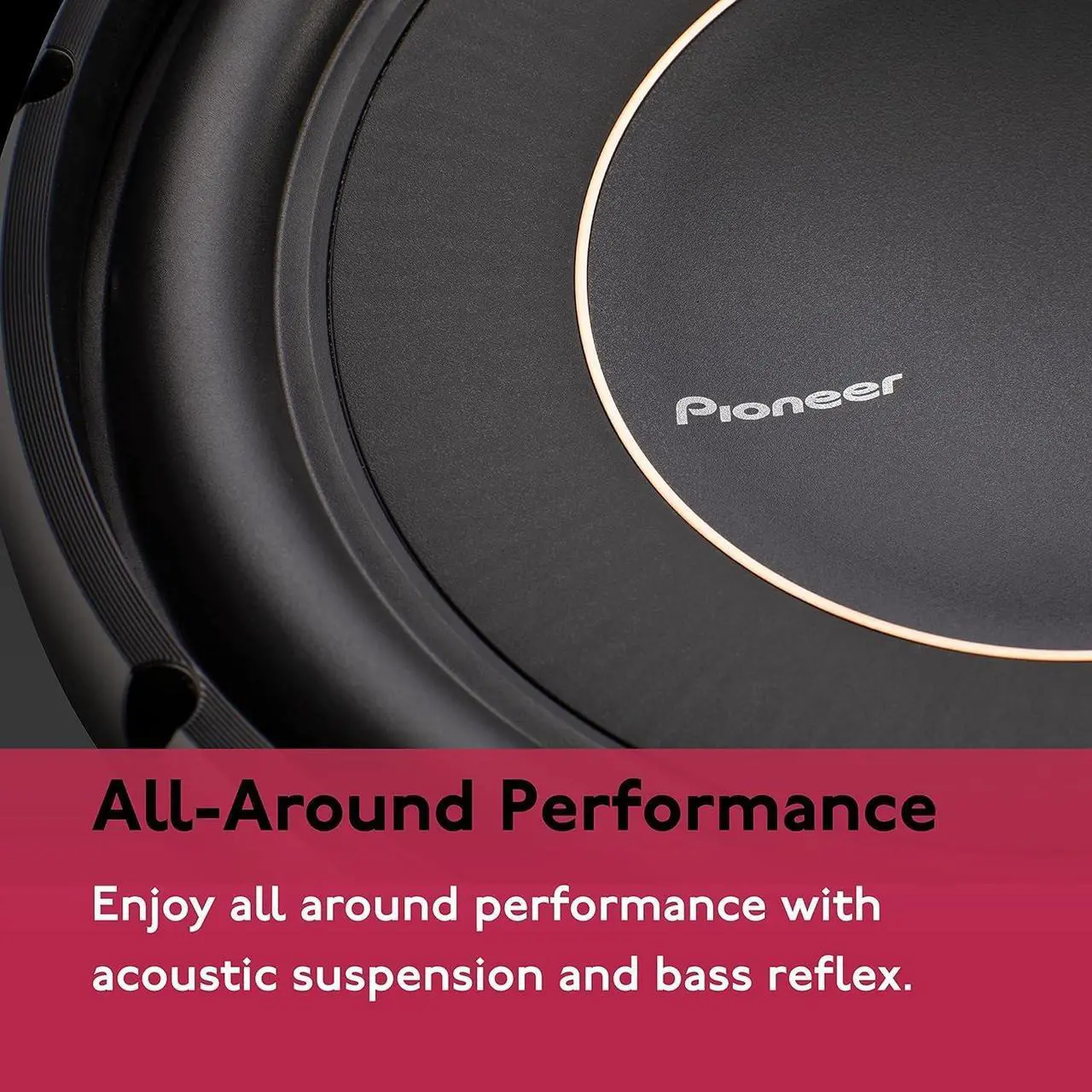

Experience powerful and precise bass with the Pioneer TS-D12D4 12" subwoofer, featuring 2000 watts max power and 600 watts RMS. Built with a dual 4-ohm voice coil for flexible wiring options, this subwoofer includes an Aramid Fiber IMPP™ cone and rubber surround for durability and clear sound. Its wide frequency response from 20 Hz to 4.7 kHz and 76 dB sensitivity ensures deep, accurate lows. Ideal for sealed or vented enclosures, it’s perfect for enhancing any car audio system.

Product Highlights:

• Condition: New


• 2000 Watts Max Power


• 600 Watts RMS (Nominal Power)

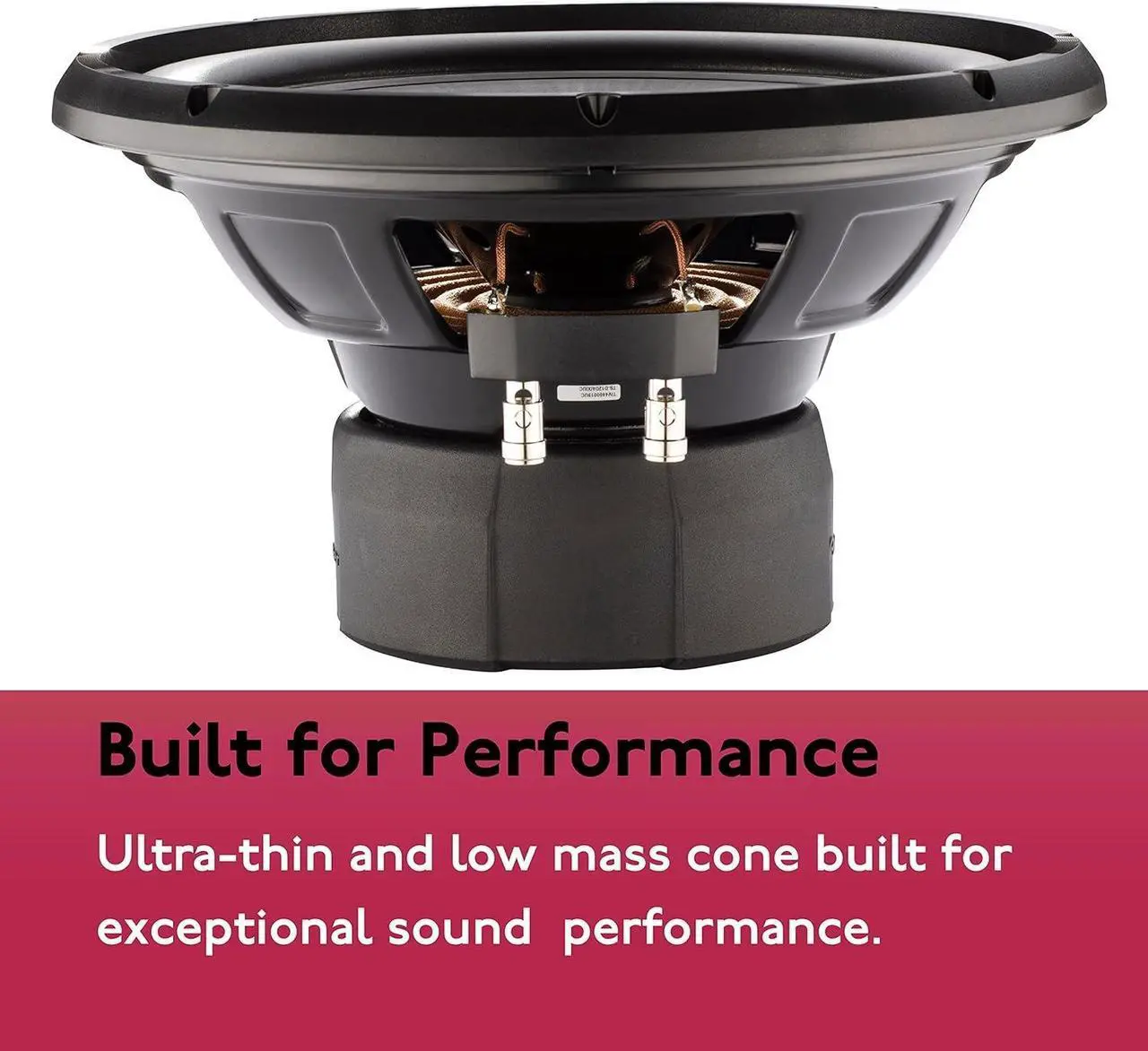

• 12" Aramid Fiber Interlaced IMPP™ Cone

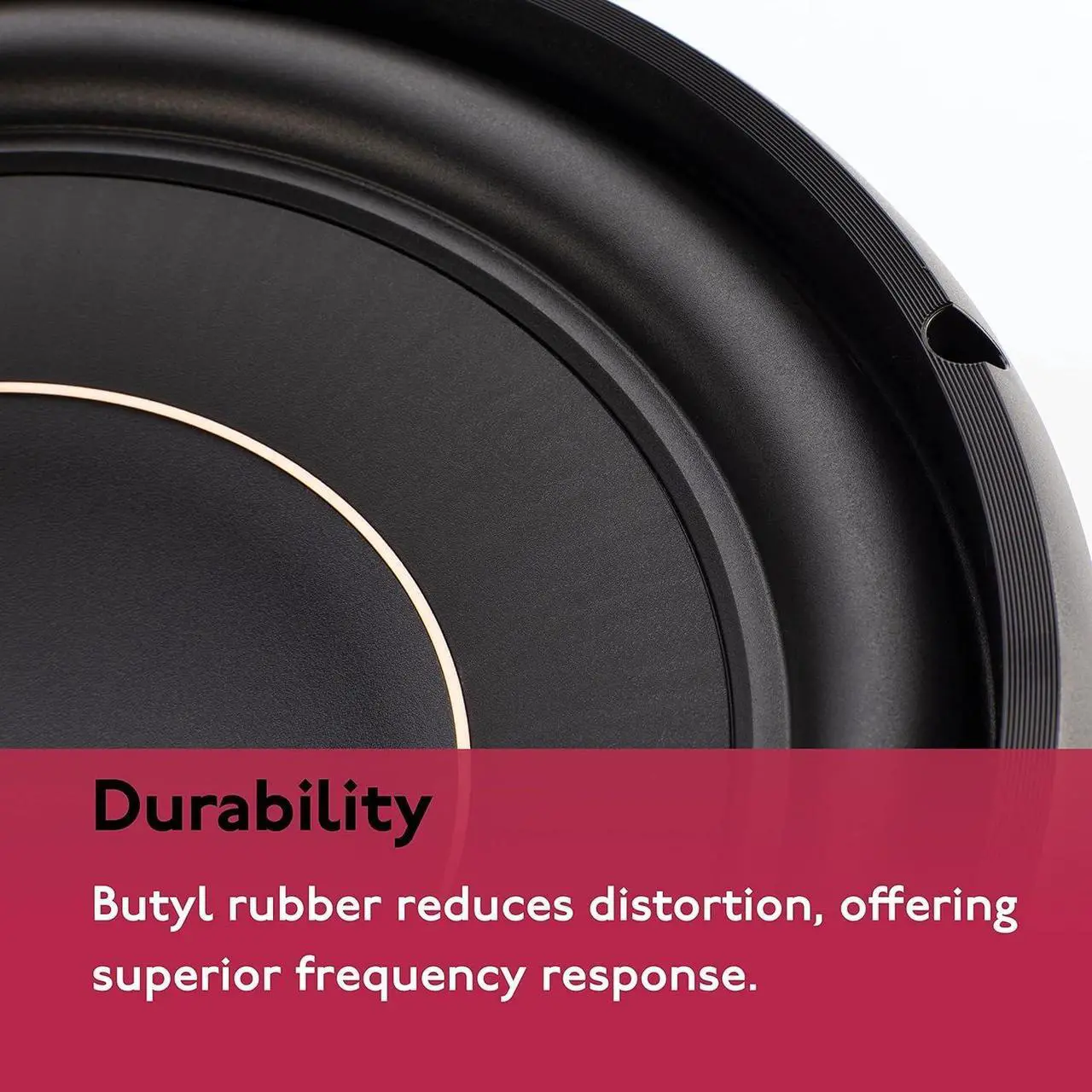

• Butyl Rubber Surround for durability


• Meta-Aramid Fiber Spider enhances control


• Frequency Response: 20 Hz – 4.7 kHz

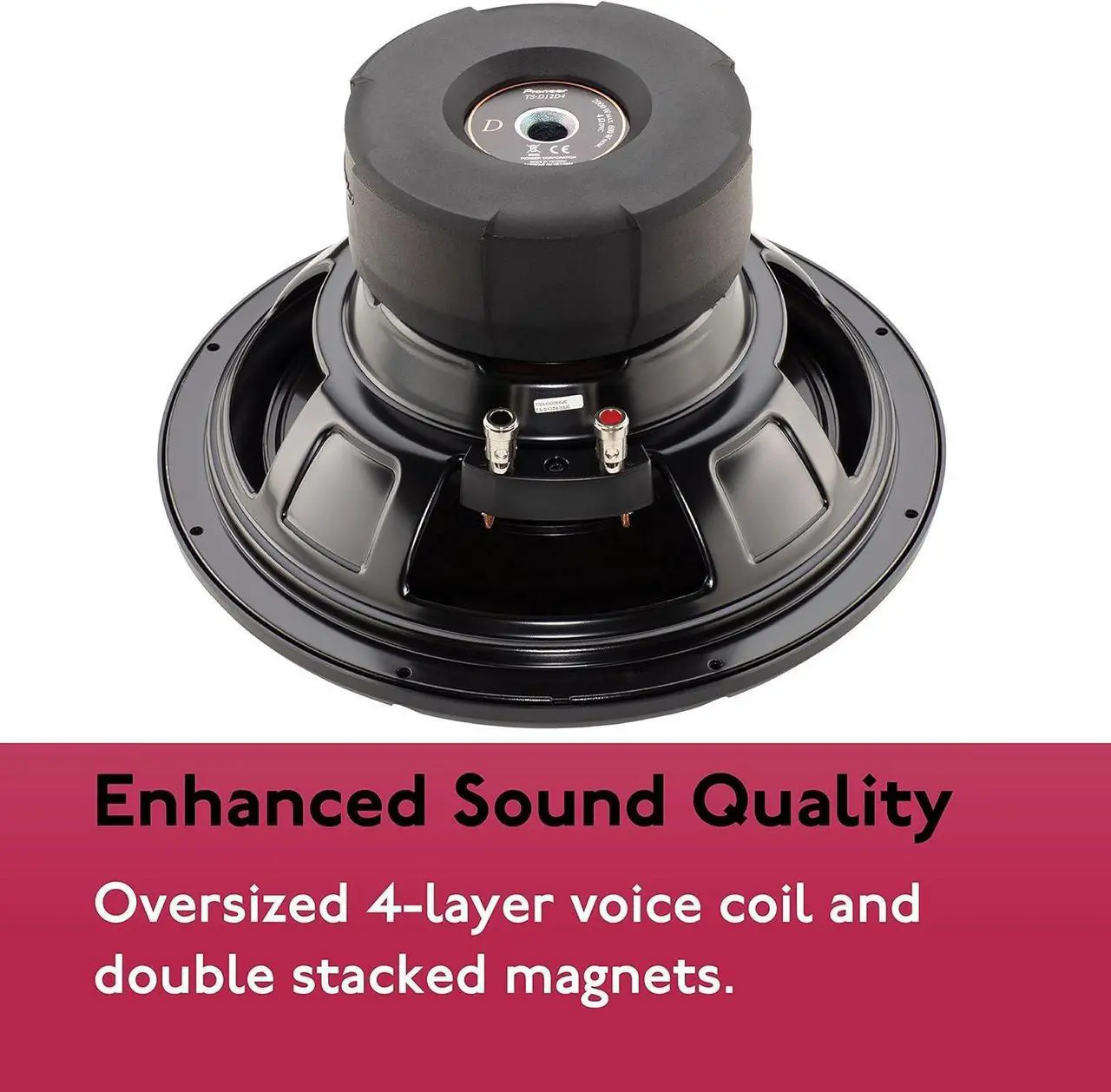

• Dual 4-Ohm Voice Coils


• Speaker Sensitivity: 78 dB (1W/1M)


• Mounting Depth: 6.2” (158mm)


• Recommended Vented Box: 1.2 cu.ft.


• Recommended Sealed Box: 1.0 cu.ft.


• Free Air Resonance (Fs): 34 Hz


• Linear Excursion (Xmax): 1/2", 13 mm


• Cut-Out Diameter: 11-1/8" (28 cm)


• Equivalent Compliance (VAS): 47.9L / 2 cu.ft.


• Total Speaker "Q" (Qts): 0.69


• Stamped Metal Basket for rigidity


• Ferrite Magnet (73.6 oz)


• Push-Type Wire Terminals


• CarSoundFit App Compatible
