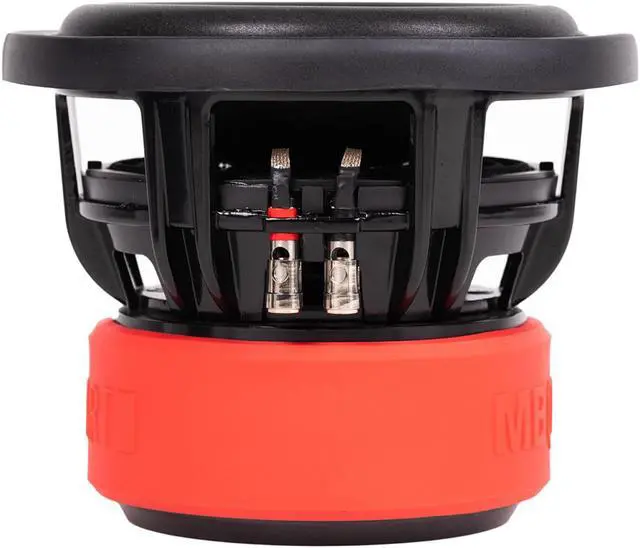

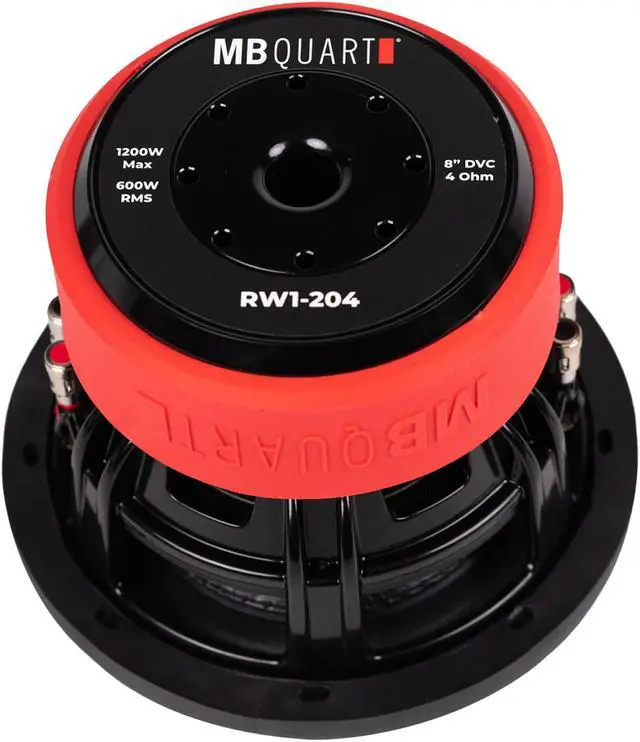

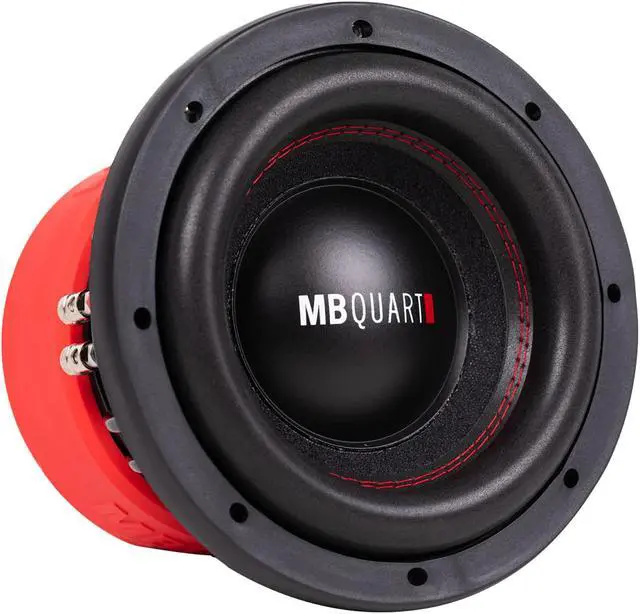

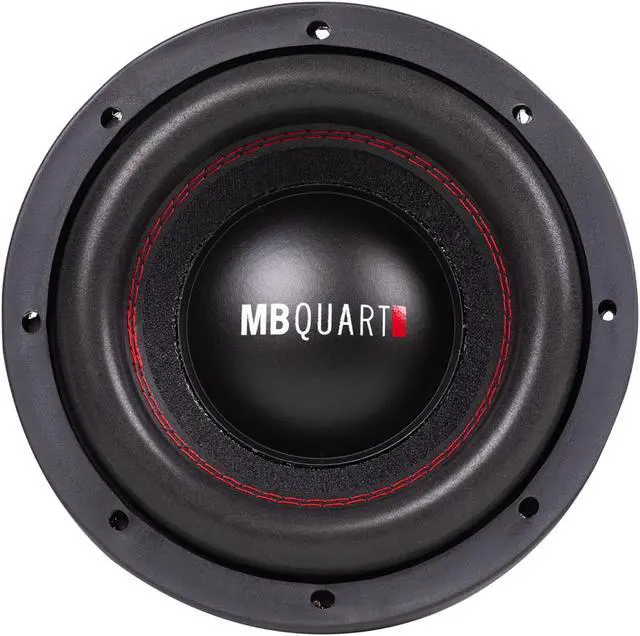

MB Quart RW1-204 Reference 8" mobile 1200 watt Max Power Dual 4 Ohms Subwoofer

MB Quart RW1-204 Reference 8" mobile 1200 watt Max Power Dual 4 Ohms Subwoofer

MB Quart Reference subwoofer with dual 4 Ohm design delivers 1200 watts and features heavy gauge, powder-coated, aluminum die-cast basket.

Features:



Terminal Type

Push & insert style terminals for easy installation.

Configuration

Round

Surround / Cone Coupling

The pressure-treated double stitched foam surround along with the dual poly cotton spider helps keep the piston motion of the subwoofer linear and distortion-free.

Voice Coil / Former Assembly

Vented aluminum former holds a 2.5" voice coil while allowing the heat to be exchanged. (Less heat means less distortion)

Spider

Specialized MB Quart dual poly cotton spider with double centering allows the woofer to handle more power with minimum distortions.

Frame / Venting

Heavy-duty aluminum die-cast basket allows back venting, which exchanges heat with cool air, resulting in more power handling and increased reliability.

Motor

Vented high-energy motor assembly with heavy-duty magnets increases power handling and increases SPL.

Cone

Non-Pressed Paper Cone with Coating

Specifications:

• Weight: 19.7 lbs


• Dimension: 10.5 × 10.5 × 10.5 in


• Type: Subwoofer


• Brand: MB Quart


• Series: Reference


• Category: Mobile


• Color: Black


• Compatible Vehicles: Universal


• Subwoofer Configuration: Round


• Subwoofer Voice Coils: 2


• Subwoofer Impedance (ohms): 4


• Subwoofer RMS Power Handling (watts): 600


• Subwoofer Peak Power Handling (watts): 1200


• Subwoofer Cut-Out (in): 7.4


• Subwoofer Mounting Depth (in): 5.66


• Subwoofer Outside Diameter (in): 8.5


• Subwoofer Sensitivity (1 watt/1 meter): 80dB


• Subwoofer Size (in): 8
