KONNWEI KW210 Automatic Smart 12V Car Battery Tester Auto Battery Analyzer 100 to 2000CCA Cranking Car Battery Tester
- KONNWEI KW210 is mainly targeted to analyze the battery healthy status to calculate the actual cold cranking, capability of the battery and the aging extent, which provide reliable analysis evidence for the test and maintenance of the battery.
- KW210 notifies the users to replace battery in advance when the battery getting aged.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
--- KW210 Battery Tester Features:
1. Fast and smooth running speed with STM32 chip set hardware.

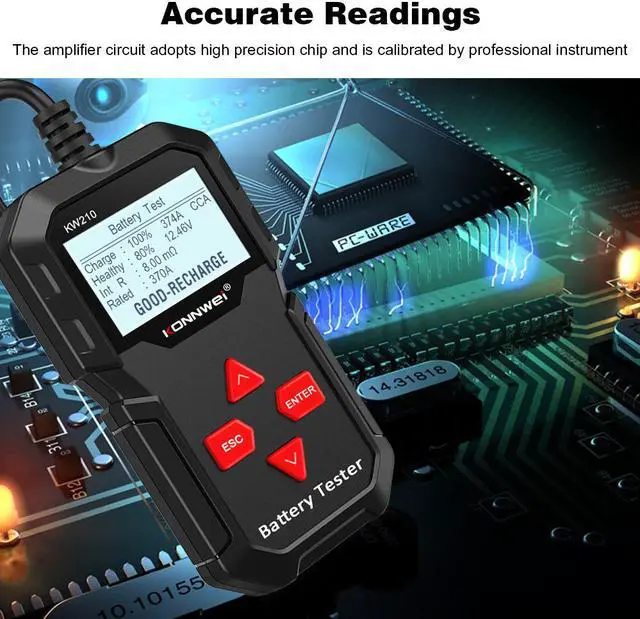

2. Accurate test results, using high precision amplifier and calibrated by professional battery testing tool.
3. Wide testing range cover from CCA 100- 2000 , 30- 220 AH, best in the market.
4. Industry initiative graphical Battery Voltage real time monitoring.
5. Unique battery results display in percentage.
6. Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.
7. Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.
8. Directly test the battery with loss of electricity, no need to full charge before testing.
9. Testing standards include currently the world's majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.

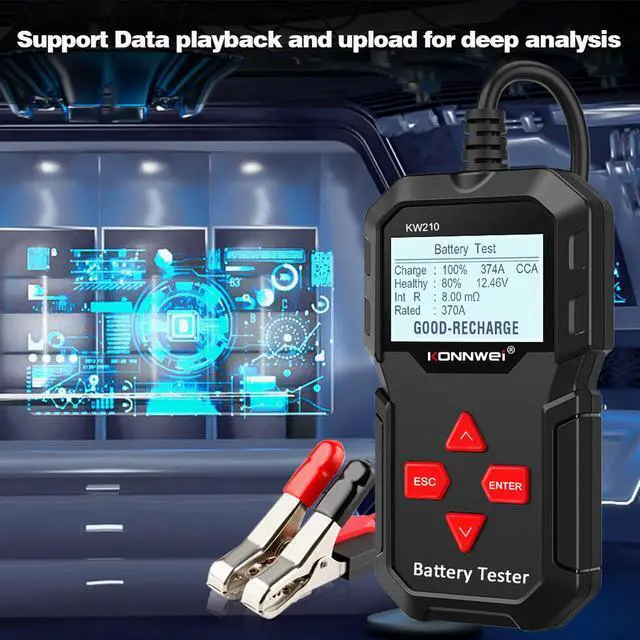

10. Data Storage and upload to PC for printing.
11. Life time upgrade free by one-click smart cloud update.
12. Large color screen LCD display, pattern design.
--- KW210 Battery Tester Functions:
1. Identify battery status Good or Replace
2. Check Battery Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
3. Check Internal resistance value (m)
4. Display Life in percentage (%)

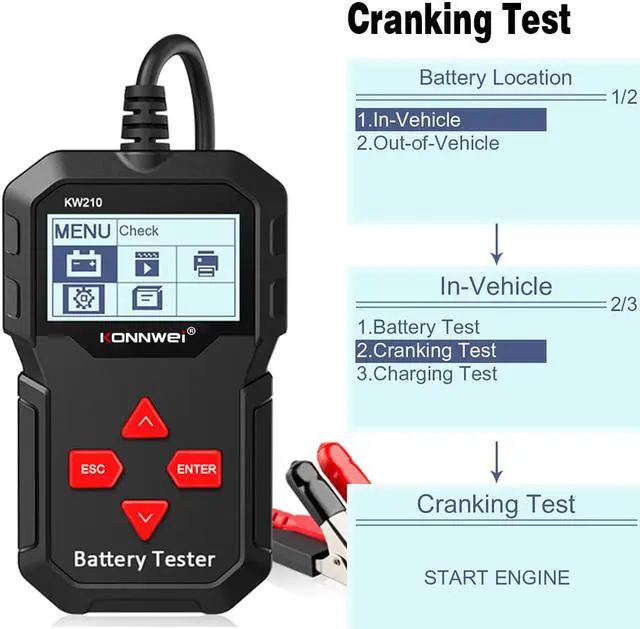

5. Battery Cranking Test, load test
6. Battery Charging Test, Ripple Test
7. Graphing voltage real time monitoring
8. Test results storage and review
9. Print test results and battery report on PC
10. Life time upgrade free
--- KW210 Support Languages:
English, Russian, French, Spanish, German, Italian, Portuguese, Dutch.
--- Application:
Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.
--- Measure Standard:
CCA:100-2000.
BCI:100-2000.
CA:100-2000.
MCA:100-2000.
JIS:26A17-24SH52.
DIN:100-1400.
IEC:100-1400.
EN:100-2000.
SAE:100-2000.
GB:100-1400.
--- KW210 Specification:
1. Display: 2.4'' Color TFT screen
2. Operating Temperature: -20 to 70 Celsius (-4 to 158 Fahrenheit )
3. Power: 9 to 16 V provided via vehicle
4. Supported Battery type: CCA, ICE, EN, DIN, CA, BCI, MCA, SAE, GB, JIS
5. Device Dimensions: 16.5cm x 6cm x 2.5cm
6. Weight: 450g

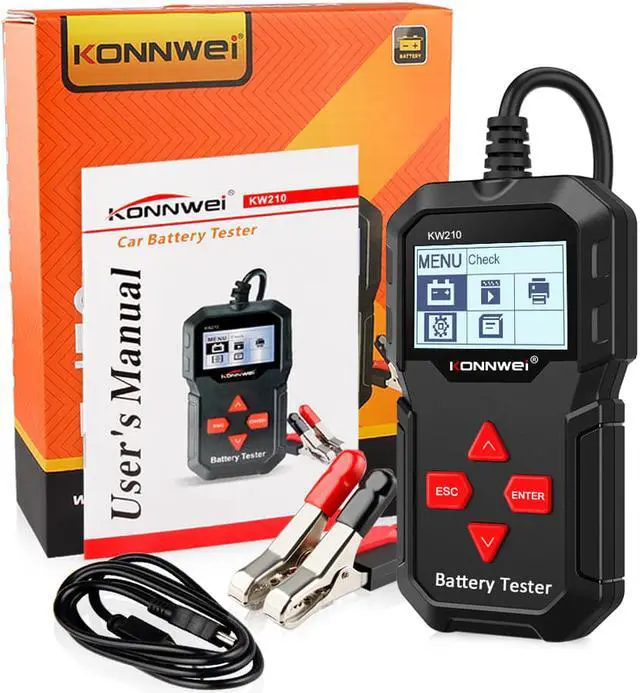

--- Package included:
1* KONNWEI KW210 Battery Tester Unit
1* User's Manual
1* USB Cable for upgrade and print
1* Safe packing box (plastic protection inside)
1. Fast and smooth running speed with STM32 chip set hardware.
2. Accurate test results, using high precision amplifier and calibrated by professional battery testing tool.
3. Wide testing range cover from CCA 100- 2000 , 30- 220 AH, best in the market.
4. Industry initiative graphical Battery Voltage real time monitoring.
5. Unique battery results display in percentage.
6. Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.
7. Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.
8. Directly test the battery with loss of electricity, no need to full charge before testing.
9. Testing standards include currently the world's majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.
10. Data Storage and upload to PC for printing.
11. Life time upgrade free by one-click smart cloud update.
12. Large color screen LCD display, pattern design.
--- KW210 Battery Tester Functions:
1. Identify battery status Good or Replace
2. Check Battery Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
3. Check Internal resistance value (m)
4. Display Life in percentage (%)
5. Battery Cranking Test, load test
6. Battery Charging Test, Ripple Test
7. Graphing voltage real time monitoring
8. Test results storage and review
9. Print test results and battery report on PC
10. Life time upgrade free
--- KW210 Support Languages:
English, Russian, French, Spanish, German, Italian, Portuguese, Dutch.
--- Application:
Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.
--- Measure Standard:
CCA:100-2000.
BCI:100-2000.
CA:100-2000.
MCA:100-2000.
JIS:26A17-24SH52.
DIN:100-1400.
IEC:100-1400.
EN:100-2000.
SAE:100-2000.
GB:100-1400.
--- KW210 Specification:
1. Display: 2.4'' Color TFT screen
2. Operating Temperature: -20 to 70 Celsius (-4 to 158 Fahrenheit )
3. Power: 9 to 16 V provided via vehicle
4. Supported Battery type: CCA, ICE, EN, DIN, CA, BCI, MCA, SAE, GB, JIS
5. Device Dimensions: 16.5cm x 6cm x 2.5cm
6. Weight: 450g
--- Package included:
1* KONNWEI KW210 Battery Tester Unit
1* User's Manual
1* USB Cable for upgrade and print
1* Safe packing box (plastic protection inside)
