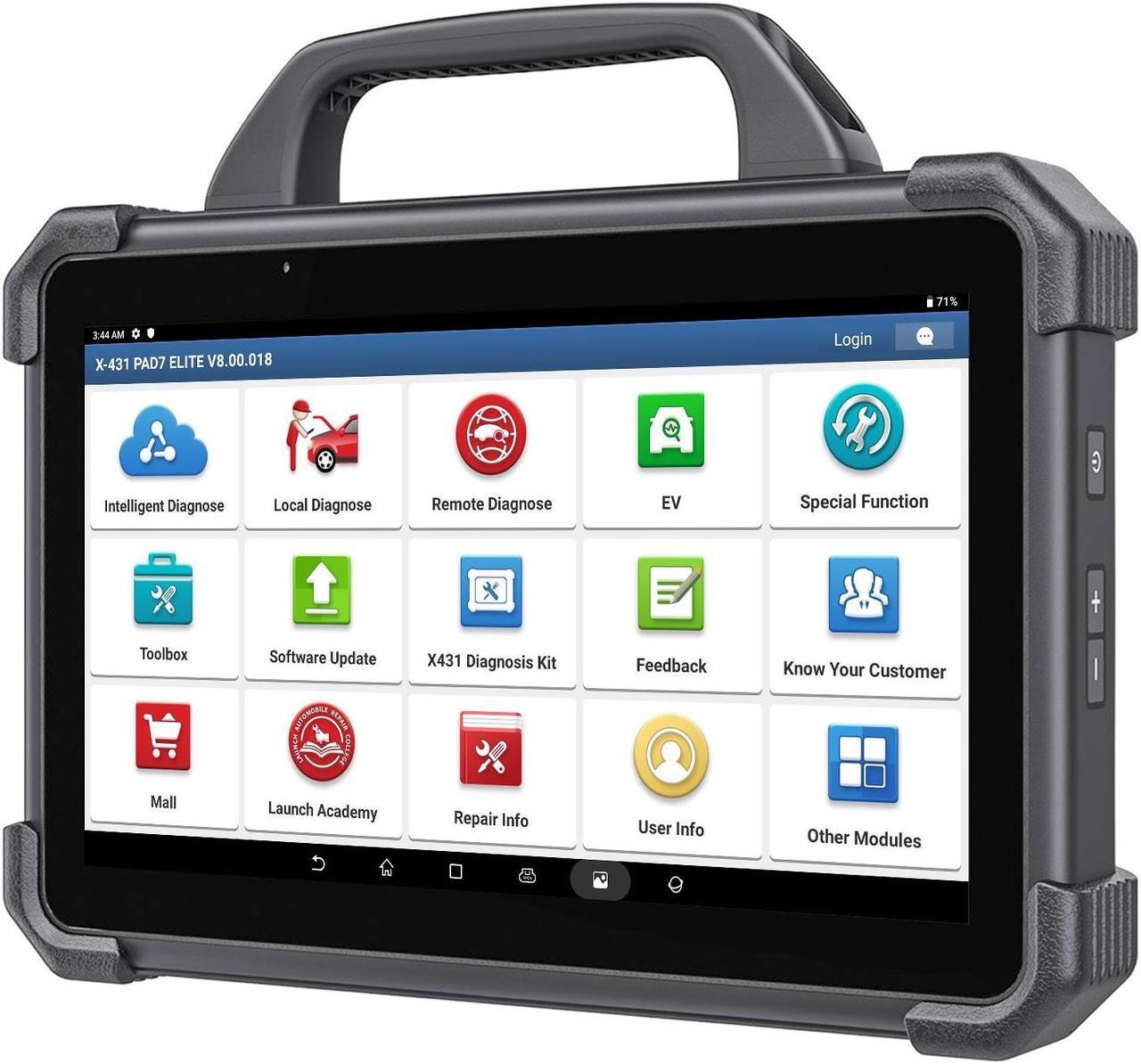

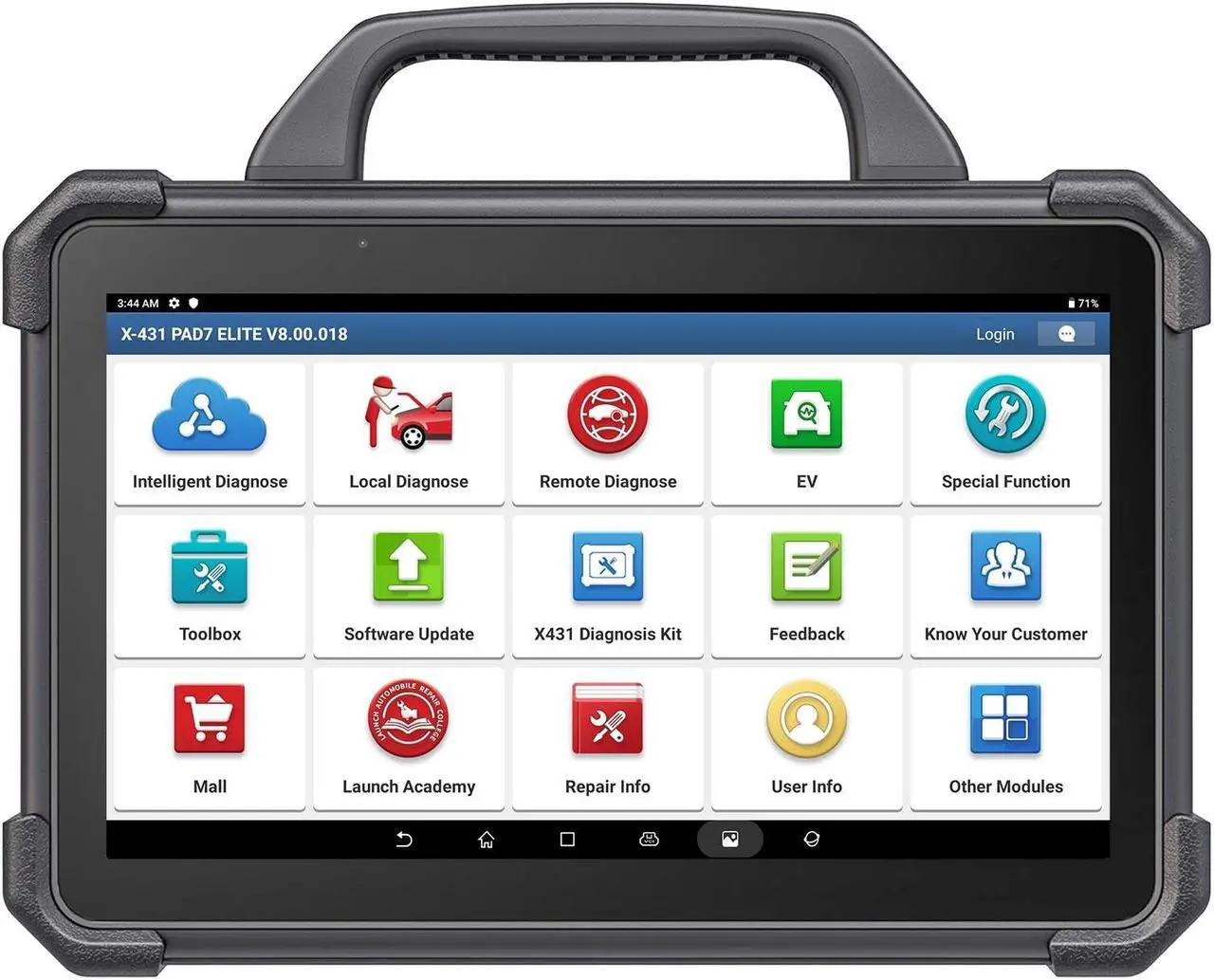

LAUNCH X431 PAD VII ELITE is an unexpected high-end diagnostic tool from LAUNCH, comes with the ADAS calibration function, 60+ service functions, TPMS service, and 8 extended modules functions. New Smartlink C VCI powers technicians a new diagnostic level without the limitation of diagnostic functions, tools, and vehicle types.
LAUNCH X431 PAD VII ELITE (PAD 7) Highlights:
1. With 2 Years Free Update Online
2. Global Version Without IP Limitation
3. Topology mapping gives a visual checking on DTCs and all systems communication status, Guided function for VW and AUDI.
4. Support Commercial Vehicle and Passenger Car Diagnose, Support D-PDU/J2534/RP1210 diagnostic standard, CAN/CAN FD/DOIP protocol.
5. Full System Vehicle Coverage for U.S., Asian and European Markets Over 110 Brands, Which is Continually Updated
6. Multi-Language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese
7. Special Functions Supported: Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
8. Support Online Programming Till Year 2020: BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru. Now online programming function is available in the North American region.Can Not perform in Spain.
9. New Module MALL is Now Available for All Users to Expand and Upgrade Their X-431 PAD VII with More Diagnosis Software.
10. Optional ADAS Calibration Functions ,Need to pay
11. Clone Mercedes Benz ECU 2015 upwards with X431 XPROG III.
12. Online Programming: BMW, Benz; Offline Programming: VW, Audi, Seat, Skoda, Renault, Nissan, Subaru, Hyundai, Kia, Chery, Jaguar, Land rover, Porsche
13. Supports gasoline cars and diesel heavy-duty trucks ,need to purchase truck software separately.
14. Larger memory 8GB, smoother operation; strong light readable screen; support for three defenses
15. FCA AutoAuth Access: Bypass SGM in FCA vehicles seamlessly and within seconds; Need AutoAuth subscriptions
16. Supports Australian Ford and Holden, Brazilian, Indian and Malaysian cars
- Online ECU Programming: Easily reprogram ECU modules on 30+ vehicle brands.
- 3-in-1 SmartLink C Device: Work as VCI to obtain vehicle data; Provide dual diagnostic modes; Act as a J2534 programming device.
- New Protocols: J2534/D-PDU/RP1210 & CAN 2.0/CAN FD/DoIP for faster diagnostics.
- Topology Mapping: Visually show you all system relationships and DTC in color topology.
- OBD PIN Detection: Detect the vehicle protocols and OBDII pin voltage status to help technicians judge the OBD2 interface.
- Diagnostic Plan: Provides a plan to guide you on how to repair based on the currently detected fault codes.
- User Information: A large amount of diagnostic data is well stored in this module, including Reports, Order, Live Data Stream, etc.
- 60+ Reset Functions: Cover various Reset/Relearn/Match/Calibration for 99% of cars.
- Wider Coverage: Serve commercial vehicles and 99% of passenger cars (up to 200 brands).
- Higher Updating Frequency: Timely one-click updating could fix all the bugs and bring newer models.
- VAG Guided Functions: Skip the Security Access Code & Channel Number to perform matching, calibration, and make basic settings.
- Bi-directional Control: Quickly pinpoint the vehicle problems of windows, doors, sunroof, etc.
- [5G WiFi Communication] automatically connects within 20 meters, far better than traditional BT connection in transmission rate, diagnostic distance, and anti-interference.
- [Universal Physical Interfaces] include USB Type C, USB Type A, Micro-SD, Micro-SIM slot (LTE version), etc.
- [Patented Dual Diagnostic Modes] work on both local diagnostics & remote diagnostics.
- Core Processor + Android 9.0 OS] enhance the diagnostic speed of the multi-task process.
- [8+256GB Memory] ensures the smooth multi-task operation and keeps all the customer information, diagnostic data & files, and repair recordings.
- [13.3' Touchscreen with 1920*1080] gives you a smoother view experience.
- [IP65 + Corner Protectors] more waterproof and more resistant to falls
Notes:
1. After 2 Years, need to buy Software Subscription.
2. Can Not Support Online Programming In Spain, Canada, Portugal, Other Countries Won't Have This Problem
3. PAD VII Elite Can Support ADAS Calibration, But Clients Need To Buy the ADAS Devices To Make It. Without ADAS Devices, Can Not Do ADAS Calibration by PAD VII Elite Only
Serving as an upper-level function that not only creates the vehicle's potential but also increases your profits. These PAD 7 Elite automatic functions save us work & time and allow us to concentrate on our driving experience.
Component Matching: Match the ECU modules after changing and replacement.
Flash Hidden Functions: Activate advanced functions or Disable Vehicle Functions: like Deactivating the Start/Stop Function; Beeping When Unlocking and Locking; Seatbelt Warning Sounds; Mirrors Automatically Folding and Unfolding; and more.
Online Coding: enables you to access the online data from the OEM server to do high-level repairs, such as online coding for BMW, VW, Skoda, Infiniti, Nissan, Hyundai, etc.
Please note:
Online Programming: Please reach us to get the "X431 PADVII online programming activation method".
J2534 Reprogramming: Note: Reach us to get the J2534 Operation manual.
1.VAG Guided Functions: Skip the Security Access Code & Channel Number to perform matching, calibration, and basic settings for VW / Audi / Skoda / Seat.
2.Component Matching: Rematch (control module unit) after the replacement for VW / Audi / Skoda / Seat / BMW / Chrysler / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
3.Power Balance: Identify the less productive cylinder for Chrysler / GM / Ford.
4.Programmable Module Installation (PMI): Ensure the correct software/calibration and configuration data are loaded onto the new module after replacement for Ford / Mazda.
5.Personalization: Compatible with BMW / Porsche / Toyota / Subaru.
6.Online Calibration: For some car systems calibration. Compatible with VW / Audi / Skoda / Seat.
7.Online Account Login Service: Access to the login codes for coding, matching, and basic settings of all available systems.
8.Online Parameterization and many more are coming soon; expanding regularly.
Oil Reset, Injector Coding, Brake Reset, SAS Reset, BMS Service, ABS Bleeding, Throttle Matching, TPMS Reset, DPF Reg, Gear Learning, AFS Reset, EGR Adaption, Gearbox, Sunroof, SUS Reset, Windows Calibration, Seats Calibration, Language Change, A/F Reset, Coolant Bleed, Transport Mode, Adblue Reset, NOx Sensor Reset NOx, Stop/Start Reset, Headlamp Fitting, Seat Matching, Door & Window Initialization Study, Air Suspension Matching, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change, and more.
**Cover the majority of makes and models worldwide up to 2018/2019/2020/2021; still growing.
**Function menus vary by your vehicle's make and model year.
The Smart Topology Module Mapping in this diagnostic tool allows you to directly view the color-coded topology display for all communication structures between vehicle modules, and click to check the fault code, saving the hassle of toggling menus back and forth to find what you want.
- It is the first application of topology module mapping in the field of automotive diagnostics. In terms of visual aspect, LAUNCH X431 PAD VII ELITE shows different health statuses in different colors and shows the structure of communication between modules. In the aspect of ease of use, it enables you to press the system module to access the system and display the relevant DTCs.
FCA Secure Gateway
LAUNCH X431 PAD VII ELITE automotive diagnostic scanner provides a trustworthy authority for technicians, car dealers, automotive engineers, and service shops to undo the SGW and perform all the necessary repair procedures.
Active Test / Bidirectional Control
LAUNCH X431 PAD VII ELITE performs the active test, which bypasses the onboard control systems to send commands to modules to perform specific tests. By monitoring their responses, you can precisely locate the faults, and shorten the troubleshooting time without tearing the vehicle apart. It can:
- Rolling up / down a window;
- Turning the fuel pump on and off;
- Cycling the a/c clutch on and off;
Pin Detection
This module allows you to detect the voltage of the vehicle OBD II diagnostic socket pins and the supported protocol types to help technicians judge the OBD II diagnostic interface.
Note: Before performing this function, please make sure that SmartLink C is properly connected to the vehicles DLC port.
Supports Extended Function Modules:
- VSP-600 VideoScope: for up-close visual inspections in confined areas.
- X-PROG & X-PROG3 Immobilizer: for key programming & IMMO service.
- S2-2 SensorBox: diagnose and simulate vehicle sensor faults quickly.
- O2-1 ScopeBox, Oscilloscope: quickly acquire the circuit signal, and slowly display the waveform for easier analysis.
- X-431 Wi-Fi Printer: print out diagnostic data & reports.
- X-431 TSGUN: activate all sensors, relearn & program LAUNCH sensors.
- BTS360 Bluetooth Battery Tester: get a thorough test of the vehicle battery.
Need extra costs to buy these function modules.
The Launch Tech X-PROG 3 Immobilizer and Key Programmer Tool is a chip reading device capable of EEPROM reading and writing as well as offers IMMO functionality, key programming, and other advanced features for North America, Asian, and European vehicles. Additionally, the X-PROG 3 is compatible to work with Launch scan tools to perform key and chip programming, such as the X-431 V, X-431 V+ V4.0, X-431 PRO 3 V4.0, X-431 PRO 5, X-431 PAD III V2.0, X-431 PAD V, X-431 PAD VII.
1. Compatible with X-431 series diagnostic scanners, X-PROG 3 enables reading/writing EEPROM, on-board MCU and BMW CAS4+/FEM chips, Mercedes-Benz infrared keys, generating special keys, reading BMW engine INS code.
2. Supported brands: VW, AUDI, SKODA, SEAT, BMW, MERCEDES-BENZ, TOYOTA, etc. More models continue to be updated.
3. Supported systems: Automatic Transmission, Instrument System, CAS, Body System, Lock System, etc.
4. Compatible with: X-431 V, X-431 V+ V4.0, X-431 PRO 3 V4.0, X-431 PRO 5, X-431 PAD III V2.0, X-431 PAD V, X-431 PAD VII
5. Reads & writes most Engine/Gearbox ECUs without disassembling the shell
Advantages:
1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for the fifth-generation of Audi (0AW/0B5) gearbox.
4. Supports reading, writing & cloning the ECU for the fourth-generation of VW UDS engine.
5. Supports BMW E chassis 8HP gearbox ECU reprogramming to empty.
6. Works with reprogramming device to backup/restore programming data (For Bosch/Siemens engine ECU).
| Operation System | Andorid 9.0 |
|---|---|
| CPU | Octa-core processor, 2GHz |
| Display | 13.3 inch IPS capacitive touch screen with 1920 x 1080 resolution |
| Memory | 8GB |
| Storage | 256GB |
| Camera | 13MP rear-facing camera (Auto focus), Front 8MP |
| Connectivity | Wi-Fi: 2.4G/5GHz dual frequency, Universal serial BUS ports (1 x Type-C + 1 x Type-A) |
| HDMI | MicroHDMI out |
| Speaker | Two 1.5W speakers |
| Storage Temperature | -20 degree C ~ 70 degree C |
| Working Temperature | 0 degree C ~ 50 degree C |

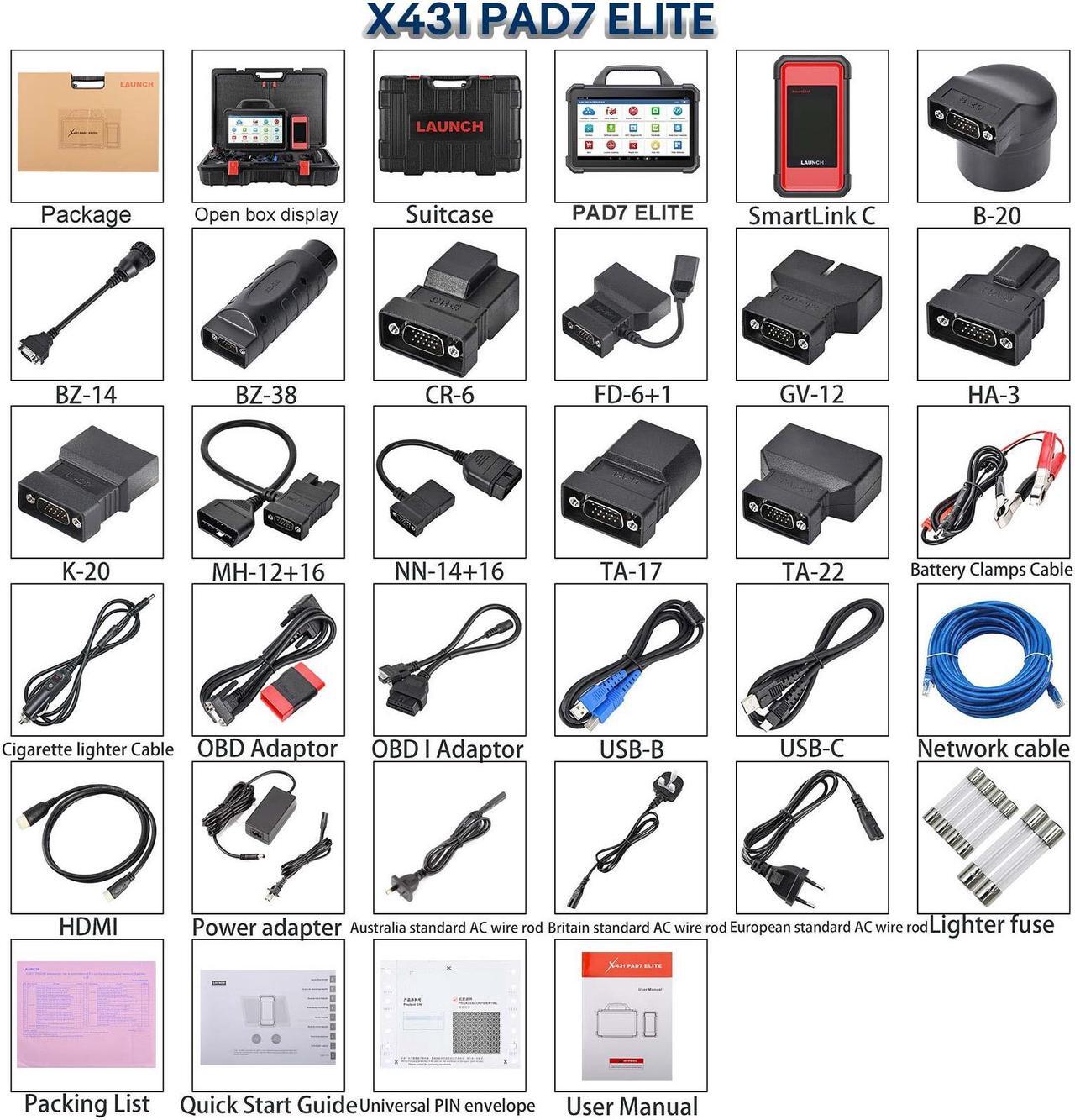

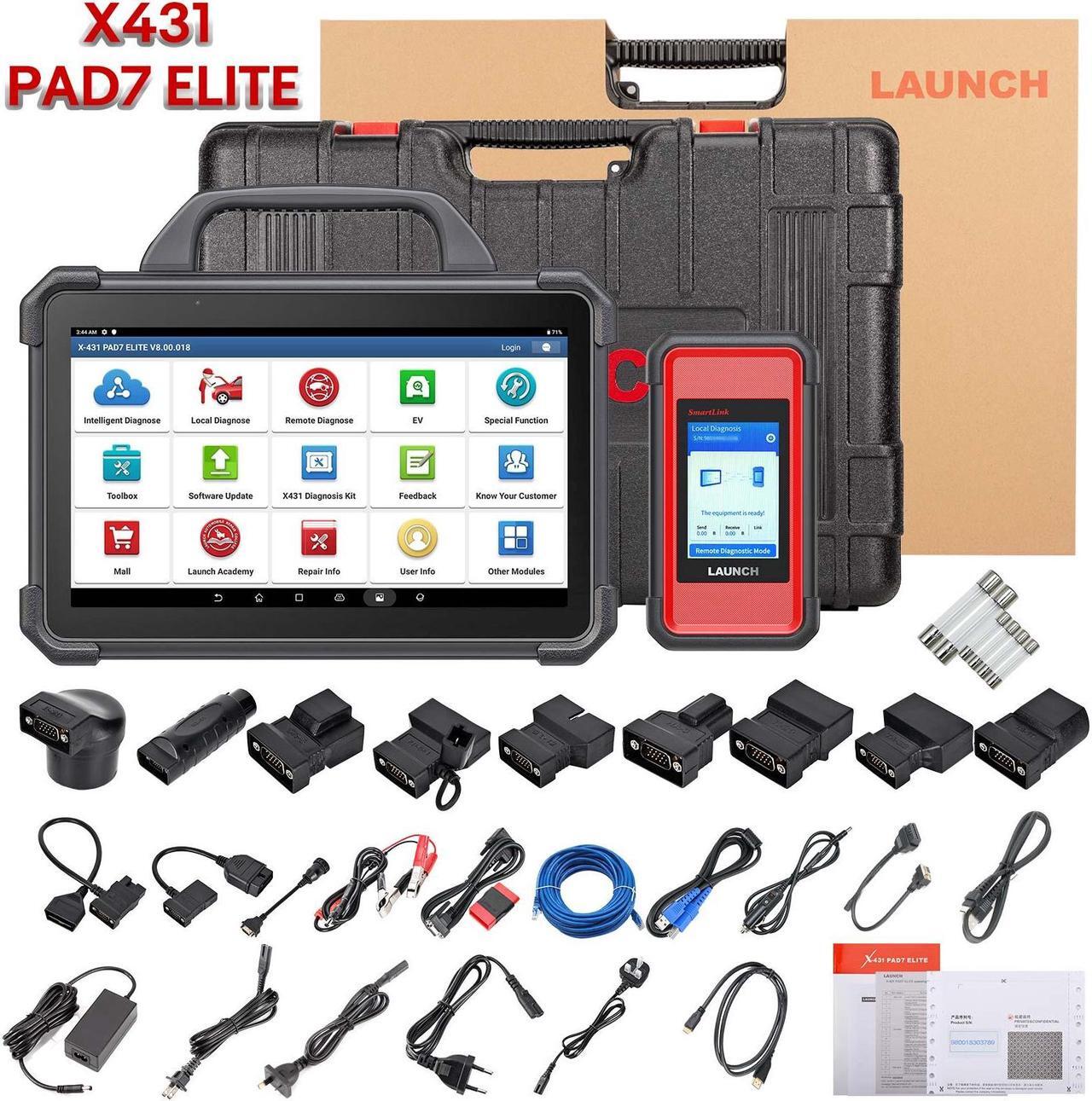

LAUNCH PAD VII Elite Package List:
1x X-431 PAD VII Elite main unit
1x Smartlink C diagnostic connector
1x Micro USB cable
1x Cigarette lighter cable
1x 5V DC out power adaptor
1x Battery clamps cable
1x OBD II extension cable
1x Non-16pin connector converting cable
1x Password envelope
1x Non-16pin connectors set
1pc x Launch X-PROG 3
1pc x Power adaptor
1pc x Main diagnostic cable
1pc x The fourth-generation data acquisition cable
1pc x The fourth-generation of EEPROM data acquisition cable(without dismantling dashboard)
1pc x BENCH mode cable
1pc x MCU converter V1
1pc x MCU converter V2
1pc x MCU cable with multiple leads
1pc x EEPROM chip adaptor
1pc x Benz infrared analog acquisition key
1pc x MCU cable with multiple leads
1pc x EEPROM converter
1pc x User Manual
