NOTE:
1. Compatible with X431 V+, Launch PAD V, X431 Pro3S+, X431 Pro3 V4.0, X431 PRO5
2. LAUNCH i-TPMS has the same function as TSGUN. Still, with the additional function of connecting to the cell phone, it can complete tire pressure activation, programming and ID copying on the cell phone anytime and anywhere.
3. The newest LAUNCH i-TPMS user manual please check here>>>>
4. Can be Bound with X-431 Scanner or with the i-TPMS APP Supports All 315/433MHz Sensors

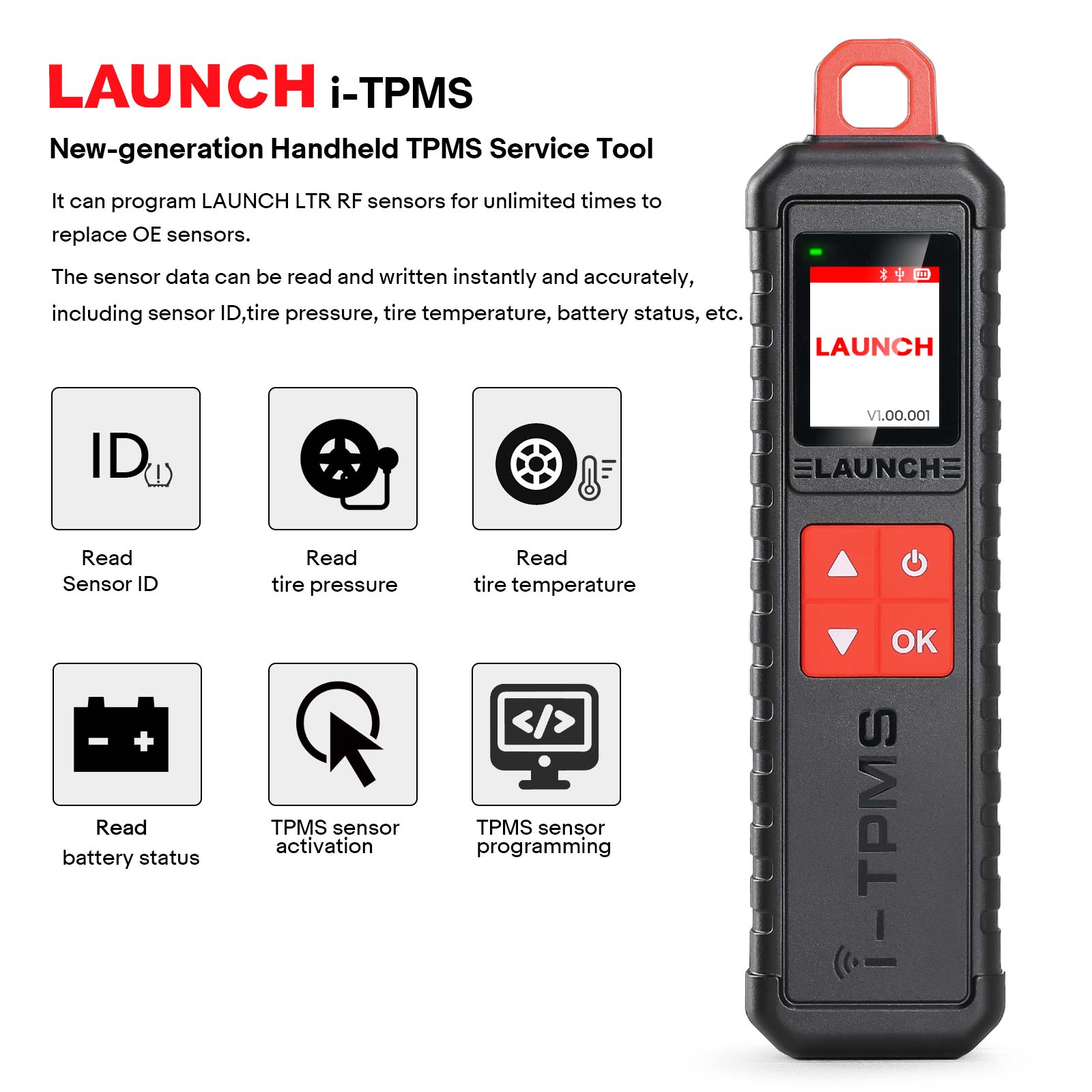

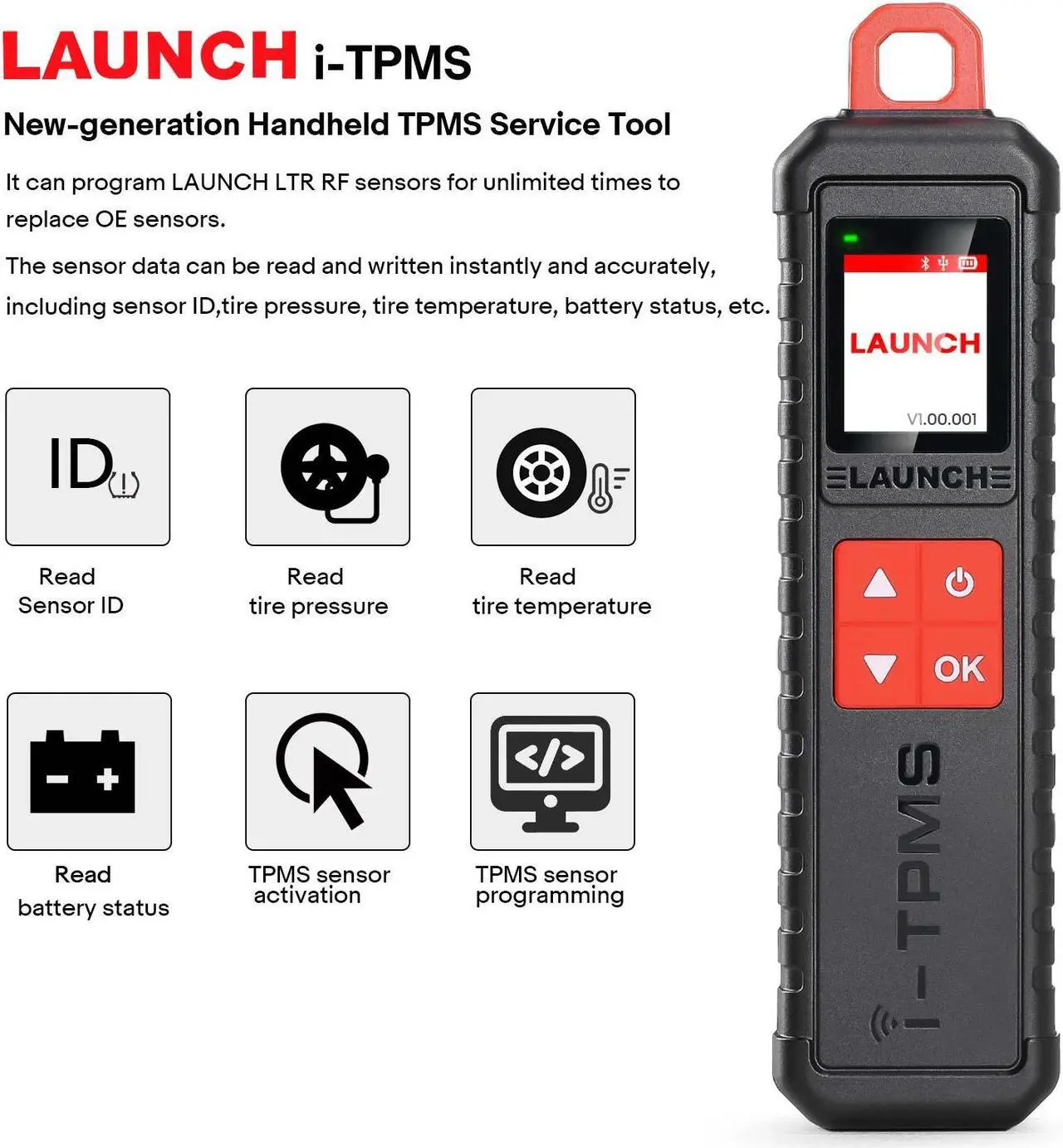

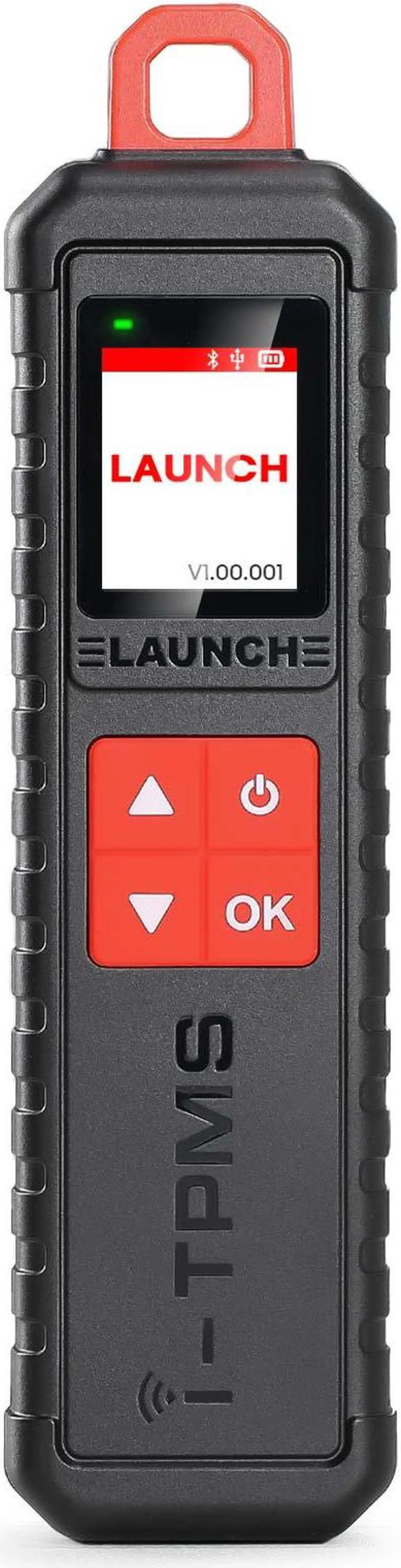

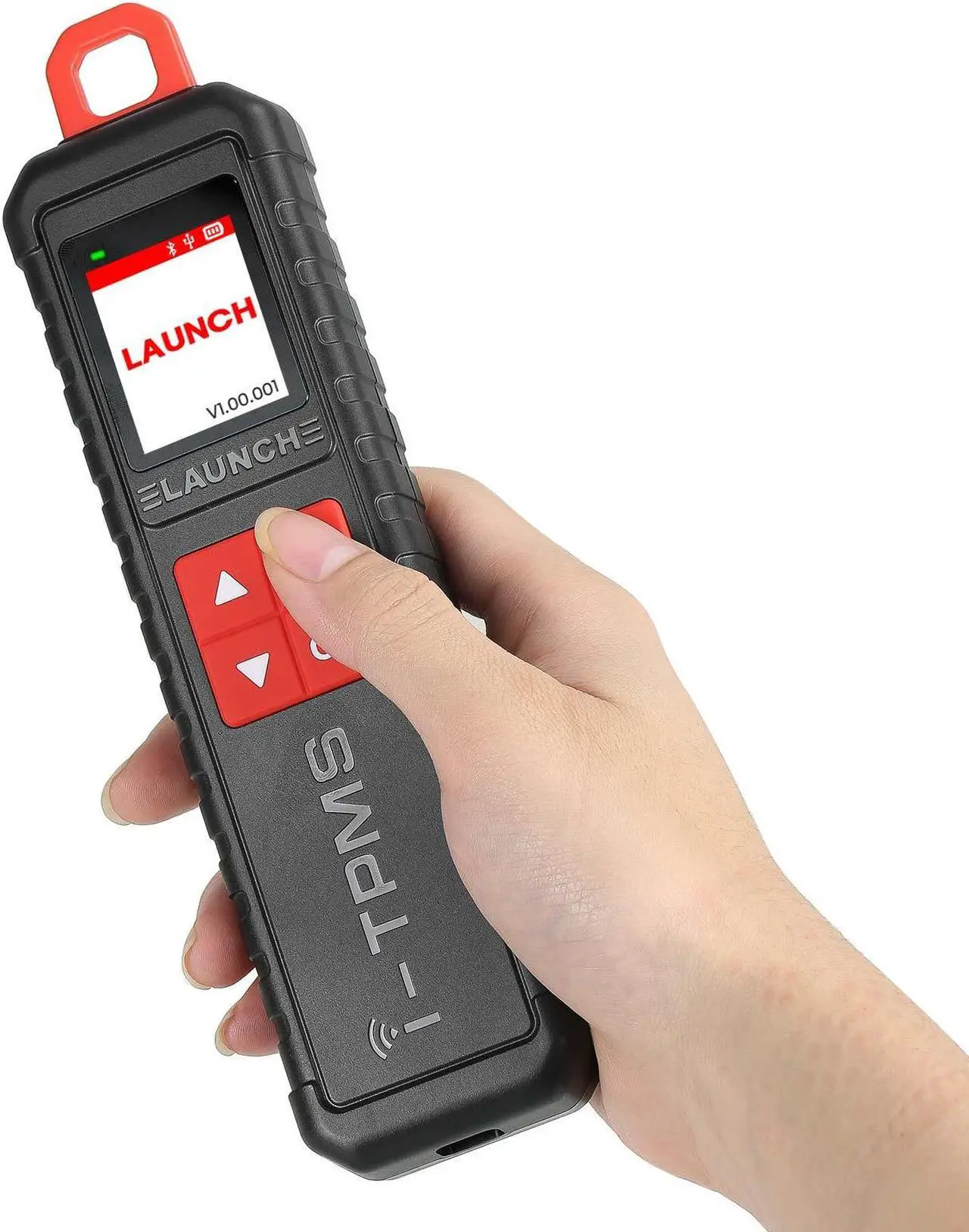

Launch i-TPMS provides professional and comprehensive TPMS services for repair shops to develop their TPMS business. It can program LAUNCH LTR RF sensors for unlimited times to replace OE sensors. The sensor data can be read instantly and accurately, including sensor ID, tire pressure, tire temperature, battery status, etc
Launch i-TPMS Features:
The i-TPMS serves over 98% of mainstream vehicles with a TPMS-equipped system available on the market.
Experience TPMS service by binding it with an X-431 scanner or using it standalone with the i-TPMS APP.
Supports all 315/433MHz sensors.
Binding it with an X-431 scanner: Activation, Programming, Relearn and Diagnosing for sensors.
The standalone mode working with the i-TPMS app: Activation and Programming for sensors.
Supports unlimited programming for LAUNCH sensors to replace OE sensors.
Supports activate and program Autel MX-Sensors
No activation requires.
i-TPMS mobile APP Function:
Brand new mode, combined with i-TPMS mobile APP can
Replace the tire pressure sensor
Activate sensor
Program sensor ID
Query sensor OE part number
Generate tire pressure detection reports, etc.

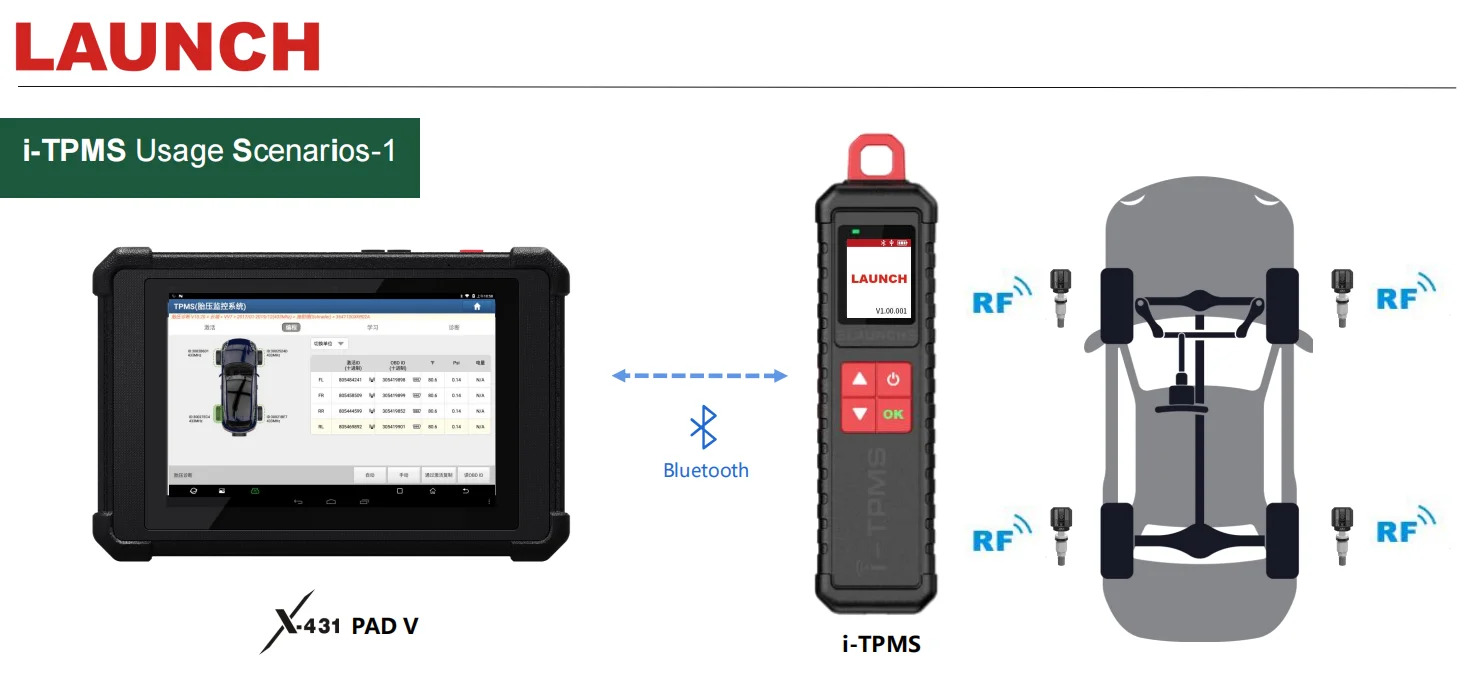

1.When use i-TPMS with Launch X431 tablets
i-TPMS can activate, program, diagnose, and learn tire pressure after connecting to the diagnostic equipment via Bluetooth.

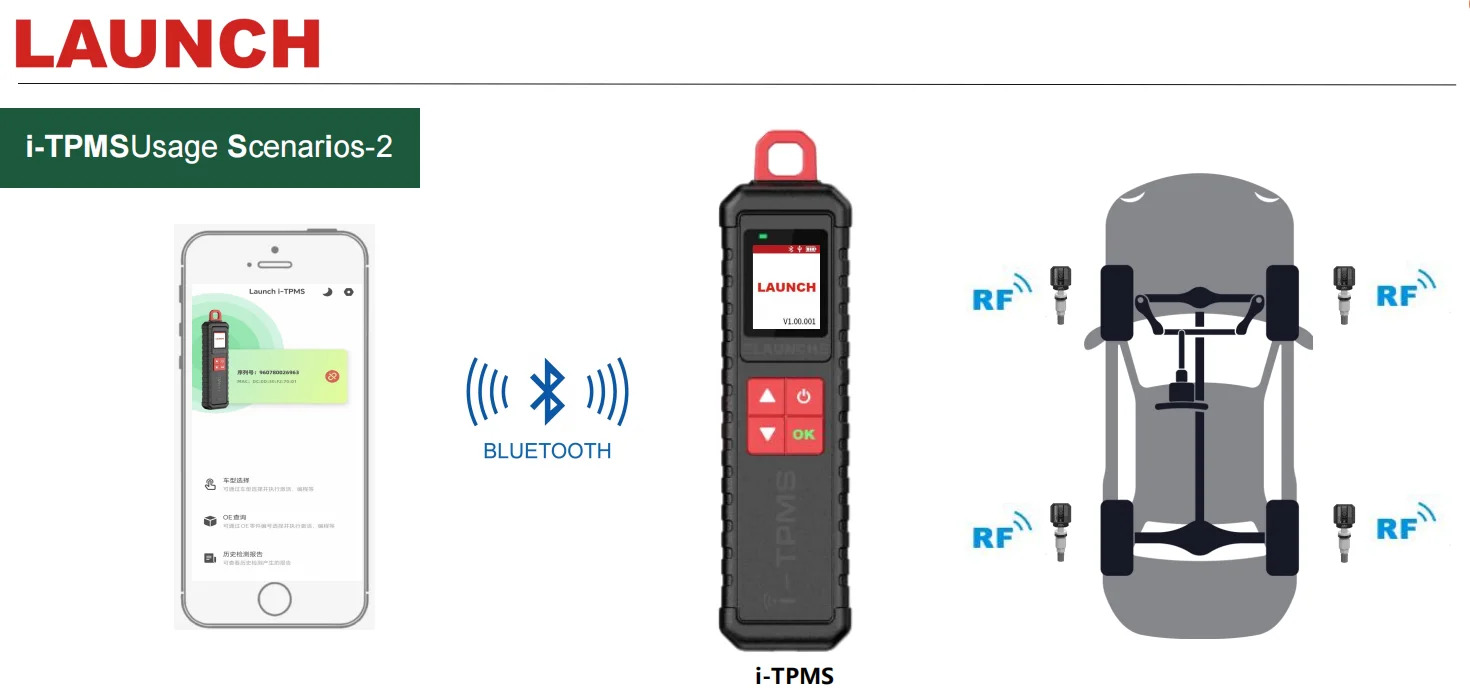

i-TPMS can be connected to i-TPMS mobile phone app via Bluetooth to activate tire pressure, program and copy ID. i-TPMS can be connected to i-TPMS cell phone APP through Bluetooth to activate, program and copy the ID of tire pressure.

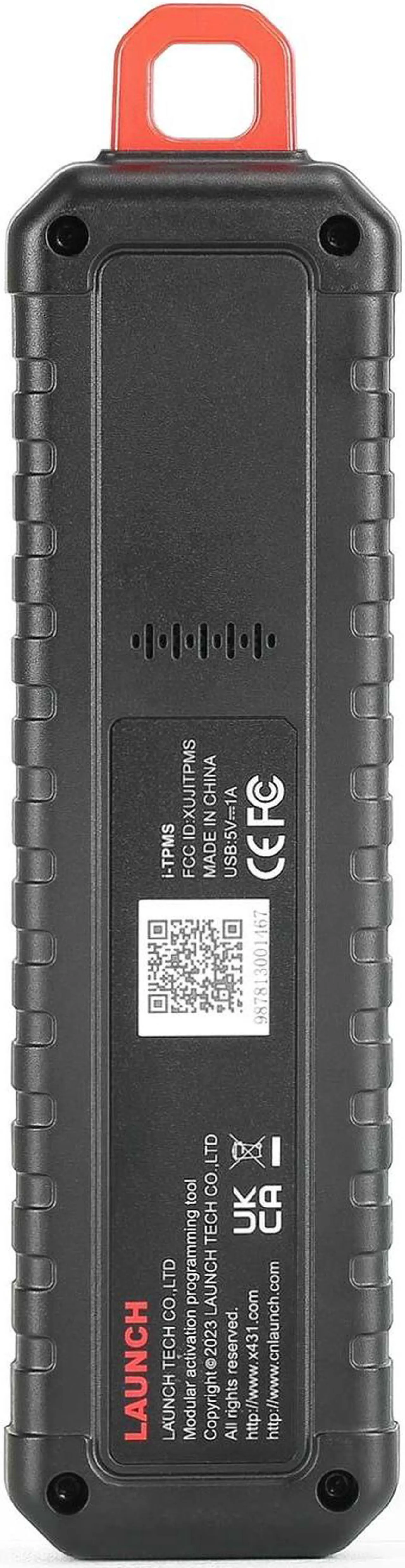

For Android system smartphone user, scan the following QR code or the QR code on the back of the i-TPMS device to download and install the i-TPMS app on the phone.
| Display | 1.77 inch 168*128 |
|---|---|
| Battery | 2000mAh |
| OBDII Input Voltage | 9V ~ 18V |
| DC Input Voltage | DC 5V |
| Working Temperature | -10 Degree C - 50 Degree C |
| Storage Temperature | -20 Degree C- 60 Degree C |
| Working Current | Less than 1A |

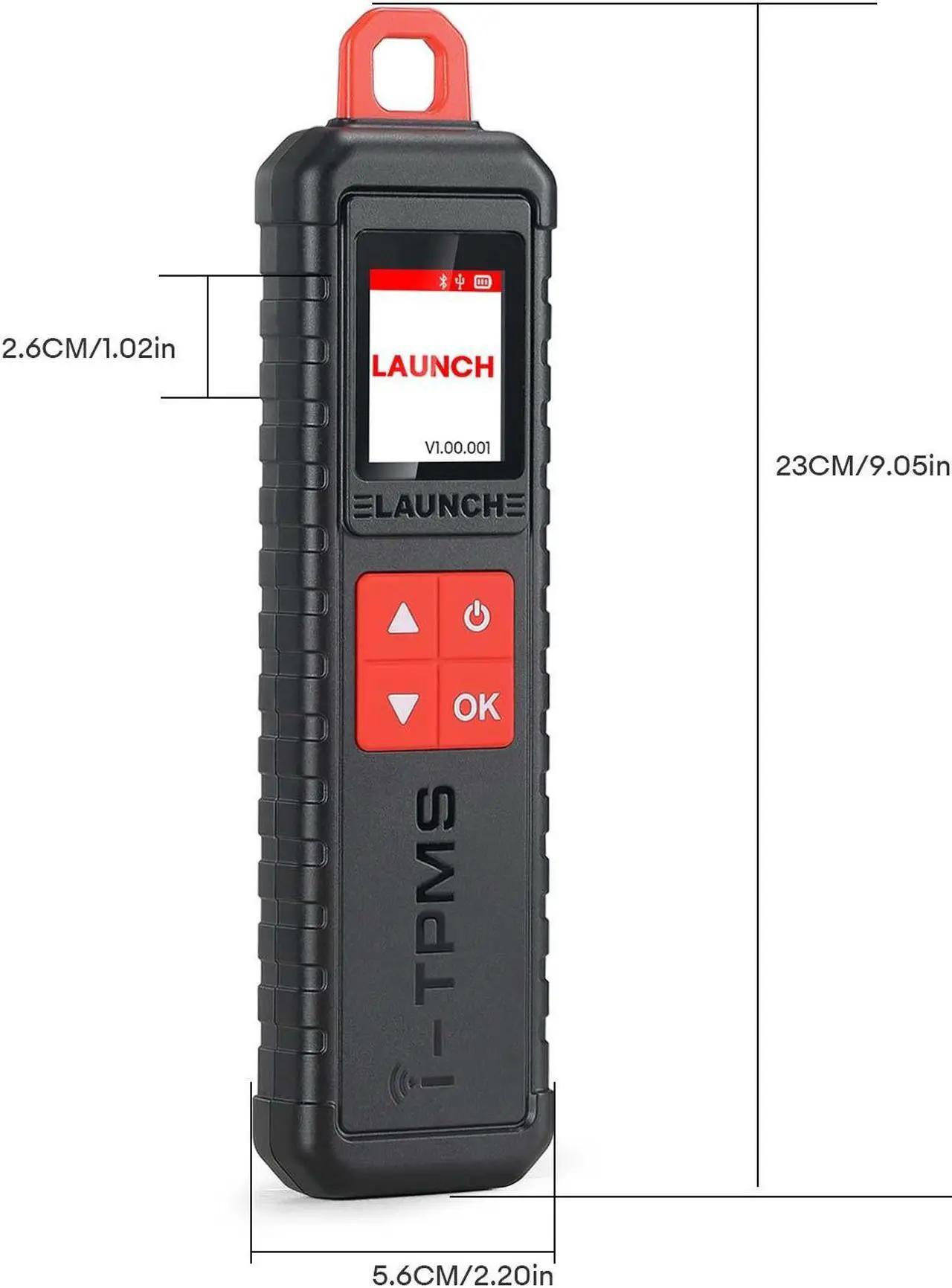

| Dimension | 252*54*30 (mm) |
Launch i-TPMS Service Tool FAQs:
Q: Why does my i-TPMS always stay on welcome screen?
A: If the device keeps displaying the welcome screen, it indicates that it is not in TPMS function mode. If the diagnostic tool is performing the TPMS function, the device will switch to the corresponding function mode.
Q: Can I set the system language of my i-TPMS ?
A: It varies with the system language of the diagnostic tool/smartphone that connects it. Currently only English and simplified Chinese are available on the device. If the detects the system language device of the diagnostic tool/smartphone is non-Chinese, it will change into English automatically no matter which language the diagnostic tool/smartphone is set as.
Q: Why does my i-TPMS automatically power off?
A: Please check the following:
Whether the device is fully discharged.
If the device is not being charged and there is no operation on the device for 30 minutes, it will automatically power off to conserve battery power
Q: My i-TPMS can not trigger sensor.
A: Please check the following:
Whether the device is damaged or defective.
Whether the sensor, module or ECU itself may be damaged or defective.
The vehicle does not have a sensor even though a metal valve stem is present. Be aware of Schrader rubber style snap-in stems used on TPMS systems
You device may require a firmware upgrade.
Q: What to do if my i-TPMS encountered some unexpected bugs?
A: In this case, a firmware upgrade is required. On the TPMS version selection screen, tap Firmware Update to upgrade it
Q: What is the difference for Launch i-TPMS and TSGUN?
A: They share the same function. TSGUN must combine with X-431 scanners. It is not standalone. i-TPMS works standalone via phone App, it also combines with X431 scanners.

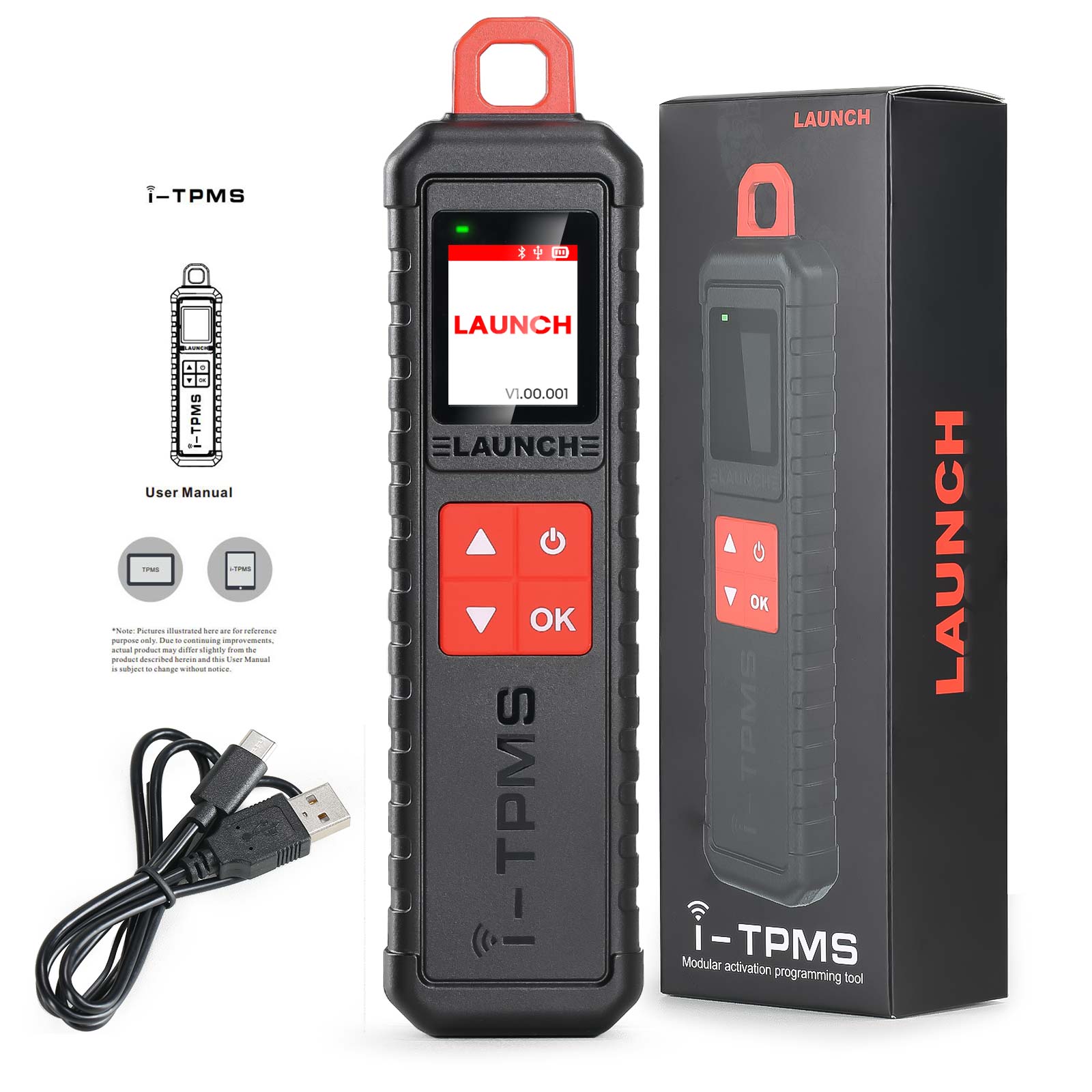

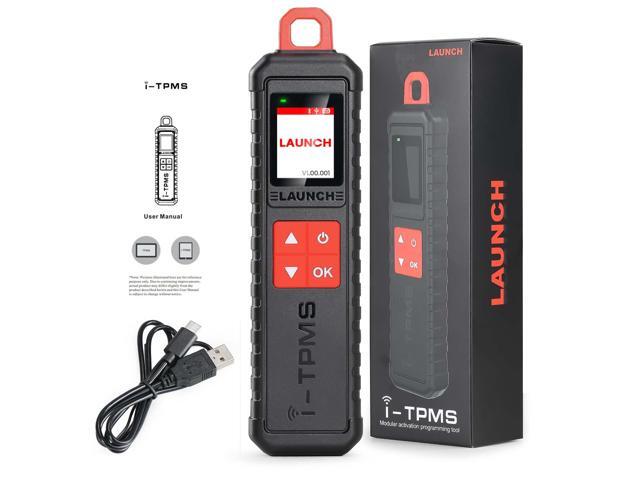

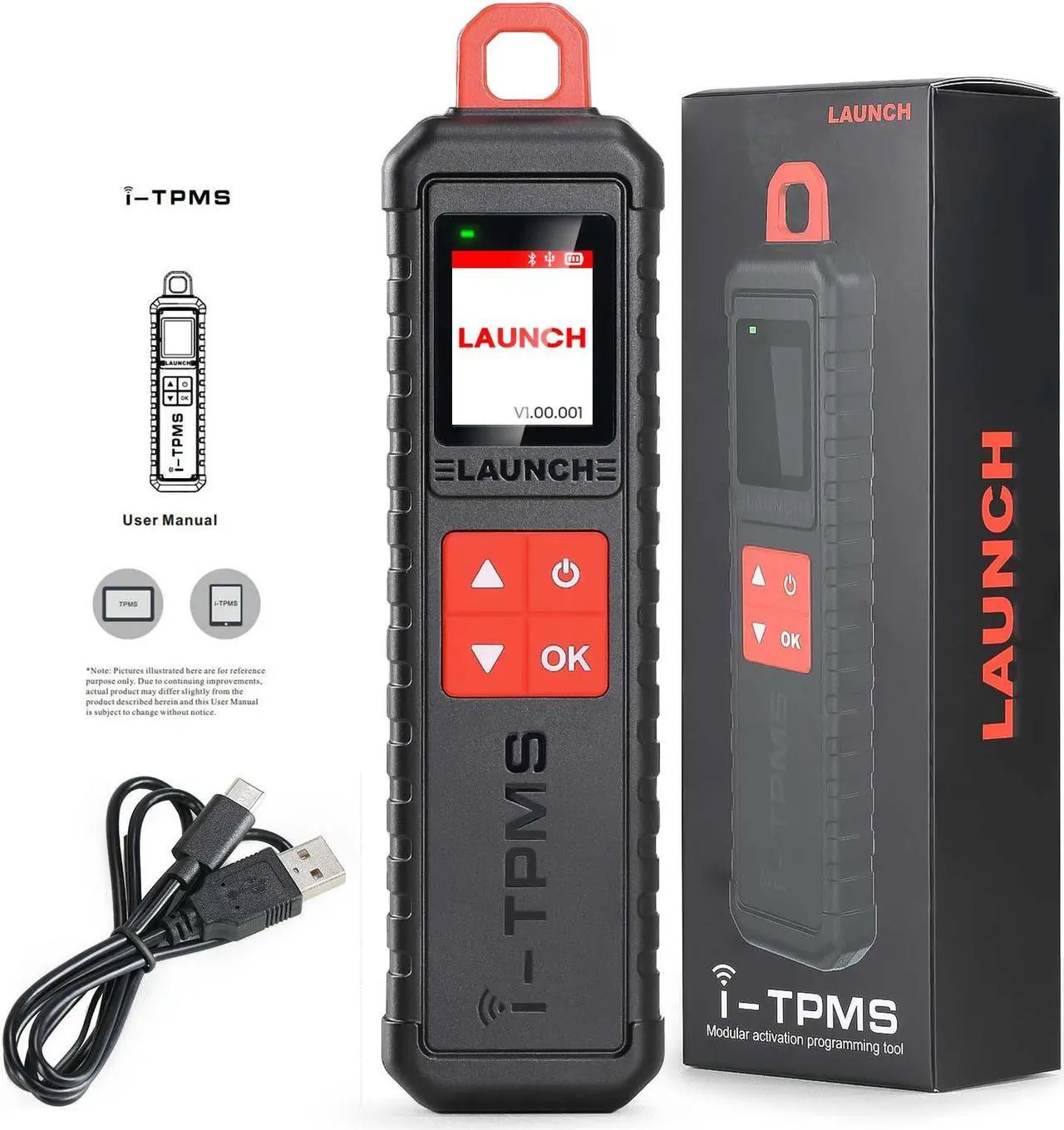

Package includes:
1pc x i-TPMS device
1pc x charging cable
1pc x manual
