Advanced Circuit Tracing

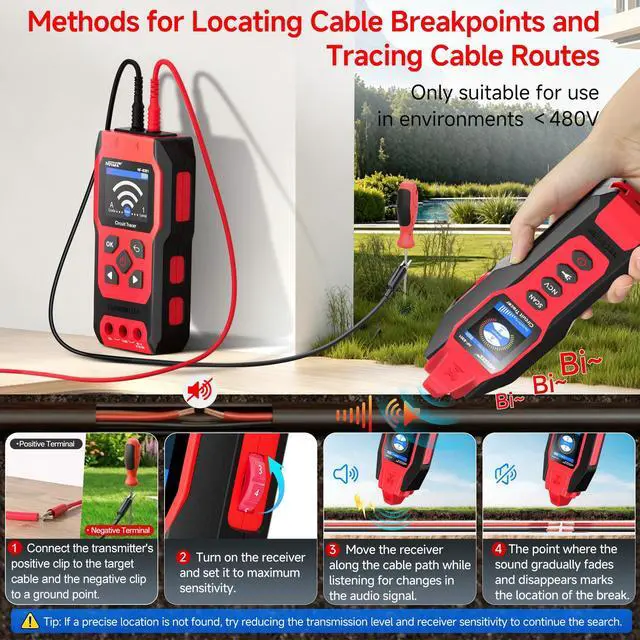

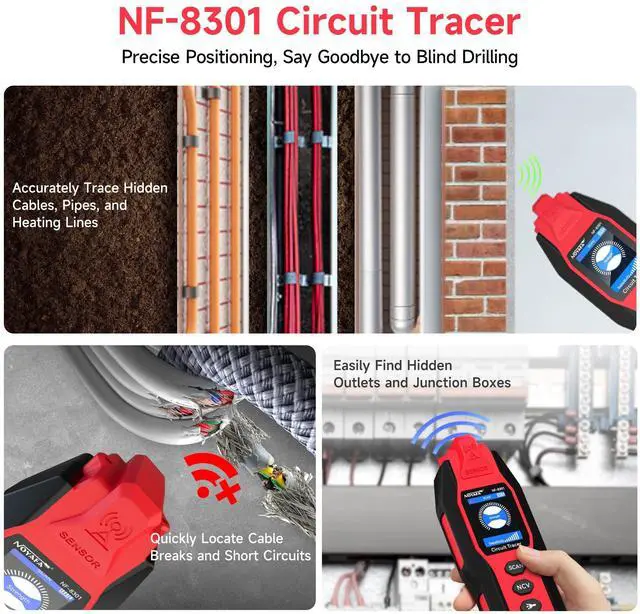

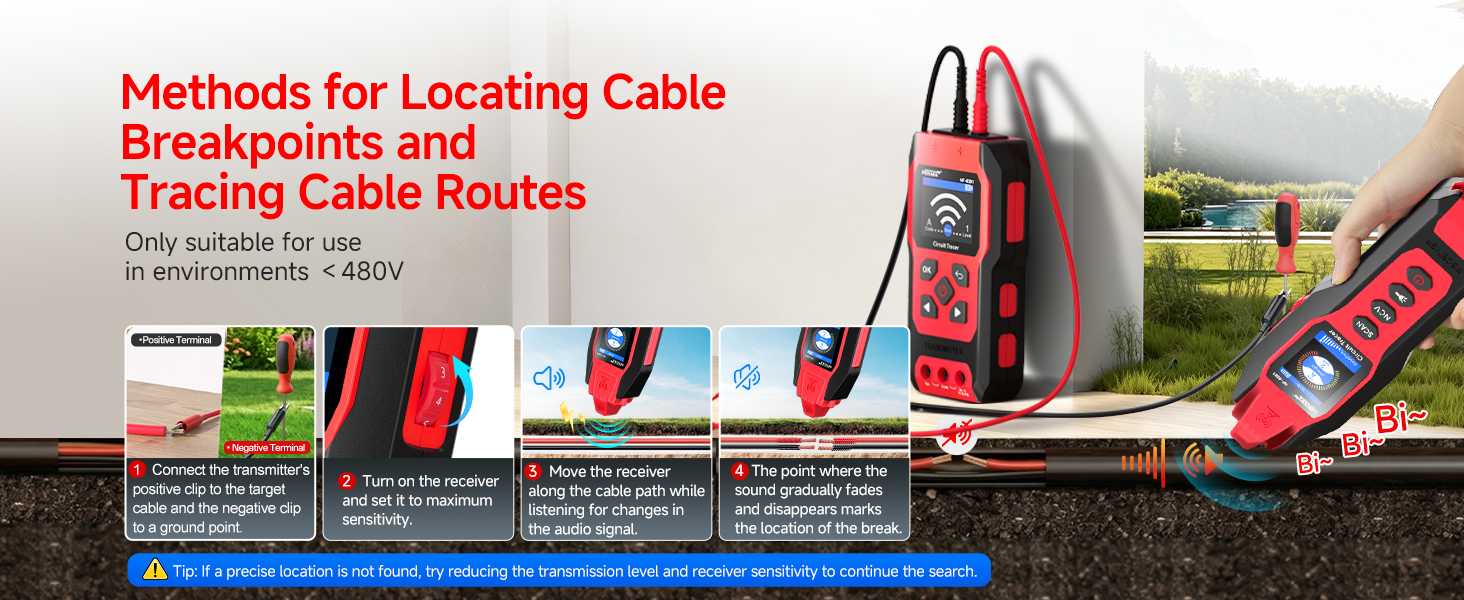

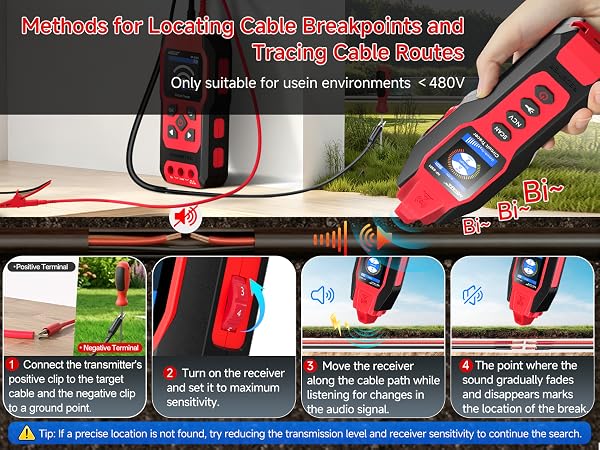

Equipped with advanced circuit tracing technology, the NF-8301 allows accurate identification of wire paths, breakpoints, and short circuits, even in complex environments.

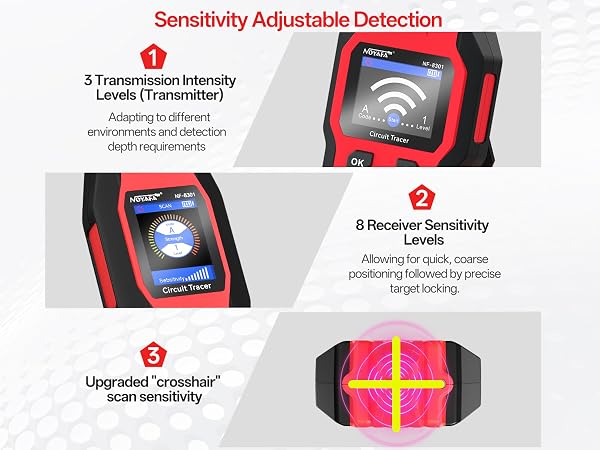

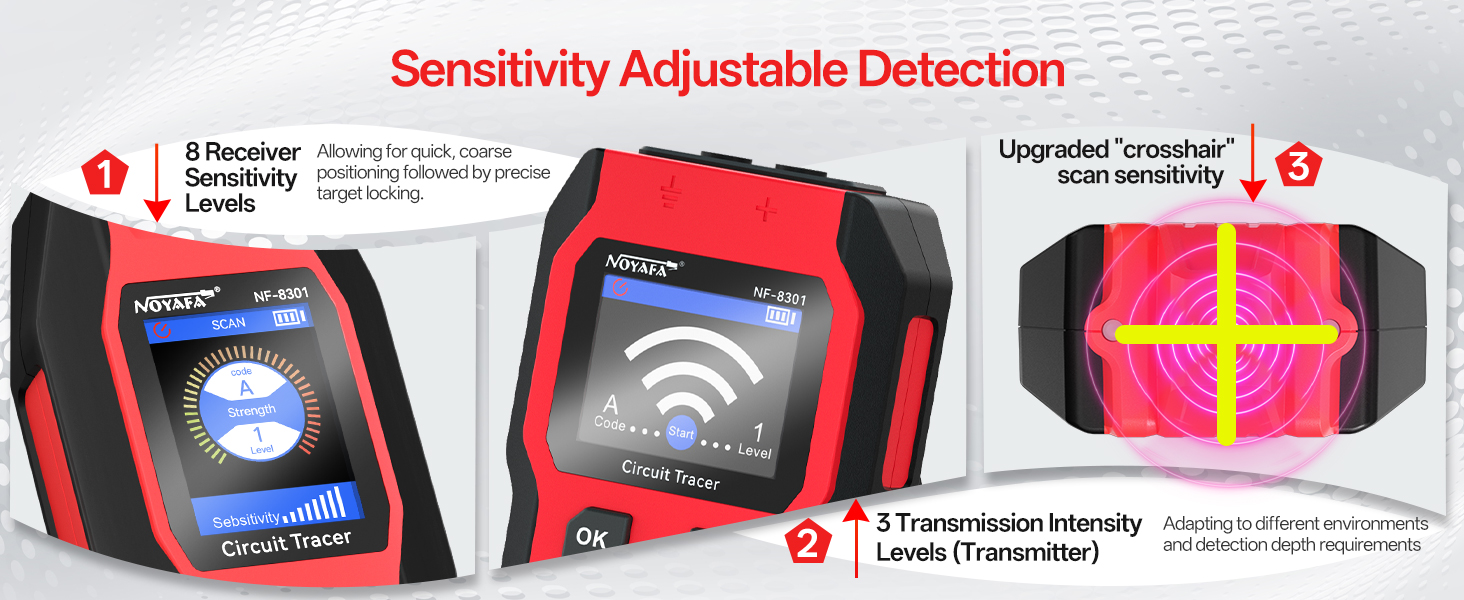

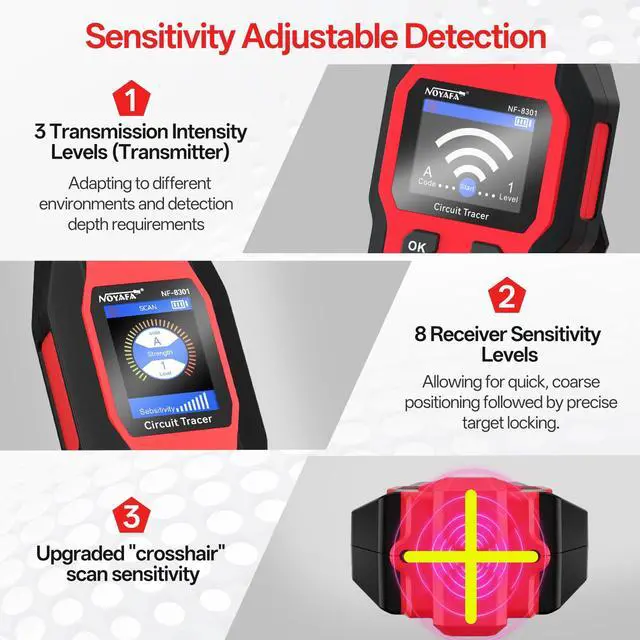

8-Level Adjustable Sensitivity

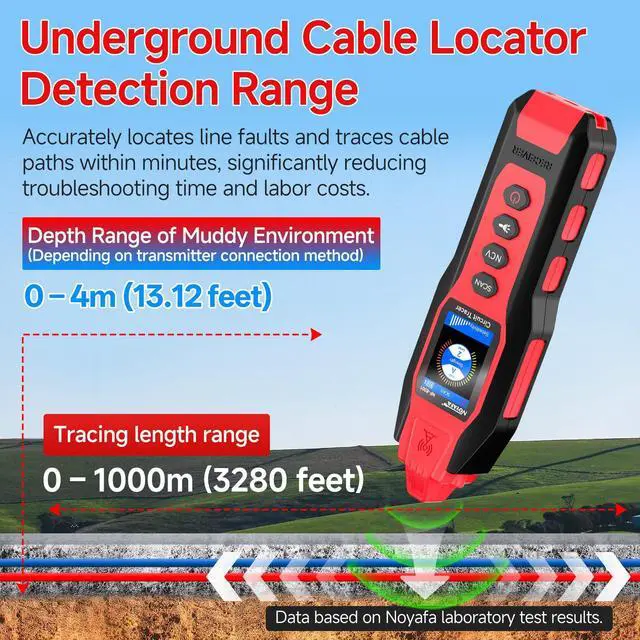

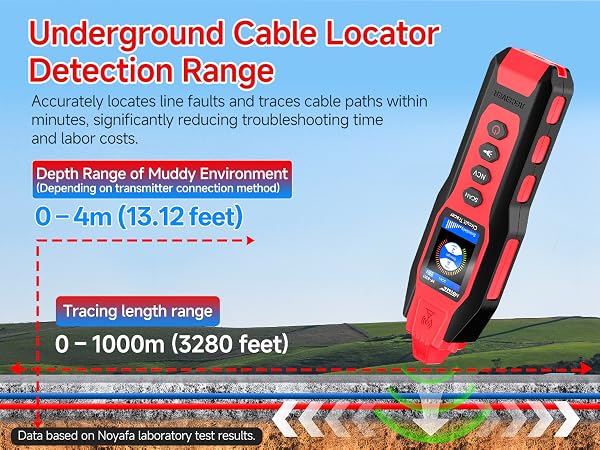

The 8-level adjustable sensitivity receiver enables flexible signal controluse higher sensitivity to quickly scan larger areas, then reduce sensitivity for precise wire positioning through drywall, concrete, brick, or underground materials. Audio & Visual Signal Guidance
For improved accuracy, the receiver features audio and visual signal strength indication, combining audible beeping alerts with an on-screen display to help users clearly identify signal peaks and wire direction while minimizing false readings.
Safety & Visibility Features

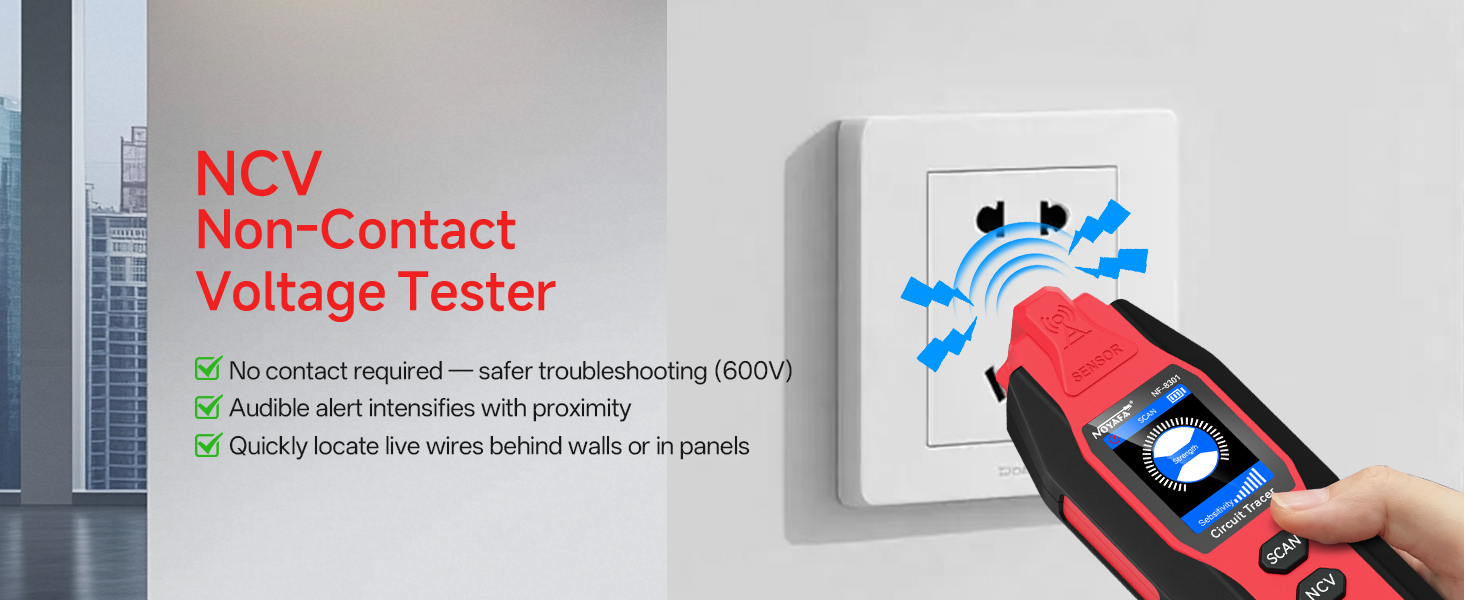

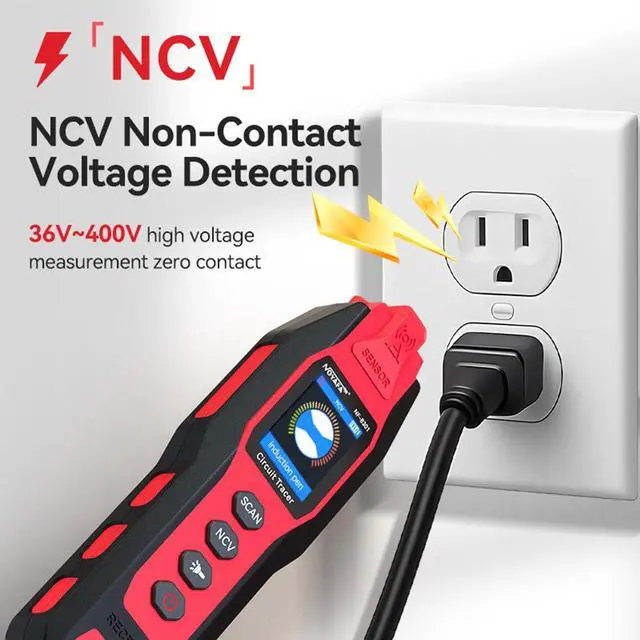

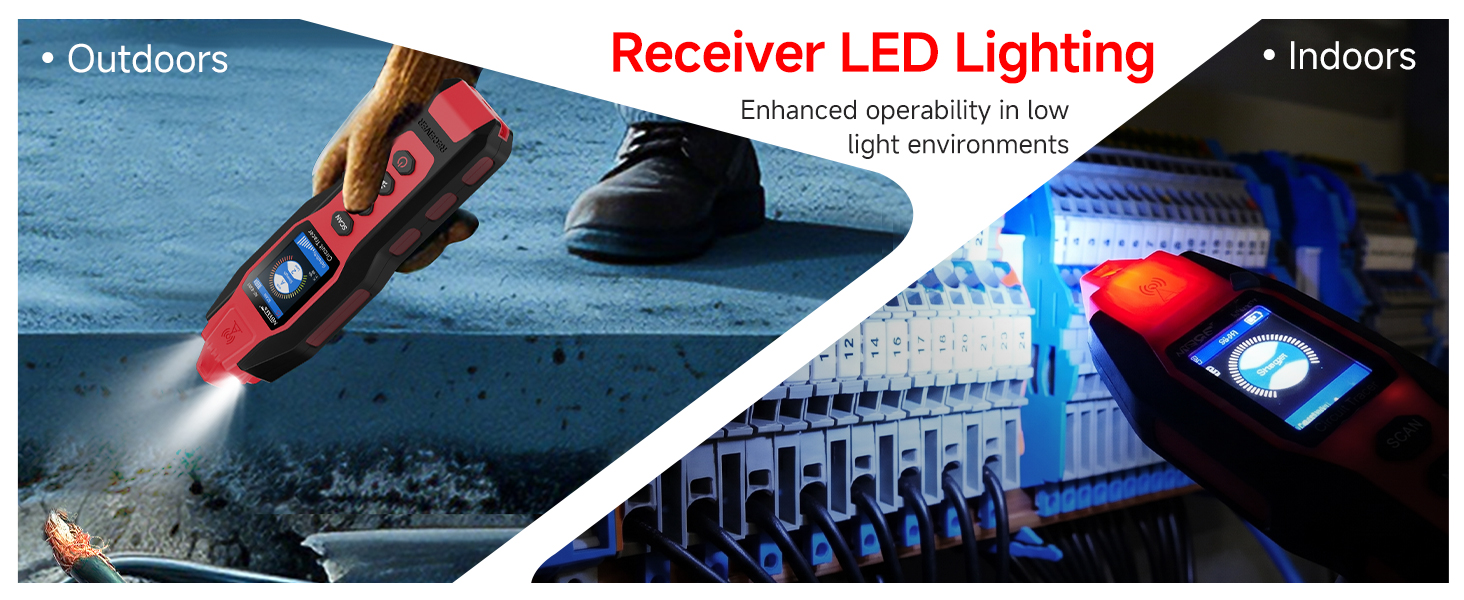

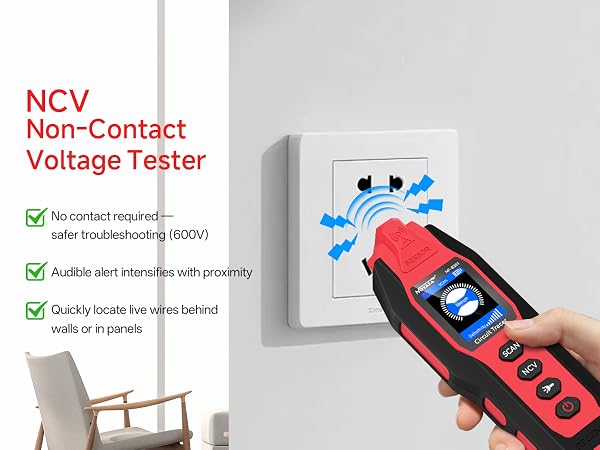

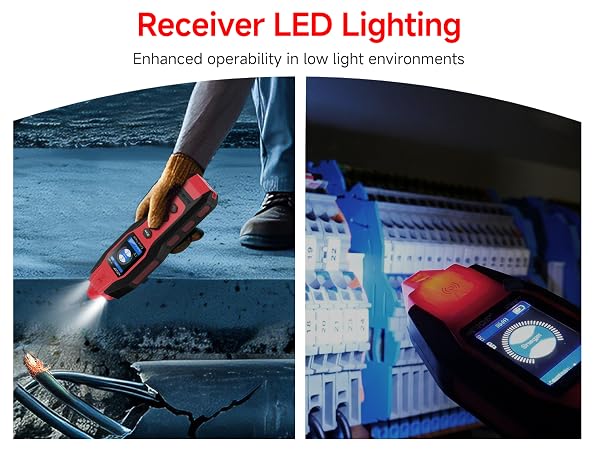

Safety and visibility are enhanced with a built-in LED flashlight for low-light conditions and NCV (Non-Contact Voltage) detection, allowing users to quickly check whether wires are live before testing or tracing.

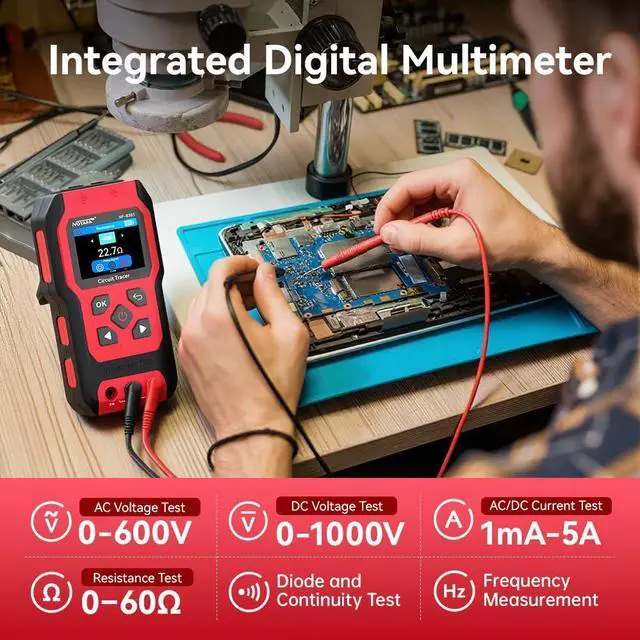

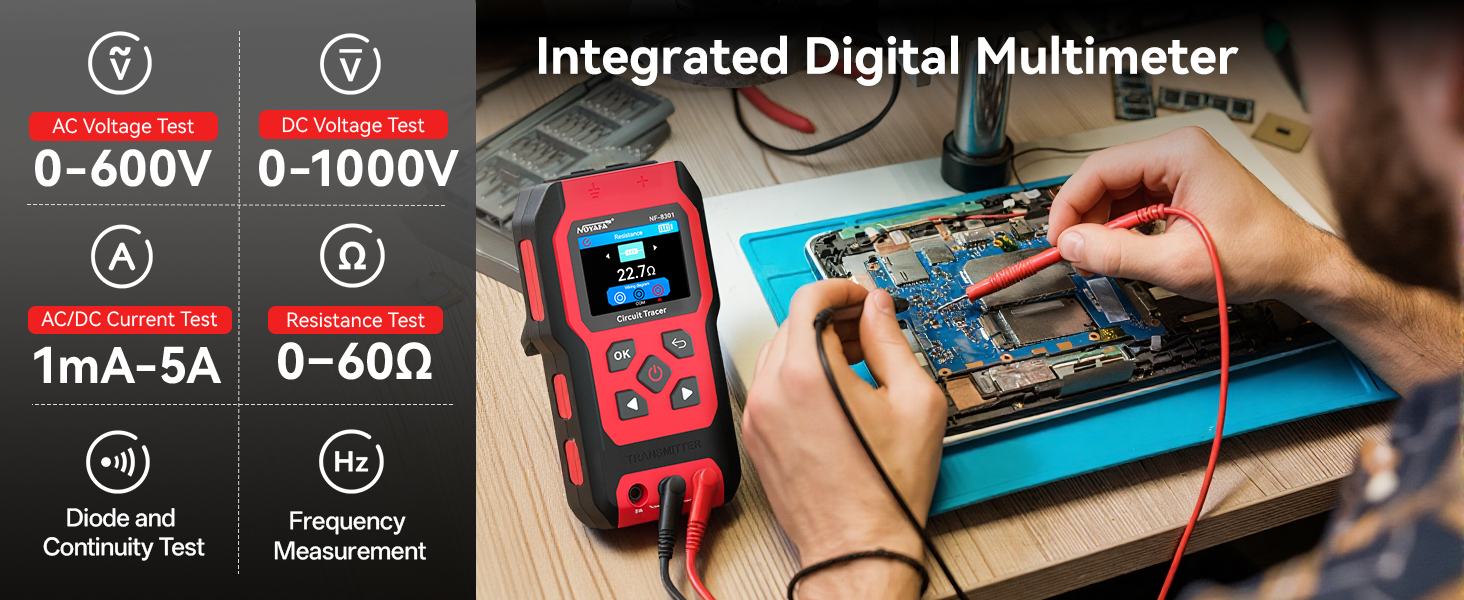

Integrated Digital Multimeter

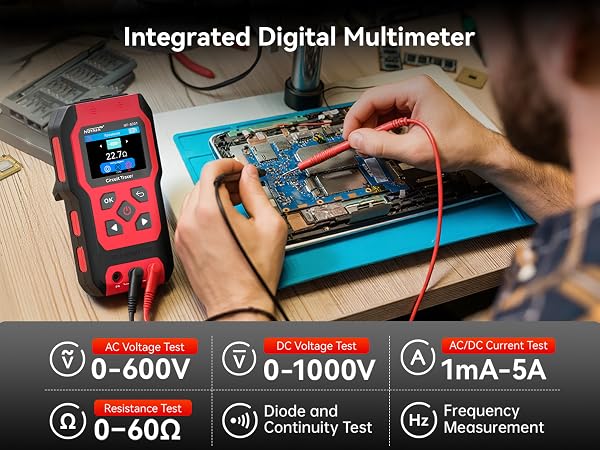

In addition to circuit tracing, the NF-8301 integrates digital multimeter functions through the transmitter and test probes. Users can measure AC/DC voltage, continuity, resistance, current, and frequency, reducing the need to carry multiple tools on the job.

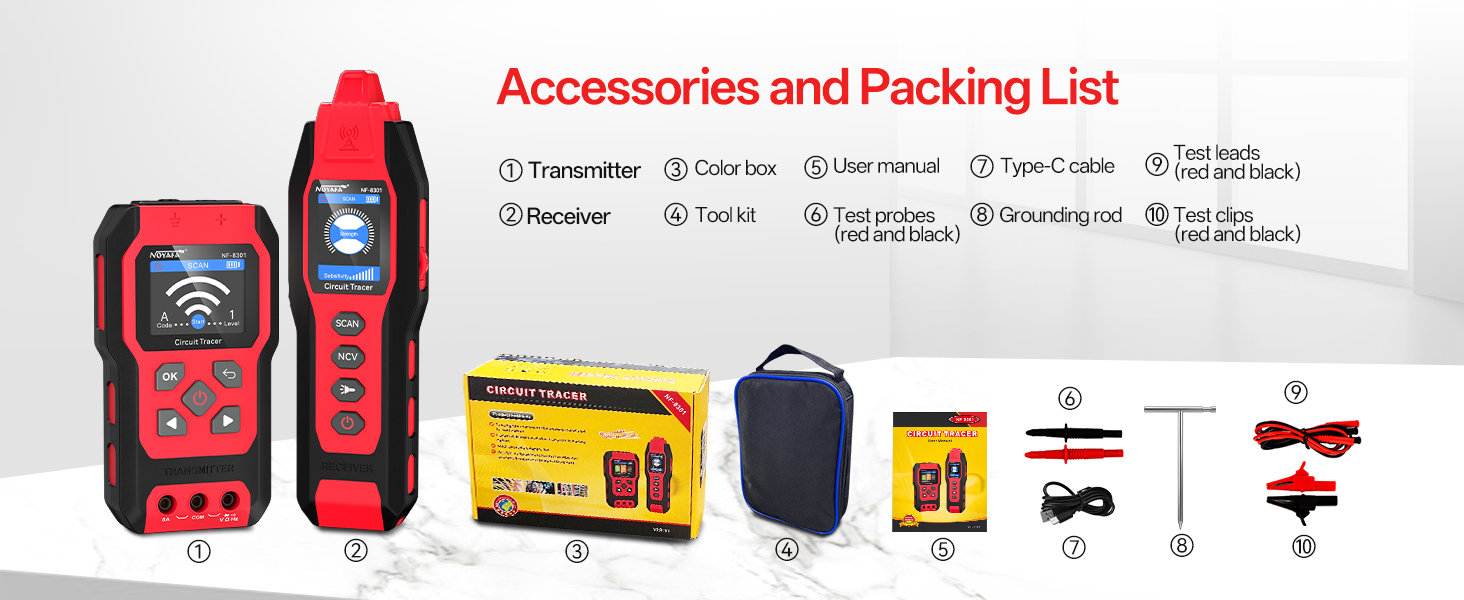

Complete Ready-to-Use Kit

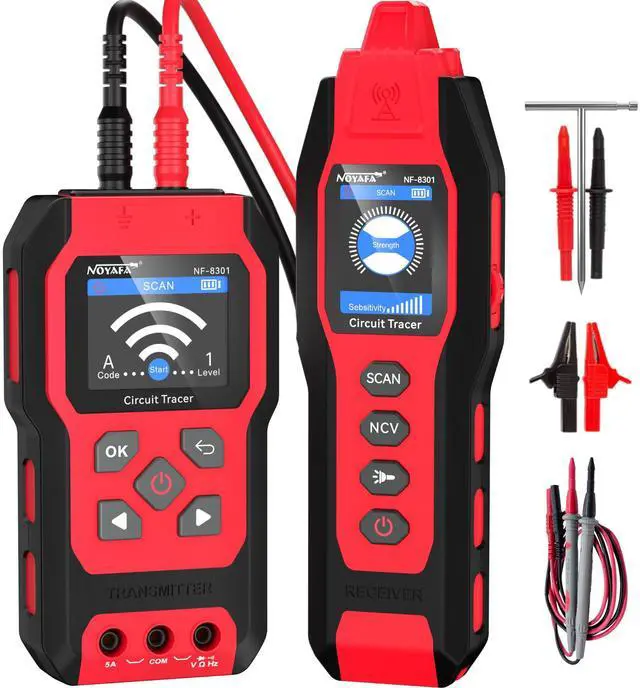

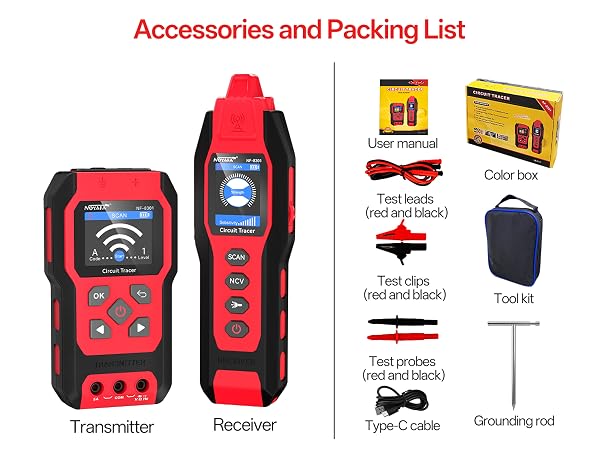

The kit comes as a complete, ready-to-use package, including a transmitter, receiver, test leads, alligator clips, grounding rod, carrying tool bag, and user manual. No additional accessories are requiredready to use right out of the box
| Included Components | Transmitter,Receiver,Test Pen,Test Clip,TestCables ,GroundingRod,Charging Cable |
| Item Weight | 0.5 kilograms |
| Specification Met / 0 | UL |
| Specification Met / 1 | CE |
| Specification Met / 2 | RoHS |
| Item Dimensions | 9 L x 2.5 W x 3 H inches |
| Brand Name | NOYAFA |
| Number of Items | 1 |
| Item Package Dimensions | 7.3914 L x 18.9992 W x 25.7048 H centimeters |
| Style Name | Modern |
| Number of Lithium-ion Cells | 1 |
| Item Highlight | 8 Level Sensitivity Adjustment, Rechargeable Wire Tracer for Fuses, Irrigation, Wall Wires |
| Measurement Accuracy | +/-0.5% |
| Color | Red and black |
| Package Weight | 1.089 kilograms |
| Manufacturer | Noyafa |

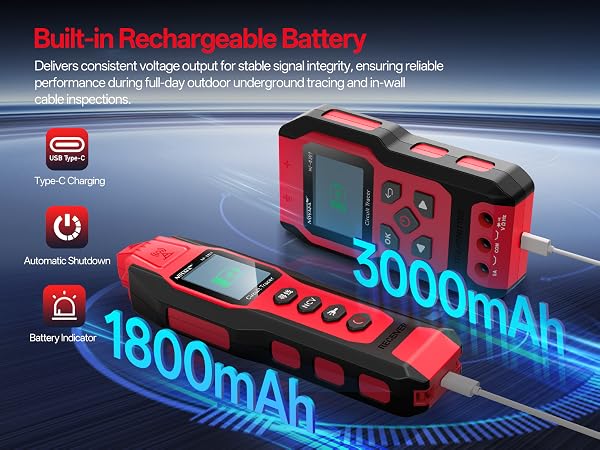

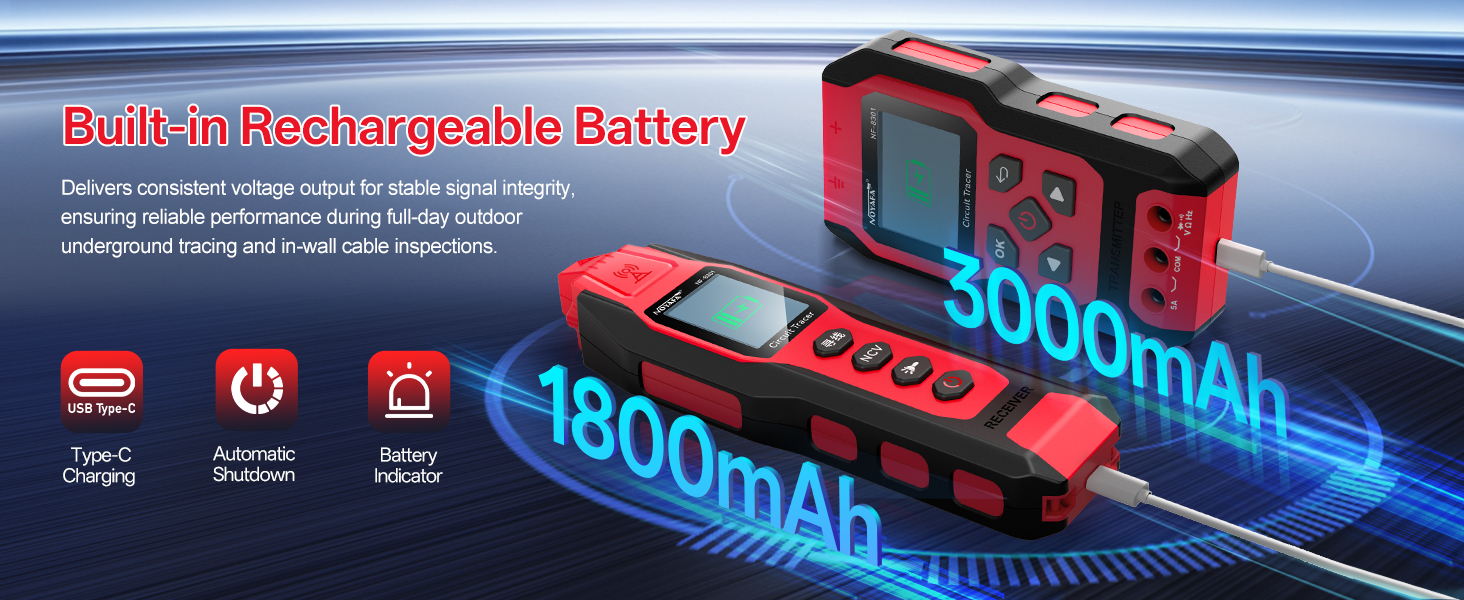

| Lithium Battery Energy Content | 3000 milliampere_hour |
| Lithium Battery Packaging | batteries_contained_in_equipment |
| Model | NF-8301 |
| Number of Batteries | 1 |
| Battery Type | aaa |
| Number of Batteries / 1 / Number of Batteries | 1 |
| Number of Batteries / 1 / Battery Type | 9v |
| Number of Packs | 1 |
| Safety Attestation | true |
| Are batteries required? | true |
| Power Source | Battery Powered |
| Unit Count Type | Count |
| Unit Count | 1 |
| Are batteries included? | false |

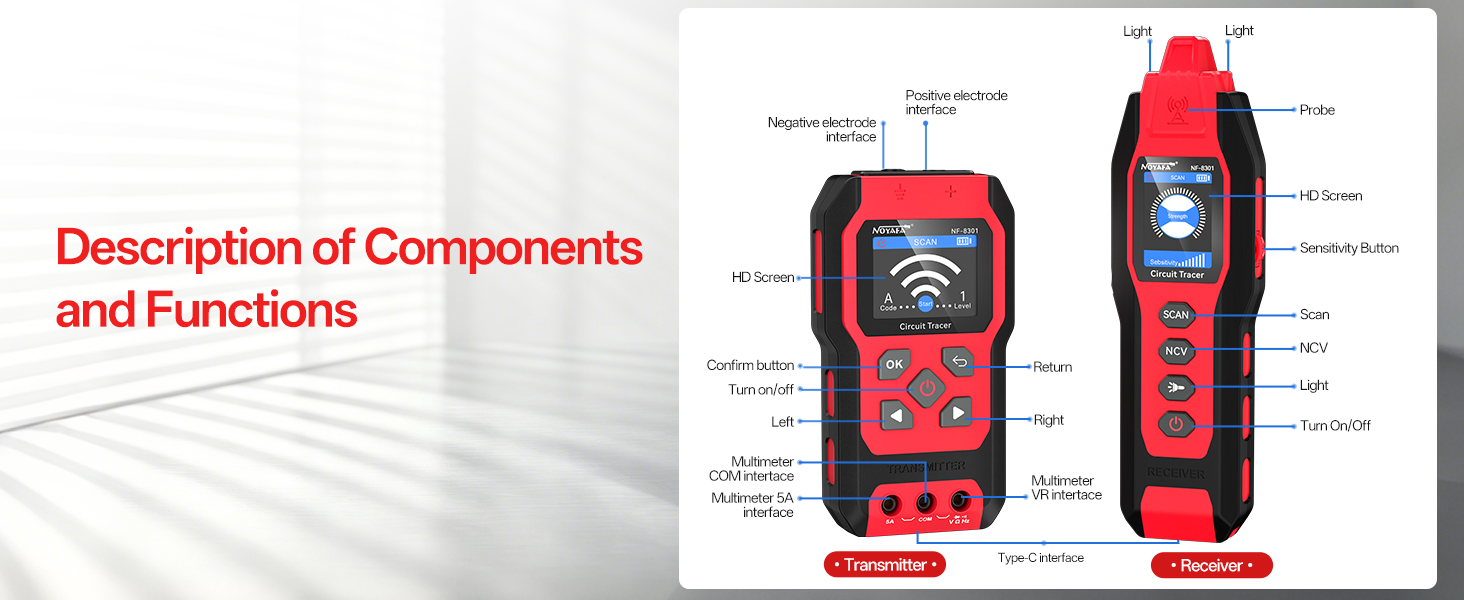

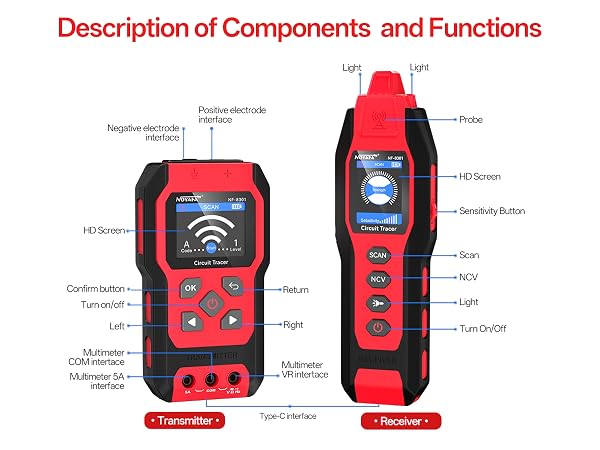

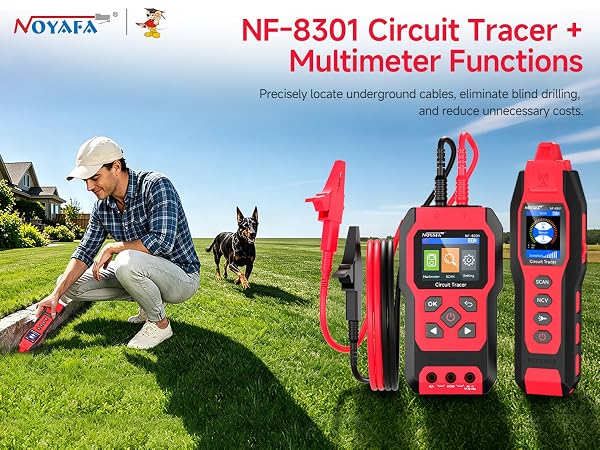

The NOYAFA NF-8301 is a circuit tracer and digital multimeter for electricians, technicians, and DIY users who need to trace live or dead wiring and take electrical measurements. Its eight sensitivity levels, signal indicator, and built-in flashlight support work on in-wall, underground, and conduit wiring.
| Attribute | Value |
|---|---|
| Best For | Tracing live or de-energized wiring and taking electrical measurements for electrical troubleshooting |
| Included Components | Transmitter, receiver, test pen, test clip, test cables, grounding rod, and charging cable |
| Power | Battery-powered |
| Dimensions And Weight | 9 × 2.5 × 3 inches; weighs 0.5 kilograms |
| Brand | NOYAFA |
