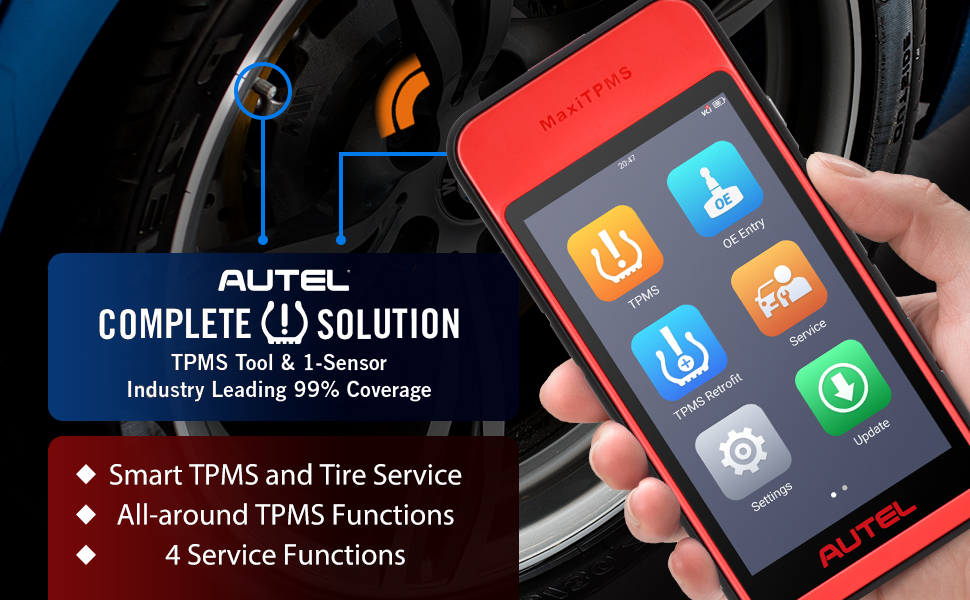

Autel MaxiTPMS ITS600 Upgrade of TS408/TS501/TS508/TS601 TPMS scanners and based on Android OS, the 2021 version ITS600 TPMS tool not only has the essential TPMS sensor programming, sensor relearning, sensor activating functions but also added user-friendly tire functions, quick vehicle identification, TPMS module retrofitting, etc. There is no doubt that Autel ITS600 is your reliable helper and professional doctor.
When it comes to TPMS functions, ITS600 has the same as the TS608, but better in UI design and more details (like tire functions, vehicle scanning, reset functions).
Reasons for Choosing Autel ITS600 as Your Partner:
- 4 Programming Options: Copy by Activation, Copy by OBD, Manual Input, and Auto Create
- 3 Relearn Methods: OBD Relearn, Automatic Relearn, and Stationary Relearn.
- 4 Common Used Reset Functions: Oil Reset, EPB Reset, BMS Reset, SAS Reset.
- 3 Quick Vehicle Identification Ways: Auto VIN, Scan License, VIN Scan.
- Activating: Trigger all the 315/433MHz TPMS sensors and read sensor information.
- Compatible with American, Asian, and European vehicles with TPMS system.
- Expanded TPMS Functions: ITS600 diagnostic scanner also provides DOT number scan, tire expiration notice, tire recall, tire tread & brake disc wear detection.(Work together with MaxiTPMS TBE200/TBE100).
- TPMS Diagnostics: Scan TPMS ECU modules, locate vehicle problems and recover normal performance.

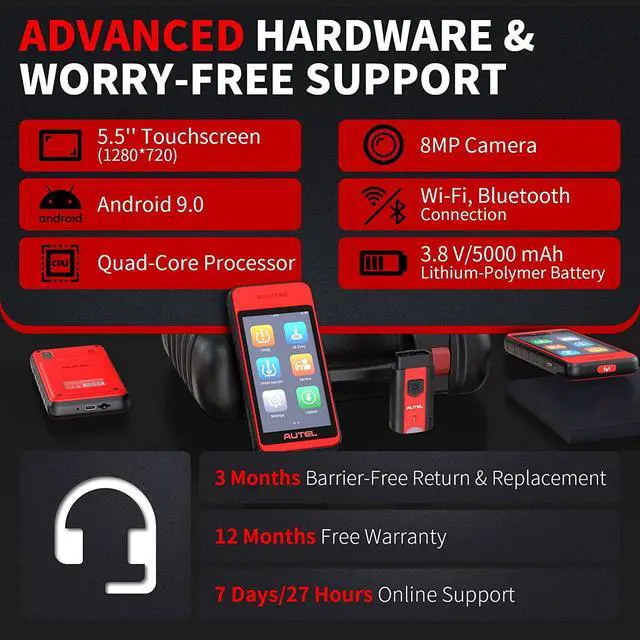

- Hardware Configuration: 5.5'' LCD Touch Screen, Bluetooth VCI, 1280x720 Resolution, 8MP Camera, 64 GB Memory, 5000mAh Battery

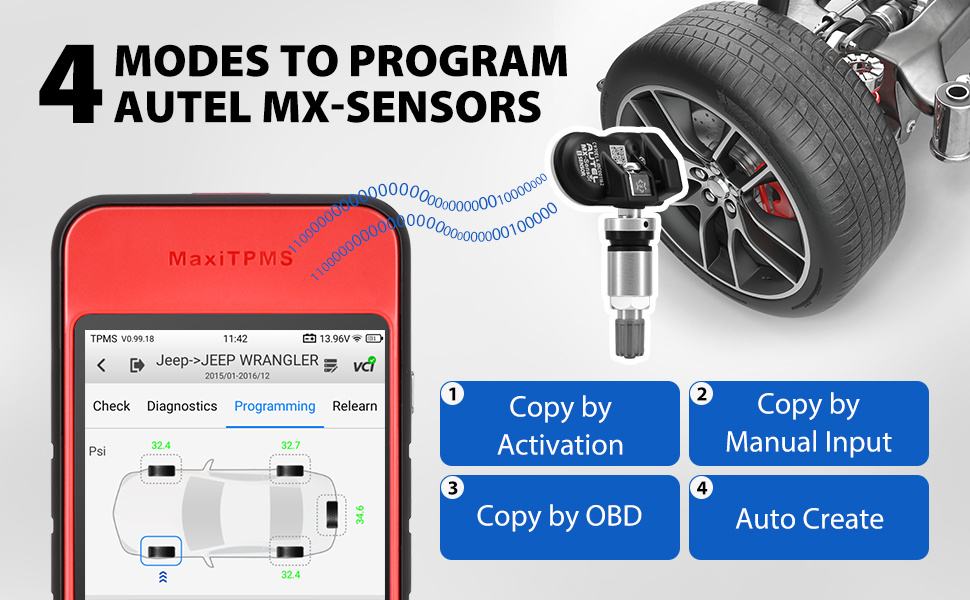

The Programming function allows users to program the sensor data to the MX-Sensor to replace existing sensors with low battery life and ones that are no longer functioning. ITS600 activating tool can handle maximum of 20 MX-Sensors at the same time. (TS608 only programs 16 MX-Sensors.) ITS600 reset tool is designed with 4 options for program the MX-Sensors and users can choose the appropriate method to obtain the ID according to the actual situation of the original sensor.
Copy by OBD: If the IDs retrieved from sensor activation and those registered to the TPMS ECU are different, ITS600 TPMS scanner will program the sensor IDs retrieved from the ECU to the new MX-Sensors.
Copy by Activation: If the original sensor still can be activated, you can use the ITS600 activating tool to trigger it, obtain the original IDs, and then write them into the new MX-Sensors.
Manual Input: If the original sensor is completely broken or can't be activated, you can find the old ID from the label, and manually input it to new MX-Sensors.
Auto Create: If the original sensor cannot be activated or the original sensor ID cannot be obtained, you can use the ITS600 TPMS scan tool to automatically create a new random ID to MX-Sensor.
ITS600 diagnostic scanner is specially designed with 4 commonly used diagnostic functions to provide quick access to the vehicle systems for various scheduled reset and maintenance tasks. ITS600 relearn tool innovates the design of configuring the diagnostic function on the tire pressure tool and performs Oil reset, EPB, BMS, and SAS Calibration.
- Oil Reset: Reset the oil life system and turn off the oil light after replacing the oil or oil filter to start a new cycle.
- EPB Reset: Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.
- BMS Reset: Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information, and prevent the related control module from detecting false information.
- SAS Calibration Reset: Calibrate the steering angle after replacing the steering angle position sensor and the mechanical parts of the steering system, etc. Stores the current steering wheel position as the straight-ahead position in the steering angle sensor and clear fault memory.
Relearn function is used to transfer new sensor IDs into the vehicle ECU for sensor recognition. ITS600 diagnostic tool features 3 relearn ways including OBD Relearn, Automatic Relearn, and Stationary Relearn, which can deal with 98% of vehicle models and relearn all the 315/433MHz sensors.
- OBD Relearn: OBD relearn allows the ITS600 reset tool to directly write the TPMS sensor IDs to the TPMS module via the OBD connector to make the on-board TPMS modules recognize the new sensors.
- Automatic Relearn: For some vehicles, the Relearn function can be completed automatically by driving, which makes it quite easy to do a complete set of sensor replacement operations on your own.
- Stationary Relearn: This relearn way requires the vehicle to be placed in the Relearn Mode and follow the on-screen instructions to finish Relearn.

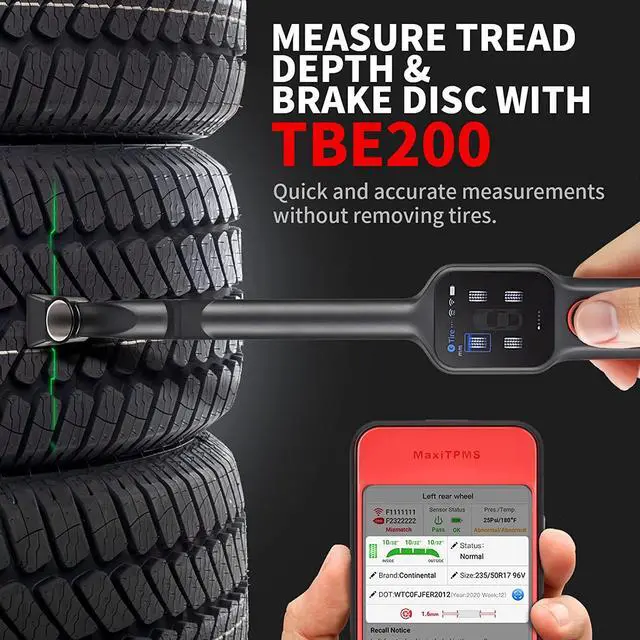

Tire Tread & Brake Disc Wear Detection
- ITS600 scanner can measure the status of tire tread depth & brake disc wear, display results graphically display, and add data into TPMS test report for comprehensive analysis and tire replacement & maintenance suggestions. This detection will alert users of tire wear in time to prevent dangerous situations. ITS600 diagnostic scan tool work together with Autel MaxiTPMS TBE200 to perform wear detection.
Tire Expiration Notice & Recall Lookup
- ITS600 tool will identify the year of the tires by scanning the DOT code to determine if the tires need to be replaced. That can prompt/guide drivers to replace tires to avoid the risk of blowouts caused by aging tires. The Tire DOT application contains two parts - DOT Recall and DOT Scan functions. Tire DOT function scans the tire DOT serial number located on the sidewall to acquire basic characteristics such as tire age, recall status, and warning.

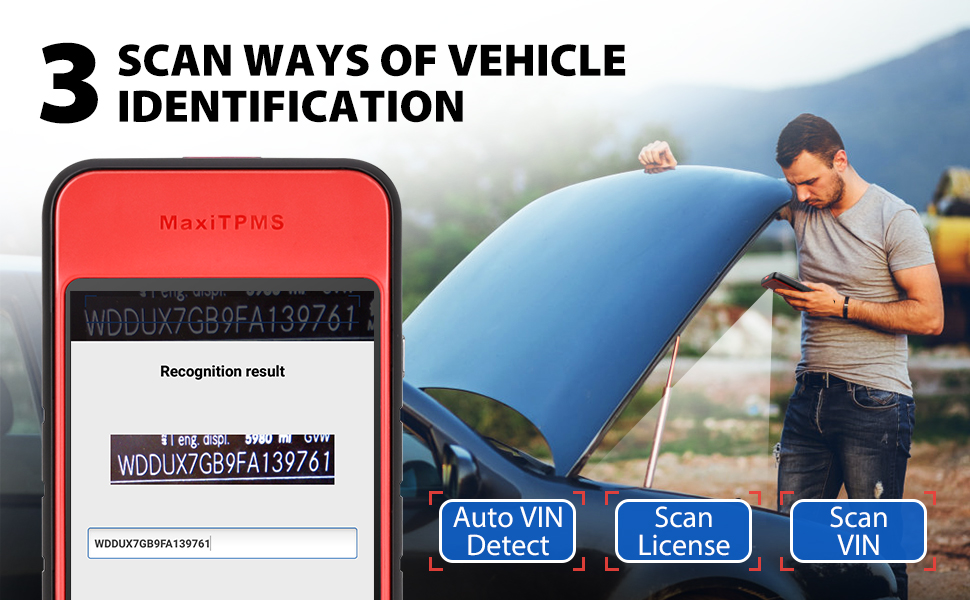

ITS600 TPMS tool couples with 3 quick and convenient methods available for acquiring VIN information to finish vehicle identification: Auto VIN Detect, Scan License, and Scan VIN. This technology greatly reduces the diagnostic time and brings convenience for users. If you cannot find the VIN or the camera cannot successfully identify the VIN/license number, you can manually select vehicle make, model, and year to complete vehicle identification.
- Auto VIN Detect: Automatically acquire vehicle information and identify the application electronically through the OBDII Diagnostic Port.
- Scan License: Open the camera and scan the license number to enter the identification page, easy and useful.
- Scan VIN: Scan the vehicle's VIN or Barcode/QR code directly to get information (vehicle make, model, year, etc.)
Key Fob Test
The Autel ITS600 scanner can play a role of a signal transmitter to check the frequency of the key fob and battery electricity to determine whether it needs to be charged or replaced, which will help to save your money and time.
About Update
ITS600 diagnostic tool provides lifetime free updating on TPMS functions(TPMS Diagnostics, TPMS Service) and 4 reset functions(Oil Reset, BMS, SAS, and EPB), which is indeed a cost-effective and practical TPMS tool. However, ITS600 also features full system diagnostics and other reset functions, if needed, you can pay 124.95 every year to enjoy.
TPMS Test Report & Printing
The TPMS test report gives a detailed data form that includes general vehicle information such as vehicle year, make, model, TPMS-related DTCs, workshop, and all information manually inputted by the technician. You can also print the report for further diagnosis and storing diagnostic history.
