1. Support GPT to read and write data without disassembling the ECU.
2. Support ECU opening BOOT method to read and write data
3. Support ECU conversion to OBD2 mode to read and write data
4. Equipped with BOOT resistance board connecting cable anti-lost resistor design
5. Support RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, GND.
6. Support PCMFlash automatic control of ignition power supply
7. Support manual ignition power control
8. CANbus is equipped with a switch to freely select the 120 resistor
9. ECU dedicated connection terminal.
10. The ECU interface cable is labeled
Notice: GODIAG ECU GPT Boot AD cannot be used alone and needs to be used with ECU tools.
- Diagnostic function supports standard OBD2 protocol equipment.
- Supports ECU reading and writing data, and supports J2534 devices.
- Only Scanmatik 2 PRO for PCMflash allows to form GPT1, GPT2 signals necessary to work with Module 71.
- Other devices Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR,
- Teradyne GNA600 (VCM 1), Mazda VCM 2 supports OBD2 or BOOT 53 mode to read and write ECU data.

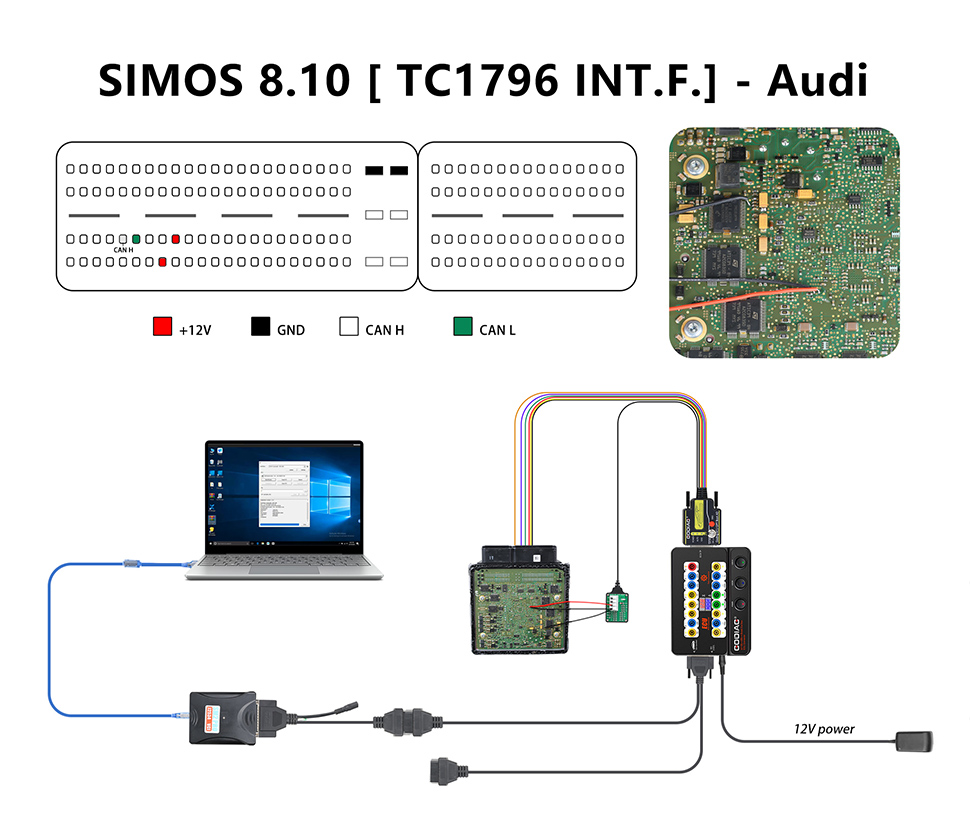

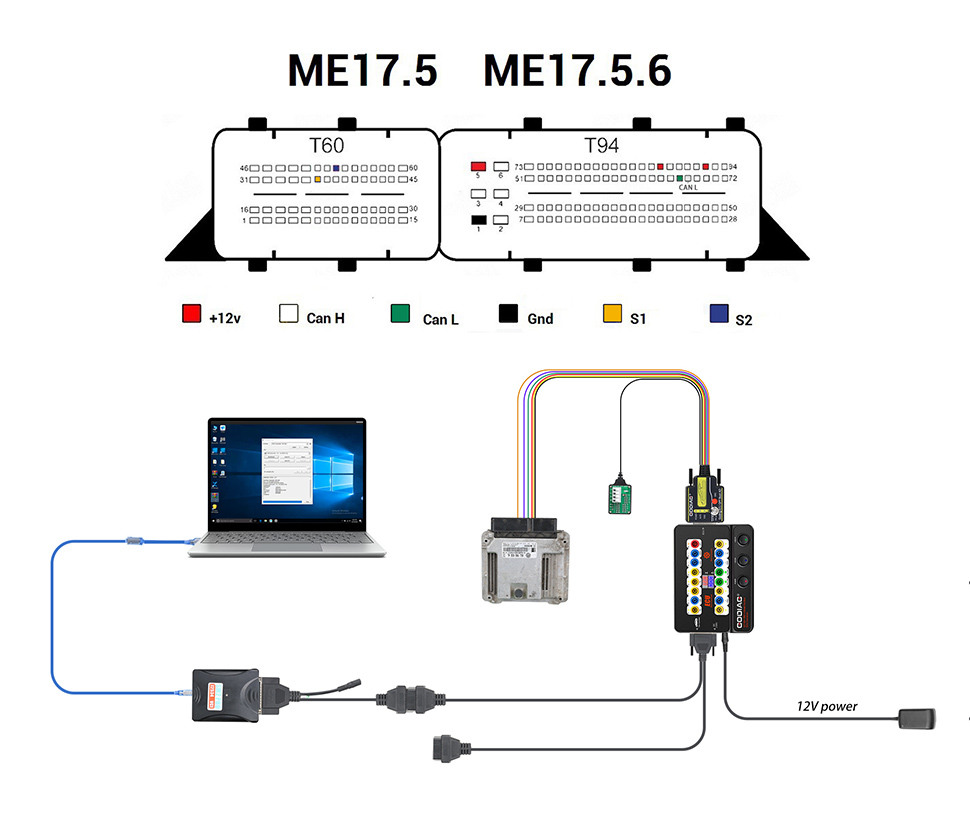

Connection Method of GODIAG ECU GPT Boot AD programming adapter, J2534 device and PCMFlash dongle software.
Need PCMFlash dongle software, easy, convenient and save money
Need PCMFlash dongle software, easy, Convenient to observe communication status, current and voltage and other working status
| GPT | Yes, Supported |
|---|---|
| CNF1 | Yes, Supported |
| BOOT resistance board | Yes, Supported |
| Power ignition manual /automatic switch | Yes, Supported |
| 5V 3.3V GND CNF1 | Yes, Supported |
| BOOT | Yes, Supported |
|---|---|
| Compatible with J2534 devices | Yes, Supported |
| Dedicated ECU terminal | Yes, Supported |
| CANbus freely select the 120 | Yes, Supported |

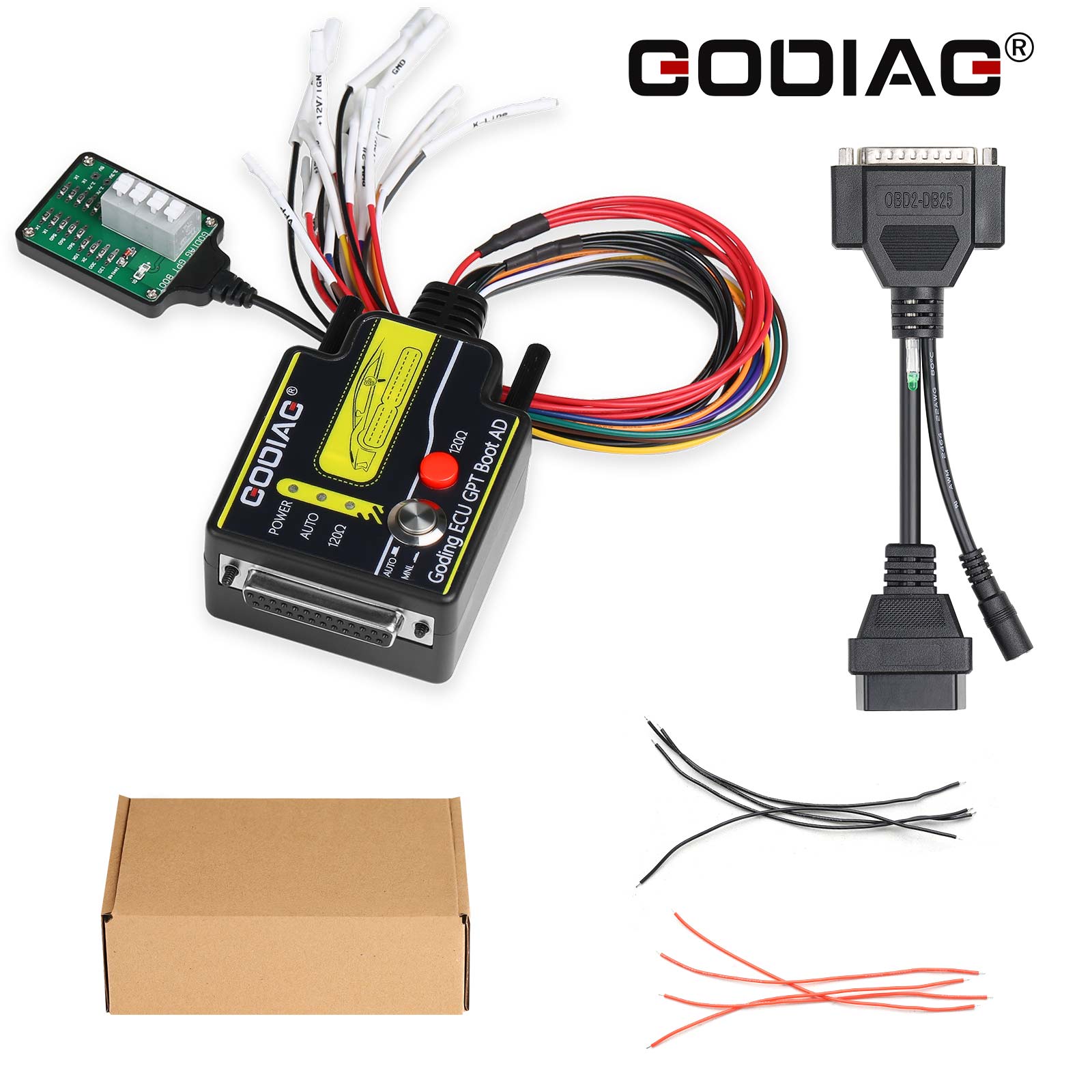

Package Includes:
1pc x GODIAG ECU GPT Boot AD Programming Adapter
8pcs x Soft Silicone Wires
