Autel XP400 Pro key and chip programmer, compatible with the IM508 and IM608, reads/writes and learns keys to the vehicle. The XP400 Pro enables programming of infrared keys for Mercedes vehicles and IC Chip keys on late model Hyundai KIA vehicles. It also performs EEPROM-data functions needed for European vehicles. The XP400 Pro supports data read/write of 3, 000 plus chip types (inc. EEPROM, engine ECU, MCU, IMMO ECU).
XP400 Pro is a replacement for XP400. It adds more functionality for BMW, Mercedes-Benz, as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 (chips, components, devices) types including EEPROM and MCU Read, additional Odometer Read/Write, and more. Also, added functions for EWS3, W209, NEC, and more.
XP400 Pro is an advanced all-in-one key programmer
The key and chip programmer reads/writes and learns keys to the vehicle
Performs EEPROM-data Functions Needed for European Vehicles
Enables Programming of Infrared Keys for Mercedes Vehicles and IC Chip Keys on Late Model Hyundai Kia Vehicles
Supports Data Read/Write of 3, 000 Plus Chip Types (inc. EEPROM, engine ECU, MCU, IMMO ECU)
Compatible with the IM508 and IM608, IM100 and IM600 as well
(Note: XP400Pro is compatible with IM100 / IM600. The only thing the IM100 and IM600 will not have when used with XP400Pro is the 4 channel Labscope software and AutoAuth)
Support key renewal on 11 key types with additional adapters - IMKPA, Key Programming Accessories Kit
One year free update online on Autel official website

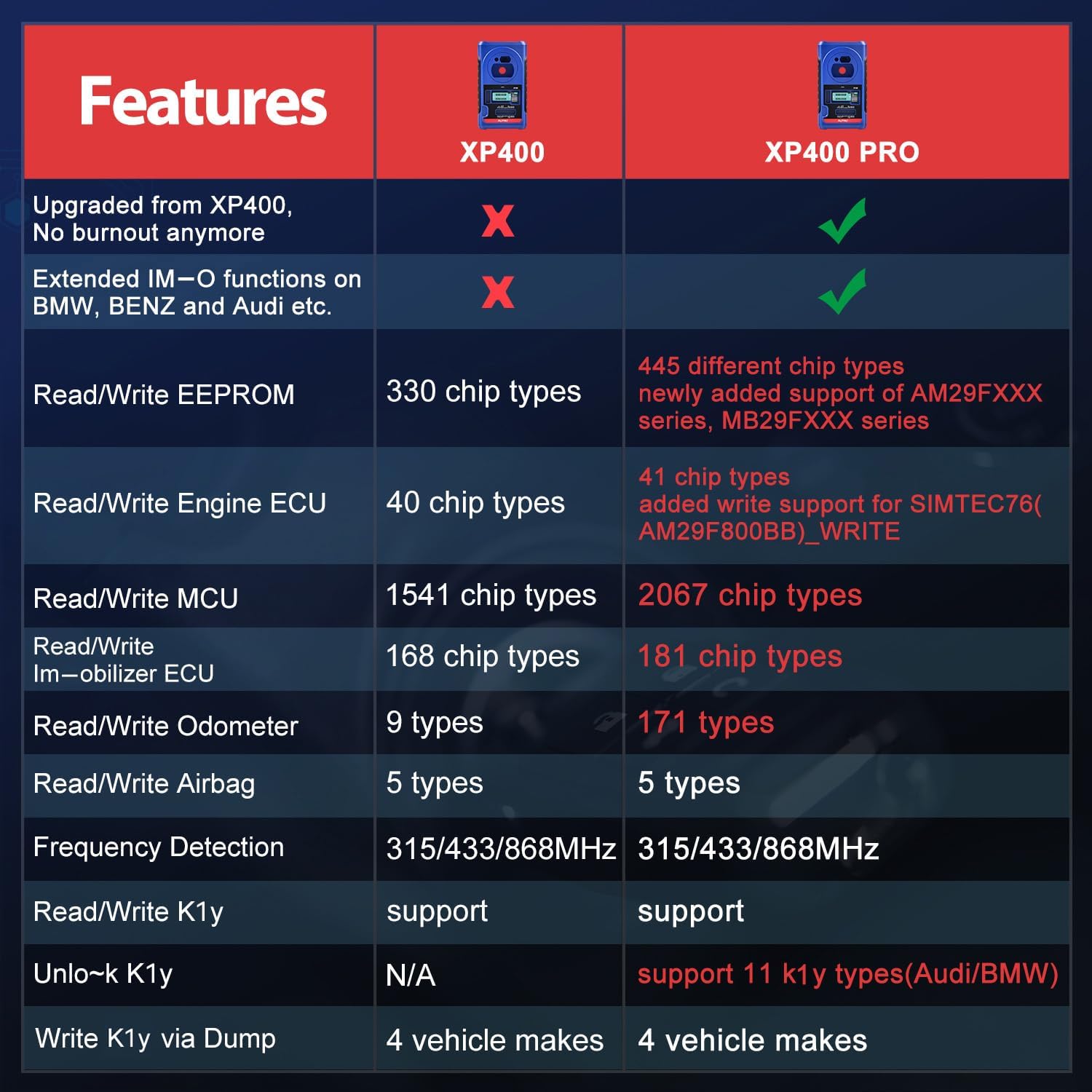

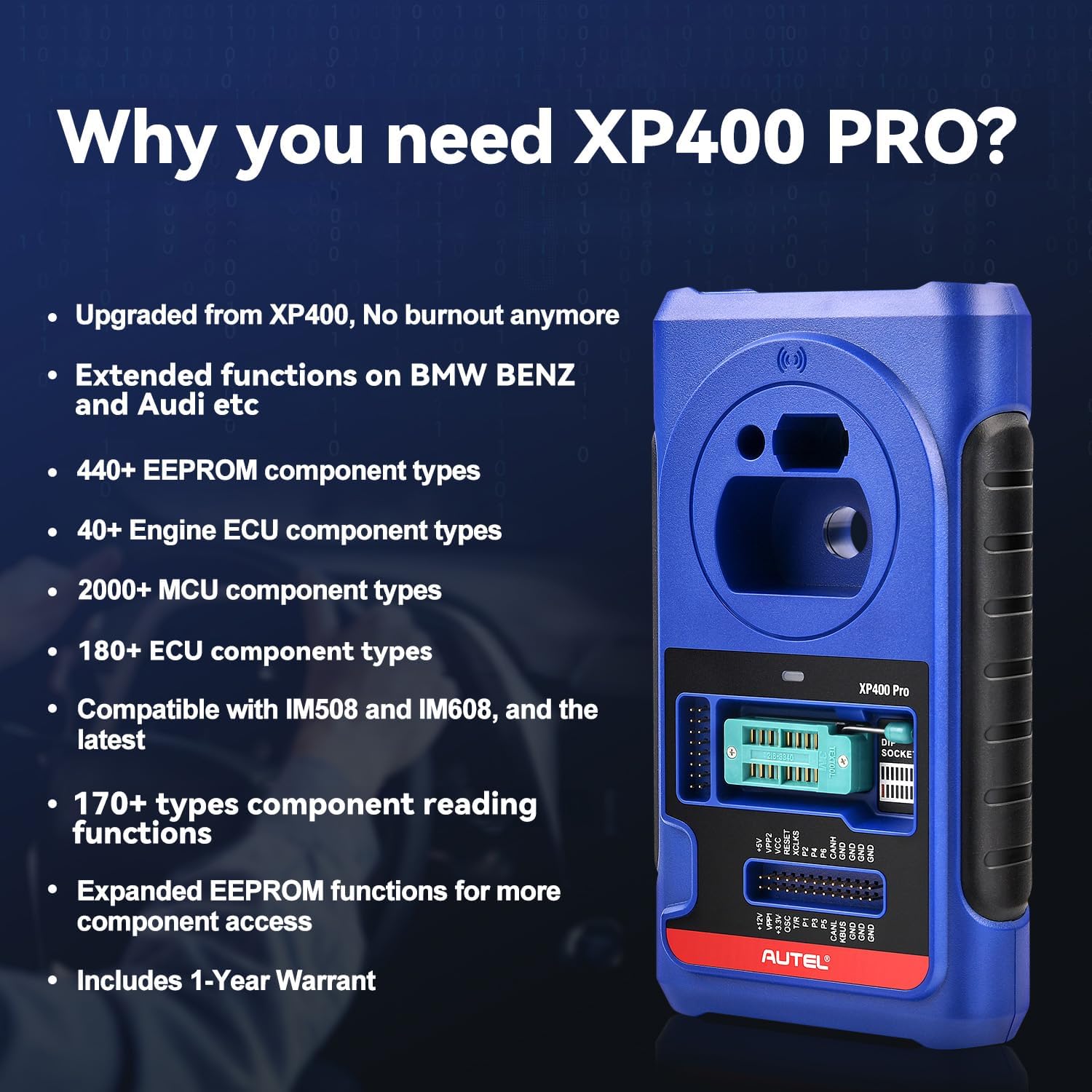

Why You Need XP400 Pro?
1. Expanded EEPROM functions for more component access
2. Extended IMMO functions on BMW, BENZ and Audi etc.
3. 170+ types Odometer component reading functions
4. 180+ Immobilizer ECU component types
5. 40+ Engine ECU component types
6. 2000+ MCU component types
7. 440+ EEPROM component types
8. Compatible with IM508 and IM608
Advanced Key Programming Vehicle Coverage when combined with XP400Pro:
Benz
* One-tap Key Programming via OBD
* 3rd Generation IMMO CAN-Line/ K-Line Add Key, All Key Lost
BMW
* Smart IMMO Programming (support EWS3/ 4, CAS 1/ 2/ 3/ 4, FEM/ BDC)
* Add Key/All Key Lost
Volkswagen/ Audi
* One-tap Online Programming
* Add Key/All Key Lost Via OBD for 2013 - 2020 Models
GM
* Read IMMO Password, Add Key/ All Key Lost up to 2020
Ford
* Add Key/All Key Lost (No PIN Needed) up to 2020
Mazda
* Add Key/All Key Lost (No PIN Needed) up to 2020 FCA
* Read IMMO Password, Add Key/All Key Lost up to 2020
Renault
* Add Key/All Key Lost (No PIN Needed) up to 2020
LandRover/Jaguar
*Add Key/All Key Lost up to 2019
Volvo
* Semi-smart Key Learning via OBD up to 2018
* Smart/Blade/Fobik Key Learning via Dump
Advanced Programming Functions:
1. EEPROM Read/Write
2. MCU Read/Write
3. Key Programming
4. Merc-edes Key Read/Write
5. Remote Frequency Detect
XP400Pro Adds Support for Following Chips:
EEPROM-->>AMD-->>AM29FXXX series chip
EEPROM-->> FUJI-TSU-->> MB29FXXX series chip
EEPROM-->> ST-->> M29FXXX series chip
Engine control module-->> ST-->> M29FXXX series chip
IMMO-->> BE-NZ-->> ESL_W209_W906(Moto-rola) read/write/erase function
IMMO-->> BM-W-->>EWS3 module read/write function
REMOTE_RENEW (renew key) -->> NEC-->> V51 and V5 chip read/write/erase
XP400 Pro Adds Support for Following IMKPA Accessories (Need to Buy IMKPA Accessories Separately)
APB113 PCF79XX adapter board
APB114 EWS3 adapter board
APB115 NEC adapter board
APB118 NEC ELV adapter board
APB119 TB28FXXX adapter board
APB120 TMS370 adapter board
APB121 AM29FXXX adapter board
APB122 AM29FXXX adapter board1
APB123 AM29FXXX adapter board2
APB126 M35080/D80 adapter board
APB127 MC68HC0 (7) 05BXX adapter board
APB128 MC68HC05X32 adapter board
| Operating Temperature | -10 dgree C ~ 70 dgree C(14 dgree F ~ 158 dgree F ) |
|---|---|
| Storage Temperature | -20 dgree C~ 85 dgree C (-4 dgree F ~ 185 dgree F ) |
| Port Type | Type B-USB, DB26, DC12 |
| Input Voltage | 5 VDC, 12VDC |
| Operating Current | < 500 mA |
| Maximum Consumption | 2.5W |

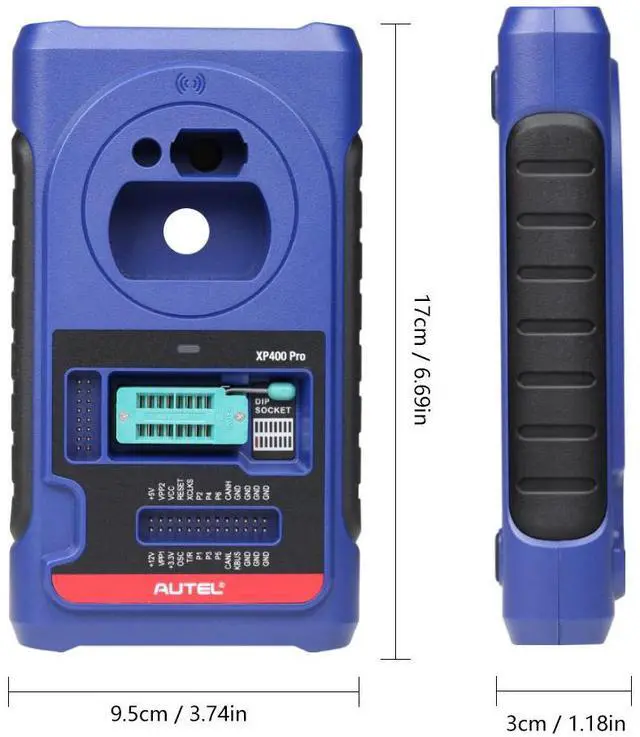

| Device Dimensions | 168 mm * 98 mm * 30 mm |
| Net Weight | 520 g |

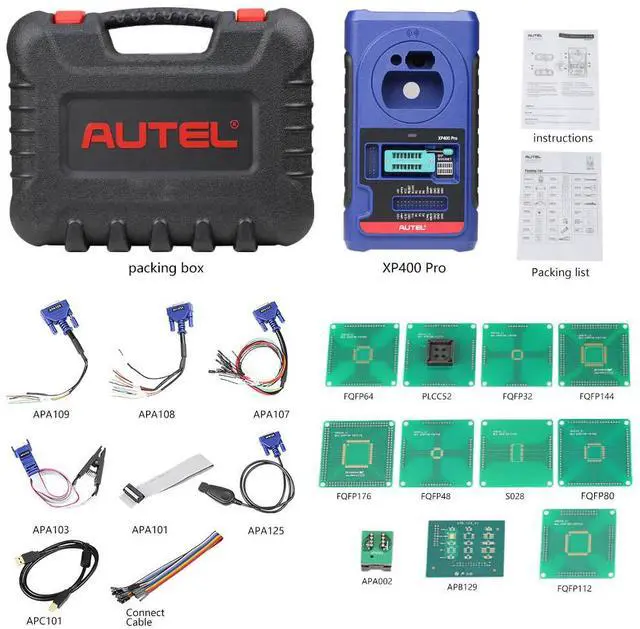

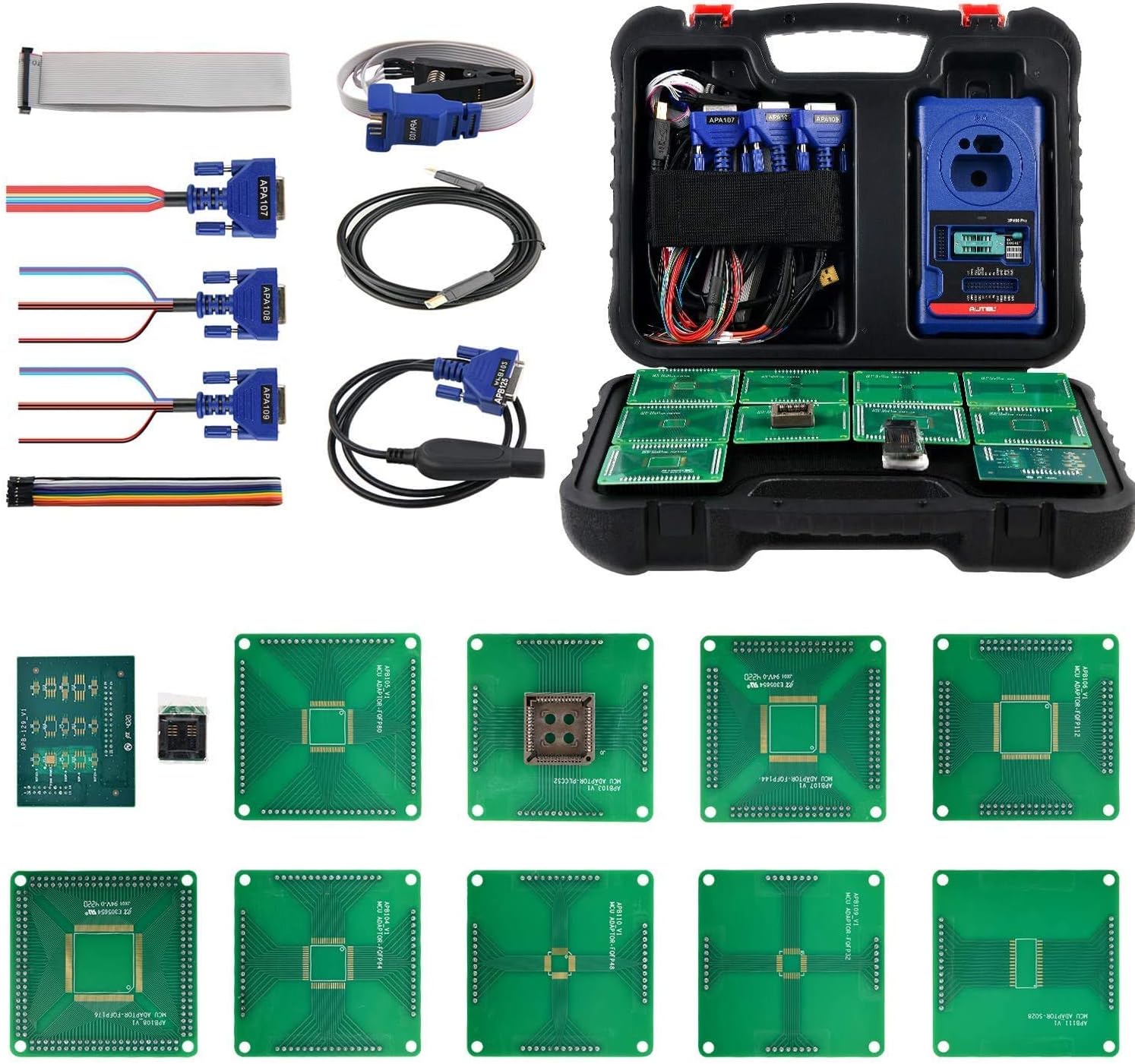

Package Includes:
1pc x XP400 Pro Main Unite
1pc x APB129 EEPROM Adapter
1pc x APA002 EEPROM Socket
1pc x APB125 Mercedes Infrared Collector

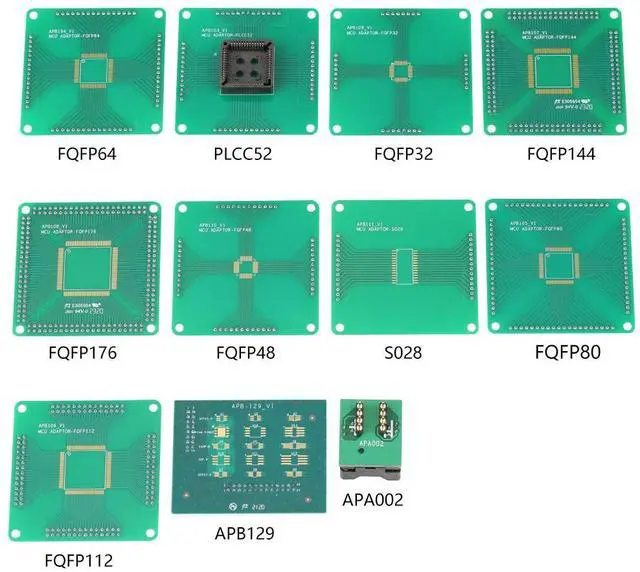

1pc x APB103 MCU_PLCC52 Adapter
1pc x APB104 MCU_FQFP64 Adapter
1pc x APB105 MCU_FQFP80 Adapter
1pc x APB106 MCU_FQFP112 Adapter
1pc x APB107 MCU_FQFP144 Adapter
1pc x APB108 MCU_FQFP176 Adapter
1pc x APB109 MCU_FQFP32 Adapter
1pc x APB110 MCU_FQFP48 Adapter
1pc x APB111 MCU_SO28 Adapter
1pc x APA101 Spare Signal Cable
1pc x APC101 USB Cable (Standard USB Type B USB)
1pc x APA103 EEPROM Clamp
1pc x APA107 ECU Cable
1pc x APA108 MCU Cable
1pc x APA109 MC9S12 Cable
1pc x Dupont Line
