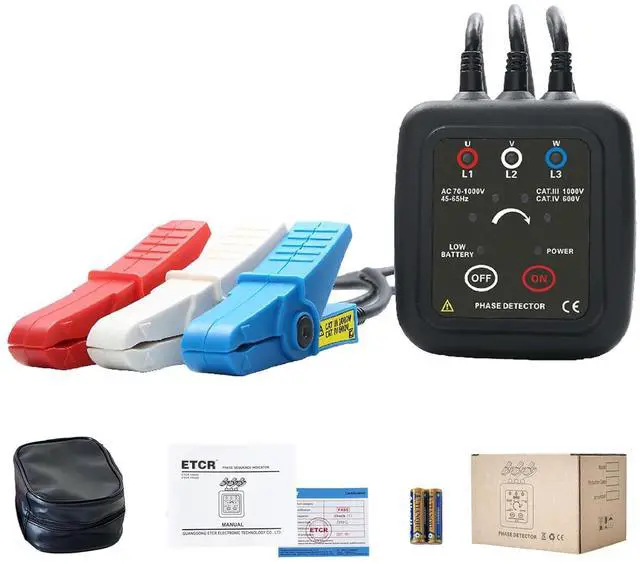

ETCR1000D Non-Contact Phase Sequence Tester, Phase Rotation Meter, AC 70-1000V, Wire Diameter 0.4-1.6 inch | For insulated wires 0.4-1.6in (10-40mm) diameter, suitable for AC 70-1000V phase sequence t

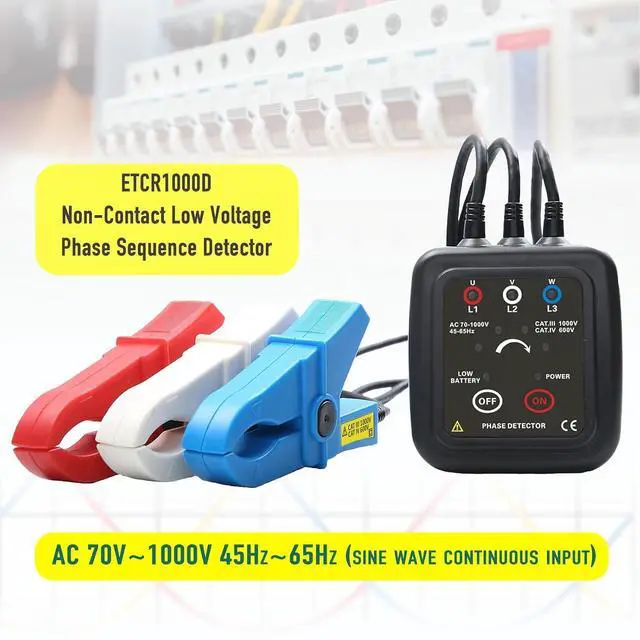

- Wide Test Range AC 70V-1000V, 45-65Hz; compatible with wire diameters 0.41.6 in (1040mm).

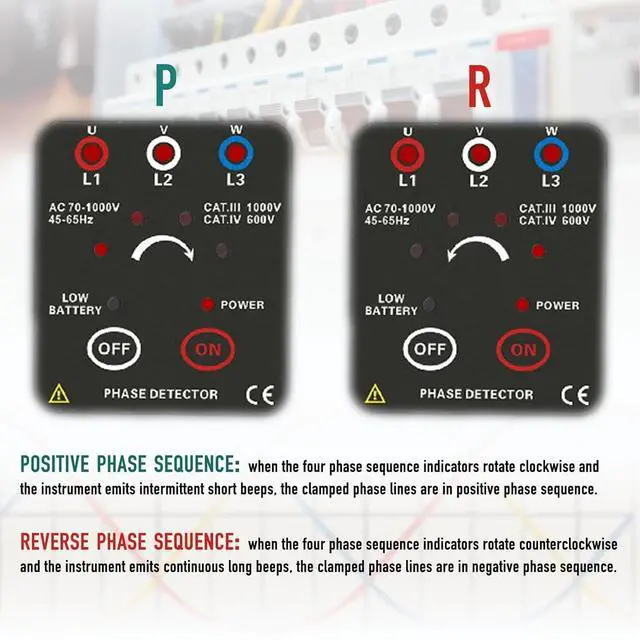

- Clear Indication LEDs show phase orientation (clockwise/counter-clockwise) and live status; buzzer alerts for positive, negative, or missing phase.

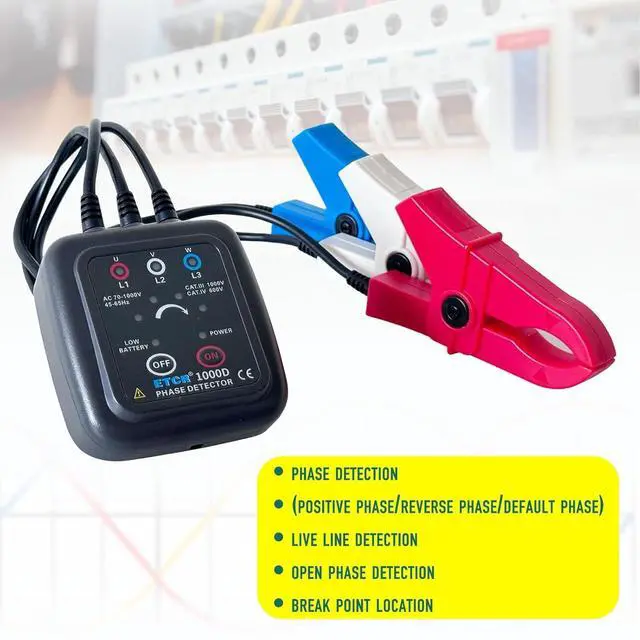

- Versatile Applications Supports phase sequence detection, live line check, simple power inspection, firewire identification, fault location, breakpoint detection, and routine line maintenance.
- Safe & Reliable Meets EN61010-1/031, CAT 1000V, and withstands 6000V overvoltage for operator safety.

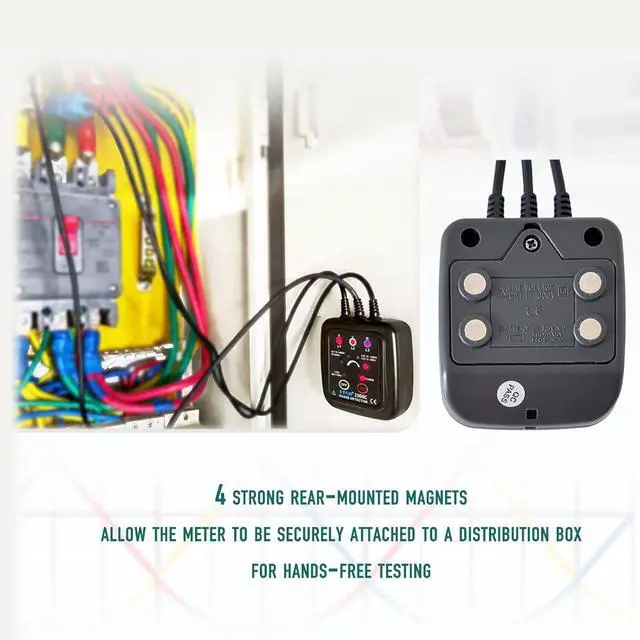

- Hands-free Operation Robust housing with back magnets and fully insulated wide-jaw clamps for easy, secure measurement.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical Specifications
| Power Supply | DC 3V AA alkaline batteries (LR6)X2PCS |
| Live Power Range | AC70-1000V, 45-65Hz (Sine Wave Continuous Input) |

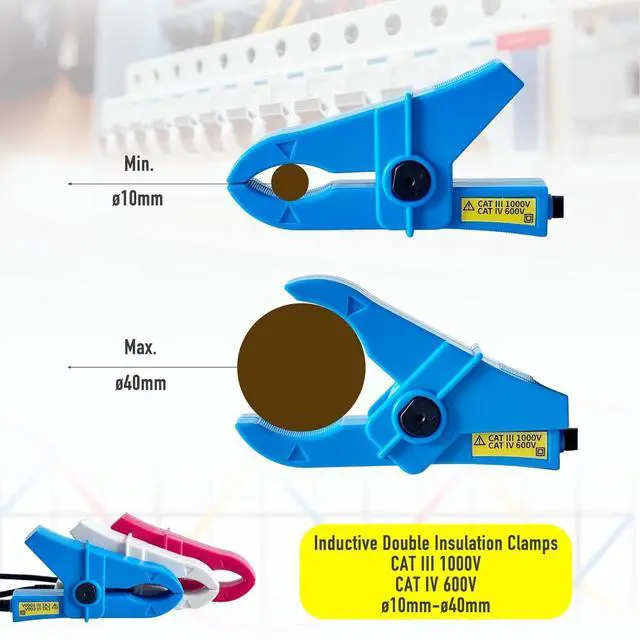

| Available Clamp Wire Size | External Diameter 0.4"-1.6" / 10mm-40mm |
| Battery Check | The POWER indication lamp light up after boot up; the LOW BATTERY lamp lightup when low battery |
| Magnet | 4pcs magnets are installed on the bottom plate of the instrument, which can be attached to the distribution box, load weight 800g |
| Auto Shutdown | 5 minutes after booting up, the meter automatically shutdown |
| Clamp Lead Length | 0.6m |
| Meter Size | 2.8"*2.9"*1.2" / 70mm*75mm*30mm |
| Weight | The instrument: 230g (include battery); the total weight: 0.33kg (including accessories) |
| Max Measure Voltage | AC 1000V |
| Insulation Strength | 5.4kV/rms |
| Maximum Rated Power | 300mVA |
| Suitable Safety Standaerd | EN61010-1:2001, EN61010-031:2002, pollution level 2, CAT 1000V, instantaneous overvoltage 6000V |
| Working Temperature & Humidity | -10-55; Below 80%RH |
| Storage Temperature & Humidity | -20-60; Below 90%RH |
