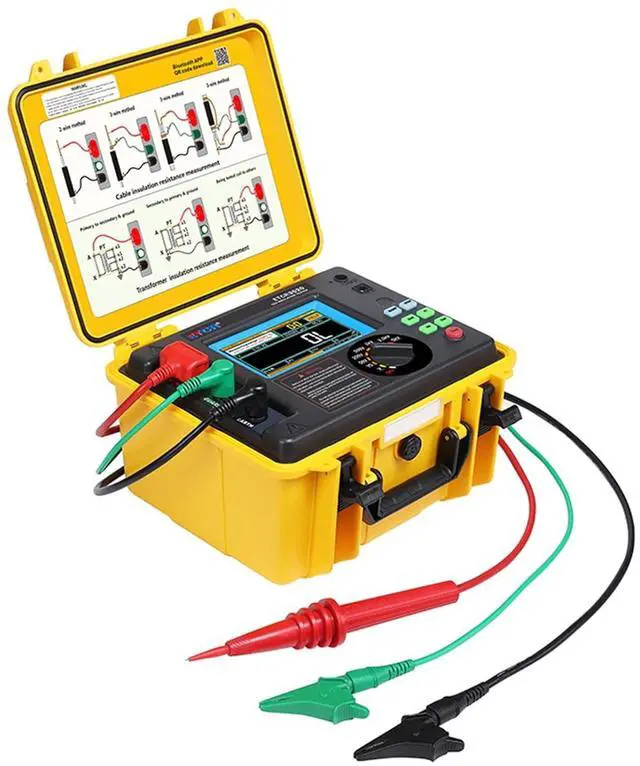

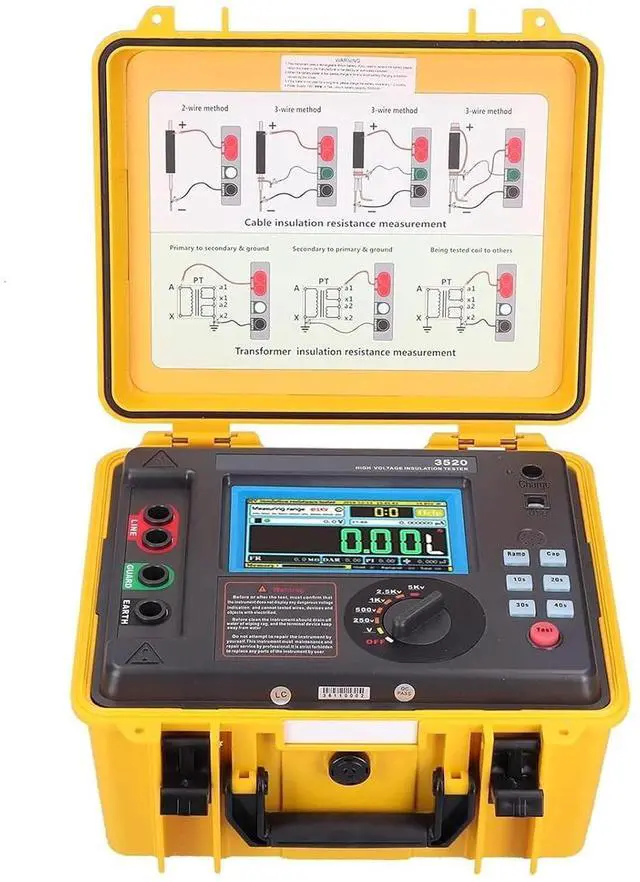

ETCR3520 5KV High Voltage Insulation Tester Megohm Meter 10T 7mA | Supports IR, PI, DAR, STEP and RAMP and capacitance measurement for cables, motors, transformers and switchgear

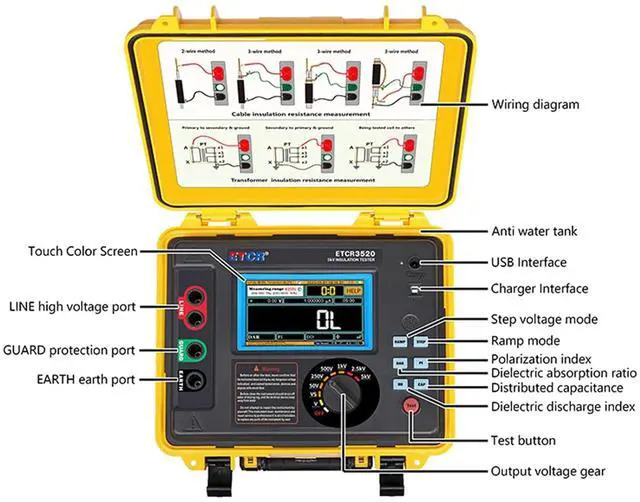

- Touch colorful screen, and the test data will be displayed on the same screen. It is very convenient to test operation and view history record.
- With the unique strong anti-interference technology and stable testing capabilities in large distributed capacitance site (such as long cables) and strong electromagnetic interference environments (such as substations).
- Perfect measurement index: insulation resistance (IR), polarization index (PI), dielectric absorption ratio (DAR), step (STEP), ramp (RAMP), dielectric discharge index (DD), distributed capacitance (CAP), AC/DC voltage (V).
- Custom setting measurement mode, optional PI and DAR calculation formulas, custom setting test voltage and custom setting test duration, which can provide variety of options to user and convient the special site request.
- Voltage monitor: Automatically monitoring the live voltage of the measured object. when the voltage exceed 36V and will automatically prohibit to test to effectively protect the instrument and the operator.
- Current monitor: Automatic display the current of test circuit
- Temperature monitor: Automic display the temperature and humidity of tester inside.
- Automatic discharge function, automatically and quickly release the electric charge of the measured object after the test, no need the external discharge circuit.
- Large-capacity test record memory, test records can be directly browsed and analyzed in the tester. the tester can automatically store 1000 sets of real-time test data with t
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Function- Suitable for the insulation resistance test of large-scale electrical equipment and transmission cable in large-capacity, high-voltage, and strong-inductive electrical environments.
- Insulation resistance test (IR); polarization index test (PI); Dielectric absorption ratio test (DAR); Step test(STEP); Ramp test (RAMP); Dielectric discharge index test(DD). AC/DC Voltage test(V); Distributed capacitance test(CAP).
- Touch colorful screen, and the test data will be displayed on the same screen. It is very convenient to test operation and view history record.
- With the unique strong anti-interference technology and stable testing capabilities in large distributed capacitance site (such as long cables) and strong electromagnetic interference environments (such as substations).
- Perfect measurement index: insulation resistance (IR), polarization index (PI), dielectric absorption ratio (DAR), step (STEP),ramp (RAMP), AC/DC voltage (V).
- Custom setting measurement mode, optional PI and DAR calculation formulas, custom setting test voltage and custom setting test duration, which can provide variety of options to user and convient the special site request.
- Voltage monitor: Automatically monitoring the live voltage of the measured object. when the voltage exceed 36V and will automatically prohibit to test to effectively protect the instrument and the operator.
- Current monitor: Automatic display the current of test circuit.
- Temperature monitor: Automic display the temperature and humidity of tester inside.
- Automatic discharge function, automatically and quickly release the electric charge of the measured object after the test, no need the external discharge circuit.
- Large-capacity test record memory, test records can be directly browsed and analyzed in the tester. the tester can automatically store 1000 sets of real-time test data with test date and test time.
- USB communication and upload function, the recorded data can be uploaded to the computer for stored statistical analysis.
| Function | Suitable for the insulation resistance test of large-scale electrical equipment and transmission cable in large-capacity, high-voltage, and strong-inductive electrical environments. |
| Function | Insulation resistance test (IR); polarization index test (PI); Dielectric absorption ratio test (DAR); Step test(STEP); Ramp test (RAMP); Dielectric discharge index test(DD). AC/DC Voltage test(V); Distributed capacitance test(CAP). |
| Rated Voltage | 50V, 250V, 500V, 1000V, 2500V, 5000V |
| Output Voltage Accuracy | (5%~10%) ±10V |
| Insulation Resistance Range | 0.005M~10.00T |
| Short Circuit Current | 7mA |
| Power Supply | Rechargeable battery |
| Capatiance Measurement | Range: 10nF~200uF; Accuracy: ±10%rdg ± 10nF |
| Voltage Measurement | DC:0V~1000V; AC:0V~700V |
| Custom Setting Output Voltage | 40V~5kV |
| Custom Setting Test Time | 10s~3600s |
| Polarization Index (PI) | Yes |
| DAR | Yes |
| Step Voltage(STEP) | Yes |
| Ramp( RAMP) | Yes |
| Dielectric discharge index(DD) | Yes |
| Real Time Current Value | Display test current value, current display range: 0.001nA~7.5mA |
| Real Time Voltage Value | Automatically monitoring the voltage of the measured object. when the voltage exceed 36V and will automatically prohibit to test to effectively protect the instrument and the operator. |
| Test Timer | Automatically record test duration, timing range: 0s~9999s |
| Store Function | Automatically store the test date, time and timing, total of 1000 groups, which can view and replay the stored test record |
| USB Comminication | Yes, upload the test record to PC through the USB cable |
| Battery Power Indication | With the battery power indication, when battery voltage low will remind to charge in time |
| Automatic Shutdown | After 15 minutes start up will shut down automatically without any operation |
| Tester Dimension | 280mmX260mmX160mm |
| Instrument Weight | Host: 3737g(with rechargeable battery); total weight:5.72kg(include all accessories) |
| Protection Level | Close the case IP65; open the case IP40 |
| Working Environment | -20~50; 80%RH |
| Withstand Voltage | AC 3Kv 50Hz 1min (between the test circuit and shell) |
| Suitable Safety Standard | IEC61010-1, IEC61326-1 |

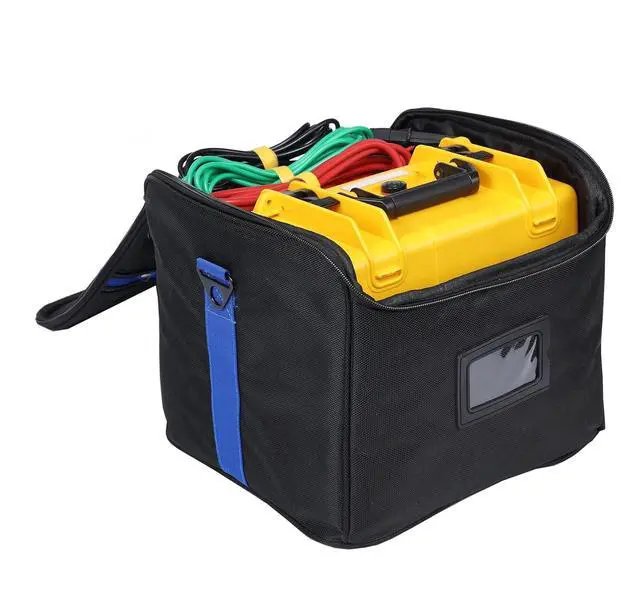

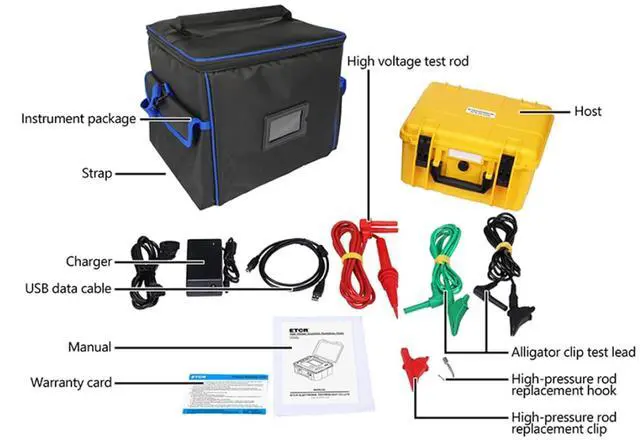

| Accessories | Host: 1PCS, high voltage test wire(red): 1PCS, Test wire (green): 1PCS; Test wire (black): 1PCS; Alligator clip: 1PCS; Hook 1PCS; USB communication cable 1PCS; Software CD: 1COPY; Tool bag: 1PCS |
