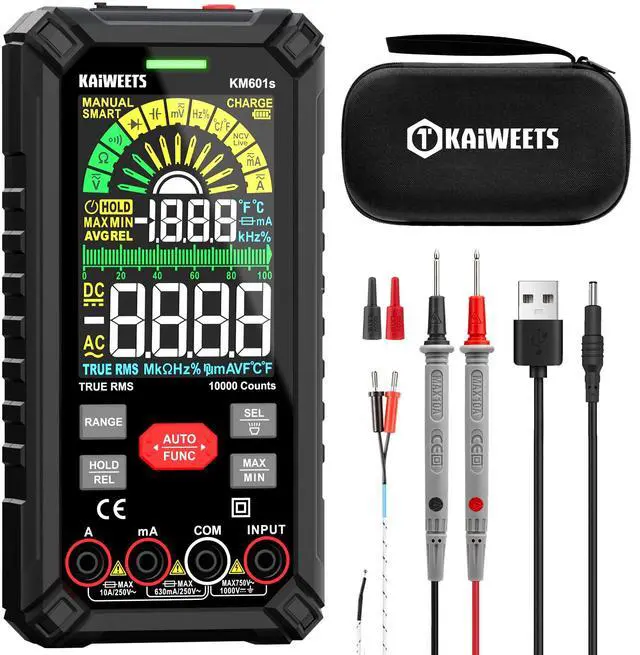

_Mega Brand Digital Multimeter 10000 Counts TRMS Auto Ranging, Rechargeable Smart Multimeter, Color LCD Screen Volt Meter, Measures Voltage, Current, Resistance, Continuity, Capacitance, Frequency

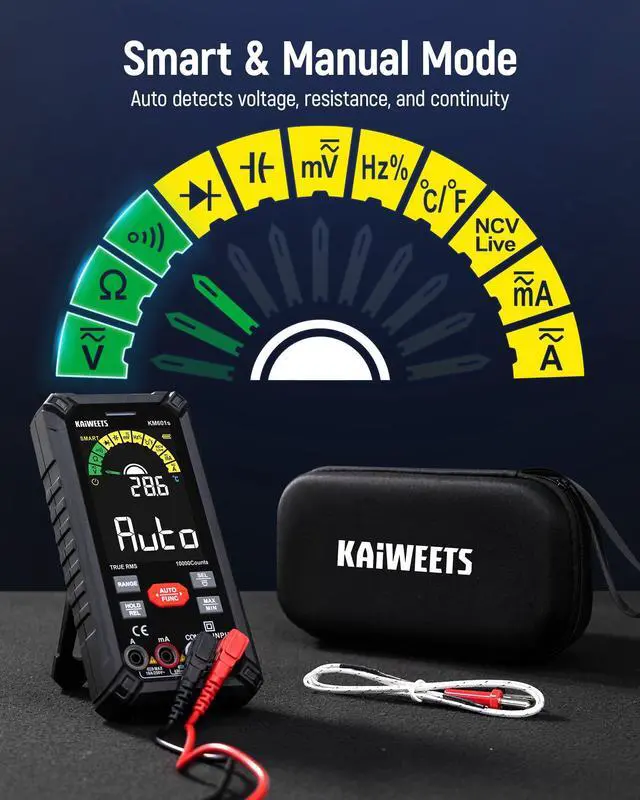

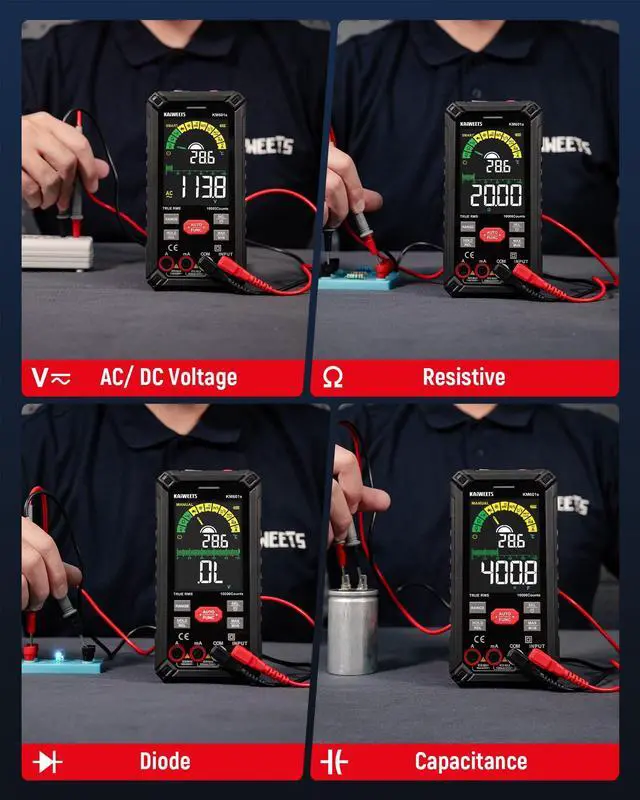

- Auto & Manual Mode: The KM601s digital multimeter features a SMART mode that automatically measures voltage, resistance, and continuity. It identifies what you're testing and selects the optimal range for precise and quick measurements. In manual mode, it accurately measures AC/DC voltage, resistance, continuity, current, capacitance, frequency, diodes, duty cycle, temperature, NCV, and live wires

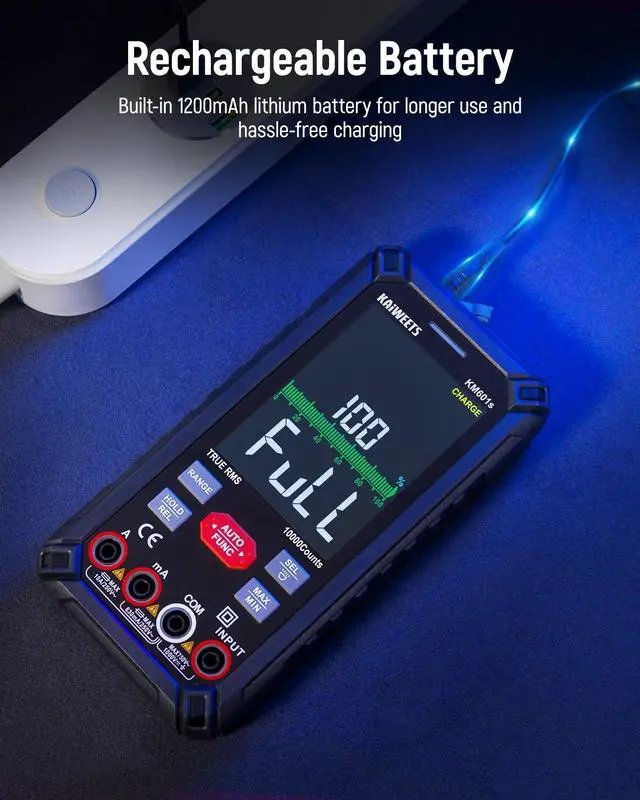

- Rechargeable & Convenience: With a built-in rechargeable 1200 mAh battery, this smart multimeter allowing for extended use without frequent battery changes. It comes with Min/Max/Average recording for signal fluctuations, an analog bar display; real-time temperature display; low battery alerts; data hold; auto power-off and retractable kickstand for added convenience

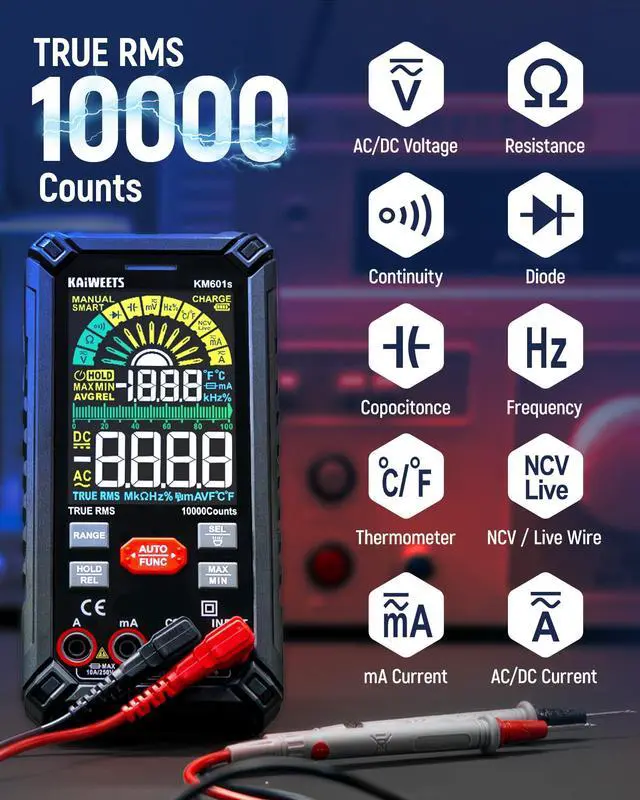

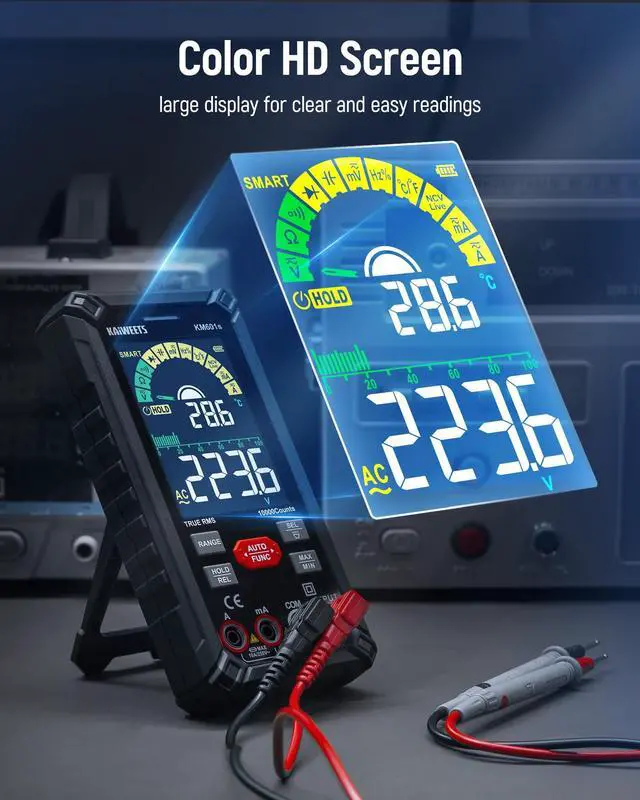

- Color Display & Easy Reading: The 10000 Counts TRMS multimeter tester boasts a large color LCD display and a built-in flashlight. The expansive color screen ensures clear visibility of measurements, even in low-light conditions, while the flashlight helps you work in dark or hard-to-reach areas, making it a versatile tool for any environment
- Safety First: The KAIWEETS multimeter prioritizes your safety with its IEC CAT.III 1000V and CAT.IV 600V ratings. Its equipped with double fuse anti-burn and overload protection, ensuring maximum safety during use. CE and RoHS certifications further guarantee its reliability, making it a secure choice for automotive, industrial, and household electrical diagnostics
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Power: Built in batteries
Display Counts: 9999 counts
Weight: Approximately 265g
LCD Dimensions: 54 x 73mm
Dimensions: 165x83 x25 mm
Environmental conditions: CAT. IV 600V, CAT. III 1000V
Work Environment: 32~104 °F; 0~40 °C, at < 80%RH
Storage Temperature: 14~122 °F; -10~60 °C, at <70%RH
Accuracy Specifications:
DC voltage: 99.99mV/999.9mV/9.999V/99.99V/999.9V, ±(0.5% +3)
AC Voltage: 99.99mV/999.9mV/9.999V/99.99V/750V, ±(0.8%+3)
AC/DC Current: 9.999mA/99.99mA/600.0mA,±(0.8%+3). 9.999A, ±(1.2%+3)
Capacitance:9.999nF/ 99.99nF/ 999.9nF/ 9.999F/ 99.99F/ 999.9F, ±(4.0%+3); 9.999mF/ 99.99mF, ±(5.0%+5).
Resistance: 999.9/9.999K/99.99 K/999.9 K/9.999M,±(1.0%+5) Frequency:9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99kHz/999.9kHz/9.999MHz,±(1.0%+3)
Duty: 1.0~99.0%,±(1.0%+3)
Temperature: -40~ 0, ±5.0%. 30~400, ± 1.0%. 2400~1000, ± 2.0%. -40~32, ±5.0%. 632~ 52, ±1.0%. 4752~1832, ±2.0%.
More Functions: AutoRange/Analog Bar Display/True RMS/NCV/Data hold/Back light/LED lamp/Diode test/Continuity/Over load protection/Low Battery Indication/Auto Power Off/Short-circuit protection.
Product information
| Brand | _Mega Brand |
| Power Source | Battery Powered |
| Style | Rechargeable Smart Multimeter |
| Color | Black |
| Item Weight | 265 Grams |
| Package Dimensions | 8.39 x 4.57 x 2.8 inches; 9.35 ounces |
| Item model number | KM601S |
| Batteries | 1 Lithium Ion batteries required. (included) |
| Date First Available | June 1, 2023 |
| Manufacturer | _Mega Brand |
| #45 in Multi Testers | #45 in Multi Testers |
Additional Features
- Sincere Services: _Mega Brand offers 3 years of after-sale service and technical support. Feel free to reach out with any questions. The package includes a multimeter; test leads; charging cable; thermocouples; batteries; user manual; and storage case
