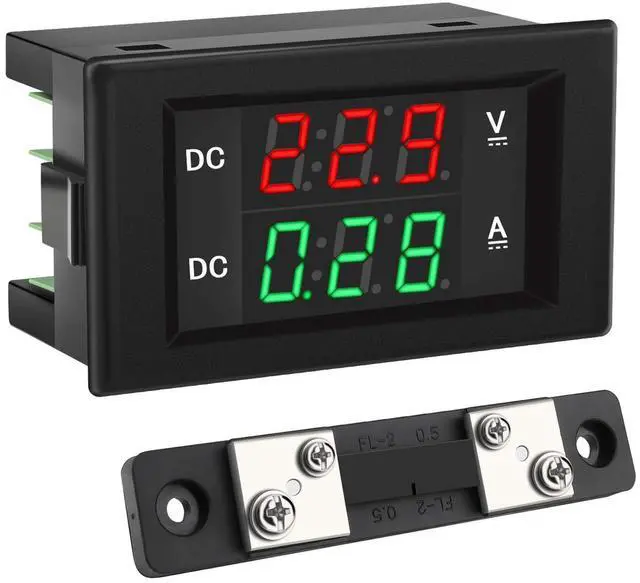

    DROK DC 4.5-100V Digital Voltmeter Ammeter Multimeter Panel, DC Amp Meter Voltage Meter, Current Meter 0-50A Volt Tester, LED Display Voltage Gauge for Automotive Motor Battery

    • PARAMETER --- measuring voltage DC 4.5V-100V; current 0-50A.
    • APPLICATION --- monitoring storage battery, solar panel, model railroad, RV, motorcycle, house batteries, motor, etc.
    • DISPLAY --- 0.39'' crisp and bright LED screen displays voltage & current value.
    • CALIBRATION --- with voltage & current calibration potentiometer.
    • NOTE --- the shunt should be connected when wiring, otherwise the meter will be burnt.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Integrity, Quality, Innovation, Customer --- DROK

    DROK has been engaged in technical research, development, manufacture and sale of all kinds of voltage current multimeter for many years.

    With acquisition of leading technology, we strictly enforce quality management system and improve operational management, dedicate to produce high performance multimeter for our valued customers.

    Enjoy life, enjoy DIY, enjoy spare time with DROK components.

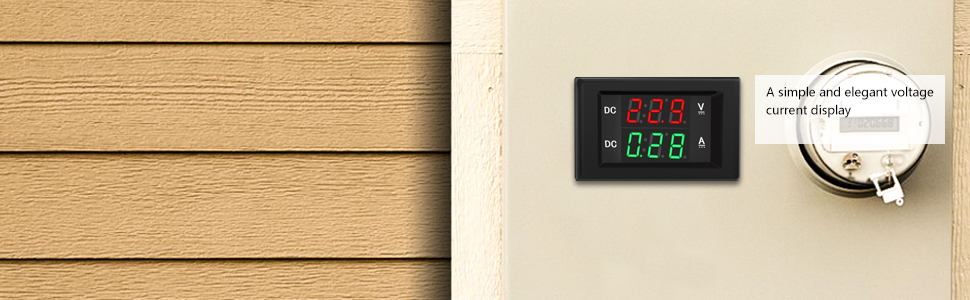

    DROK DC Voltage Current Display

    A safer, better-design voltage current metter for you

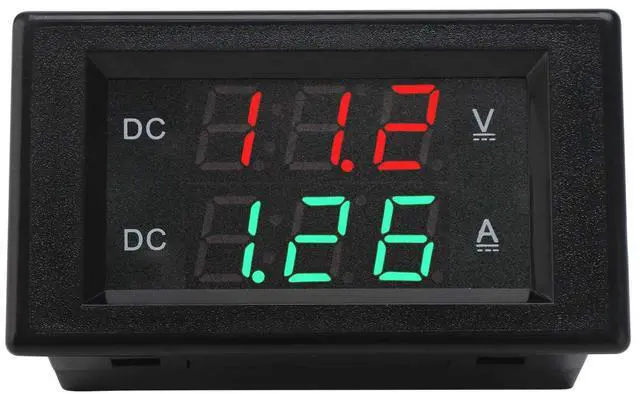

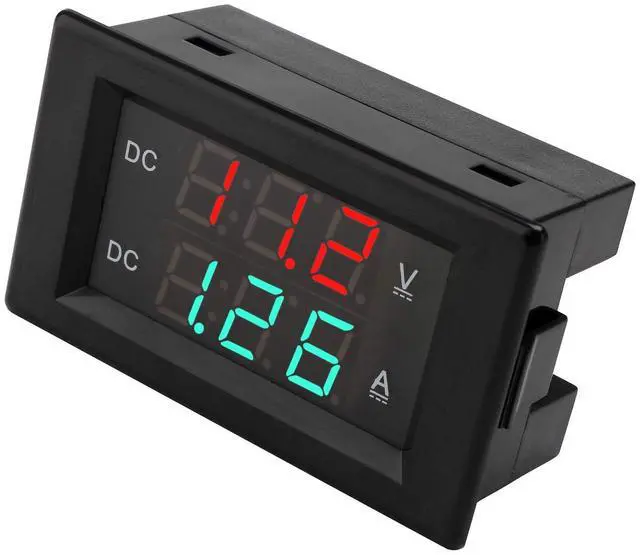

    Display

    LED display shows volt and amp

    The multimeter can clearly display voltage and current at the same time, red for voltage, green for current.

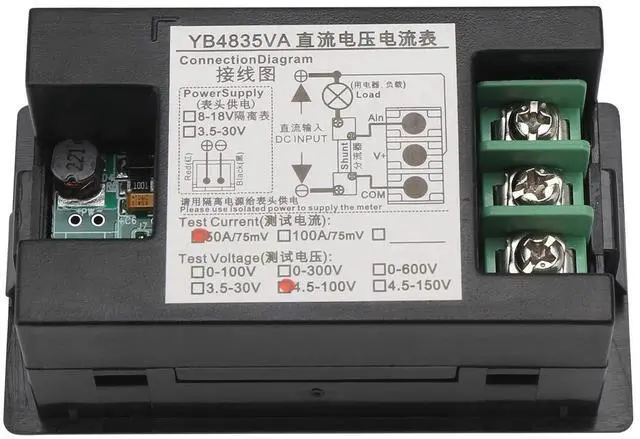

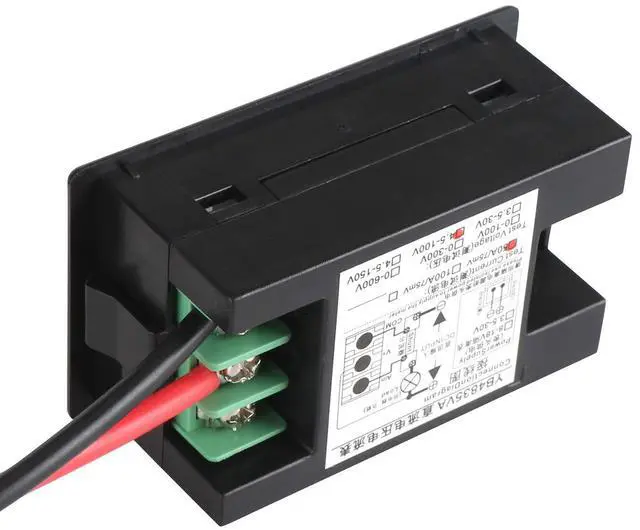

    rear side

    Three terminals

    DROK volts amp tester is equipped with three terminals. The power supply is taken from the test loop. No additional power supply is required.

    The shunt

    A shunt 50A/75mV

    The current range of the meter is 0.0-50.0A.

    NOTE: If the current is higher than 20A, a shunt is required, otherwise the meter will burn.

    Backside

    Back cover

    It's safer with the back cover

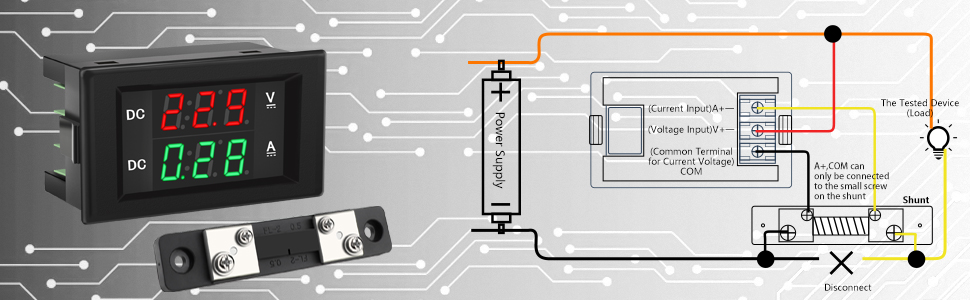

    DROK DC Voltage Current Metter Wiring

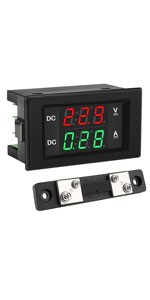

    https://m.media-amazon.com/images/S/aplus-media/sc/be859a88-7af1-4c52-9157-fb562d96f618.__CR0,0,150,300_PT0_SX150_V1___.jpg

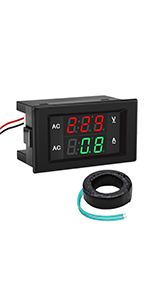

    DROK 2-in-1 Multimeter
    https://m.media-amazon.com/images/S/aplus-media/sc/15c1ec9c-a1a0-4b30-82be-1041be72e6d2.__CR0,0,150,300_PT0_SX150_V1___.jpg
    DROK 2-in-1 Multimeter

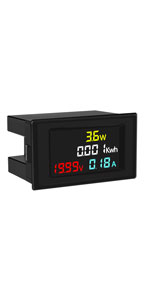

    https://m.media-amazon.com/images/S/aplus-media/sc/19763d0e-bdaa-47a8-a5d6-da04b7e10656.__CR0,0,150,300_PT0_SX150_V1___.jpg
    DROK 4-in-1 Multimeter

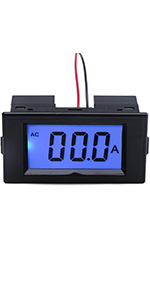

    https://m.media-amazon.com/images/S/aplus-media/sc/4648a47b-e54a-4c7a-b723-088213e53056.__CR0,0,150,300_PT0_SX150_V1___.jpg
    DROK Current Tester
    https://m.media-amazon.com/images/S/aplus-media/sc/d95f4920-0d9d-4564-804b-ab555da64758.__CR0,0,150,300_PT0_SX150_V1___.jpg

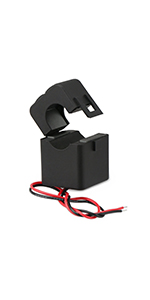

    DROK Current Transformer

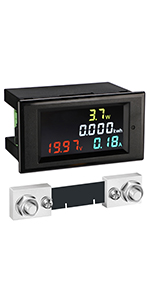

    https://m.media-amazon.com/images/S/aplus-media/sc/66b874a7-e83d-42df-99c2-16dcd397b1af.__CR0,0,150,300_PT0_SX150_V1___.jpg
    DROK 4-in-1 Multimeter with Shunt
    Customer Reviews
    Price no datano datano datano data
    Measuring Value Voltage; current Voltage; current Voltage; Current; Power; Battery energy Current - no data Voltage; Current; Power; Battery energy
    Measuring Voltage Range DC 4.5V-100V AC 130-500V DC 7-20V - no data - no data DC 14~600V
    Measuring Current Range DC 0-50A AC 0.0-200A DC 0-20A AC 0-50A - no data DC 0~100A
    Display LED LED LCD LCD - no data LCD

    Integrity, Quality, Innovation, Customer --- DROK

    DROK has been engaged in technical research, development, manufacture and sale of all kinds of voltage current multimeter for many years.

    With acquisition of leading technology, we strictly enforce quality management system and improve operational management, dedicate to produce high performance multimeter for our valued customers.

    Enjoy life, enjoy DIY, enjoy spare time with DROK components.

    DROK DC Voltage Current Display

    A safer, better-design voltage current metter for you

    Display

    LED display shows volt and amp

    The multimeter can clearly display voltage and current at the same time, red for voltage, green for current.

    rear side

    Three terminals

    DROK volts amp tester is equipped with three terminals. The power supply is taken from the test loop. No additional power supply is required.

    The shunt

    A shunt 50A/75mV

    The current range of the meter is 0.0-50.0A.

    NOTE: If the current is higher than 20A, a shunt is required, otherwise the meter will burn.

    Backside

    Back cover

    It's safer with the back cover

    DROK DC Voltage Current Metter Wiring
    https://m.media-amazon.com/images/S/aplus-media/sc/be859a88-7af1-4c52-9157-fb562d96f618.__CR0,0,150,300_PT0_SX150_V1___.jpg
    DROK 2-in-1 Multimeter
    https://m.media-amazon.com/images/S/aplus-media/sc/15c1ec9c-a1a0-4b30-82be-1041be72e6d2.__CR0,0,150,300_PT0_SX150_V1___.jpg
    DROK 2-in-1 Multimeter
    https://m.media-amazon.com/images/S/aplus-media/sc/19763d0e-bdaa-47a8-a5d6-da04b7e10656.__CR0,0,150,300_PT0_SX150_V1___.jpg
    DROK 4-in-1 Multimeter
    https://m.media-amazon.com/images/S/aplus-media/sc/4648a47b-e54a-4c7a-b723-088213e53056.__CR0,0,150,300_PT0_SX150_V1___.jpg
    DROK Current Tester
    https://m.media-amazon.com/images/S/aplus-media/sc/d95f4920-0d9d-4564-804b-ab555da64758.__CR0,0,150,300_PT0_SX150_V1___.jpg
    DROK Current Transformer
    https://m.media-amazon.com/images/S/aplus-media/sc/66b874a7-e83d-42df-99c2-16dcd397b1af.__CR0,0,150,300_PT0_SX150_V1___.jpg
    DROK 4-in-1 Multimeter with Shunt
    Customer Reviews
    Price no datano datano datano data
    Measuring Value Voltage; current Voltage; current Voltage; Current; Power; Battery energy Current - no data Voltage; Current; Power; Battery energy
    Measuring Voltage Range DC 4.5V-100V AC 130-500V DC 7-20V - no data - no data DC 14~600V
    Measuring Current Range DC 0-50A AC 0.0-200A DC 0-20A AC 0-50A - no data DC 0~100A
    Display LED LED LCD LCD - no data LCD

    DROK DC 4.5-100V 0-50A Volt Amp Meter

    Parameters:
    Voltage Measuring Range: DC 4.5-100V
    Voltage Resolution: 0.01V under 10V; 0.1V between 10V and 100V
    Current Measuring Range: 0.0-50.0A (If the current is higher than 20A, a shunt is required, or the meter will burn)
    Current Resolution: 0.1A
    Display: 0.39" LED dual display
    Measuring Rate: 500mS/time
    Measurement Accuracy: 1% (±1 digit)
    Shunt: 50A/75mV
    Meter Opening Size: 68*38mm/2.67*1.49 inch

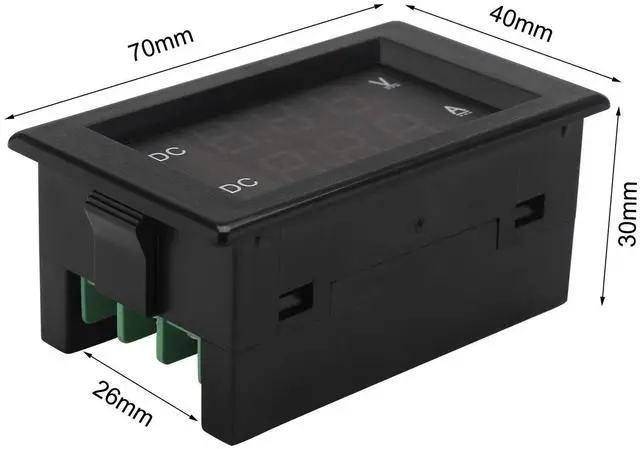

    Meter Dimension: 70*40*30mm/2.75*1.57*1.18 inch
    Shunt Size: 120*25mm/4.72*0.98 inch

    Extreme Working Condition:
    Working Temperature: -10+65
    Working Humidity: 1080% ( No Condensation)
    Working Air Pressure: 80106kPa
    Sunlight: No direct exposure

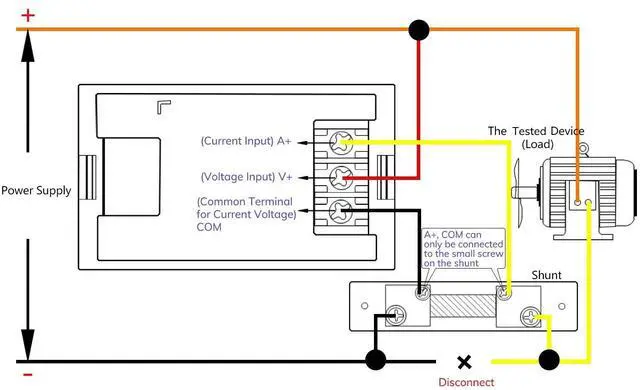

    Connecting Method:
    COM: Common terminal of power supply negative pole
    V+: Positive pole of tested voltage, positive pole input terminal of power supply
    A+: Positive pole input terminal of tested current ( This meter adopts common-ground design that earth wire of measuring terminal is interlinked with earth wire of power supply, so A+ can only be connected between the tested device negative pole and power supply negative pole. The meter will burn if connected wrong.)
    Note: If the meter is used as voltmeter, it is suggested that the yellow wire and black wire are connected together.

    Note:
    If the current cannot display properly, please check whether the wires are connected correctly.
    Package Included:
    1x Voltage Current Display
    1x 50A/75mV Shunt
