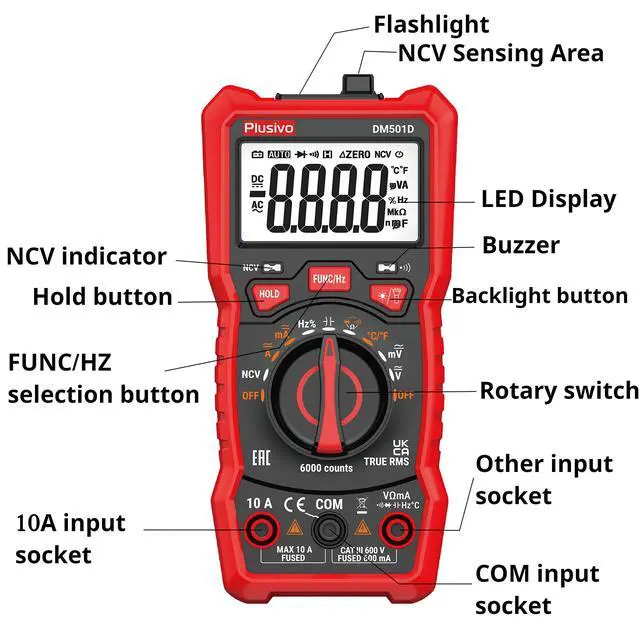

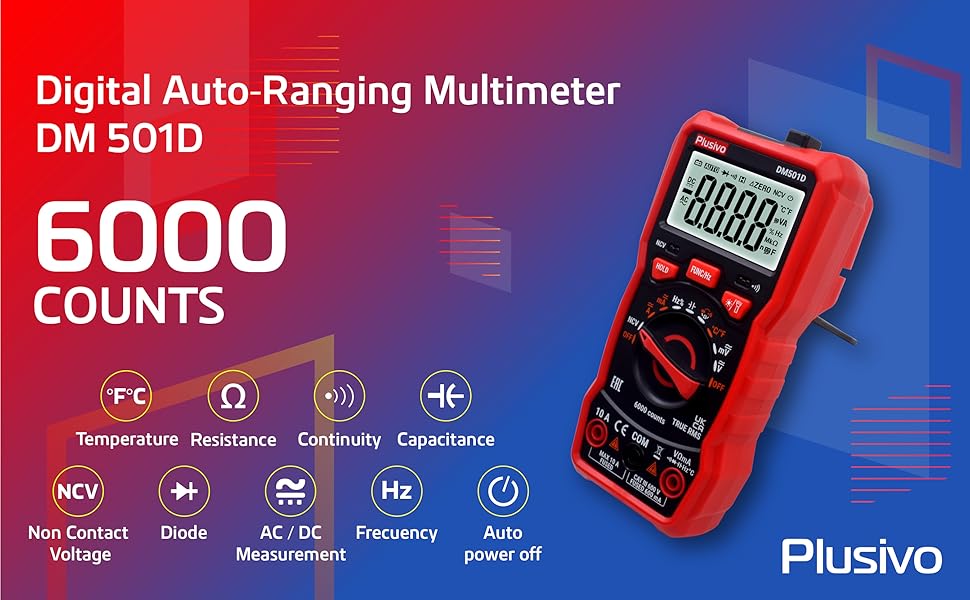

Plusivo DM501D Digital Multimeter Autoranging 6000 Counts
Autoranging Digital Multimeter - True RMS (6000 Counts)
The Plusivo Digital Auto Ranging Multimeter DM 501D is a practical and multifunctional tool for electrical problems, its features are flexible to any kind of scenario, and with the accessories, it makes it the most complete tool on the market. It can be used as a multi-tester for Car Battery Circuits, Voltmeter, Ammeter, Ohmmeter.
- ?AC/DC Voltage ?AC/DC Current ?Resistance
- ?Diode ?Continuity ?Frequency
- ?Capacitance ?Temperature ?NCV
- ?Backlight ?Flashlight ?Low Battery Indication
- ?Overload Protection ?Data Hold
- ? Manual ? Flyer with claim code for the ebook
Functions and features
- It has auto-ranging, Data Hold, and auto power-off functions.
- It uses a True RMS Measurement for AC/DC Voltage, AC/DC Current, Resistance, Diode, Continuity, Frequency, Capacitance, Temperature, NCV.
- It indicates Low Battery with an icon, Overload with OL on the display, and Polarity with "-".
- Its ergonomically shaped body makes it safe to grip and easy to operate.
- Is conveniently equipped with a kick-stand so it can stand alone for better handling.
- The back holder probes improve the user experience.
Auto-ranging
NCV DM 501D NCV or Non contact Voltage Tester
Temperature Measurement
LCD Backlight and Flashlight
What do you get?
Content
Not only do you get the 6000 Counts Digital Multimeter, but you also get:
- 1 pair of Normal Test Probes
- 1 pair of Needle Test Probes
- 1 pc Thermocouple
- 5-in-1 Test Leads
- Red and Black Crocodile Clip
- 1 pc Mini Wire Stripper Tool
- 2 pcs mini screwdrivers
- 1 pc Black Insulating Tape
And on top of that, it comes with a printed Manual-User Guide and a flyer with a claim code for the Mastering the Art of Measurement eBook that teaches you the basics of performing electrical measurements and 3 pre-installed 1.5 V AAA batteries.
 DM501D Multimeter |  DM101 Multimeter Full Set |  DM401B Smart Multimeter |  DM301B Multimeter |  CL201D Clampmeter | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — no data | — no data | — no data | — no data |
| Autoranging | ? | ? | ? | ? | ? |
| AC Voltage | 600mV / 6V / 60V / 600V | 200V / 500V | 6V / 60V / 600V | 4V / 40V / 400V / 600V | 4V / 40V / 400V / 600V |
| DC Voltage | 600mV / 6V / 60V / 600V | 200mV / 2V / 20V / 200V / 600V | 600mV / 6V / 60V / 600V | 400mV / 4V / 40V / 400V / 600V | 400mV / 4V / 40V / 400V / 600V |
| AC Current | 60mA / 600mA / 10A | ? | 600mA / 6A / 10A | 400µA / 4000µA / 40mA / 400mA / 4A | 40 A / 600 A |
| DC Current | 60mA / 600mA / 10A | 2mA / 20mA / 200mA / 10A | 600mA / 6A / 10A | 400µA / 4000µA / 40mA / 400mA / 4A | ? |
| Resistance | 600O / 6kO / 60kO / 600kO / 6MO / 60MO | 200O / 2kO / 20kO / 200kO / 2MO | 600O / 6kO / 60kO / 600kO / 6MO / 60MO | 400O / 4kO / 40kO / 400kO / 4MO / 40MO | 400O / 4kO / 40kO / 400kO / 4MO / 40MO |
| Non Contact Voltage Test | ? | ? | ? | ? | ? |
| Flashlight and Backlight | ? | Backlight only | ? | ? | ? |
| Temperature and Frequency | ? | ? | ? | ? | ? |
| Display | 6000 counts | 2000 Counts | 6000 counts | 4000 counts | 3999 Counts |

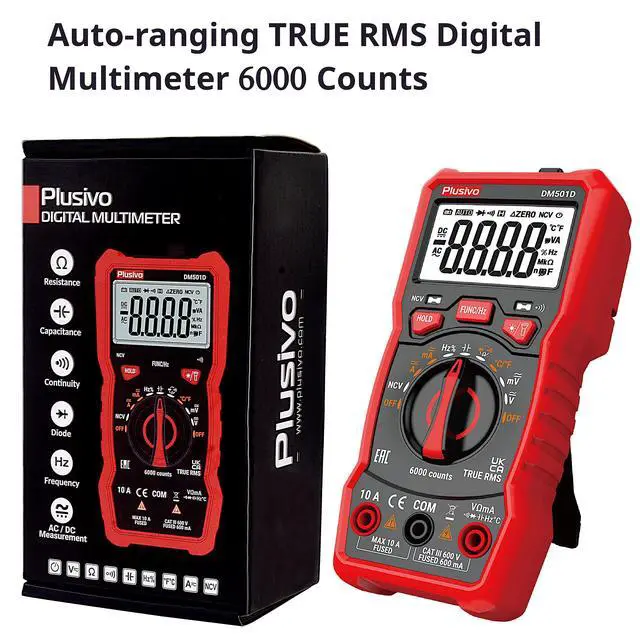

Plusivo DM501D Digital Multimeter Autoranging 6000 Counts
Autoranging Digital Multimeter - True RMS (6000 Counts)
The Plusivo Digital Auto Ranging Multimeter DM 501D is a practical and multifunctional tool for electrical problems, its features are flexible to any kind of scenario, and with the accessories, it makes it the most complete tool on the market. It can be used as a multi-tester for Car Battery Circuits, Voltmeter, Ammeter, Ohmmeter.
- ?AC/DC Voltage ?AC/DC Current ?Resistance
- ?Diode ?Continuity ?Frequency
- ?Capacitance ?Temperature ?NCV
- ?Backlight ?Flashlight ?Low Battery Indication
- ?Overload Protection ?Data Hold
- ? Manual ? Flyer with claim code for the ebook
Functions and features
- It has auto-ranging, Data Hold, and auto power-off functions.
- It uses a True RMS Measurement for AC/DC Voltage, AC/DC Current, Resistance, Diode, Continuity, Frequency, Capacitance, Temperature, NCV.
- It indicates Low Battery with an icon, Overload with OL on the display, and Polarity with "-".
- Its ergonomically shaped body makes it safe to grip and easy to operate.
- Is conveniently equipped with a kick-stand so it can stand alone for better handling.
- The back holder probes improve the user experience.

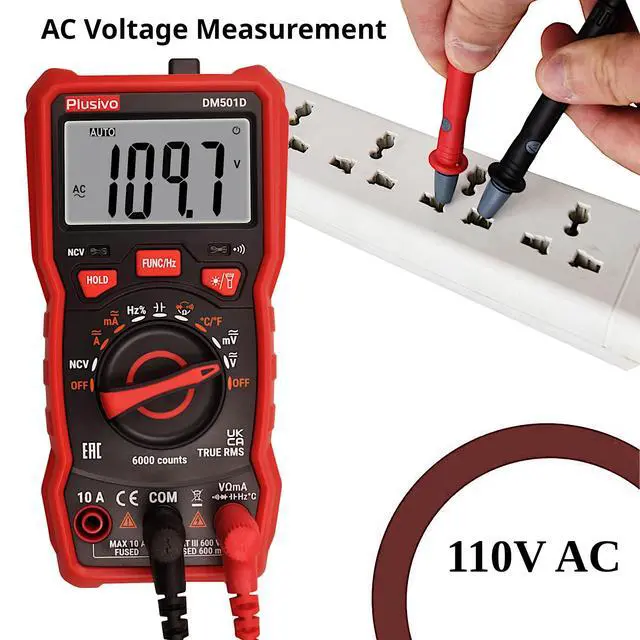

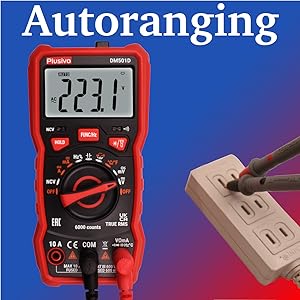

Auto-ranging
One of its main features is that this multimeter can measure automatically at a safety rate of 600 V in voltage measurement and 250 ACV or equivalent RMS voltage when measuring frequency, resistor, buzzer, or diode. All of this is thanks to the intern fuse (F200 mA/250 V) that protects the dispositive when measuring µA and mA.

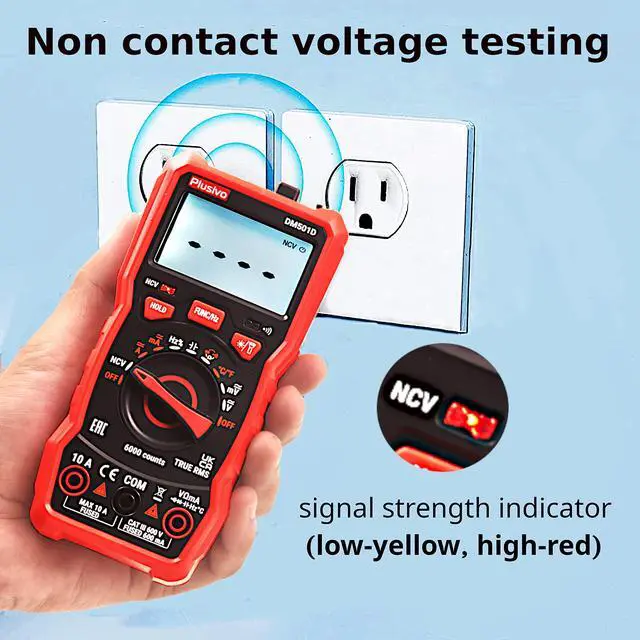

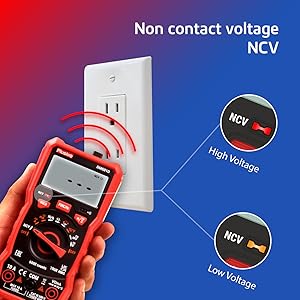

NCV or Non contact Voltage Tester
Another main feature is the NCV Tester. Turn the rotary switch to the NCV position and place the top of the meter close to electric sockets, outlets, and terminals to test voltage and live wires safely. It comes with an audial and visual alarm, the LED will turn yellow for low voltage and red for high voltage, and the buzzer will send out alarms at different frequencies.

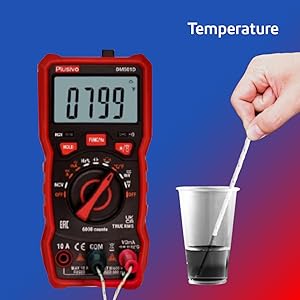

Temperature Measurement
Its temperature feature with the Thermocouple makes it really easy and safe to use:
- Switch the knob to “°C/°F” and the meter will display the surrounding temperature.
- Remove the test pens and connect the "COM" and "VOmA" leads to the ends of the thermocouples with the correct polarity.
- The meter will display the approximate temperature from the thermocouple.

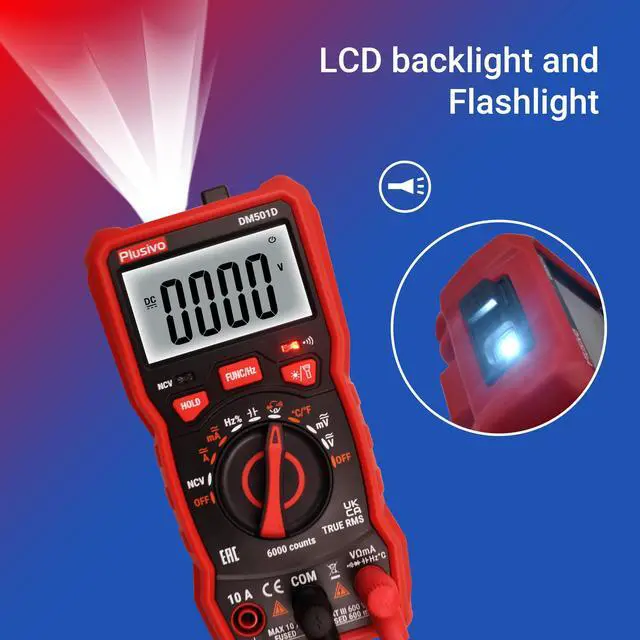

LCD Backlight and Flashlight
The LCD screen backlight and the flashlight are the perfect combinations to work in areas without light.

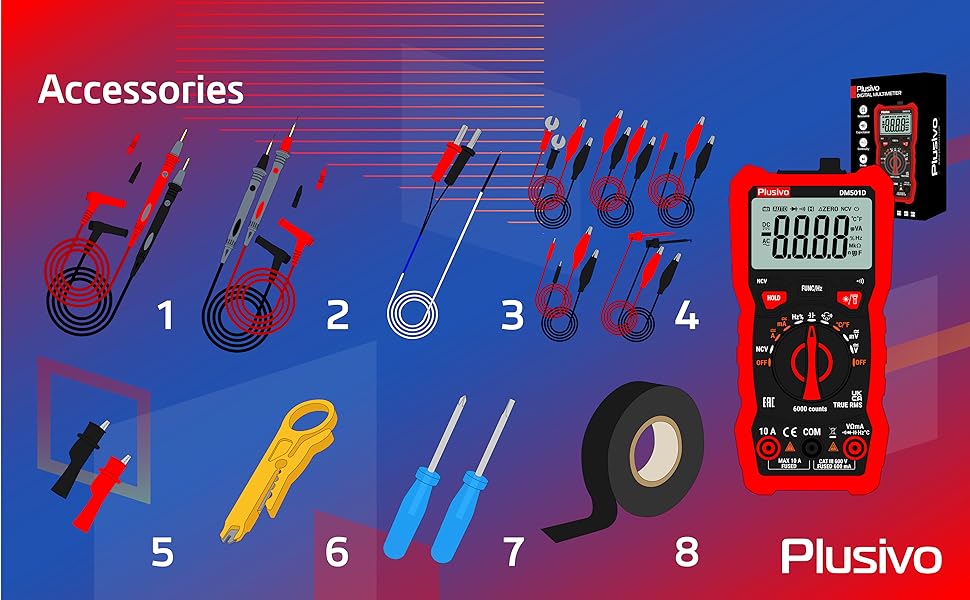

What do you get?
Content
Not only do you get the 6000 Counts Digital Multimeter, but you also get:
- 1 pair of Normal Test Probes
- 1 pair of Needle Test Probes
- 1 pc Thermocouple
- 5-in-1 Test Leads
- Red and Black Crocodile Clip
- 1 pc Mini Wire Stripper Tool
- 2 pcs mini screwdrivers
- 1 pc Black Insulating Tape
And on top of that, it comes with a printed Manual-User Guide and a flyer with a claim code for the Mastering the Art of Measurement eBook that teaches you the basics of performing electrical measurements and 3 pre-installed 1.5 V AAA batteries.

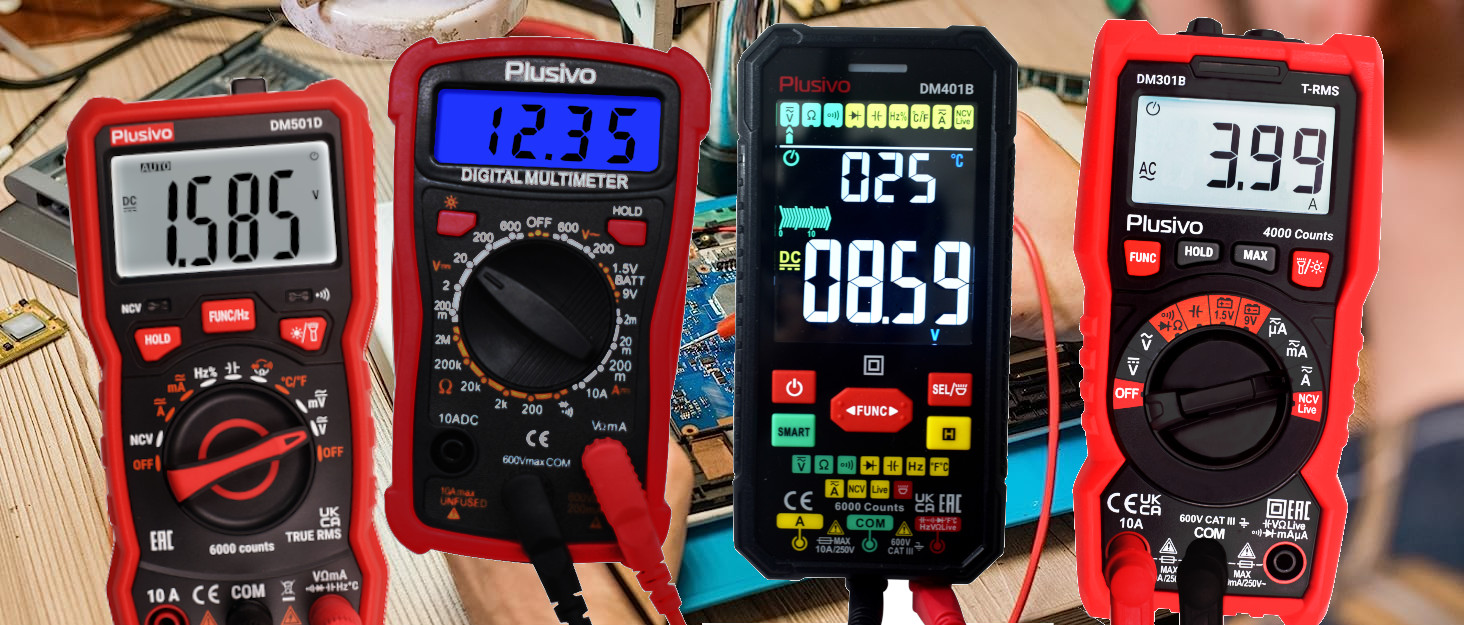

DM501D Multimeter | DM101 Multimeter Full Set | DM401B Smart Multimeter | DM301B Multimeter | CL201D Clampmeter | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — no data | — no data | — no data | — no data |
| Autoranging | ? | ? | ? | ? | ? |
| AC Voltage | 600mV / 6V / 60V / 600V | 200V / 500V | 6V / 60V / 600V | 4V / 40V / 400V / 600V | 4V / 40V / 400V / 600V |
| DC Voltage | 600mV / 6V / 60V / 600V | 200mV / 2V / 20V / 200V / 600V | 600mV / 6V / 60V / 600V | 400mV / 4V / 40V / 400V / 600V | 400mV / 4V / 40V / 400V / 600V |
| AC Current | 60mA / 600mA / 10A | ? | 600mA / 6A / 10A | 400µA / 4000µA / 40mA / 400mA / 4A | 40 A / 600 A |
| DC Current | 60mA / 600mA / 10A | 2mA / 20mA / 200mA / 10A | 600mA / 6A / 10A | 400µA / 4000µA / 40mA / 400mA / 4A | ? |
| Resistance | 600O / 6kO / 60kO / 600kO / 6MO / 60MO | 200O / 2kO / 20kO / 200kO / 2MO | 600O / 6kO / 60kO / 600kO / 6MO / 60MO | 400O / 4kO / 40kO / 400kO / 4MO / 40MO | 400O / 4kO / 40kO / 400kO / 4MO / 40MO |
| Non Contact Voltage Test | ? | ? | ? | ? | ? |
| Flashlight and Backlight | ? | Backlight only | ? | ? | ? |
| Temperature and Frequency | ? | ? | ? | ? | ? |
| Display | 6000 counts | 2000 Counts | 6000 counts | 4000 counts | 3999 Counts |
