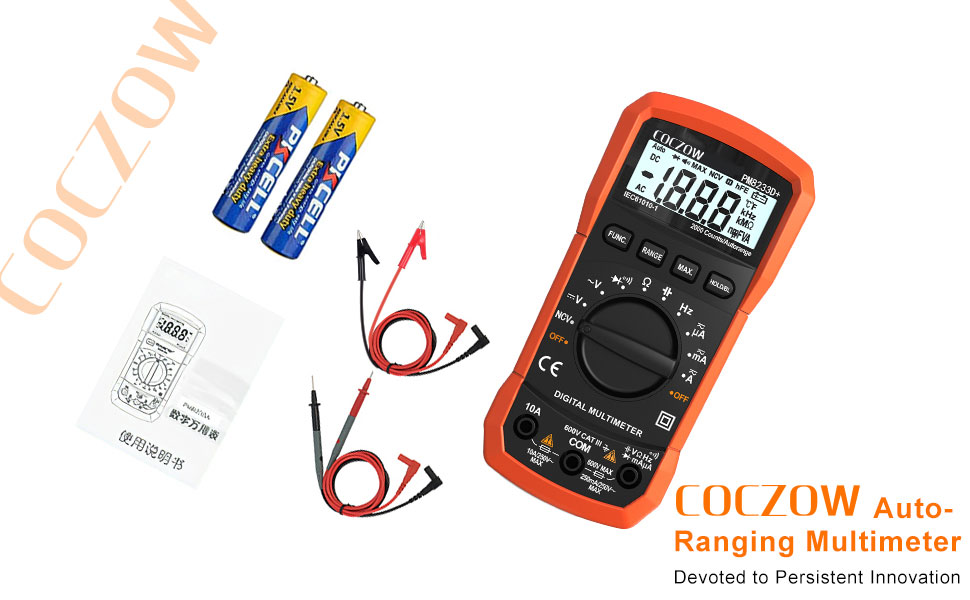

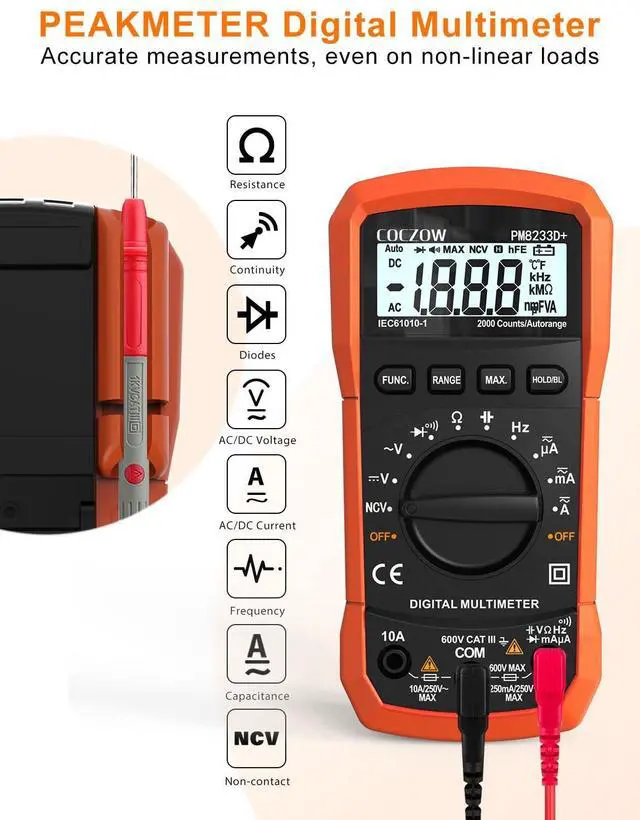

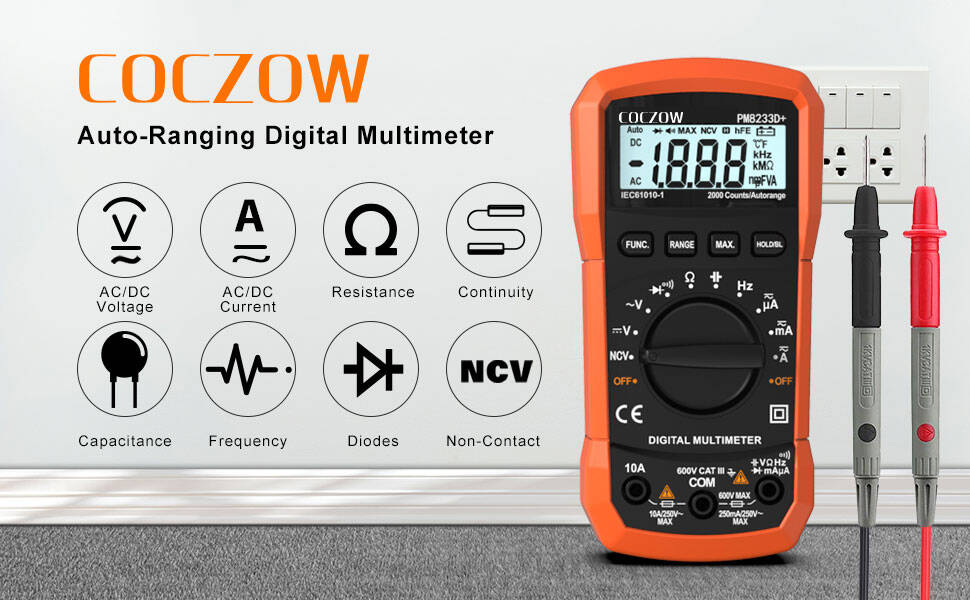

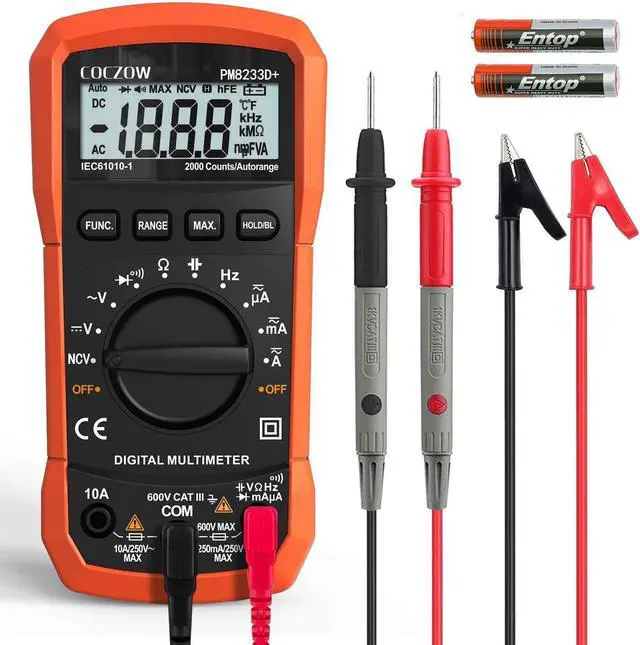

The multimeter adopts a 15 mm high LCD with backlight, which can clearly read out the disply even in dark places. It is a portable 3 1/2 bit automatic range digital multimeter with high performance and high reliability. The whole circuit is based on integrated circuits, equipped with overload protection circuit, can be used to measure AC and DC voltage, AC and DC current, resistance, capacitance, frequency, diode,continuity test and NCV test. It can be widely used in schools, research insitutes, factories,enterprises and other social fields.
Product Specifications
- Auto Range and Maximum Measurement
- Overload Protections: PTC Proctection

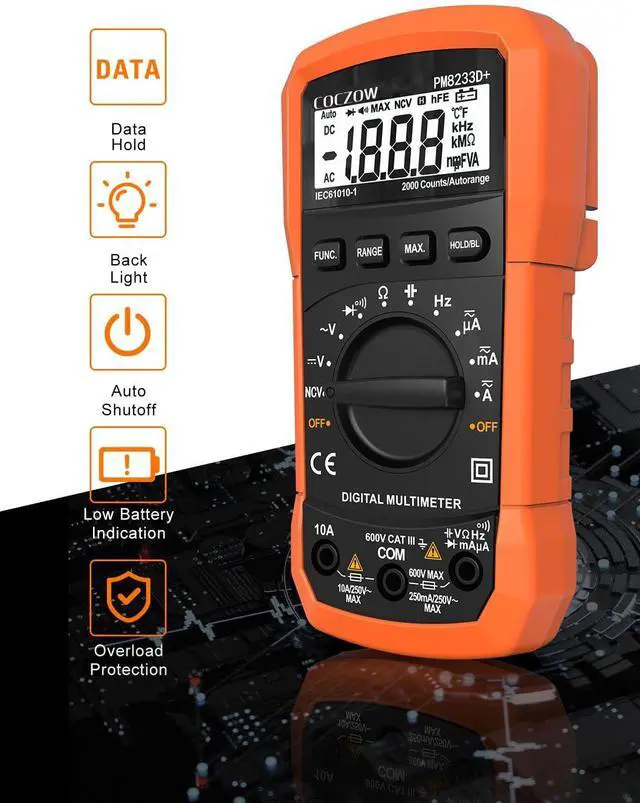

- Large Backlit Display and Data Hold
- Protective Shell with Pen Slot and Stand
- Additional Features with NCV Auto Power Off
Sworely Auto-Ranging Digital Multimeter
Technical Specifications

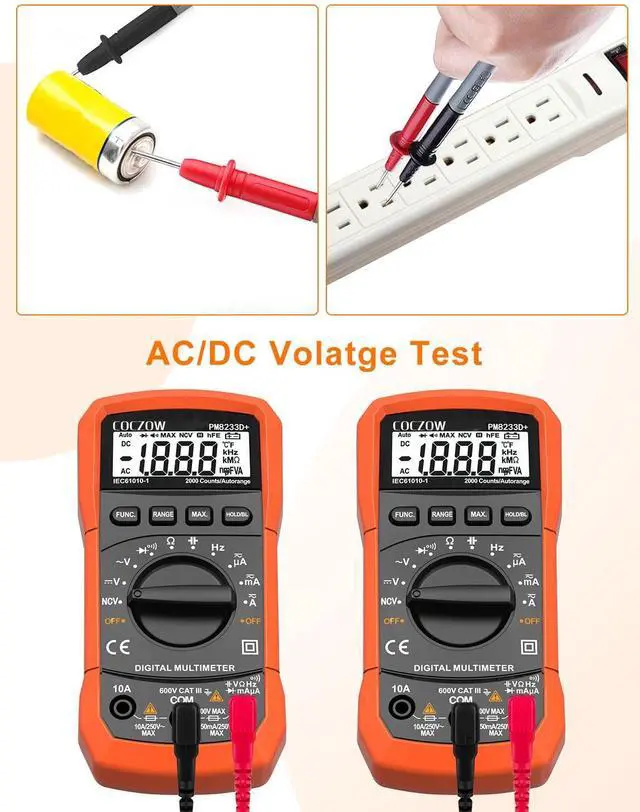

- DC Voltage: *200mV/2V/20V/200V ±(0.5%+2) *600V ±(0.8%+2)
- AC Voltage: *200mV*2V/20V/200V ±(1%+3) *600V ±(1.2%+3)

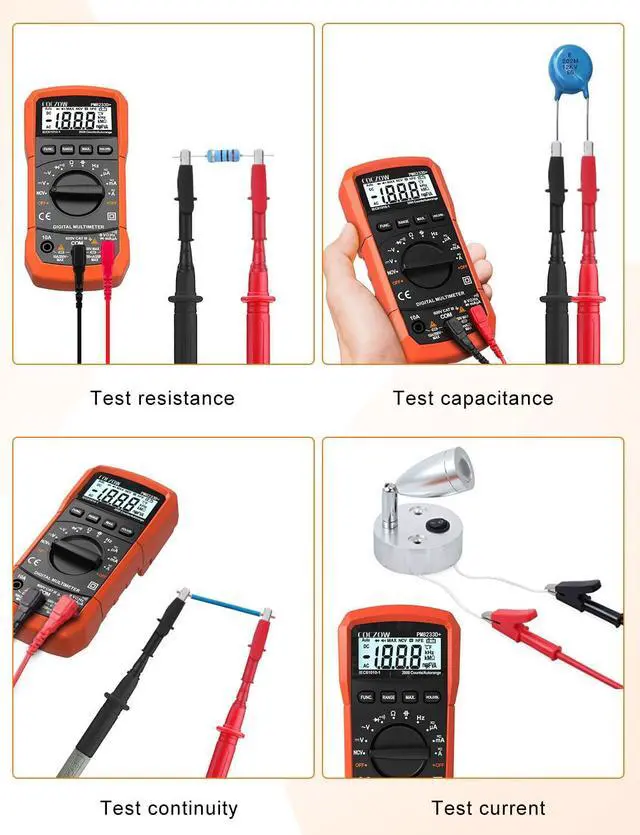

- DC Current: *200µA/2000µA/20mA/200mA/10A ±(1.5%+3)
- AC Current: *200µA/2000µA/20mA/200mA/10A ±(1.5%+4)
- Resistance: *200O/2kO/20kO/200kO ±(0.8%+2) *2MO/20MO ±(1.0%+2)
- Frequency: *20kHz ±(1.5%+5)
- Capacitance: *20nF/200nF/2µF/20µF/200µF/2mF±(4%+5)
- Power Supply: 1.5V AAA Battery
- Operating environment: 0-40? / 32-104? <80%RH
- Storage environment: -10-50? / 14-122? <70%RH
- Safety: IEC61010 -1600V CAT III

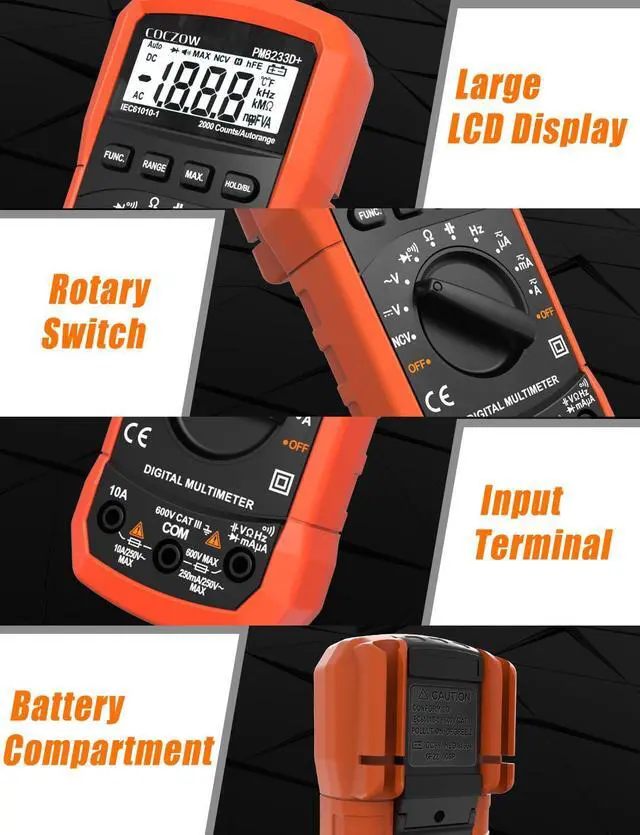

Large Backlit LCD Display
The large LED backlights enables it to see numbers easily and quickly; The bright backlight makes the readings visible in dimly lit areas and at night.
Low Battery Indication
There is a low battery indication on the screen to remind you to replace the battery in time, so as to avoid affecting the work efficiency due to low power.
Auto Power Off
If the meter is not in operation for 15 minutes, it will turn off automatically. To turn it on again, simply push HOLD/BL button.
NCV Detection
This Clamp Meter features non-contact voltage testing with a sound and light alarm. When the indicator light is on, it means there is voltage, please pay attention to your safety
Durable Protective Shell
The case is made of some kind of slightly soft plastic that provides drop protection, making the multimeter more durable.
Convenient Battery Replacement
Built-in 1 9V battery, it can last longer and provide convenient battery replacement.
Convenient Alligator Clips
The alligator clip is rugged and can grip the subject tightly for easy testing.The maximum opening width is 0.54 inches
Data Hold
- You can use the data hold function to freeze the data being displayed on the digital display.
- Short press the Hold button: hold reading, press again to release hold reading.
