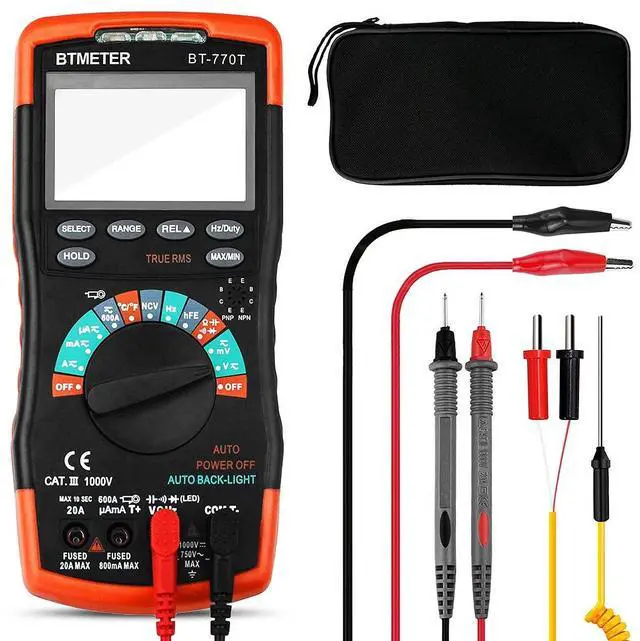

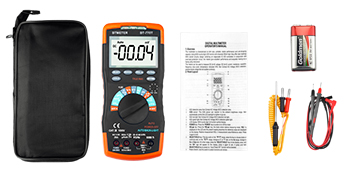

Packing List:
- 1 x Test Lead
- 1 x 9V Battery
- 1 x User Manual
- 1 x Protective Bag
- 1 x BT-770T Digital Multimeter
- 1 x Thermocouple Temperature Probe

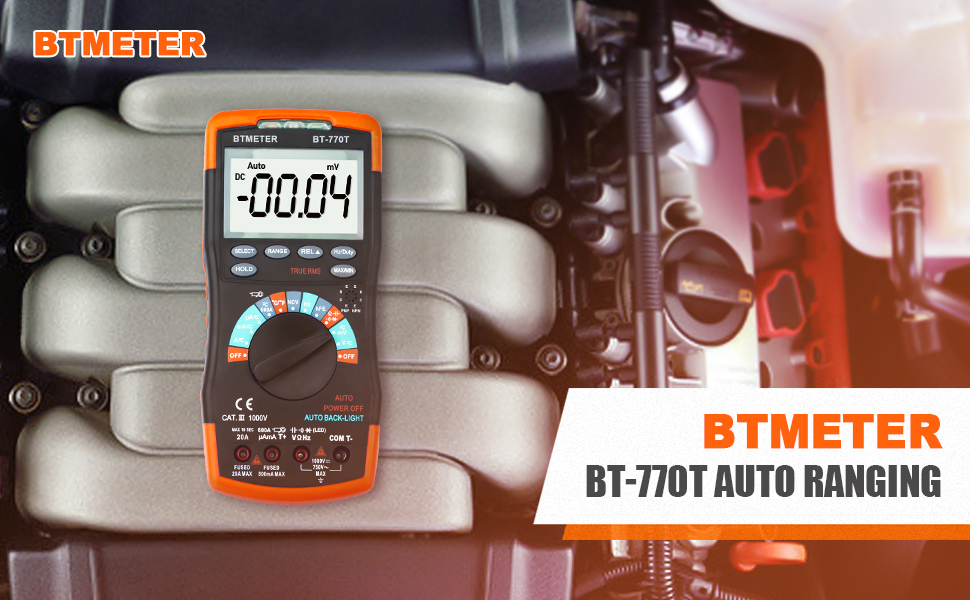

BT-770T Auto Range Multimeter:
Ideal Trouble Shooting Meter
- We dedicated ourselves to test, measurement and monitoring instrument and software that are widely used in electric, HVAC, automotive,network, troubleshooting, as well as in electrical, industrial, process and calibration applications.
- BT-770S combines multiple functions in one, which can be professionally used as a voltmeter, ammeter, ohmmeter, continuity tester, temperature detector, NCV detector, etc
More Features:
- Self blocking system prevents wrong insertion
- NCV detection minimizes exposure to live wires
- Auto ranging control for easier range selection
- Min/Max/Average for signal fluctuations record
- True-rms for accurate measurements on non-linear loads

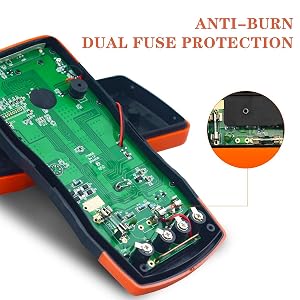

Dual Fuse Protection
Double fuses and protection circuits enjoy anti-burn protection and high safety measures.

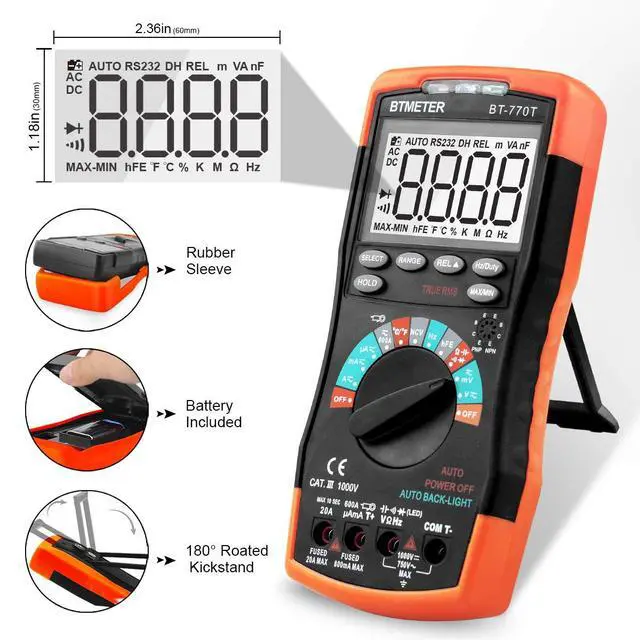

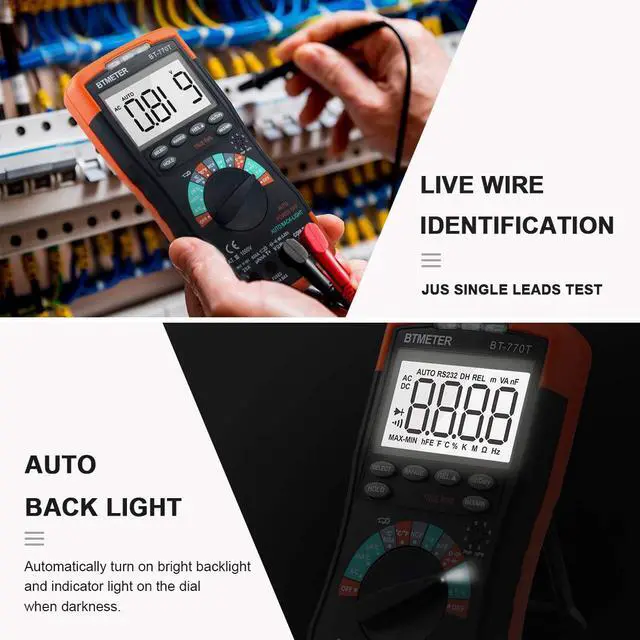

Backlight and Dial Indicator
Equipped with a digital LCD auto-backlit screen with light sensor, making it easier than ever to measure and record measurements in dim environments, and a dial indicator to help you set the range.

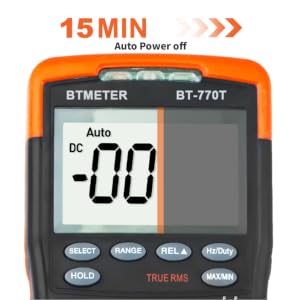

Automatic Shutdown
If there is no operation within 15 minutes, it will automatically shut down to save power.

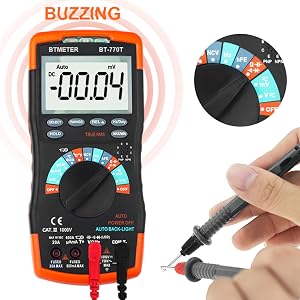

Continuity Test
Connect the test line to the two points on the circuit to be tested. If a line is connected, the built-in buzzer will sound and the value will be displayed on the LCD screen.

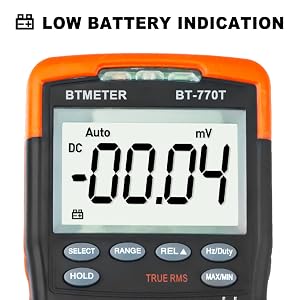

Low Battery Reminder
When the battery is low, an indication will be displayed to replace the battery to prevent the battery from running out of power during use.

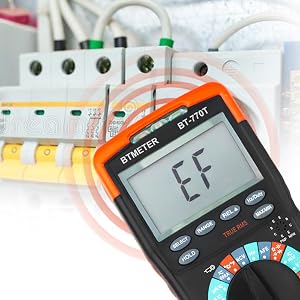

NCV Detection
Designed to be safer. Simply place the probe near a socket, outlet, terminal, etc. to test for the presence of voltage.
Specifications:
Precision at your Fingertips
We BTMETER are dedicated to designing and manufacturing high-quality instrument & device.
Our product portfolio includes industrial thermometer gun, multimeter, light meter, LED stroboscope and kinds of other precision instruments designed to meet diverse needs. Whether you need it for residential maintain, industrial troubleshoot, or DIY making, BTMETER provides a device that precisely matches your needs.
BTMETER Digital Multimeter
Clamp Meter with Bluetooth
Clamp Meter with Bluetooth
BTMETER Digital Light Meter
Thermal Camera
Industrial Thermometer Gun
3 Phase Power Clamp Meter 580P
Digital Megohmmeter 6688B
Precision at your Fingertips
We BTMETER are dedicated to designing and manufacturing high-quality instrument & device.
Our product portfolio includes industrial thermometer gun, multimeter, light meter, LED stroboscope and kinds of other precision instruments designed to meet diverse needs. Whether you need it for residential maintain, industrial troubleshoot, or DIY making, BTMETER provides a device that precisely matches your needs.
BTMETER Digital Multimeter
Clamp Meter with Bluetooth
Clamp Meter with Bluetooth
BTMETER Digital Light Meter
Thermal Camera
Industrial Thermometer Gun
3 Phase Power Clamp Meter 580P
Digital Megohmmeter 6688B
BT-770T Auto Range Multimeter:
Packing List:
- 1 x Test Lead
- 1 x 9V Battery
- 1 x User Manual
- 1 x Protective Bag
- 1 x BT-770T Digital Multimeter
- 1 x Thermocouple Temperature Probe
Ideal Trouble Shooting Meter
- We dedicated ourselves to test, measurement and monitoring instrument and software that are widely used in electric, HVAC, automotive,network, troubleshooting, as well as in electrical, industrial, process and calibration applications.
- BT-770S combines multiple functions in one, which can be professionally used as a voltmeter, ammeter, ohmmeter, continuity tester, temperature detector, NCV detector, etc
More Features:
- Self blocking system prevents wrong insertion
- NCV detection minimizes exposure to live wires
- Auto ranging control for easier range selection
- Min/Max/Average for signal fluctuations record
- True-rms for accurate measurements on non-linear loads
Dual Fuse Protection
Double fuses and protection circuits enjoy anti-burn protection and high safety measures.
Backlight and Dial Indicator
Equipped with a digital LCD auto-backlit screen with light sensor, making it easier than ever to measure and record measurements in dim environments, and a dial indicator to help you set the range.
Automatic Shutdown
If there is no operation within 15 minutes, it will automatically shut down to save power.
Continuity Test
Connect the test line to the two points on the circuit to be tested. If a line is connected, the built-in buzzer will sound and the value will be displayed on the LCD screen.
Low Battery Reminder
When the battery is low, an indication will be displayed to replace the battery to prevent the battery from running out of power during use.
NCV Detection
Designed to be safer. Simply place the probe near a socket, outlet, terminal, etc. to test for the presence of voltage.

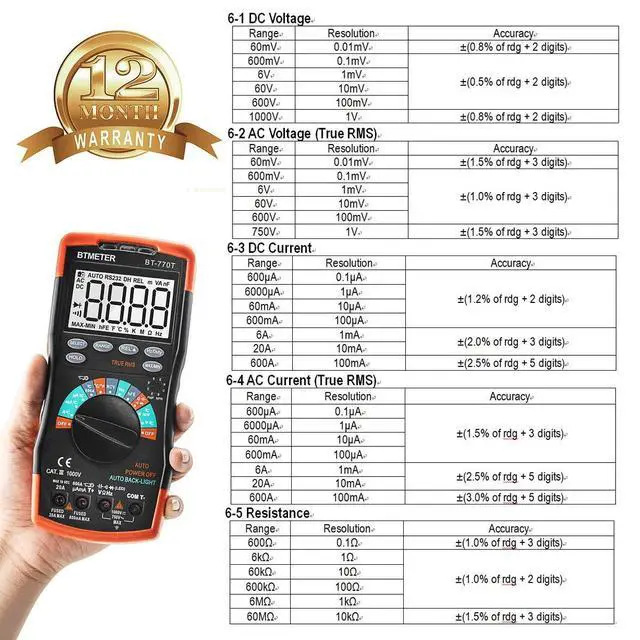

Specifications:
| DC Voltage | 60mv/600mV/6V/60V/600V/1000V |
| AC Voltage | 60mV/600mV/6V/60V/600V/750V |
| DC Current & AC Current | 600µA/6000µA/60mA/600mA/6A/20A/600A |
| Resistance | 600O/6kO/60kO/600kO/6MO/60MO |
| Capacitance | 9.999nF/ 99.99nF/ 999.9nF/ 9.999µF/ 99.99µF/ 999.9µF/ 9.999mF/ 99.99mF |
| Frequency | 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz |
| Non Contact AC Voltage | 90V~1000V AC RMS |

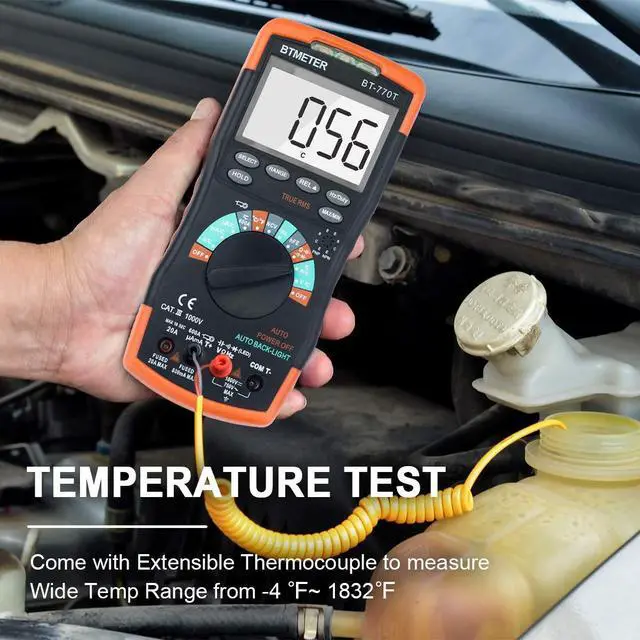

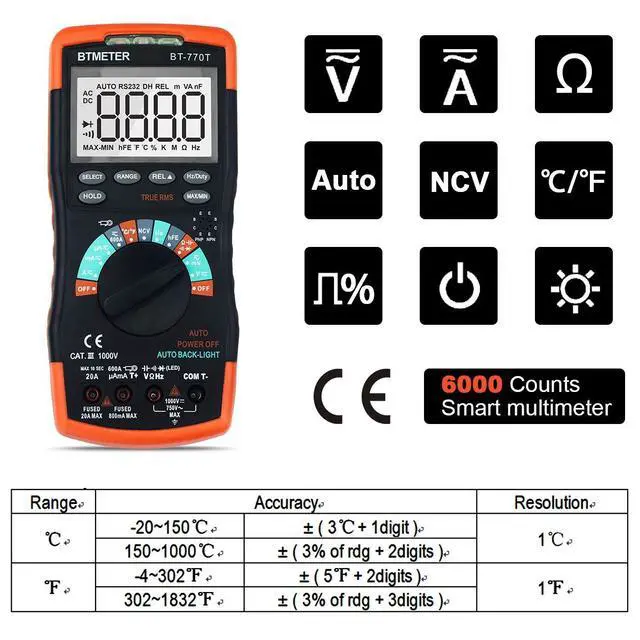

| Temperature | -20~1000? / -4~1832? |
| Duty Cycle | 0.1% ~ 99.99% |
