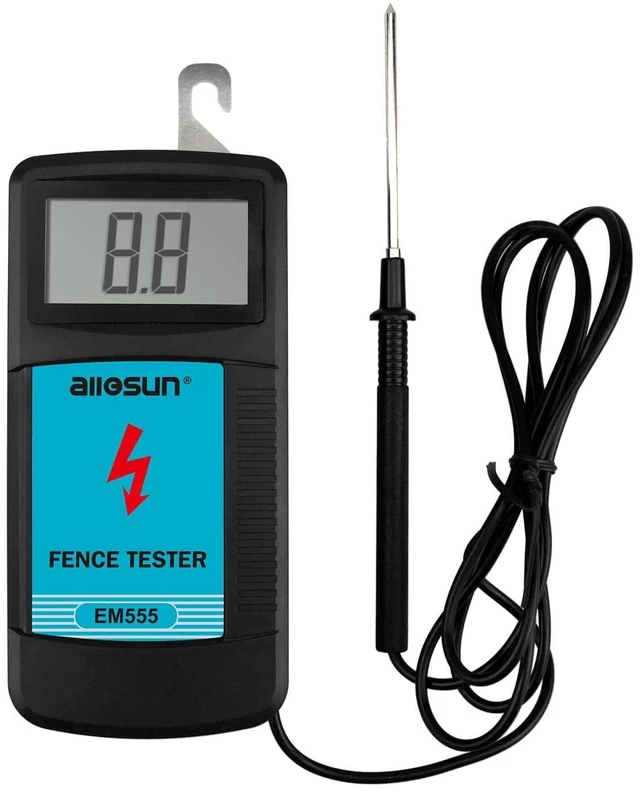

INTRODUCTION:

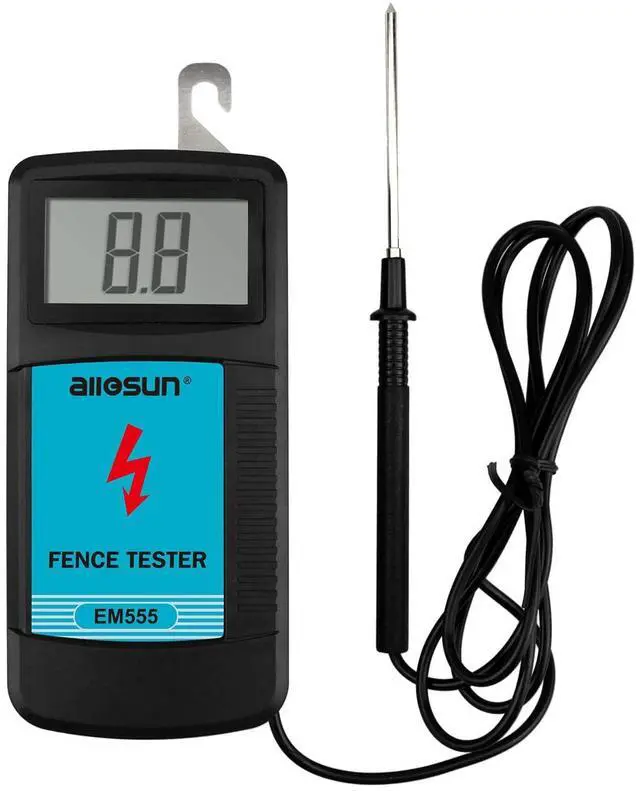

The fence testers are designed for measuring pulse voltages on the electric fences.
It features Smart Power technology so that it will turn on at the detection of a pulse and turn off after about 4 seconds when no pulse is detected.
This technology saves battery power and ensures that the fence tester is turned off when not in use.
OPERATION INSTRUCTION:

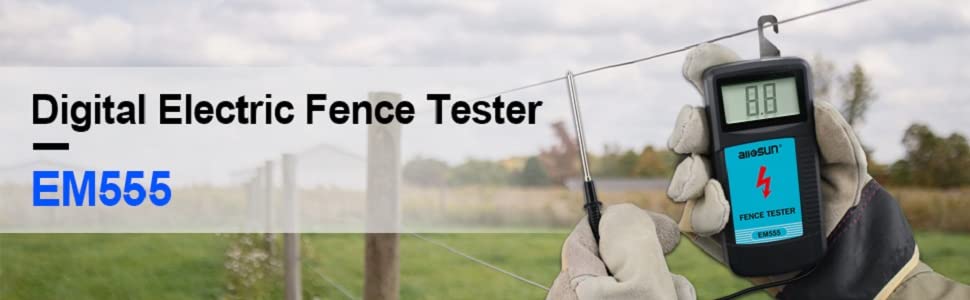

1. Drive the probe into the moist soil. (If the soil is too dry, add a suitable amount of water to the soil in advance.)
2. Connect the test hook to the fence line.
3. The fence tester will turn on when a pulse is defected.
4. If further pulses are detected, the voltage will be displayed.
For more accurate measurement result, read the display after three pulses have been detected.
Note: Reading’s unit is kV. For example, if the display reads 6.0, the voltage value is 6.0 kV.
WARNING

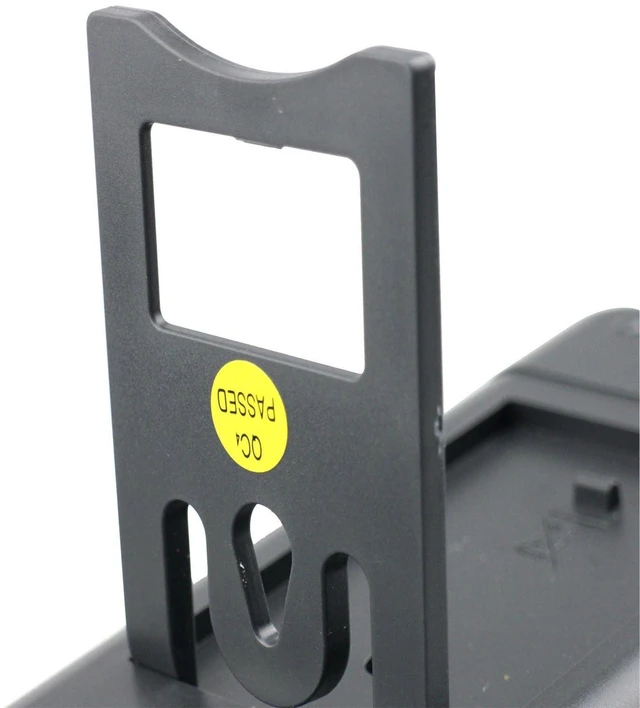

1. Remove the test hook from fence and any conductor before you open the battery cover or the case.
2. Do not operate the fence tester with the battery cover or portion of the case removed or loosened.
3. To avoid electric shock, do not touch any conductor with hand or skin.
4. When using the probe, keep your finger behind the finger guard.
5. Do not ground yourself while using the fence tester.
6. Do not use the fence tester to measure an electric fence which may cause injury to human being in case of electric shock.
7. Do not operate the fence tester around explosive gas, vapor or dust.
8. It is recommended to verify the fence tester's operation by measuring a known electric fence before you use the fence tester.
9. Do not use the fence tester for any measurement if it operates abnormally.
SPECIFICATION

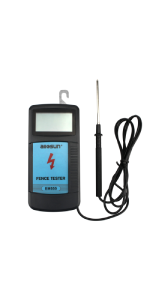

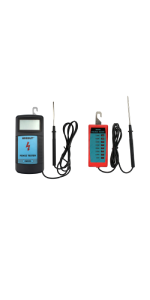

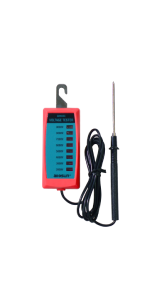

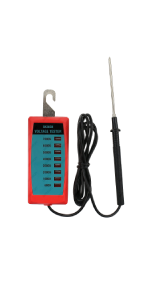

 em555 |  gk503b |  gk503c |  gk503b+em555 | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — no data |
| Dimensions | 6.85”(W)*2.76”(D)*1.30”(H) | 9.45”(W)*3.15”(D)*1.46”(H) | 7.95”(W)*3.15”(D)*1.46”(H) | no data |
| Weight | 0.5lbs | 0.25lbs | 0.28lbs | no data |
| Measurement Range | 300V - 9900V | 600V - 7000V | 2000V - 9000V | no data |
| Display Type | LCD & Digit | Neon Lamp | Neon Lamp | no data |
| Battery Needed(NOT INCLUDED) | 1 piece 9V OR 6F22 | NO | NO | no data |
INTRODUCTION:
The fence testers are designed for measuring pulse voltages on the electric fences.
It features Smart Power technology so that it will turn on at the detection of a pulse and turn off after about 4 seconds when no pulse is detected.
This technology saves battery power and ensures that the fence tester is turned off when not in use.
OPERATION INSTRUCTION:
1. Drive the probe into the moist soil. (If the soil is too dry, add a suitable amount of water to the soil in advance.)
2. Connect the test hook to the fence line.
3. The fence tester will turn on when a pulse is defected.
4. If further pulses are detected, the voltage will be displayed.
For more accurate measurement result, read the display after three pulses have been detected.
Note: Reading’s unit is kV. For example, if the display reads 6.0, the voltage value is 6.0 kV.
WARNING
1. Remove the test hook from fence and any conductor before you open the battery cover or the case.
2. Do not operate the fence tester with the battery cover or portion of the case removed or loosened.
3. To avoid electric shock, do not touch any conductor with hand or skin.
4. When using the probe, keep your finger behind the finger guard.
5. Do not ground yourself while using the fence tester.
6. Do not use the fence tester to measure an electric fence which may cause injury to human being in case of electric shock.
7. Do not operate the fence tester around explosive gas, vapor or dust.
8. It is recommended to verify the fence tester's operation by measuring a known electric fence before you use the fence tester.
9. Do not use the fence tester for any measurement if it operates abnormally.
SPECIFICATION

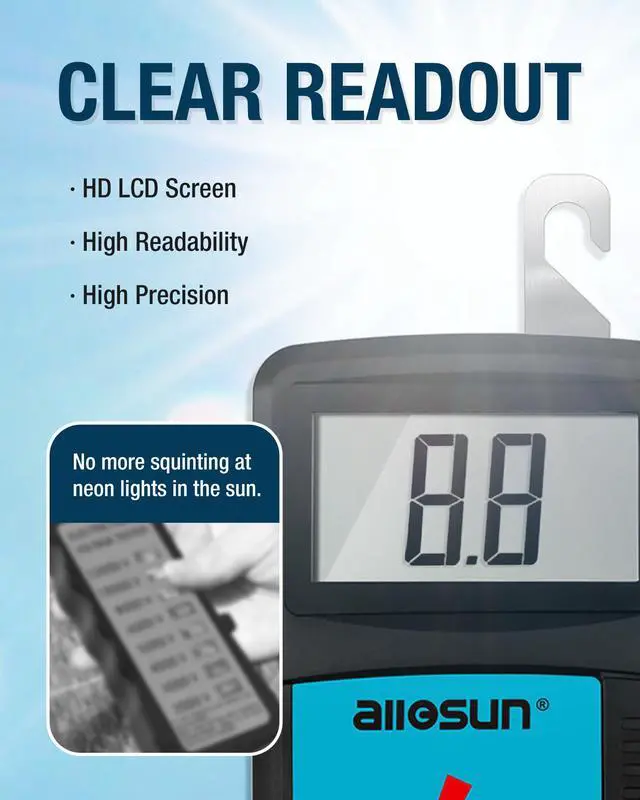

| Display | LCD |

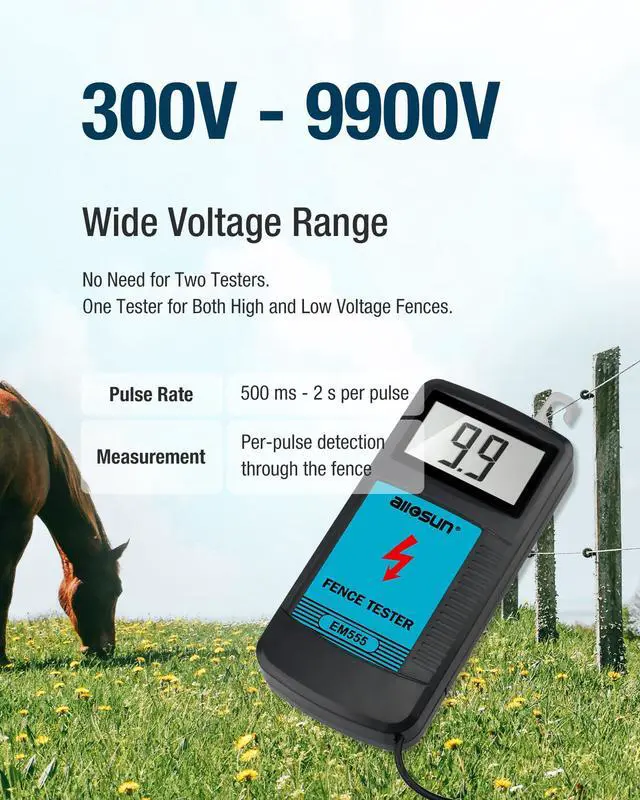

| Measurement Range | 300V to 9900V pulse voltage |
| Wire Length | 57inches (+/-3%) |
| Pulse Rate | one pulse every 0.5 sec to 2 secs |
| Measurement Rate | each detection of a pulse passing trough the fence line under test |
| Power Consumption | Power Consumption |
| Operating Temperature | 0-40 Celsius; Storage Temperature:-20~60? |
| Battery | 9V, 6F22or equivalent 1 piece (Not provided) |

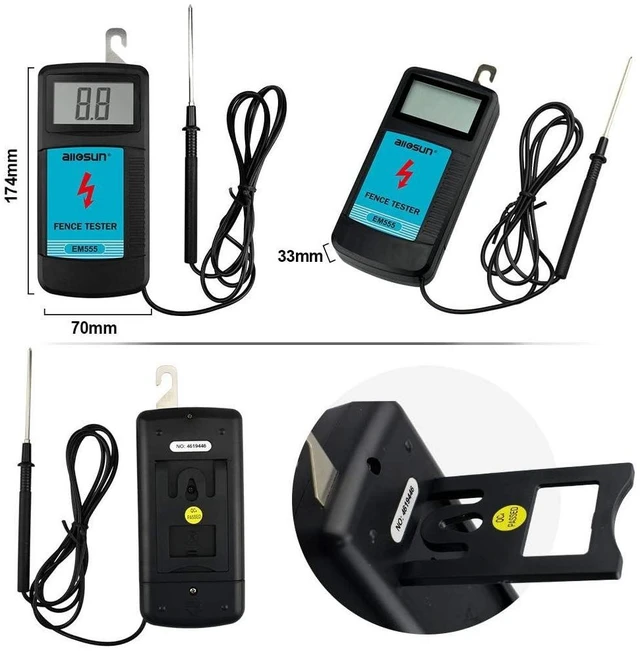

| Dimensions | 6.85”(W)*2.76”(D)*1.30”(H) |
| Weight | 0.5lbs |
em555 | gk503b | gk503c | gk503b+em555 | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — no data |
| Dimensions | 6.85”(W)*2.76”(D)*1.30”(H) | 9.45”(W)*3.15”(D)*1.46”(H) | 7.95”(W)*3.15”(D)*1.46”(H) | no data |
| Weight | 0.5lbs | 0.25lbs | 0.28lbs | no data |
| Measurement Range | 300V - 9900V | 600V - 7000V | 2000V - 9000V | no data |
| Display Type | LCD & Digit | Neon Lamp | Neon Lamp | no data |
| Battery Needed(NOT INCLUDED) | 1 piece 9V OR 6F22 | NO | NO | no data |
.
