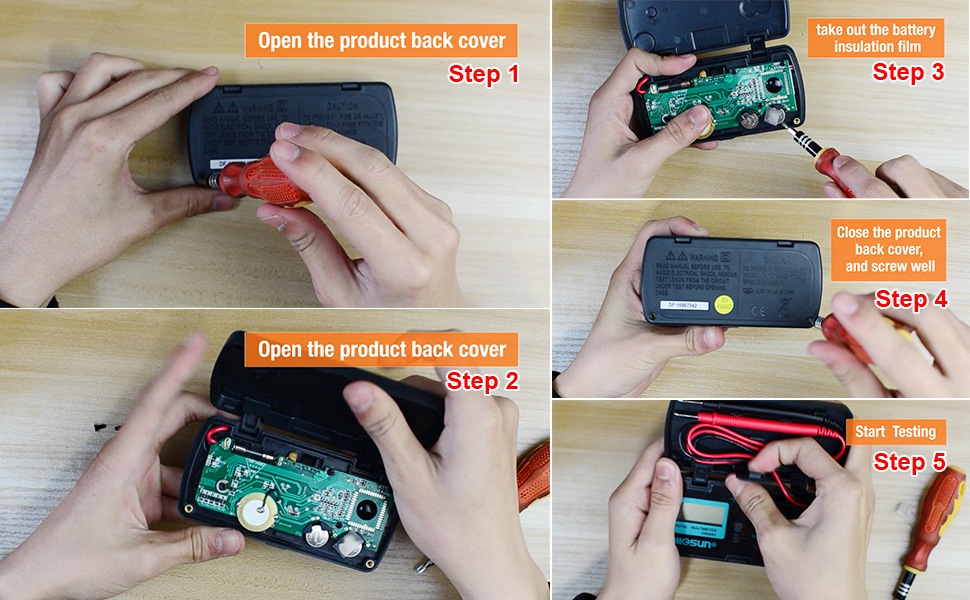

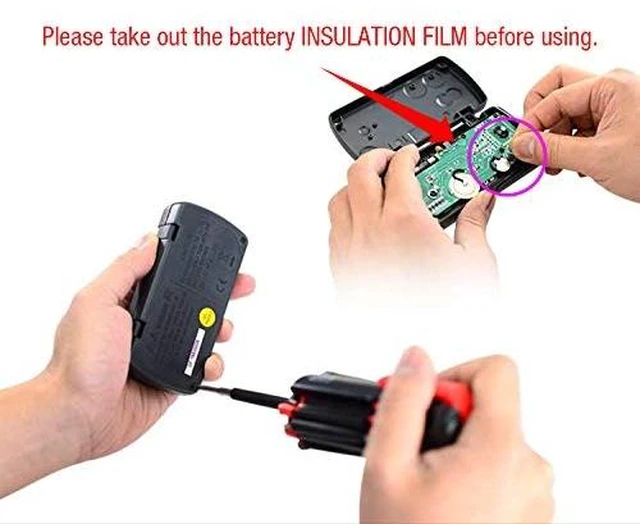

?NOTICE?You need to using the screwdriver, remove 4 screws from the back, to open the cover back of the multimeter, then take the INSULATION STRIP before using it.
Please kindly check the following steps:

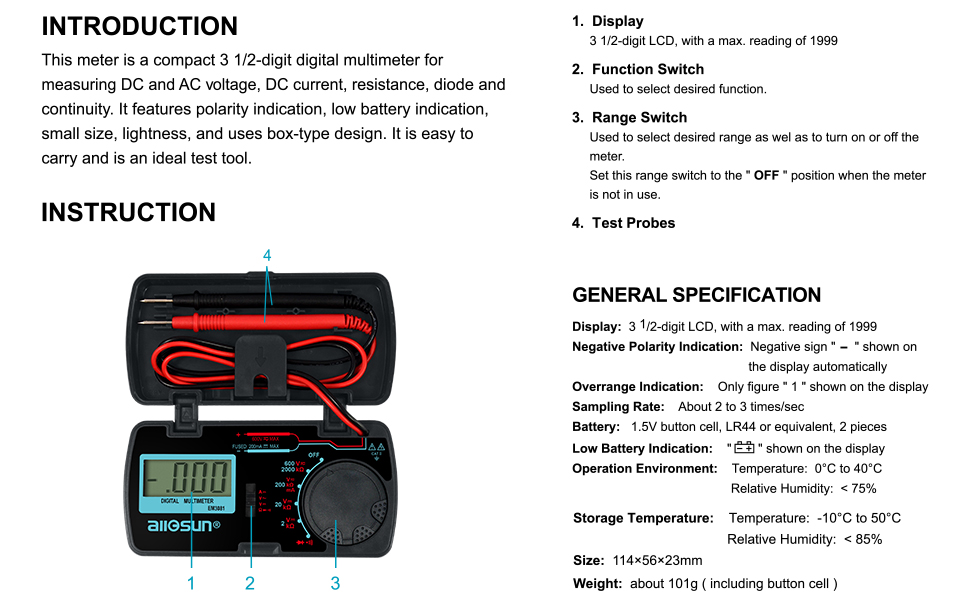

?Feature?

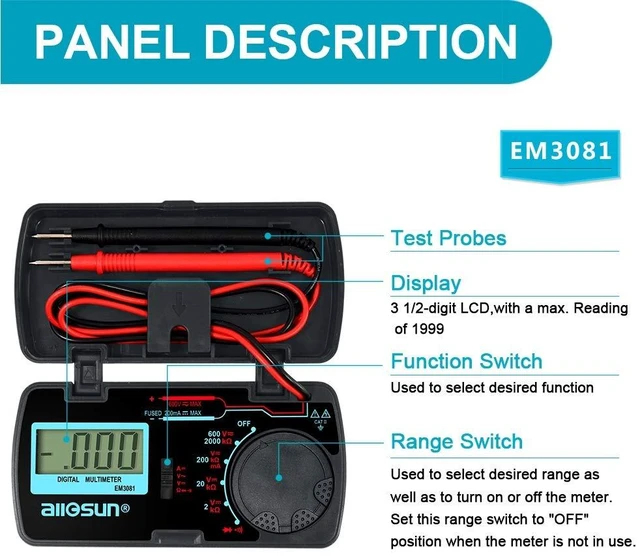

- Display:3 1/2-digit LCD with a max,reading of 1999
- Overrange indication:Only figure"1" shown on the display
- Negative Polarity Indication: Negative sign"-"shown on the display automatically
- Sampling Rate:About 2 to 3 times/sec
- Battery:1.5V button cell,LR44 or equivalent,2 pieces
- IP Degree:IP20
- Operation Environment: Temperature:0-40 degree, Relative humilty:<75%
- Storage Temperature: Temperature: -10-50 degree,Relative humilty:<85%
6 Functions Handheld Folding Digital Multimeter
AC Voltage Tester

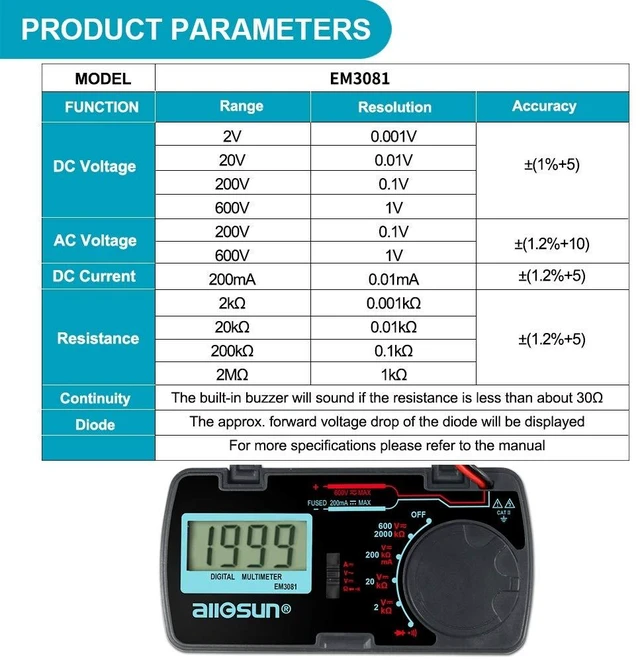

Range Resolution Accuracy
- 200V 0.1V ±(1.2%+10)
- 600V 1V ±(1.2%+10)
- Input Impendace:About 500KO
- Frequency Range:40Hz to 400Hz
- Max.Allowable Input
- Voltage:250V ac rms
- Responable:Average.calibrated in rms of sine wave
DC Voltage/Current Tester
Range Resolution Accuracy
- 2V 0.001V ±(1.0%+5)
- 20V 0.01V ±(1.0%+5)
- 200V 0.1V ±(1.0%+5)
- 600V 1V ±(1.0%+5)
- Input Impedance:1MO
- Max.Allowable Input
- Voltage:600V dc.Range
- Resolution Accuracy
- 200mA 0.1mA ±(1.2%+5)
Resistance Tester
Range Resolution Accuracy
- 2kO 0.001kO ±(1.2%+5)
- 20kO 0.01kO ±(1.2%+5)
- 200kO 0.1kO ±(1.2%+5)
- 2000kO 1kO ±(1.2%+5)
Continuity/Diode Tester
- Audible Assurance: If the resistance is less than 30,the built-in buzzer will alarmDiode and Continuity:YES

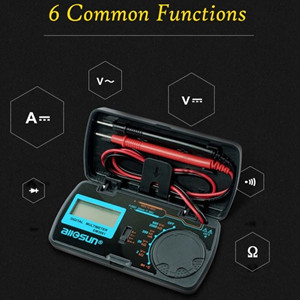

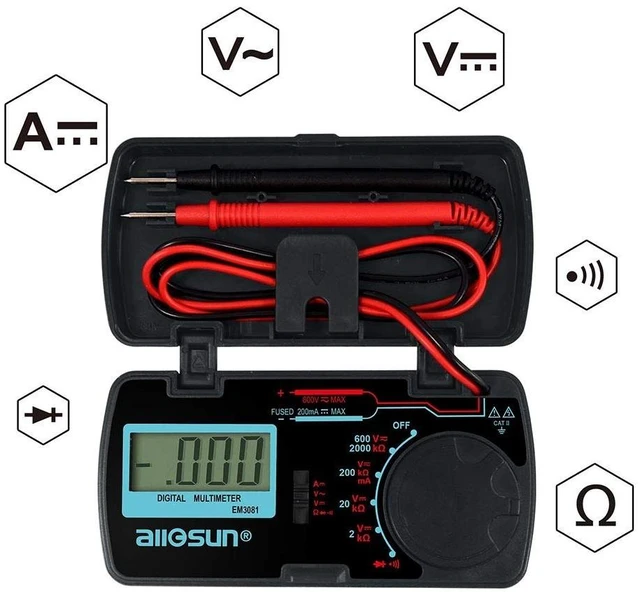

6 Common Functions

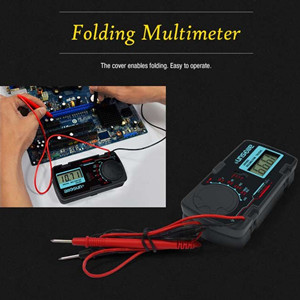

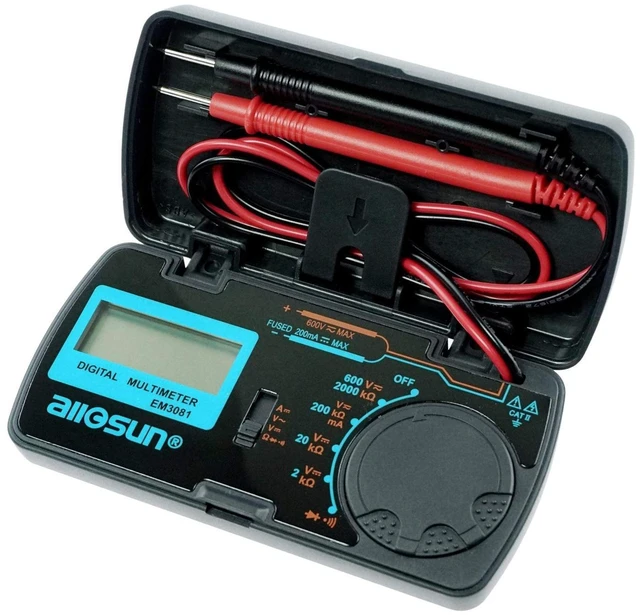

Folding Multimeter

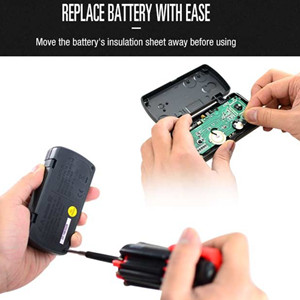

Replace Battery with Ease
