- Note:

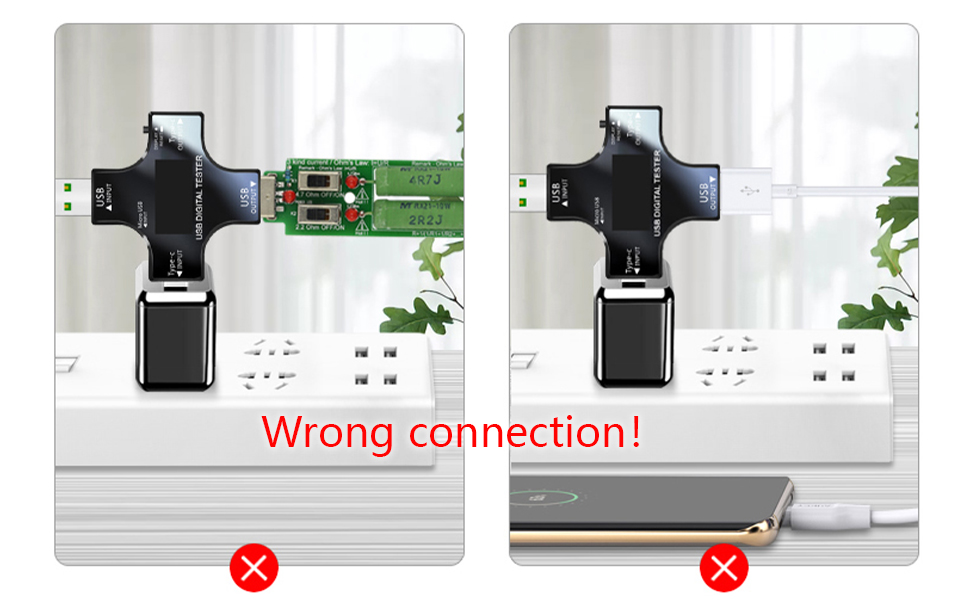

- The PD charger will only output voltage after communication. When testing the PD charger, the device must be connected to the USBC OUT.
- The working voltage of the USB resistor load should not exceed 5V, and it should not be used for more than 2 minutes without active heat dissipation. When working, it will generate high temperature and do not touch it. It is normal for the high temperature to cause the green layer of the resistor to fall off.
- Please read the user manual carefully before usage.
- Due to manual measurement, there may be deviation.
- Due to lighting, the picture and material object may slightly differ in color, please in kind prevail.

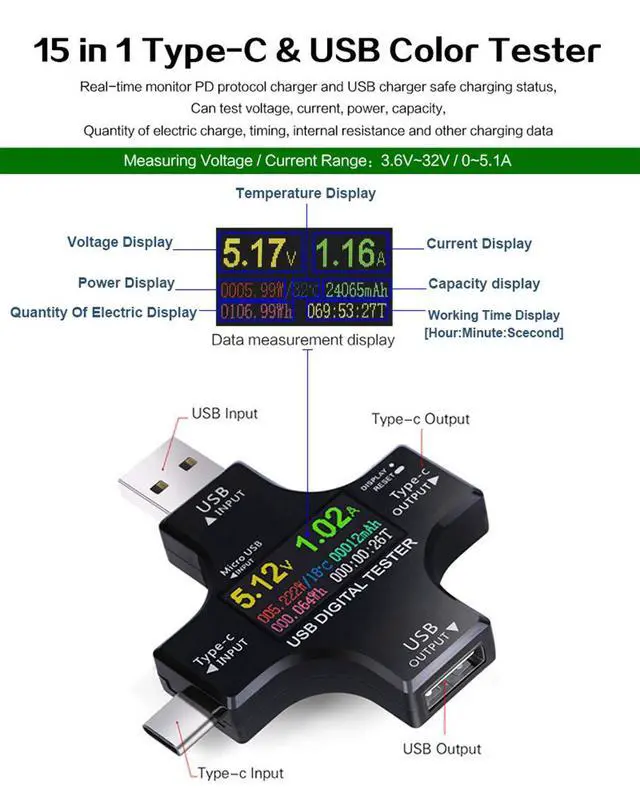

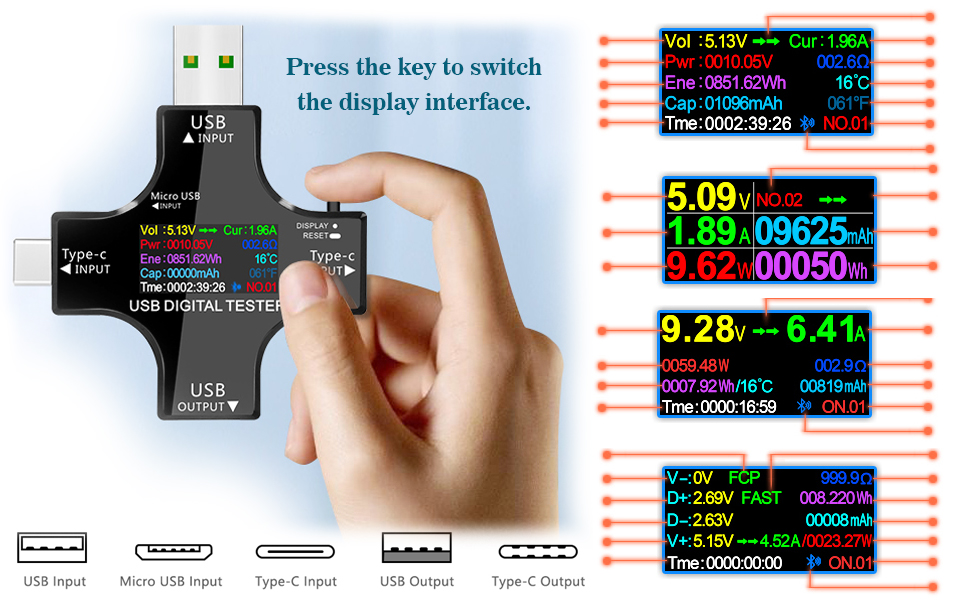

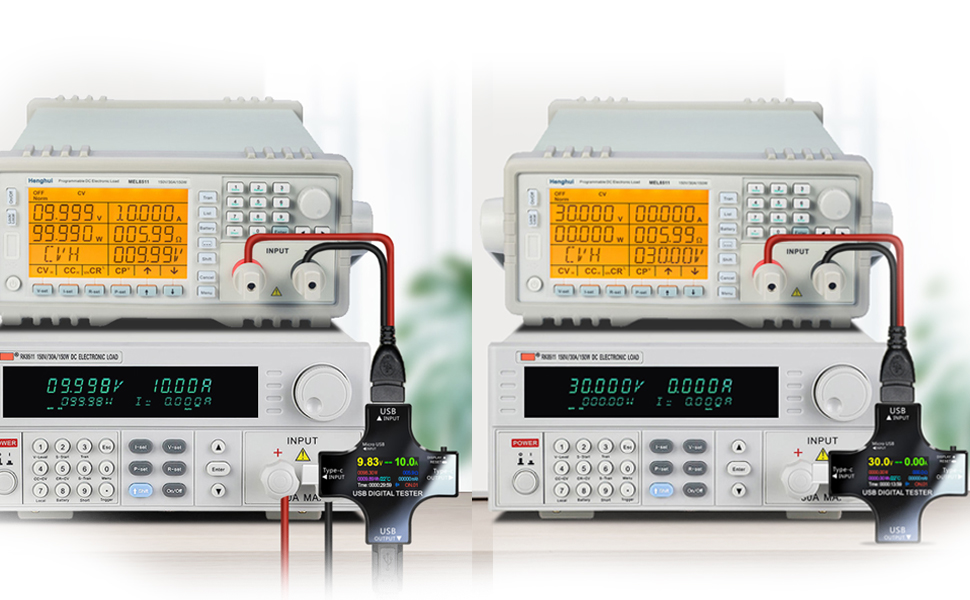

- Voltage Current measuring range : 3.6V~32.0V 0.00~5.10A
- Voltage Current Resolution Precision : 0.01V 0.01A
- USB load : 5V 1A/2A Limit 10W (do not exceed the use)
- Capacity Power cumulative range: : 0~99999mAh 0~999999mWh
- Capacity Power Resolution Precision : 0.001Ah 0.001Wh
- Power metering range : 000.00~150.00 W, (Resolution Precision : 0.01W)
- Impedance Measuring range : 1~999.9O, (Resolution Precision : 0.1O)
- Temperature Measuring Range : 0~80?, (Resolution Precision : 1?)
- Maximum Timing : 999Hours 59Minutes 59 Seconds , (Resolution Precision : 1s)

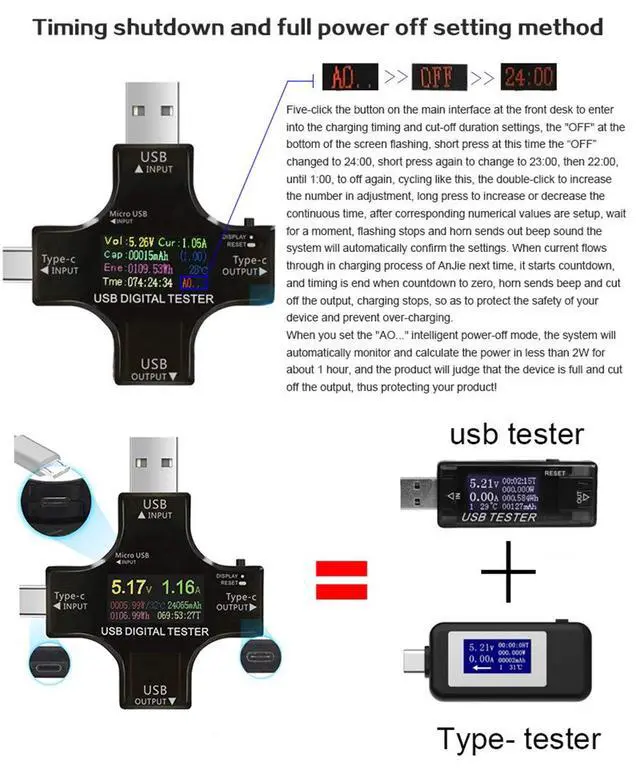

- Timer Charging Reminder : Countdown 24 hours, set value arbitrary
- USB D+ Voltage Range : 0V~2.999V, (Resolution Precision : 0.001V)
- USB D- Voltage Range : 0V~2.999V, (Resolution Precision : 0.001V)
- Full Charger Reminder Parameters of Mobile : <2W/0.5Hours
- Time to refresh : 500mS/ times Measurement rate : 0.5 times/s
- Alarm Mode : Siren Sound+ Display Hints
- Product size : 61mm x 68mm x 10.8mm
- Self-consumable flow : <0.02A
- Working temperature : -10~+60?
- Working humidity:: 10~80(no doubt)
- Pressure of work : 80~106kPa
- Certificate: RoHS, CE

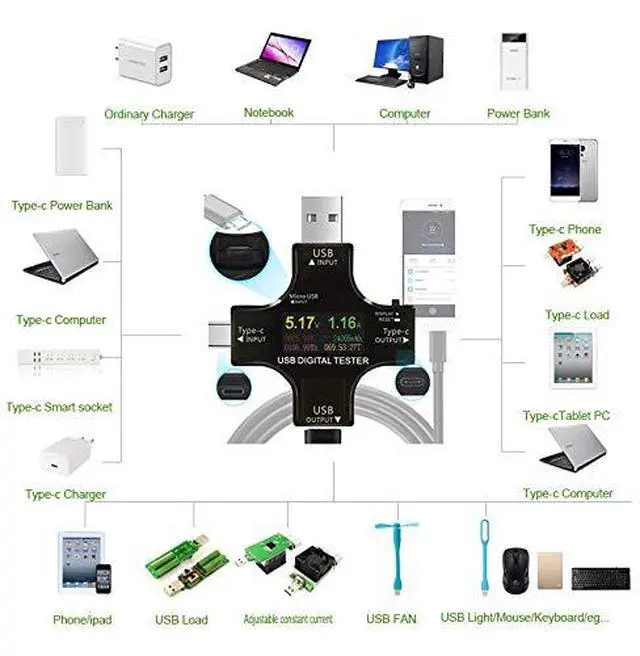

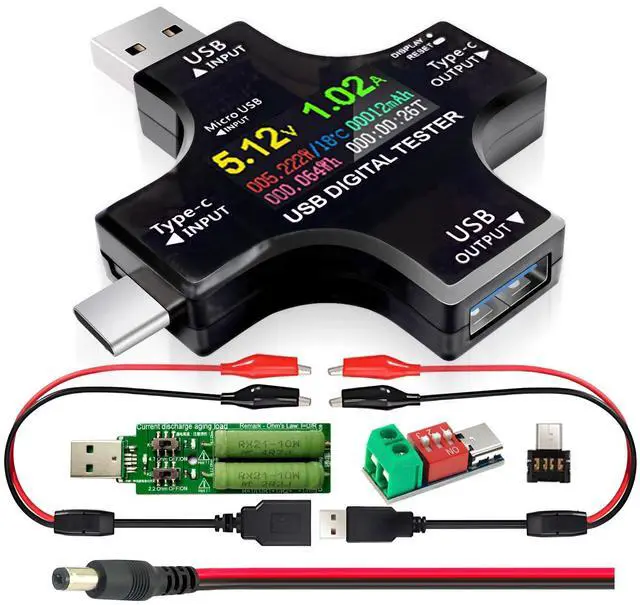

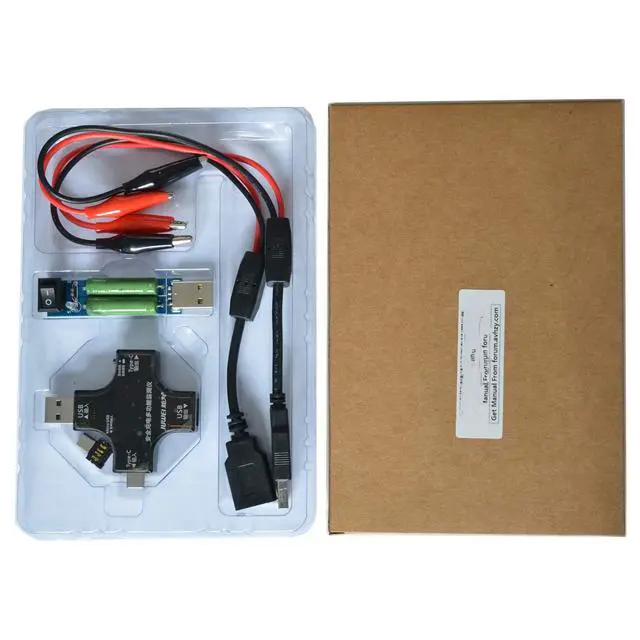

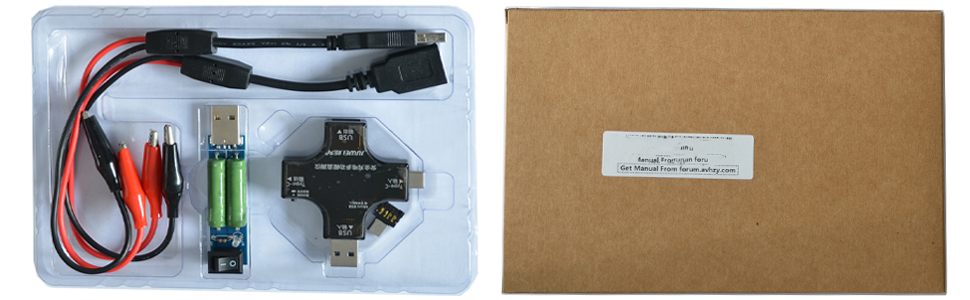

- Packing List: USB Tester X 1 , Crocodile Clip X 2, USB Load X 1, Fast Charging Protocol Trigger X 1, DC cableX 1

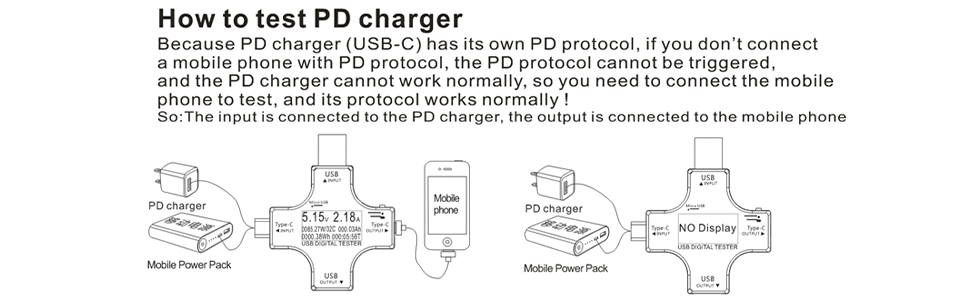

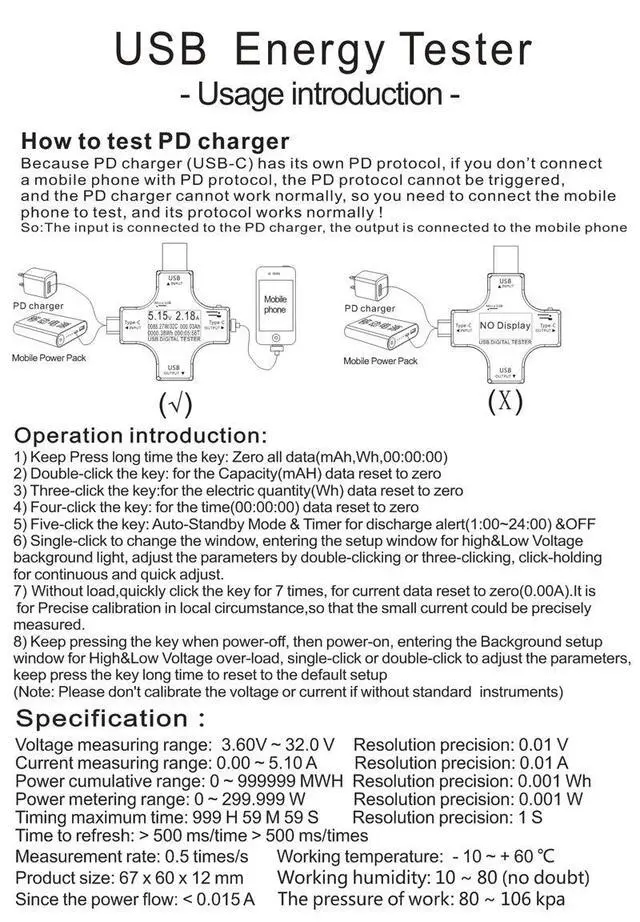

The Type-C PD charger is not displayed when plugged into the USB meter:
PD is a two-way communication charging protocol. The charger must establish communication with the powered device to output voltage, so it is not displayed when plugged into the meter alone.
Type-C PD is not displayed when plugged into electrical equipment:
most of the Type-C line PD communication pins CC1 and CC2 are only connected to one of them, resulting in failure to communicate and power on. Solution Turn over the data cable and try again. Try to use the same brand of Type-C cable.
