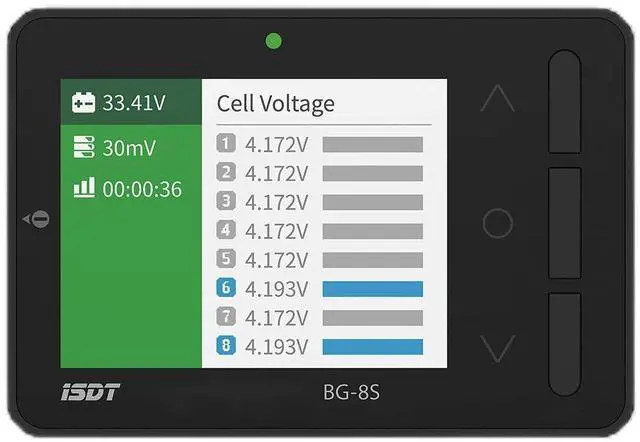

BG-8S Battery Meter,Smart Digital Battery Tester/Checker with LCD Display, Checker Battery Capacity Tester for Life/Li-ion/NiMH/Nicd/LiPo Voltage Checker,Black
- Make the battery smarter: Working together with BattGO technology, only with XT60i connected, you can get full information about the detail parameters of your battery. Easy to read cell voltage, battery cycles, working parameters and quick adjustment to your preferred settings.
- Multiple measurement connections: Support XT60 / XT60i, XH2.54 1-8S balance lead, XH 2.54 3pin, JST ETC to measure voltage. Support LiHv, LiPo, Lilon, LiFe, NiMh / Cd battery and BEC output measurements.
- Cell Balancing with Auto-Balancing: The battery tester with balancing function helps to optimize the performance of your batteries and extend their lifespan by ensuring that the individual cells are balanced. Advanced automatic matching algorithm. Make sure each cell is well balanced. After completion, automatically enter the power saving mode.
- Powerful, portable charging function: The BG-8S can be connected to your battery, thus becoming a bank for mobile devices. Support Qualcomm QC 2.0/3.0which is compatible with BC1.2 and Apple devices. Maximum output 12V/2A.
- Receiver Signal Test and Protocol Analysis: With a standard 3-pin connector, the BG-8S can detect the BEC output voltage. BG-8S also supports multi-protocol analysis including PWM, PPM & S.BUS etc. More protocol analysis will be supported with future firmware updates.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Working voltage :5.0V-36V
Input voltage 1s :0.8V-15V
Input voltage 2-8S :0.8V-4.8V
Battery cells :1-8S
Voltage measurement accuracy :0.005V @ 4.2V
Balancing cells accuracy :
Support USB charging :QC 2.0 / 3.0, BC1.2,
Maximum output 12V/2A
Support smart battery :Charging and discharging setting, read battery info and usage history.
Supported Batt. Type :LiHv (1-8S) / LiPo (1-8S) / LiFe(1-8S) Lilon (1-8S) / NiMH/Cd(1-10S)
Display :2.4320240 260,000 color IPS LCD
Dimension :80 X 55 X 19 mm
Weight :59g
Operating Temperature :0-40
Working Humidity :10%-90%RH (noncondensing)
Storage Temperature :-20-60
Storage Humidity :5%-90%RH (noncondensing)
Package Include: 1 x ISDT BG-8S
