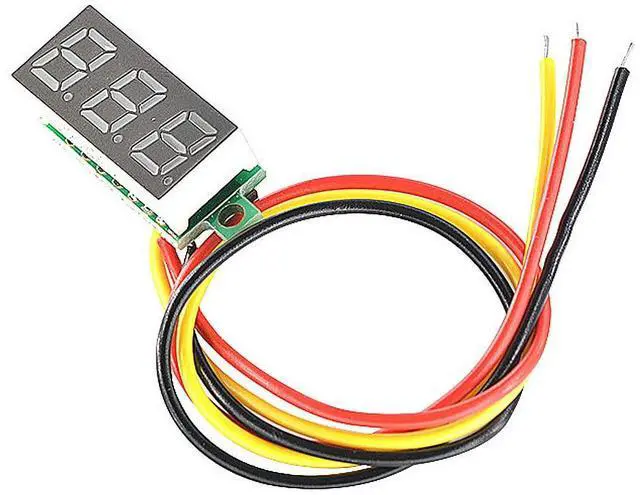

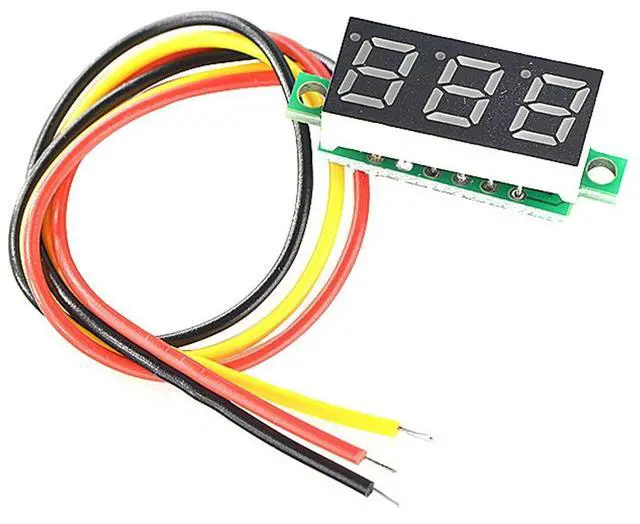

10PCS Mini DC Voltmeter 3-Wire DC 0-100V Voltage Tester 0.28 inch LED Panel 5 Colors Combined

Be the first to review this product...

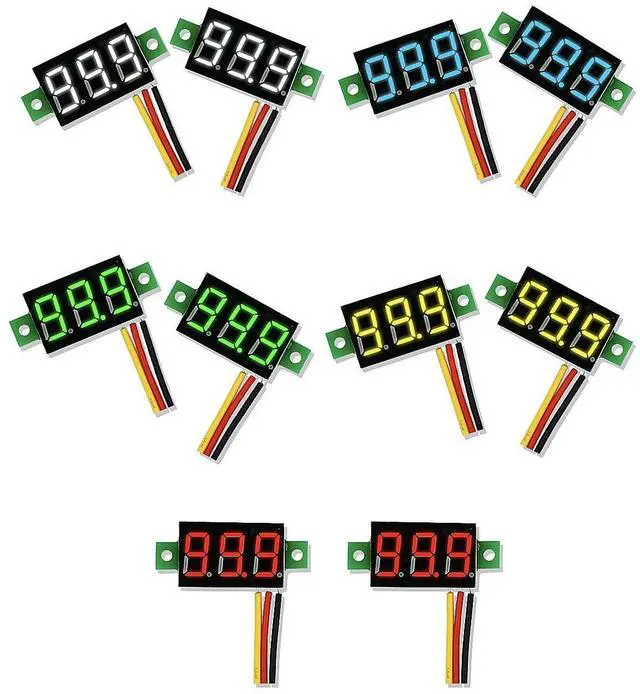

Mini DC Voltmeters:Total 10PCS, 5 colors combined(2PCS Red/Yellow/Blue/Green/White)
0.28 inch LED Panel:small in size and light in weight; wire is made of 28awg gauge; install the hole: 23*10 mm approx
2 Connection Methods:3 wires are connected separately to measure voltage and power(Red yellow is both for pos, black is neg); 3 wires are used as 2 wires, connected to measure voltage(Red and Yellow can be paired for pos, black is neg)
Features:Reverse polarity protection, voltmeter won't burn out if reverse polarity is applied; high precision; low starting working voltage; fine adjustment function
Note:Max voltage with yellow and red connected is 40V.To measure greater than 40V (up to 100V) the yellow wire is connected to a separate voltage source that is 40V or less

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

SUMKLIN

We are committed to DIY products to provide you with more solutions.

variable speed controller
Voltage Tester Module
12V Battery Volt Gauge

Specifications:

Input voltage: 0-100V
Measuring range: 0-100V
Voltage measurement error: 0.1V
Working current: <30mA
Display mode: 0.28" LED
Refresh rate: about 200ms/ time
Line length: 19.5cm/7.68"
Operating temperature: -10 ? to 65 ?
Working humidity: 10% -80%

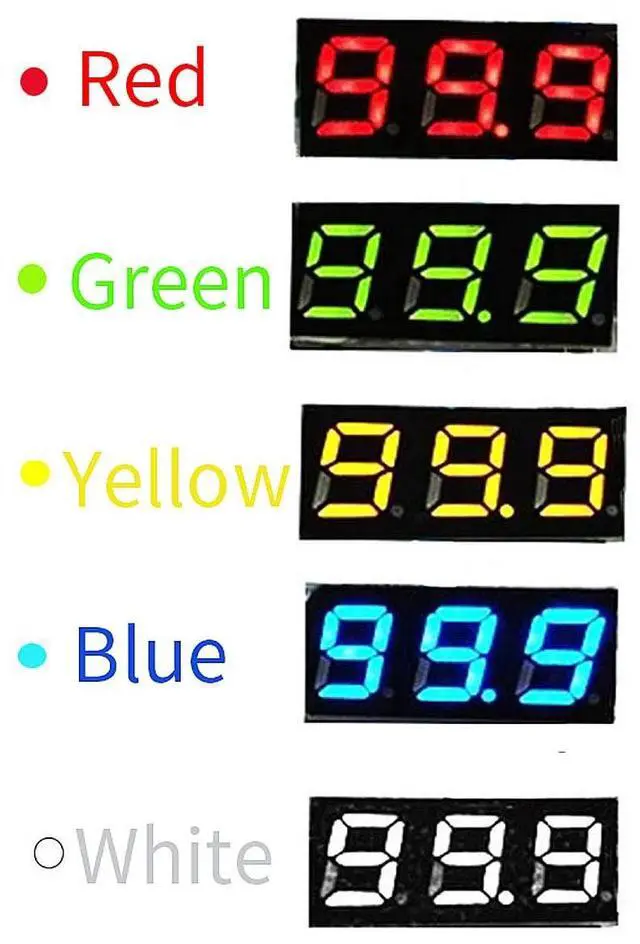

Digital display color: Red/Yellow/Blue/Green/White

Specifications:

Input voltage: 0-100V
Measuring range: 0-100V
Voltage measurement error: 0.1V
Working current: <30mA
Display mode: 0.28" LED
Refresh rate: about 200ms/ time
Line length: 19.5cm/7.68"
Operating temperature: -10 ? to 65 ?
Working humidity: 10% -80%
Digital display color: Red/Yellow/Blue/Green/White
