Key Features
- Quick, easy battery and system analysis
- 12 Volt battery testing
- 7-15V operating range
- 40-1200 CCA testing capacity
- 12 Volt system testing
- Compatible with many battery types, including Flooded, AGM, Spiral and Gel Cell
- Ability to test against a wide range of rating systems (CCA, DIN, JIS, EN, IEC)
- LCD display for optimal viewing in all lighting environments

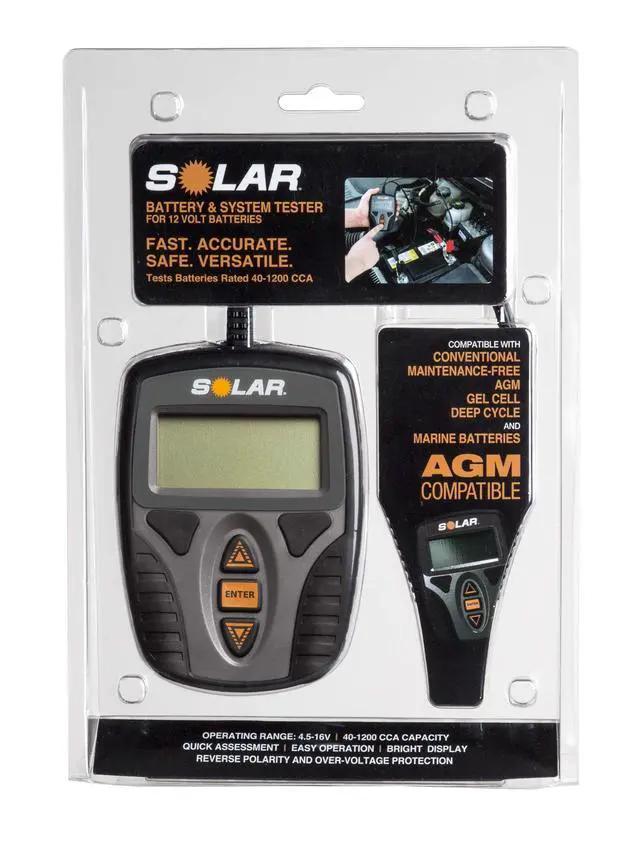

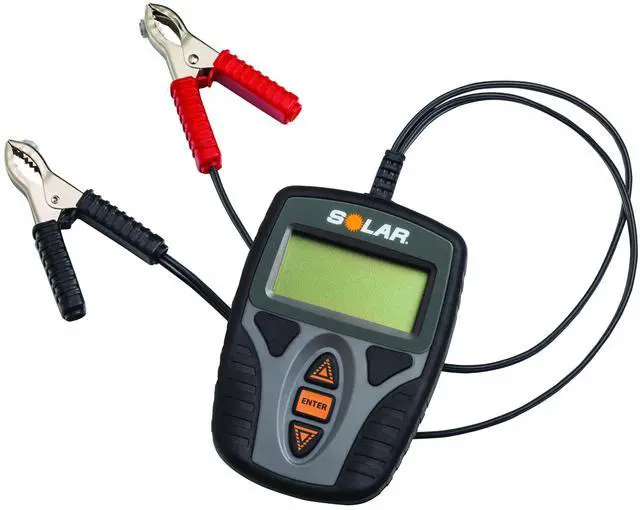

BA9 Digital Battery and System Tester
Fast and Easy Battery Assessment
The Digital Battery and System Tester, Model No. BA9, offers fast, easy and accurate assessment of 12 Volt batteries, starting systems and charging systems. Compatible with a wide variety of battery types, it features easy, intuitive operation with quick, accurate assessment of battery condition and starting and charging system performance.
Wide Testing Platform
The BA9 tests 12 Volt batteries with an operating range of 40-1200 CCA and is optimized to test four distinct battery types: Conventional Flooded Acid, AGM Flat Plate, AGM Spiral Wound and Gel Cell batteries. The tester provides accurate assessment of both charged and discharged batteries (down to 7 Volts) and features a variety of safety features, including reverse polarity and over-voltage protection, to make testing safer for the operator and equipment being tested.
EASY TO READ
Bright Digital LCD Display allows for quick analysis
WIDE TESTING RANGE
Wide operating range tests batteries all the way down to 40 cold cranking amps and as high as 1200 cold cranking amps.
TEST MULITPLE BATTERY TYPES
The BA9 is designed to test 4 distinct battery types: Conventional Flooded Acid, AGM Flat Plate, AGM Spiral Wound and Gel Cell batteries.
VOLTAGE RANGE
The BA9 is able accurately test both charged and discharged batteries (down to 7 Volts) and features a variety of safety features, including reverse polarity and over-voltage protection.

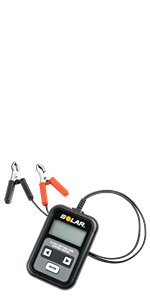

 Pocket Battery & System Tester |  Pro Pocket Battery & System Tester |  Battery & System Tester w/Printer |  HD Battery & System Tester w/Printer | Pro Battery & System Tester w/Printer | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — no data |
| Test Batteries | 12 Volt | 12 Volt | 12 Volt | 6/12 Volt | 6/12 Volt |
| Test Systems | 12 Volt | 12 Volt | 12 Volt | 12/24 Volt | 12/24 Volt |
| Operating Voltage | 4.5 - 16V | 7- 15V | 6.5 - 15V | 1.5 - 30V | 1.5 - 30V |
| Battery Test Capacity | 100 - 1200 CCA | 40 - 1200 CCA | 100 - 1400 CCA | 40 - 2000 CCA | 40 - 3000 CCA |
| Rating Systems | CCA, CA | CCA, CA, DIN, IEC, EN | CCA, DIN, IEC, EN, JIS | CCA, DIN, IEC, EN, JIS | CCA, DIN, IEC, EN, JIS |
| Integrated Printer | no data | no data | ? | ? | ? |
