Eversame 35W Adjustable Constant Current Electronic Load - A Must Gadget for Checking the Performance Of Cables And Chargers

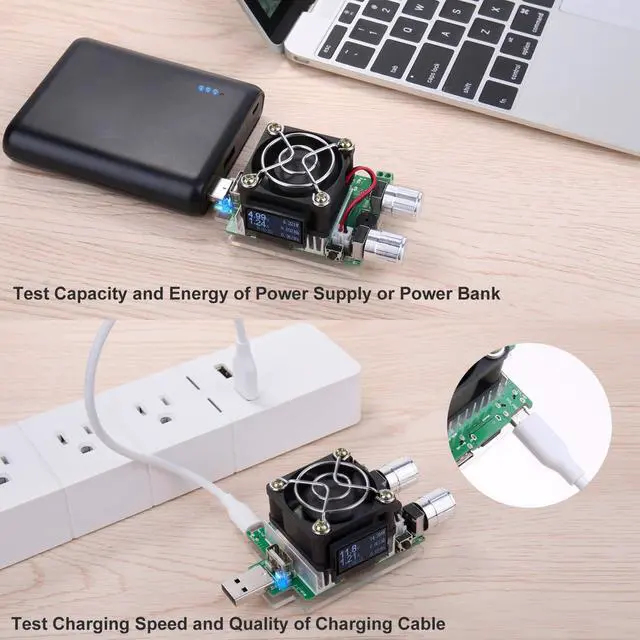

- Enables you to evaluate the USB power supplies and USB output batteries/rechargers, test the capacity of your power bank, and measure impedance of micro-USB cables.
- With this Versatile USB Electronic Load, you can verify which chargers, battery packs and cables are junk, never worry about your devices charging slowly or insufficiently.
Product Feature
- Voltage Measuring Range: DC 3-21V (Support QC2.0/ QC3.0, BC 1.2, MTK-PE, ect)
- Current Measuring Range: 0-3A continuously adjustable (roughly adjust 0-3A by per 0.1A , precisely adjust by per 0.01A)
- Accumulative Capacitance Range: 0-99999mah
- Accumulative Electric Energy Range: 0-999.99Wh
- Power Range: 0-35W( the continuous discharging power is less than 35W)
- Timing Tim range: 24H countdown discharging by setting
- Measurement rate: 0.5 times/s
- Resolution Precision: 0.01V/0.01A/0.001Ah/0.001Wh/0.1W/1s
- Voltage Testing Deviation: 0.01V
- Power Supply Indicator: blue light when powering on
- Adjustment Potentiometer: durable metal potentiometer
- Working Temperature: ?10 ~?80?
- Product Dimensions: 100mm×48mm×30mm
Warm Tips
- The load will get hot and the temperature will reach to 80-85? in the process of burn-in test discharging, please avoid touching the load to prevent from scald
- The trigger can just work with the QC 2.0/3.0 Quick Chargers, instead of the ordinary chargers.
- Please make sure both 2 knobs of the multimeter are turned to counterclockwise fully before testing, full Counterclockwise is the minimum load.
What You Get

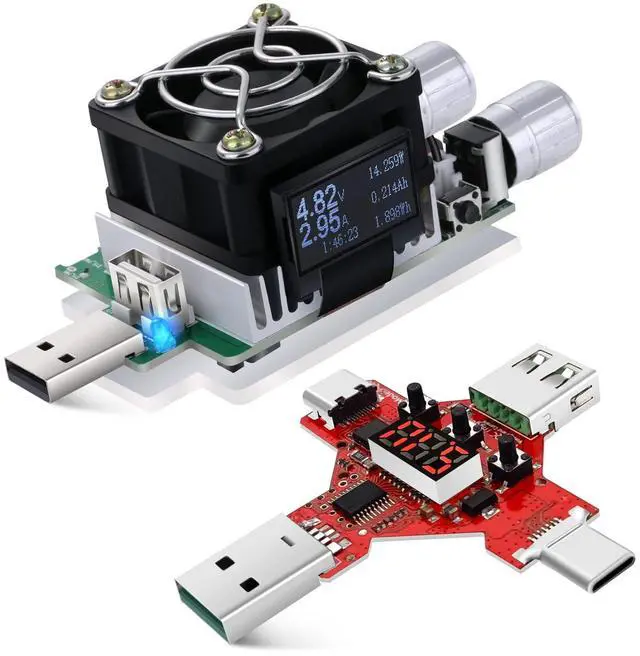

1 Pack 35W electronic load + 1 Pack QC2.0/3.0 trigger
Note: The package also includes one paper instruction with double sides. If you need to have the instruction in Electronic Version, please let us know and we will send it to you.
We are Eversame. We believe in the power of technology to enhance different aspects of your life.
Eversame is committed to providing excellent quality and ultimate user experience, by offering safer, faster, and higher-quality electronic accessories that create convenience in your life.
Digital USB Tester
USB Meter and Voltage Meter
