THIS IS FNIRSI FNB58 UPGRADED MODEL
Why choose FNIRSI FNB58 usb tester?

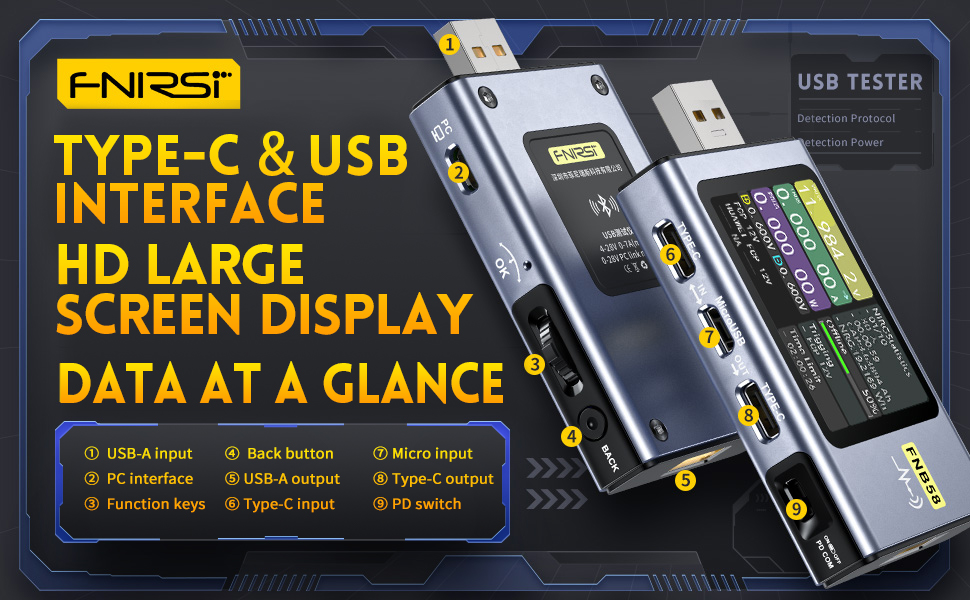

The FNB58USB tester is a highly reliable, highly safe USB voltage and current detection meter and a mobile communication terminal fast charging trigger.It has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. Use external 16-bit ADC, PD protocol physical chip.
It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks;

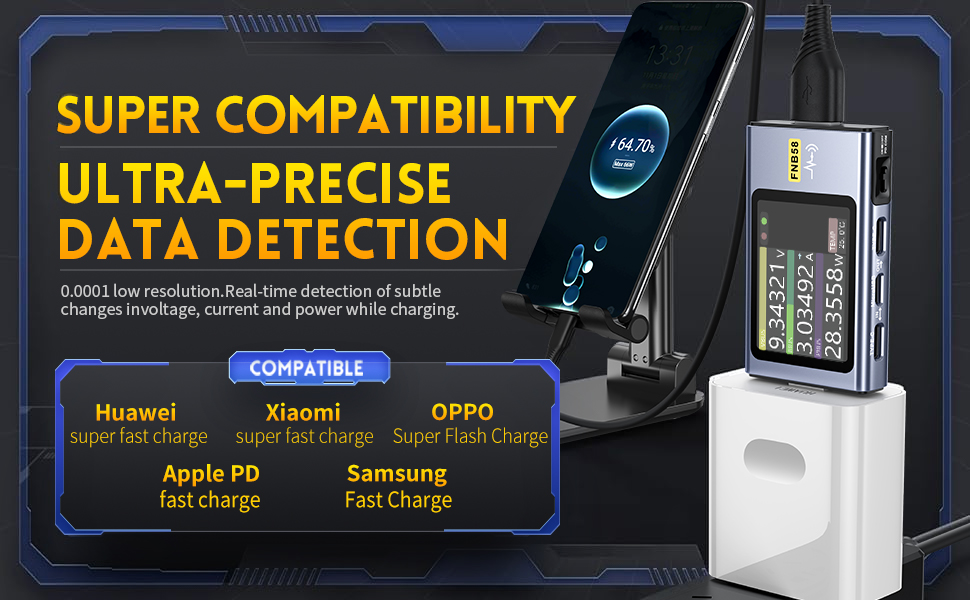

It can be used to measure the charging power of mobile phones and the input and output of mobile power supplies;
It can be used to test the fast charging protocol of chargers.

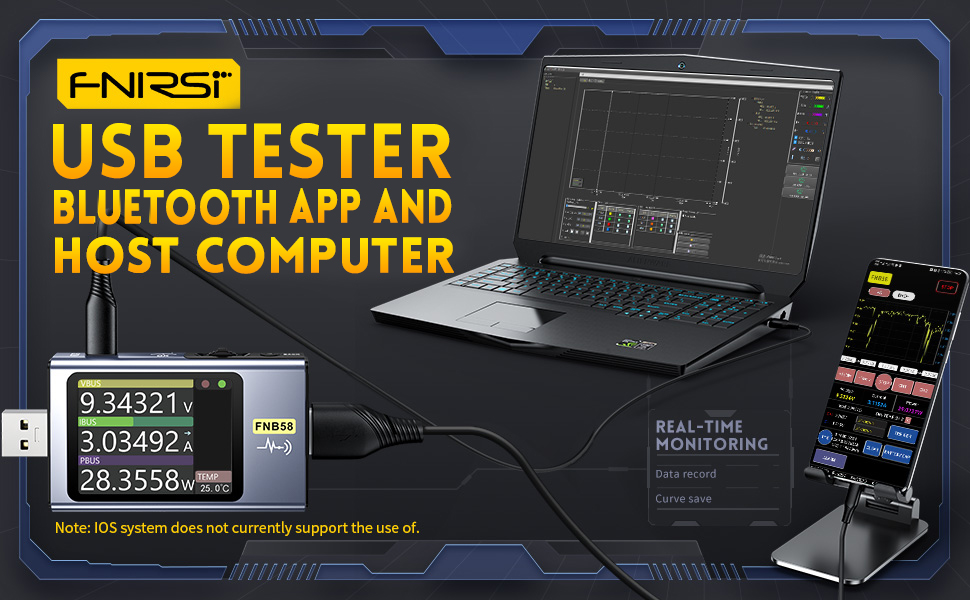

NOTE: IOS DOES NOT SUPPORT THE BLUETOOTH FUNCTION.
The FNB58USB tester is a higly safe,reliable and stable USB voltage and current detection meter and a mobile communication terminal fast chargingtrigger.It is equipped with a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks; it can be used to measure the charging power of mobile phones and the input and output of mobile power supplies; it can be used to test the fast charging protocol of chargers.
Parameter Detection and Recording
The highest six-digit display of voltage, current and power, the highest resolution is 0.00001 (V/A/W).
10 sets of switchable capacity, power and time statistics.
1 set of voltage and current curve records, maximum support 9 hours.
Support low-speed waveform (voltage, current, D+/D-) drawing, 2sps->100sps sampling rate.
Support high-speed ripple (voltage, AC coupling)drawing, up to 4M sps sampling rate.
Four Functions Curve Display:
1. FNIRSI usb tester supports real-time voltage and current curve for view recharging curve changes in real time
2. FNIRSI usb tester supports up to 9 hours offline voltage and current curve recording;

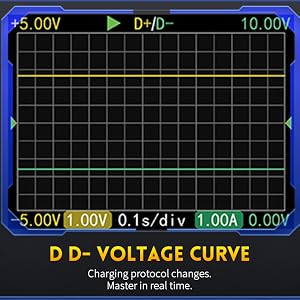

3. D+D1 voltge curve can show the recharging protocols changes in real time;

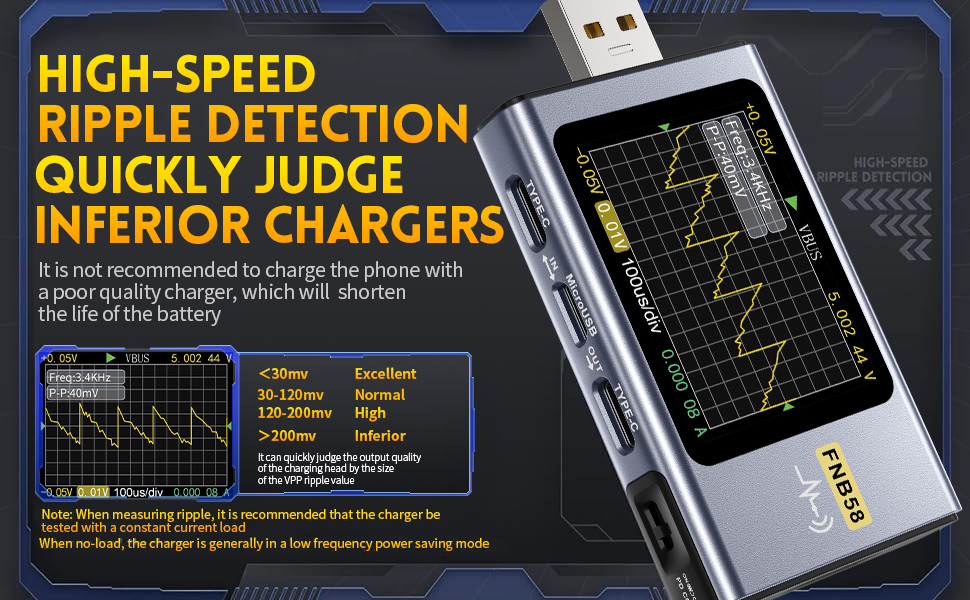

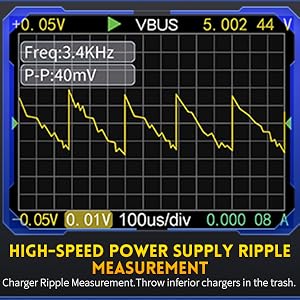

4. FNIRSI usb tester provides the high-speed power ripple measurement curve of chargers. Any abnormal charging could be found immediately.
The FNIRSI usb tester could distinguish the quality of chargers by showing you the VPP ripple values.
Parameter Detection and Recording
The Fnirsi USB tester can record 10 sets of data of the charge- discharge enegery recording and calculate the capacity of the built-in batteries. It can record 1 set of voltage and current curve up to 9hours. I supports low-speed waveform(voltage, current, D+/D-) drawing,2sps->100sps sampling rate. It supports high-speed ripple (voltage, AC coupling)drawing, up to 4M sps sampling rate. The display of data is accurately up to 0.00001 (V/A/W).

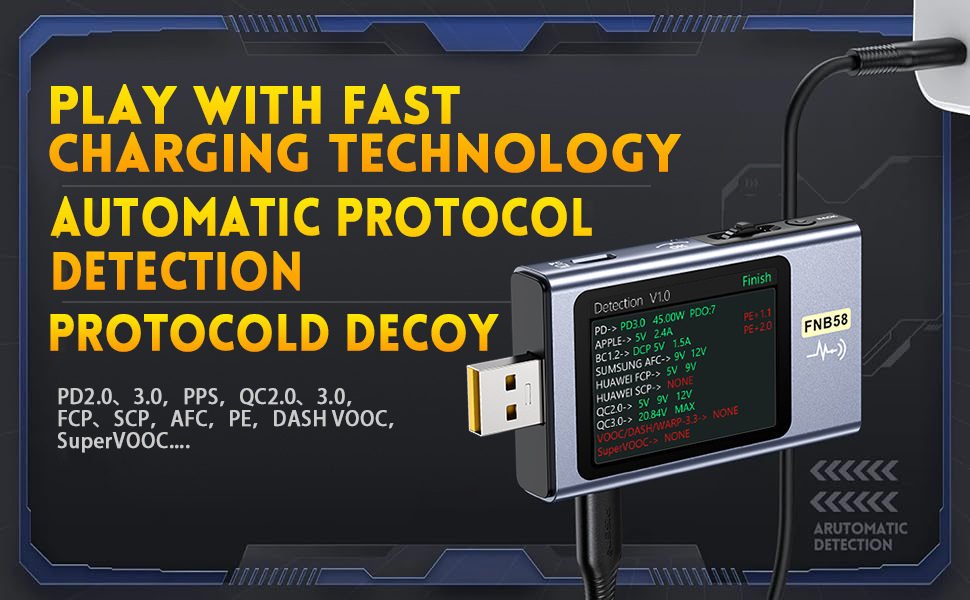

FNB58 usb tester supports trigger detection of various fast charging protocols, QC2.0/QC3.0 trigger, FCP/SCP trigger, AFC trigger, PD2.0/3.0 trigger, VOOC/WARP trigger, Super VOOC 1.0/2.0 trigger. The above protocols all support automatic monitoring. MTK-PE automatic detection. Support QC2.O->PD2.0 protocol conversion.

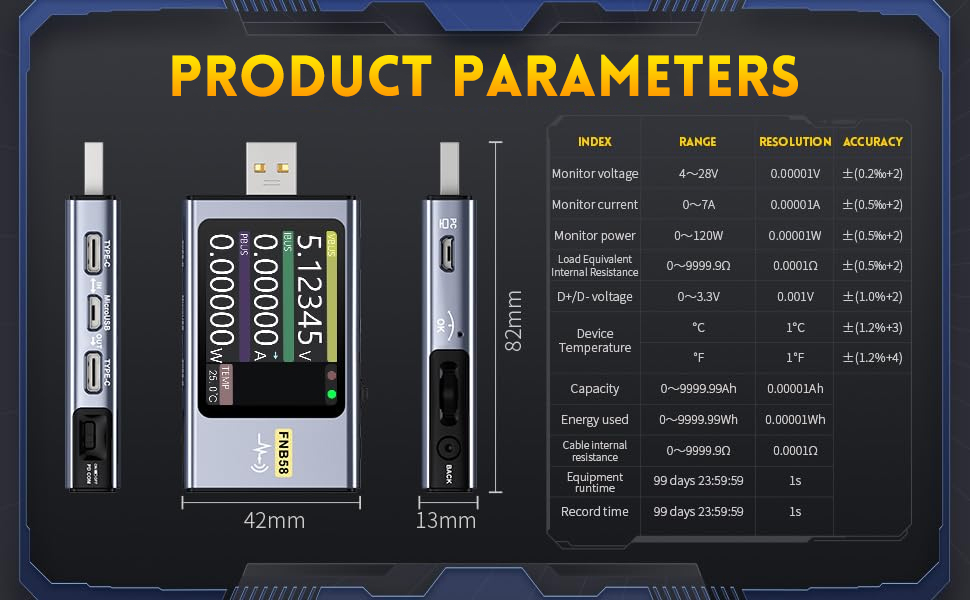

Monitor voltage:4~28V
Monitor current:0~7A
Monitor power:0~120W
Load equivalent internal resistance:0~9999.9O
D+/D- voltage:0~3.3V
Equipment temperature:?/?
Capacity:0~9999.99Ah
Energy used:0~9999.99Wh
Cable resistance :0~9999.9O
Equipmnt running time:99d23h59min59s
Record time:99d23h59min59s
THIS IS FNIRSI FNB58 UPGRADED MODEL
Why choose FNIRSI FNB58 usb tester?
The FNB58USB tester is a highly reliable, highly safe USB voltage and current detection meter and a mobile communication terminal fast charging trigger.It has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. Use external 16-bit ADC, PD protocol physical chip.
It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks;
It can be used to measure the charging power of mobile phones and the input and output of mobile power supplies;
It can be used to test the fast charging protocol of chargers.
NOTE: IOS DOES NOT SUPPORT THE BLUETOOTH FUNCTION.
The FNB58USB tester is a higly safe,reliable and stable USB voltage and current detection meter and a mobile communication terminal fast chargingtrigger.It is equipped with a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks; it can be used to measure the charging power of mobile phones and the input and output of mobile power supplies; it can be used to test the fast charging protocol of chargers.
Parameter Detection and Recording
The highest six-digit display of voltage, current and power, the highest resolution is 0.00001 (V/A/W).
10 sets of switchable capacity, power and time statistics.
1 set of voltage and current curve records, maximum support 9 hours.
Support low-speed waveform (voltage, current, D+/D-) drawing, 2sps->100sps sampling rate.
Support high-speed ripple (voltage, AC coupling)drawing, up to 4M sps sampling rate.
Four Functions Curve Display:
1. FNIRSI usb tester supports real-time voltage and current curve for view recharging curve changes in real time
2. FNIRSI usb tester supports up to 9 hours offline voltage and current curve recording;
3. D+D1 voltge curve can show the recharging protocols changes in real time;
4. FNIRSI usb tester provides the high-speed power ripple measurement curve of chargers. Any abnormal charging could be found immediately.
The FNIRSI usb tester could distinguish the quality of chargers by showing you the VPP ripple values.
Parameter Detection and Recording
The Fnirsi USB tester can record 10 sets of data of the charge- discharge enegery recording and calculate the capacity of the built-in batteries. It can record 1 set of voltage and current curve up to 9hours. I supports low-speed waveform(voltage, current, D+/D-) drawing,2sps->100sps sampling rate. It supports high-speed ripple (voltage, AC coupling)drawing, up to 4M sps sampling rate. The display of data is accurately up to 0.00001 (V/A/W).
FNB58 usb tester supports trigger detection of various fast charging protocols, QC2.0/QC3.0 trigger, FCP/SCP trigger, AFC trigger, PD2.0/3.0 trigger, VOOC/WARP trigger, Super VOOC 1.0/2.0 trigger. The above protocols all support automatic monitoring. MTK-PE automatic detection. Support QC2.O->PD2.0 protocol conversion.
Monitor voltage:4~28V
Monitor current:0~7A
Monitor power:0~120W
Load equivalent internal resistance:0~9999.9O
D+/D- voltage:0~3.3V
Equipment temperature:?/?
Capacity:0~9999.99Ah
Energy used:0~9999.99Wh
Cable resistance :0~9999.9O
Equipmnt running time:99d23h59min59s
Record time:99d23h59min59s
