Description:

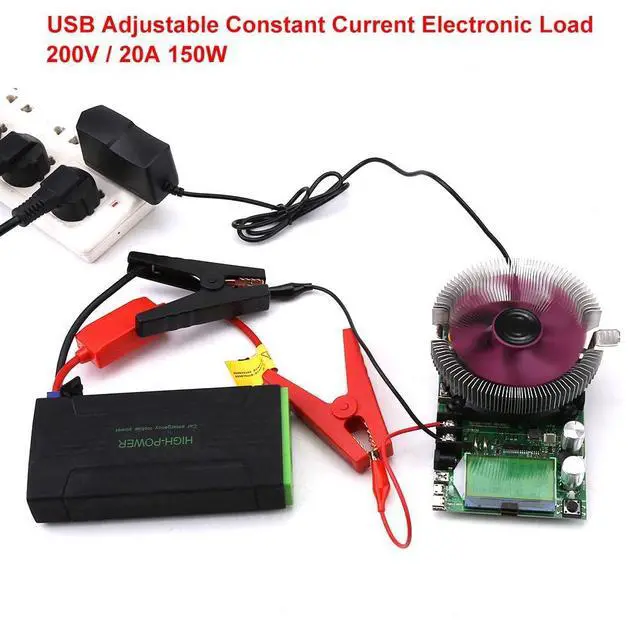

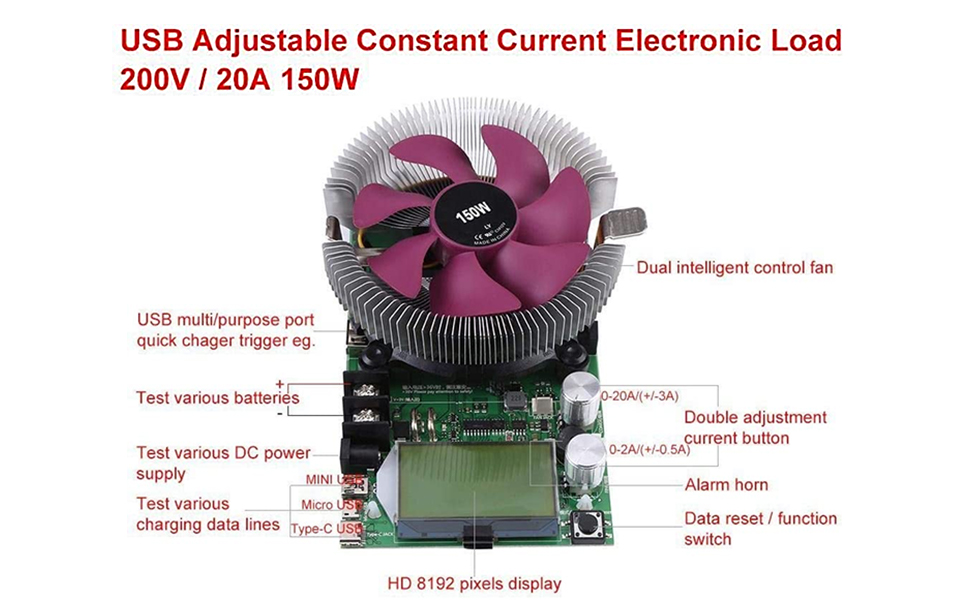

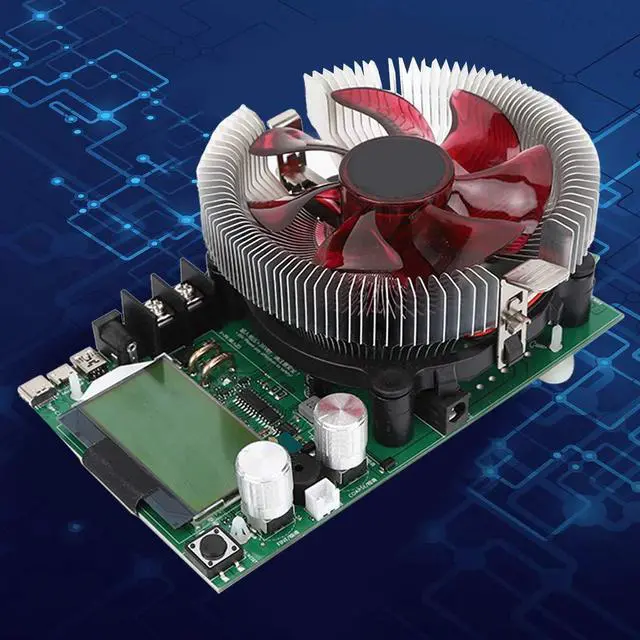

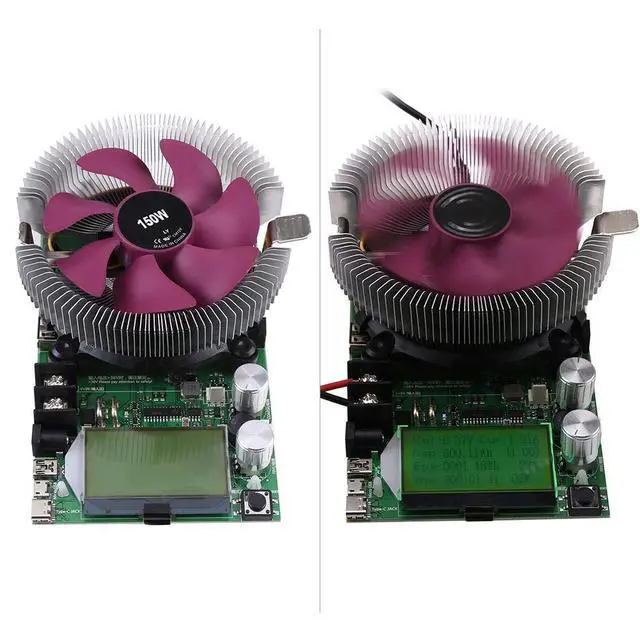

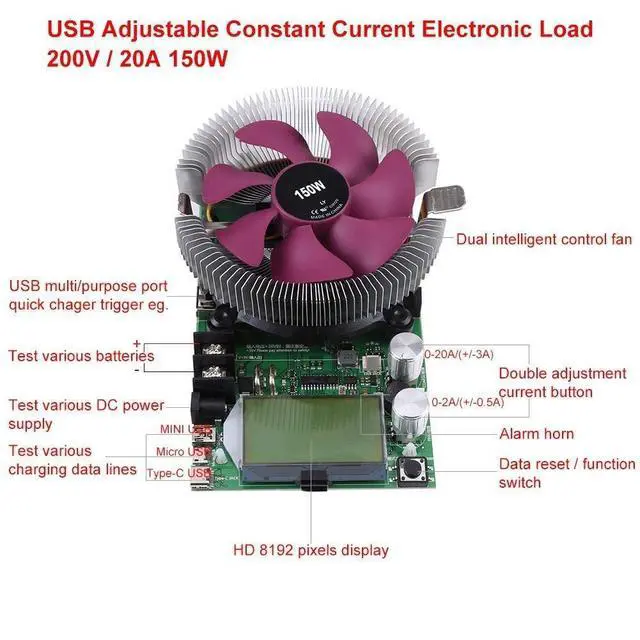

This multifunction constant current electronic load can measure voltage, current, power, battery capacity, impedance, temperature, energy, time. Over voltage, over current, and overpressure alarm. The CPU fan can effectively dissipate the heat.
Note:
- Please turn down the knob to the end counterclockwise before using, and then turn up slowly.
- Please pay attention to your safety when the voltage is more than 36V.
- Several tested power supply can not be connected simultaneously.
- The current adjustment knob should be regulated slowly.
Specification:
- Input Interface / Output Interface: 100A High Current Bite Screw Stud
- Voltage measurement range: 0.00V ~ 200V, Resolution accuracy: 0.01V
- Current measurement range: 0.00A ~ 20A, Resolution accuracy: 0.01A
- Capacity accumulation range: 0 ~ 999.999Ah, Resolution accuracy: 0.01Ah
- Power accumulation range: 0 ~ 9999.9Wh, Resolution accuracy: 0.01Wh
- Power measurement range: 0000.00 ~ 150W, Resolution accuracy: 0.01W
- Impedance measurement range: 1 ~ 999.9O, Resolution accuracy: 0.01 O
- Temperature measurement range: 0 ~ 99 ?, Resolution accuracy: 1 ?
- Timing maximum time: 999 hours 59 minutes 59 seconds, Resolution accuracy: 1 second
- Timing measurement reminder settings: countdown 24 hours, any value can be set
- Small current standby to remind the threshold parameters and timing: <2W / 0.5 hours; > 0.5W begin timing
- Power supply: 4 ~ 30V range of DC voltage
- Refresh time: > 500mS / times
- Measurement rate: about 0.5 times / sec
- Over voltage Over current Set the alarm mode: Show alert interface to remind the user
- Overpressure Reminder Setting range: 1 ~ 200V
- Low voltage reminder setting range: 0 ~ 190V
- Overflow Reminder Set Range: 0.2 ~ 100A
- Display Type: Micro power LCD Module LCM Green Backlight Chinese & English Display
- Operating temperature: -10 ~ +60 ?
- Interface: USB, 5.5mm jack, Mini USB, Micro USB, Type-C
- Working humidity: 10 ~ 80
- Working pressure: 80 ~ 106kPa
- Plug type: US plug

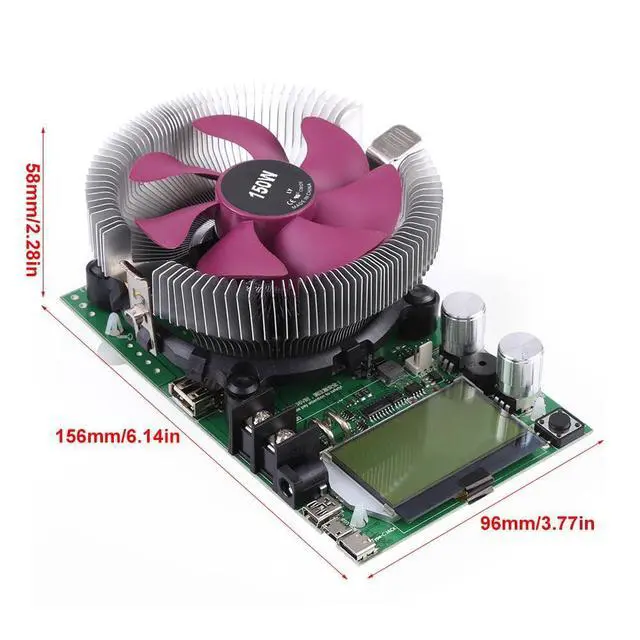

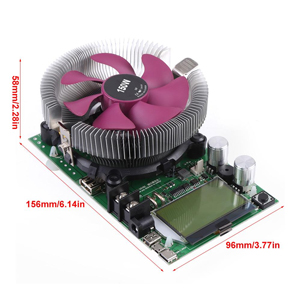

- Size: Approx. 156 x 96 x 58mm / 6.1 x 3.7 x 2.2inch
- Weight: 631g

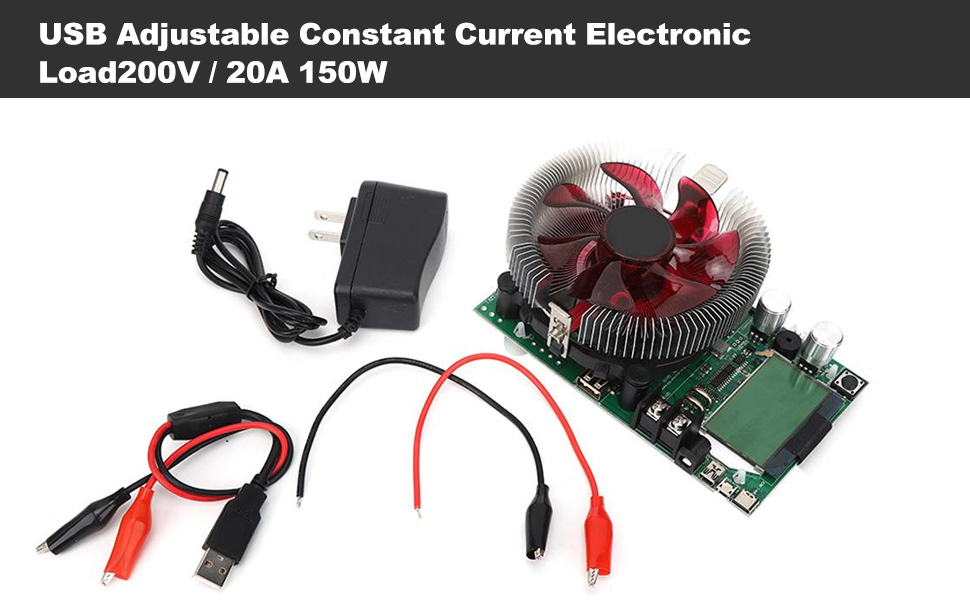

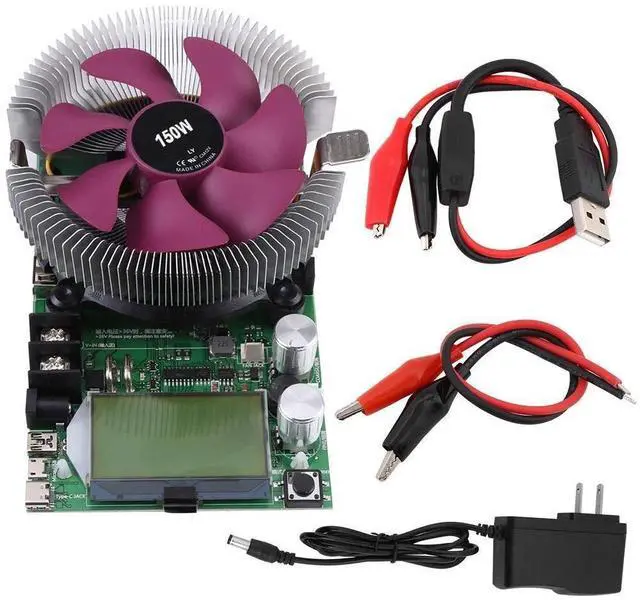

Package Include:
- 1 x Adjustable Constant Current Electronic Load
- 1 x Charger
- 2 x Crocodile Clip
- 1 x USB Crocodile Clip
(Other items in the picture are NOT included)
