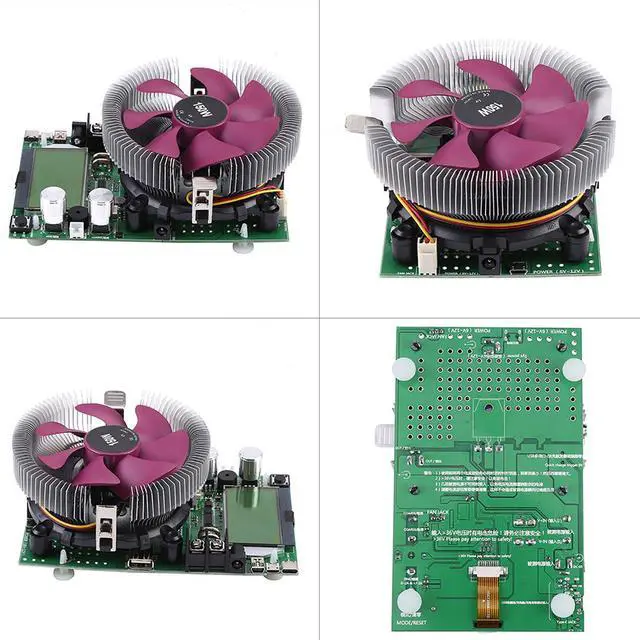

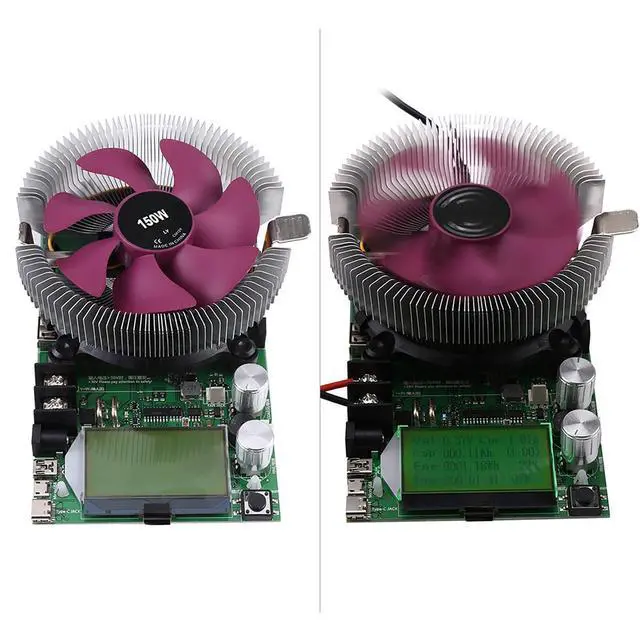

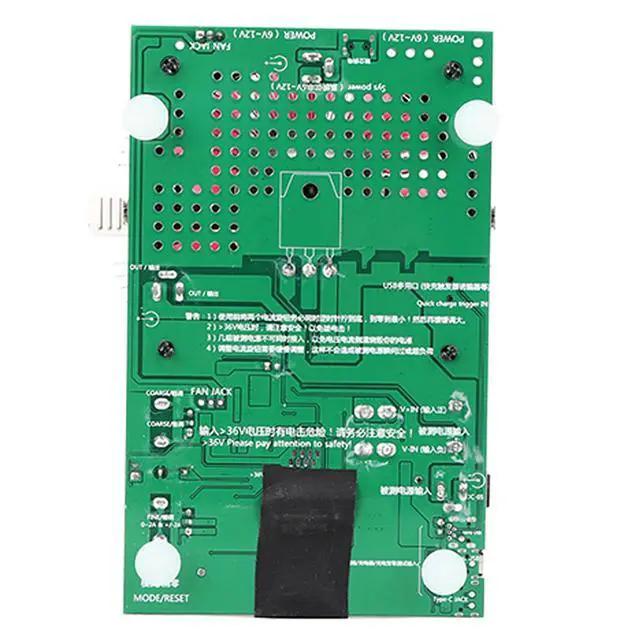

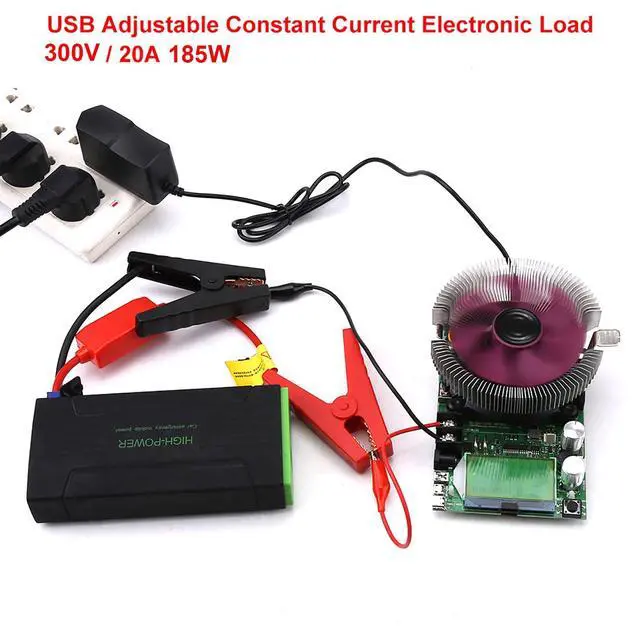

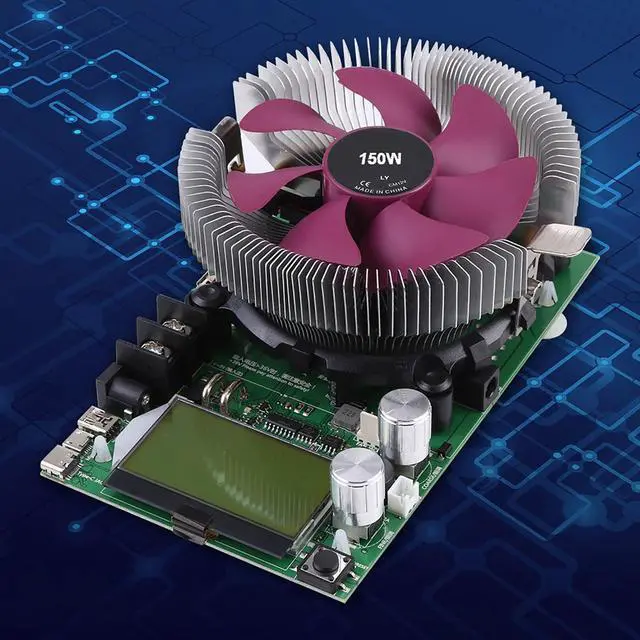

Battery Capacity Tester, USB Battery Load Tester Module, 185W 20A Adjustable Electronic Load

Specification:

Current measurement range: 0.00A ~ 20A, Resolution accuracy: 0.05A

Capacity accumulation range: 0 ~ 999.999Ah, Resolution accuracy: 0.01Ah

Power accumulation range: 0 ~ 9999.9Wh, Resolution accuracy: 0.01Wh

Power measurement range: 0000.00 ~ 2999.99W, Resolution accuracy: 0.01W

Impedance measurement range: 1 ~ 999.9, Resolution accuracy: 0.01

Temperature measurement range: 0 ~ 99 , Resolution accuracy: 1

Timing maximum time: 999 hours 59 minutes 59 seconds, Resolution accuracy: 1 second

Timing measurement reminder settings: countdown 24 hours, any value can be set

Small current standby to remind the threshold parameters and timing: 0.5W begin timing

Refresh time: > 500mS / times

Measurement rate: about 2 times / sec

Overflow Reminder Set Range: 0.2 ~ 100A

Display Type: Micro power LCD Module LCM Green Backlight Chinese English Display

Operating temperature: -10 ~ +60

Interface: USB, 5.5 mm jack, Mini USB, Micro USB, Type-C

Working humidity: 10 ~ 80

Working pressure: 80 ~ 106kPa

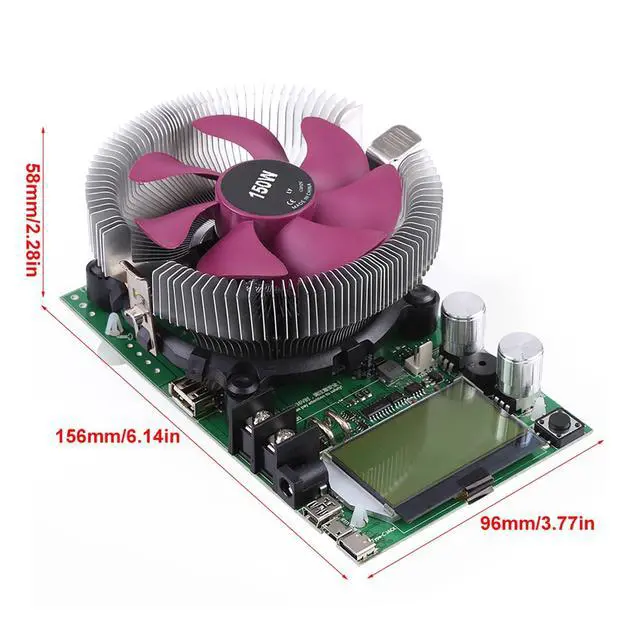

Size: Approx. 156 x 96 x 58 mm / 6.1 x 3.7 x 2.2 inch

Weight: 631 g

Note:

1. Please turn down the knob to the end counterclockwise before using, and then turn up slowly.

2. Please pay attention to your safety when the voltage is more than 36V.

3. Several tested power supply can not be connected simultaneously.

4. The current adjustment knob should be regulated slowly.

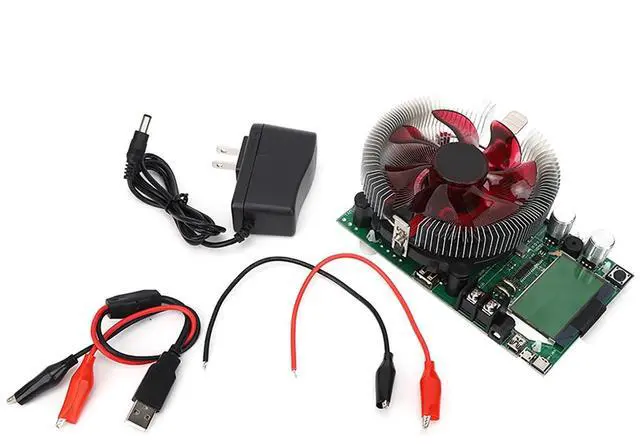

Package Include:

1 x Fan

1 x USB Cable

2 x Crocodile Clip

1 x Manual

(Other items in the picture are NOT included)
