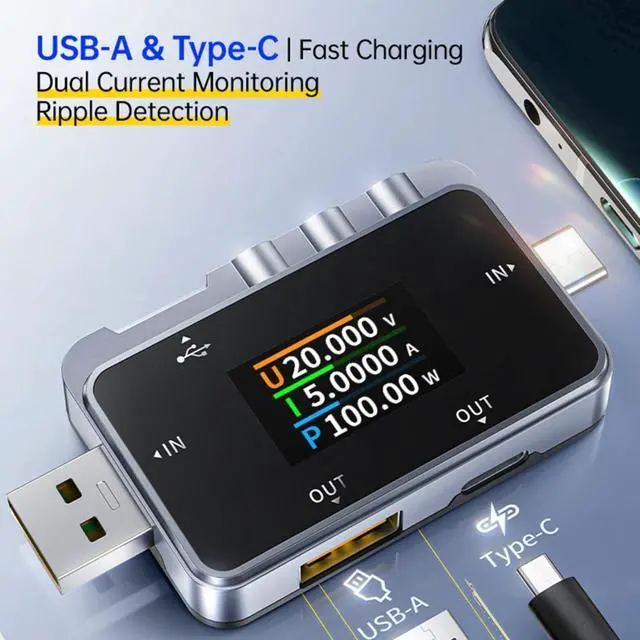

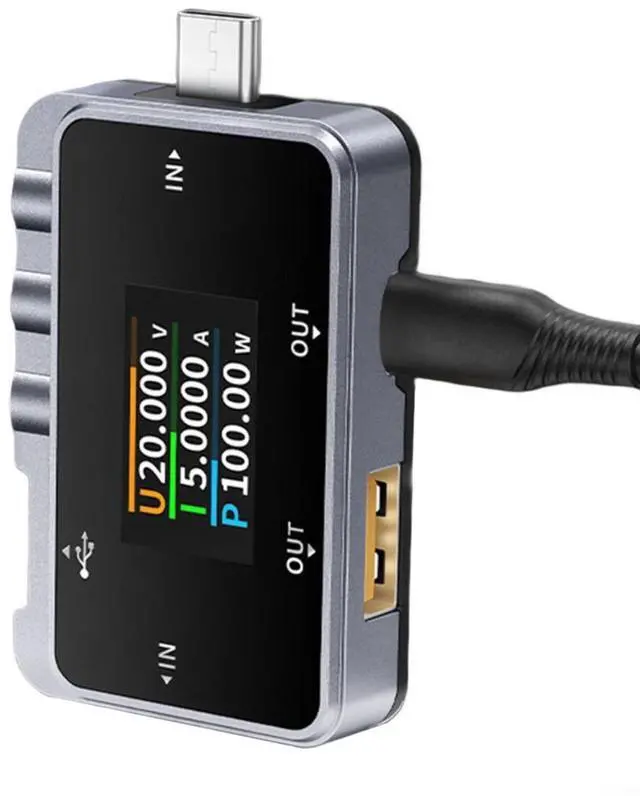

FNAC-28 USB Tester Digital Voltmeter and Ammeter with 1.06-Inch Color Display, 4-24V Voltage, 0-6.5A Current, USB-A/Type-C Ports
- [MULTI-FUNCTIONAL USB TESTER] The FNAC 28 USB tester is designed to measure voltage, current, and power consumption for ACROSS various devices, including phone chargers and USB drives, providing versatility for all your testing needs.
- [HIGH ACCURACY MEASUREMENTS] Equipped with a 16-bit for adc chip, this device ensures precise readings within a monitoring voltage range of 4-24V and current up to 5A, making it reliable for both casual users and professionals.
- [USER-FRIENDLY DISPLAY] Featuring a vibrant 06 inch TFT LCD display with an ultra-wide viewing angle, the FNAC 28 allows you to easily read measurements at a glance, enhancing your user experience.
- [WIDE COMPATIBILITY] With multiple interfaces including USB A and TypeC connectors, this tester is compatible with a broad range of devices and charging protocols, accommodating various charging needs effectively.
- [SIZING REMINDER] Please refer to your own specifications for compatibility as the FNAC 28 USB tester is designed for applications but may vary based on device requirements.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Features:

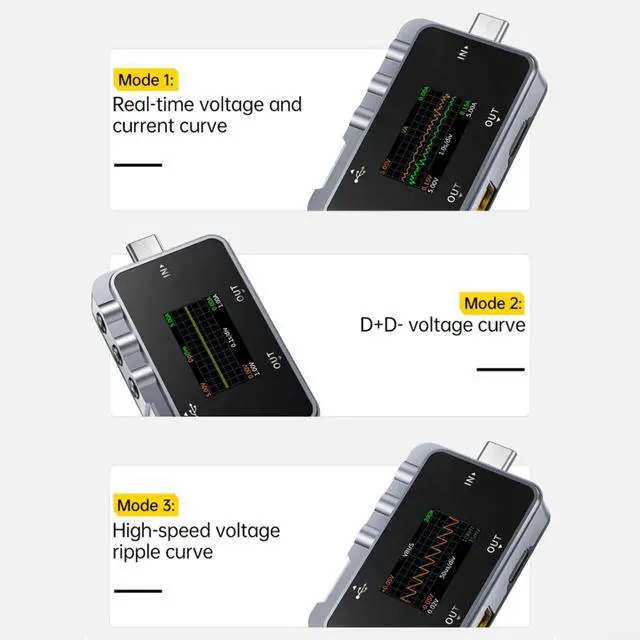

The FNAC-28 USB tester is a multi-function USB current and voltage meter, and also a fast charging activation device for mobile communication terminals.
It has a full-color, ultra-wide viewing angle TFT LCD display, and integrates multiple interfaces, including USB-A and Type-C male and female connectors, wide compatibility.
It uses an external 16-bit for adc chip with high measurement accuracy.

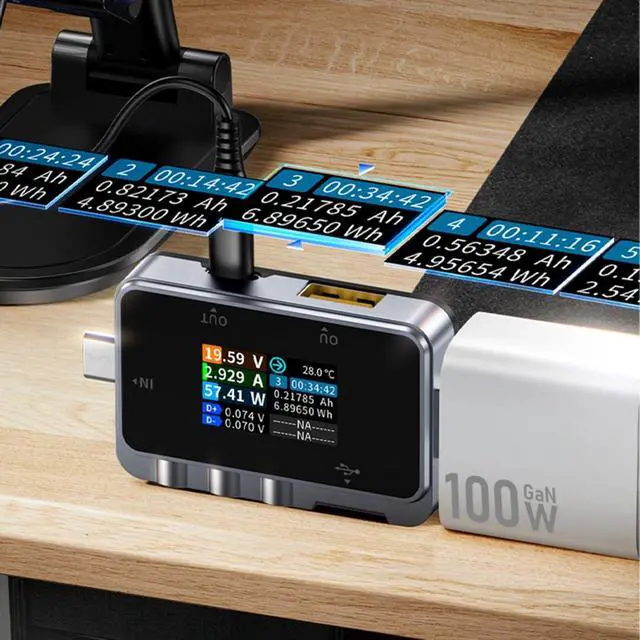

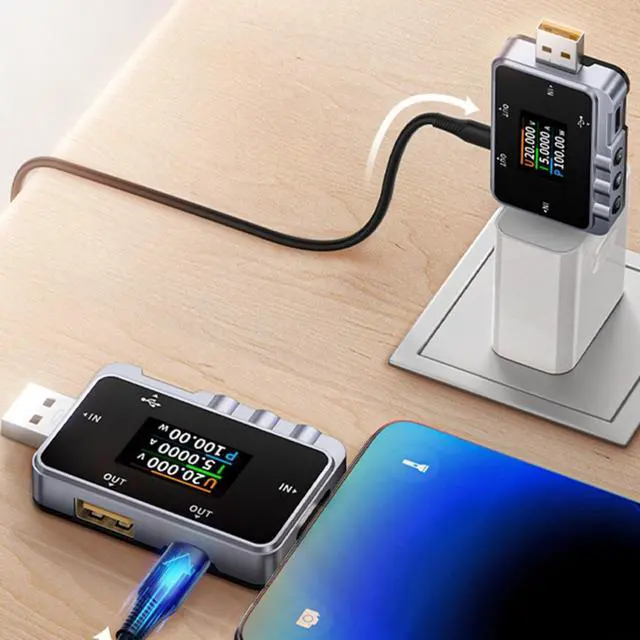

The device can measure the power or power consumption of USB interfaces, mobile phone chargers, USB drives and other products.
It can also measure the charging power of mobile phones, the input and output of mobile power supplies, and perform fast charging protocol tests on chargers.
Specifications:
Part name: FNAC-28 USB tester
Material: As shown
Color: As shown
Model: FNAC-28
Display: 1.06-inch color display
Monitoring voltage: 4~24V
Monitoring current: 0~6.5A
Monitoring power: 0~156W

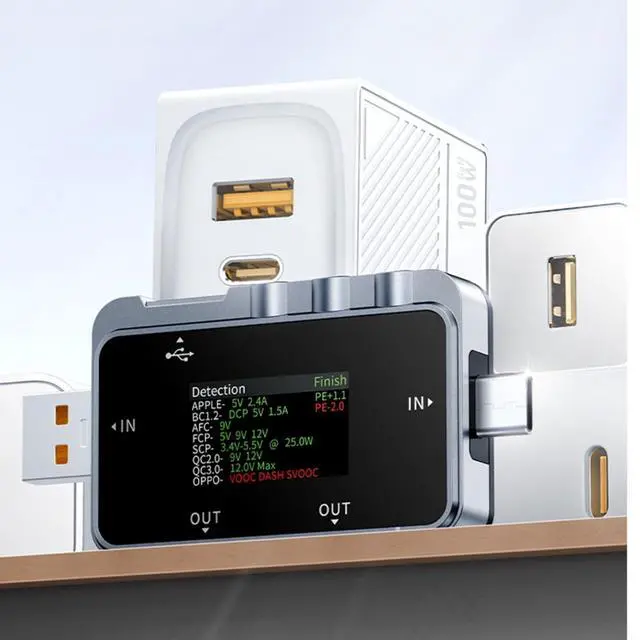

Detection protocol: 1QC2.0 5V 9V 12V 20V; 2QC3.0 3.4-20V; 3FCP 9V 12V 20V; 4SCP 5.5-6.0V; 5AFC 9V 12V; 6VOOC/WARP; 20V; 7SVOOC 1.0; 8SVOOC 2.0
Cable strength: support
Detection of for DASH cable: support
Soft for DASH cable: support
Soft 2.4A: support
Brightness adjustment: support
Timeout setting: support
Temperature symbol: and switch
Language: Chinese and English
Firmware update: support
Size: 73×36×12mm
Package content:
FNAC-28 USB tester*1
User manual*1
Color box packaging*1
