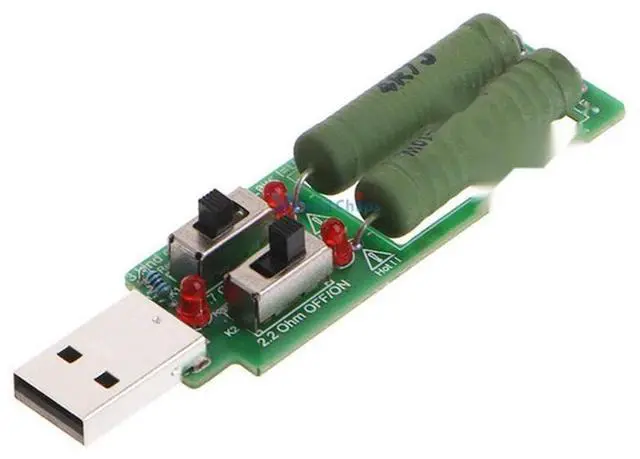

Resistor USB dc Electronic Load Adjustable Switch 3 Current 5V 1A/2A/3A Capacity Discharge Voltage Tester Resistance

|

Designed in accordance with Ohm's Law and connected in parallel by a different switch, a type of resistor can be created to discharge the USB electronic load resistor. When all switches are open, they are 2.2 ohms / 10 W, 4.7 ohms / 10 W, and they are connected in parallel. Two types of resistors can generate almost 3A discharge current at 5V.

The actual current size is based on Ohm's law: I = U / R

Parallel resistance calculation formula: R = 1 / (1 / R1 + 1 / R2 + ... + 1 / Rn)

K1 = 4.7 ohms / 10 , K2 = 2.2 ohms / 10

The load device is working, due to the high current caused by the winding resistance, will produce a very very high temperature, so in the use of the process, just use the finished product in a short time, can not expose the metal metal radiator parts, to avoid scalding! Do not contact flammable items with the tester to avoid fire! Must be highly vigilant during use!

Taking into account the specificity of heat resistance, after some time of initial use, some white and odor will appear, because the external paint contains little , high temperature electric heating, evaporation of water to form a white phenomenon, resulting in high temperature paint odor The outside phenomenon completely disappeared after a period of use. This phenomenon is unavoidable and it is a normal situation. Don't worry about the damage of the load tester. Please rest assured that

Load application:

Can easily test the mobile power charging treasure, mobile phone charger, USB power output current, such as compliance, as long as the connection to the above USB. It can be used for aging test of mobile power supply and USB power adapter. The aging resistance test will be very and the temperature is controlled at 80 ~ 85 °C. Please take care to burns.

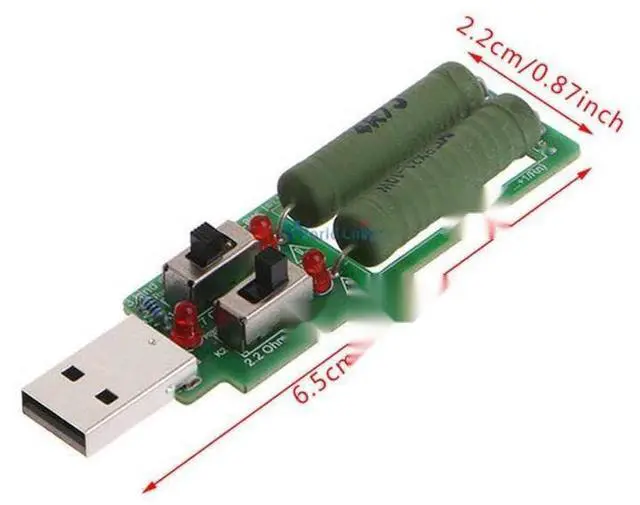

Size: 6.5x2.2cm / 2.56x0.87 inches

Quantity: 1

note:

Due to manual measurement, allow 1-3mm error. Please make sure you do
