702S 2 in 1 Handheld Automotive Oscilloscope Multimeter - 10MHz Bandwidth 48MS/s Sampling Rate,Auto-Ranging 9999 Counts T-RMS Multimeter with Temperature Tester for Electronics Repair Test

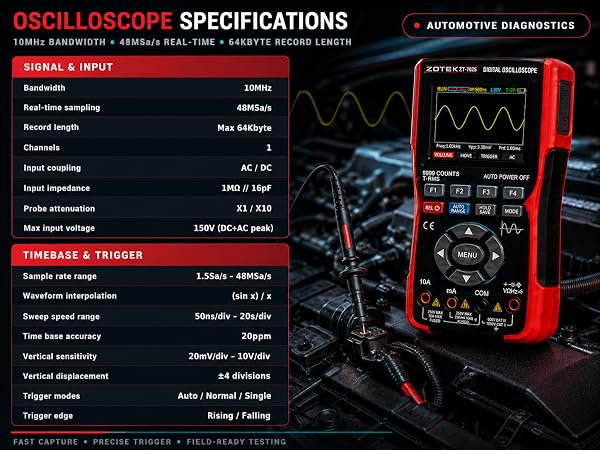

2.8-inch IPS full-view color screen oscilloscope multimeter:Trigger Function Auto/Nomal/Single, ±400V input, automatic measurement scan, 200mv/div-10v/div vertical sensitivity,8/50ns/div-20S/div horizontal scan range, 20ppm time base Accuracy digital oscilloscope
Dual mode design of oscilloscope and multimeter: one-button switch mode automatic obtain waveform, time base calibration, data storage, data export, language selection, shutdown time setting, backlight adjustable, data transmission port, 3V-1kHZ square wave output, memory and other functions, easy to operate, Improve work efficiency. digital oscilloscope multimeter widely used in automotive, industrial equipment, sensors, heavy electrical equipment, finishing and low voltage systems.
Multimeter Tester Mode: 9999 counts; AC voltage: 0-750V; DC voltage: 0-999.9V; DC/AC current: 0-9.999A; resistance: 0-99.99M; capacitance: 0-9.999mF ; Frequency: 0-99.99kHZ; Temperature: -20°C-1000°C, diode, continuity measurement. It is suitable for voltage tester instrument of household, school, shopping mall, and laboratory circuit system, and can also be used for digital multimeter of socket, switch, lamp and low-voltage circuit.
Safety overload protection:conforms to CTA III 1000V, CTA II 600V safety level, meets CE certification requirements, A/D high sampling conversion, 200mA-10A double ceramic fuse, ABS+TPE double injection molding process, strong Durable.

	ZT-700	ZT-702S	ZT-703S	ZT-706S
Customer Reviews	—	—	—	—
Display	2.8" IPS	2.8" IPS	3.5" IPS	3.5" IPS
DMM Counts	N/A (no DMM)	9999	25000	66000
Oscilloscope Bandwidth	10MHz	10MHz	50MHz	50MHz
Channels	CH1	CH1	CH1/CH2	CH1/CH2
Max. Sample Rate	48MSa/s	48MSa/s	200/280MSa/s	200/280MSa/s
Fastest Sweep Speed	25ns/div	100ns/div	10ns/div	10ns/div
Record Length	64KB	64KB	128KB	128KB
Signal Generator	22 waveforms,sine up to 100kHz	Fixed square wave only @1kHz	6-waveform DDS source	6 waveforms, sine up to 10MHz
XY/FFT/Persistence/Cursors	FFT+Persistence;Peak Detect	None	All added	All added
DCV Basic Accuracy	N/A	±(0.5%+3)	±(0.05%+3)	±(0.05%+3)
mA Input Range	N/A	99.99mA	250mA	660mA
VFC Anti-interference Voltage	N/A	None	None	Exclusive
