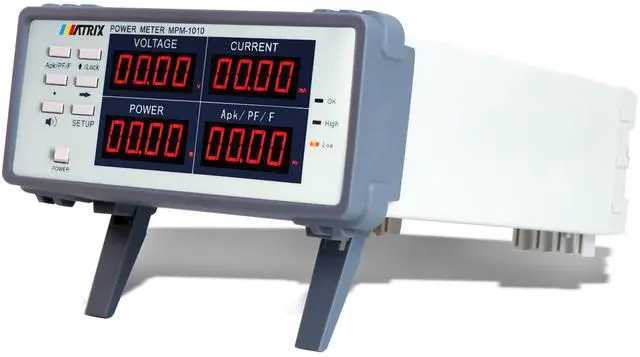

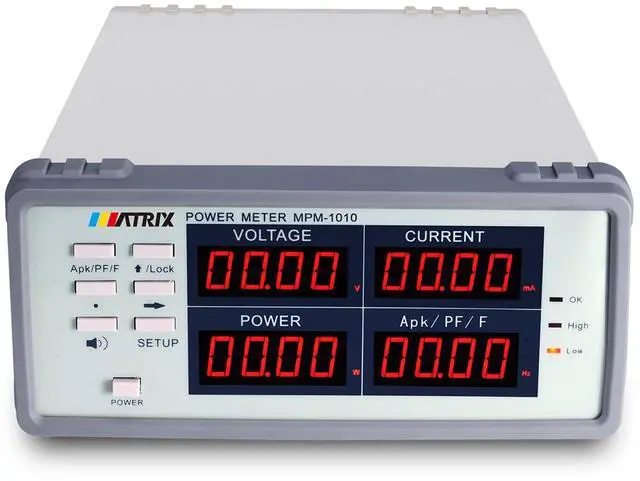

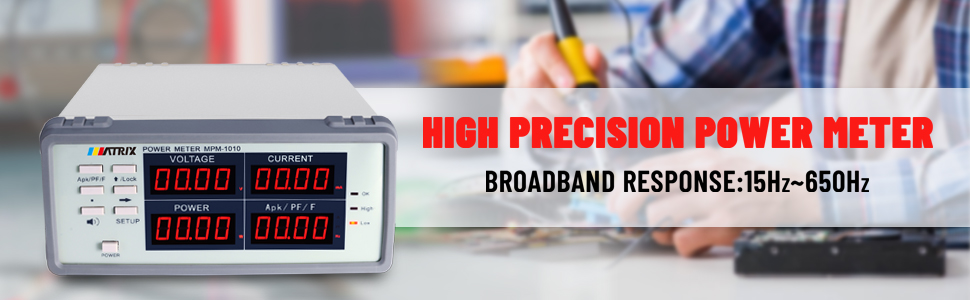

MPM-1010 high-precision power meter applies direct plug mode instead of traditional according to customers' suggestion, to improve safety and convenience. The voltage and current sampling section uses precision resistance direct sampling instead of traditional transformer sampling, which ensures the original data is undistorted and improves the accuracy of the instrument. This machine is specially adapted to some half wave and other various waveform measurements of DC components, testing full wave resistance, the distorted wave, half wave, symmetrical and unsymmetrical square wave, triangle wave sawtooth wave, and other special waveform under AC mode. It is a highly cost-effective product with a novel appearance and scientific design. It is widely used in mobile phone charger adapter switches power household appliances, transformer, and other industries.

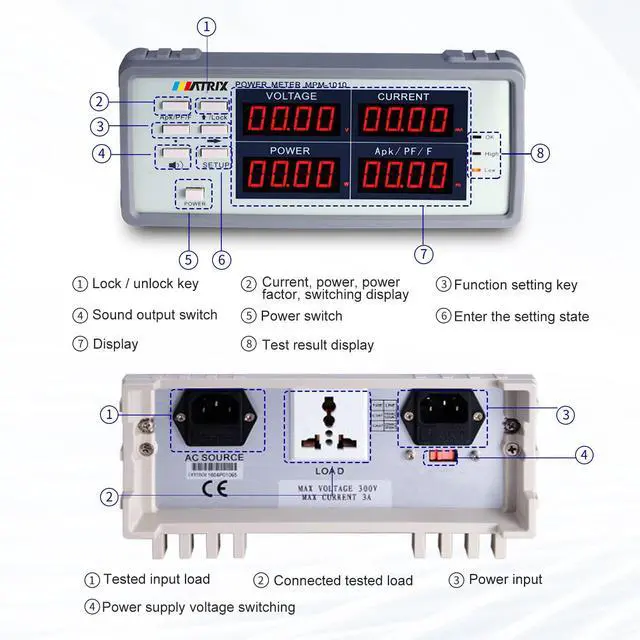

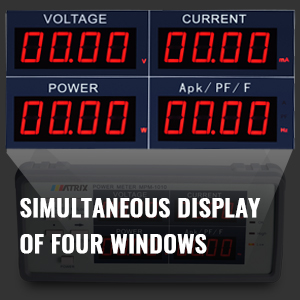

4 Digit Display
- Voltage, Current, Power, Apk/PF/F are displayed at the same time for easy data reading and recording
Convenient to use
Button Settings

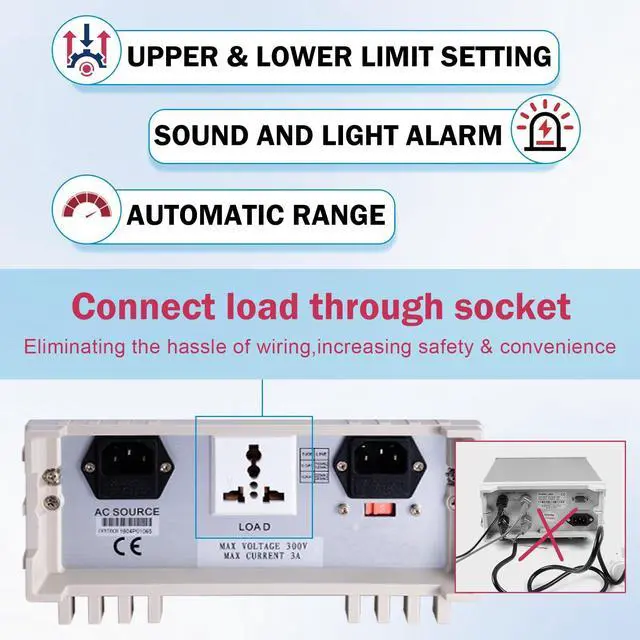

- Power factor, current, power upper and lower limit settings, and sound and light alarm, suitable for production line batch testing
Product Data Reference
MPM-1010 high-precision power meter applies direct plug mode instead of traditional according to customers' suggestion, to improve safety and convenience. The voltage and current sampling section uses precision resistance direct sampling instead of traditional transformer sampling, which ensures the original data is undistorted and improves the accuracy of the instrument. This machine is specially adapted to some half wave and other various waveform measurements of DC components, testing full wave resistance, the distorted wave, half wave, symmetrical and unsymmetrical square wave, triangle wave sawtooth wave, and other special waveform under AC mode. It is a highly cost-effective product with a novel appearance and scientific design. It is widely used in mobile phone charger adapter switches power household appliances, transformer, and other industries.
4 Digit Display
- Voltage, Current, Power, Apk/PF/F are displayed at the same time for easy data reading and recording
Convenient to use
Button Settings
- Power factor, current, power upper and lower limit settings, and sound and light alarm, suitable for production line batch testing
Product Data Reference

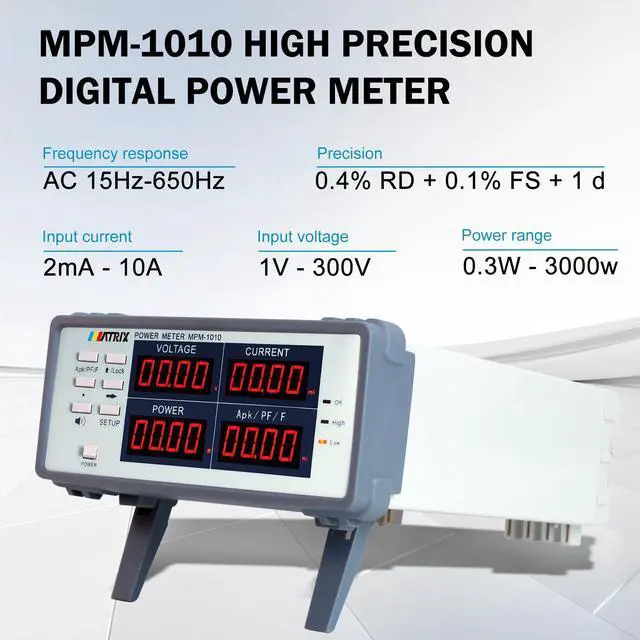

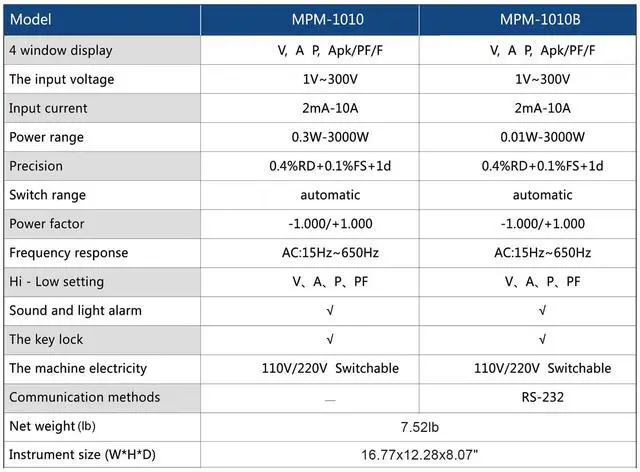

| Model | MPM-1010 |
| 4 window display | V,A,P,Apk/PF/F |
| the input voltage | 1V-300V |
| input current | 2mA-10A |
| power range | 0.3W-3000W |
| Precision | 0.4%RD+0.1%FS+1d |
| Switch range | automatic |
| Power factor | -1000/+1.000 |
| Frequency response | AC:15Hz~650Hz |
| Hi-Low setting | V.A. P?PF V?A. P?PF |
| Sound and light alarm | v |
| The key lock | v |
| The machine electricity | 110V/220V Switchable |
| Net weight (kg) | 2.5 |
