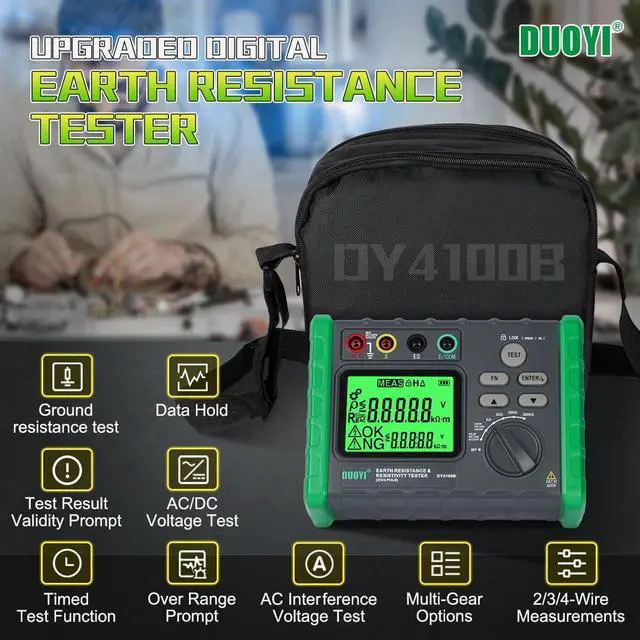

DUOYI Earth Resistance Tester 0.03-2000 ohm Meter,Upgraded Digital Earth Ground Resistance Tester 2/3 Wire Measurement AC/DC Voltage Meter with Batteries,Tool Bag
- Brand DUOYI
- Power Source Battery Powered
- Style Digital
- Color Green
- Item Weight 1.8 Kilograms
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

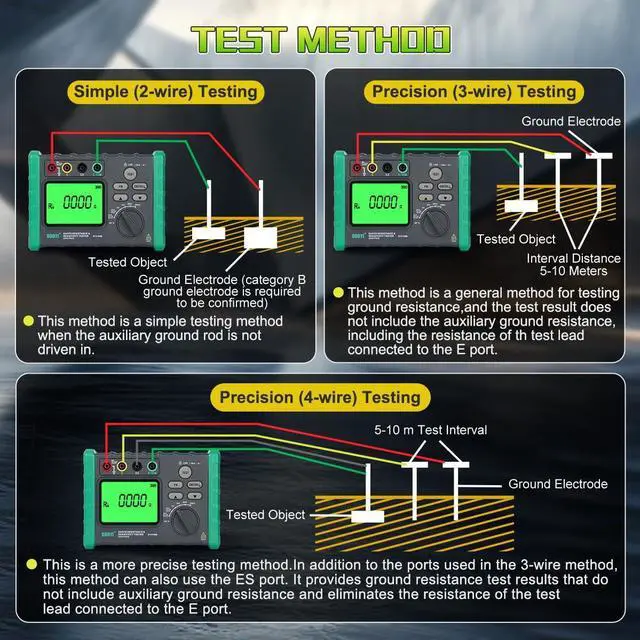

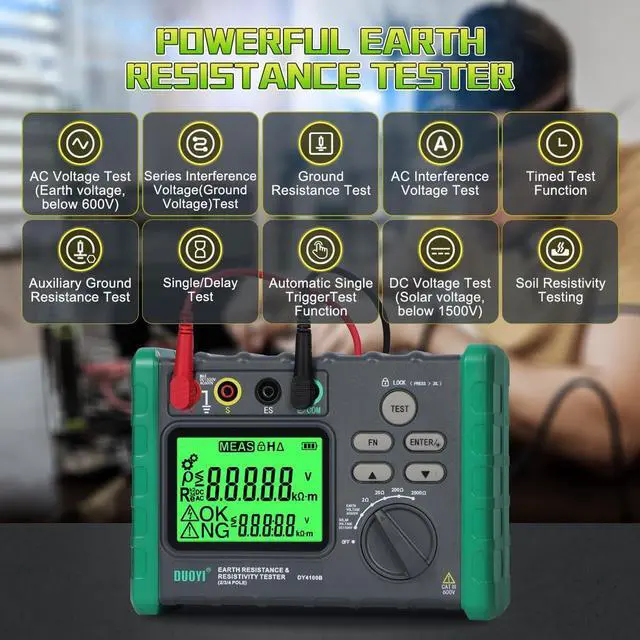

- Upgraded Ground Resistance Tester - Various FunctionsResistance tester is powerful and can perform precise 3-wire measurements or simple 2-wire measurements. It provides functions including AC voltage test (earth voltage, below 600V), DC voltage test (solar voltage, below 1500V), ground resistance test, AC interference voltage test,single/delay test,series interference voltage test,measurement function of residual resistance Rk of test leads, etc.It is easy to operate and has high reliability
- Widely ApplicableResistance tester has high accuracy and strong anti-interference ability, and can be used to test the grounding resistance of agricultural equipment distribution wires, indoor wiring, power systems, electrical equipment, lightning conductors, as well as resistance value of low resistance conductor and AC voltage test, and widely used in measurement in electric power, post and telecommunications, railways, petroleum, chemical industry, communications, mining and other sectors

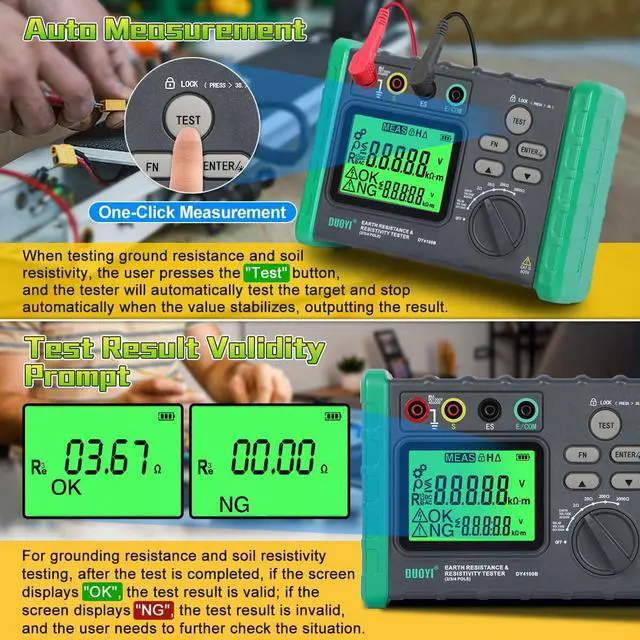

- Quick Response & Auto MeasurementResistance tester adopts one-button quick measurement function. When testing ground resistance and soil resistivity, the user presses the "Test" button, and the tester will automatically test the target and stop automatically when the value stabilizes, outputting the result. After the test is completed, if the screen displays "OK",the test result is valid;if the screen displays "NG", the test result is invalid and the user needs to further check the situation
- Multiple Gear SelectionEarth ground resistance tester provides resistance voltage gear switching, which can easily switch the voltage resistance mode. The resistance tester has 4 resistance measurement ranges, which can accurately measure resistance up to 2000,meet the use of a variety of different occasions. Resistance measurement range: 0.03-2; 0.03-20; 0.3-200; 3-2000. Earth voltage (AC voltage) measurement range: 0-600 VAC; Solar voltage (DC voltage) measurement range: 0-1500 VDC

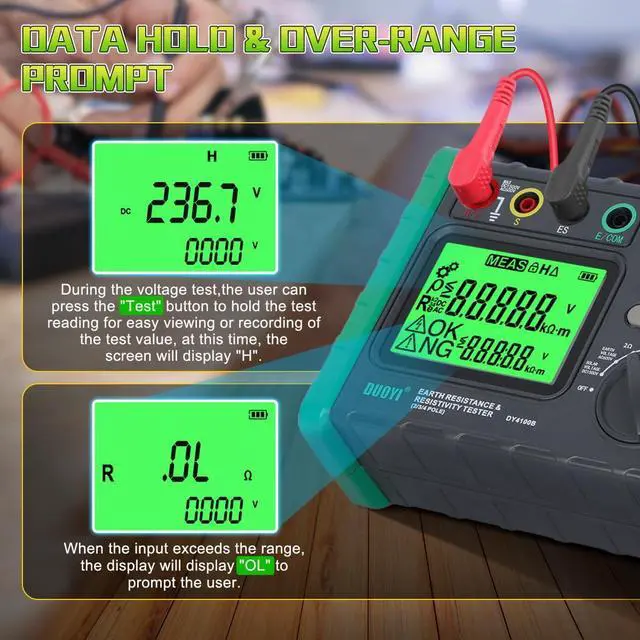

- Data Hold & Over-Range PromptDuring the voltage test,the user can press the "Test" button to hold the test reading for easy viewing or recording of the test value, at this time, the screen will display "H". During the numerical reading hold process, if there is a dangerous voltage input, the tester will also warn with "Danger" or "Dangerous" prompts. The resistance tester has an over-range prompt function, when the input exceeds the range, the display will display "OL" to prompt the user
- LED Backlight Display & Auto Power OffWhen operating in dark places or at night, users can use the LCD backlight. By long pressing the "ENTER/*" key, the light will turn on for 30 seconds and then turn off automatically. If you want to turn off the light halfway, long press the "ENTER/*" key again. To prevent battery consumption, the power will be automatically cut off after about 5 minutes of no testing or button action. If you need to start the instrument, set the range switch to OFF
- Packaging DetailsWe provide 2 years warranty for the digital earth ground resistance tester. The earth resistance tester packaging includes:1Pc Earth resistance tester;4pcs Auxiliary Ground Rods;1Pc 15M Red Test Wire;1Pc 10M Yellow Test Wire;1Pc 5M Green Test Wire;1Pc 5M Black Test Wire;1 pair of Probes (for testing solar power DC voltage);6pcs 1.5V (Size AA) Batteries;1Pc User Manual;1Pc Tool Bag
