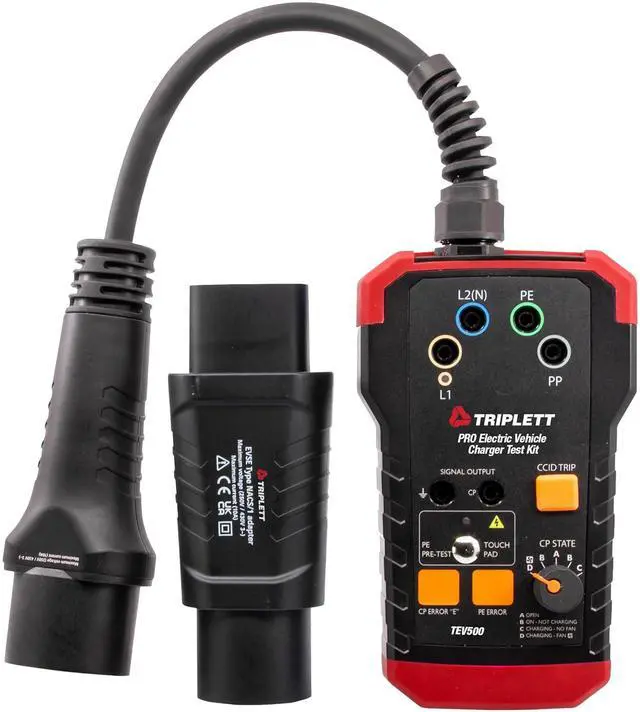

Triplett TEV500 Pro Electric Vehicle Charger Test Kit
- Brand Triplett
- Power Source Corded Electric
- Color Black
- Item Weight 1.2 Pounds
- Item dimensions L x W x H 6.9 x 4.2 x 2.8 inches
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- Test charging stations for both basic & advanced diagnostic requirements; SAE J1772 -Complies with North American standards
- PE Pre-Test: Allows testing the PE conductor for possible presence of dangerous voltage against earth; Phase indicator LED: When phase voltage on L1 is present at the charging connector, the LED indicator will illuminate
- Control Pilot (CP) State (Vehicle Simulation): With the CP State rotary switch selector various vehicle states can be simulated; CP Signal State Output: For use with an oscilloscope to check the waveform and amplitude of the CP signals
- CP Error E simulation: Simulate the behavior of the station when there is an established short circuit between CP and PE; PE Error (Earth Fault) simulation: Simulates interruption of the PE conductor
- Measuring Terminal Outputs L1, L2(N), PE and PP: Directly connected to L1, L2(N), PE and PP conductors of the tested charging station. It is allowed to use these for measuring purposes only and can be used with any Digital Multimeter for viewing voltage readings
