Charge Discharge Monitor, DC 8-100V 200A Battery Monitor 12V 24V 36V 48V 60V Coulometer Watt Meter, 2.4 inch LCD Color Screen Capacity Percentage Time Power Voltmeter Ampmeter for RV Solar Panel

Parameter

Voltage: 8-100V

Current: 0.05-100A/0.1-200A/0.15-300A/0.2-500A

Capacity: 0.1-99999AH

Power: 50KW

Voltage Precision: ±1% + 2 digits

Current Precision: ±0.5% + 2 digits

Measure Speed: 20 Times per Second

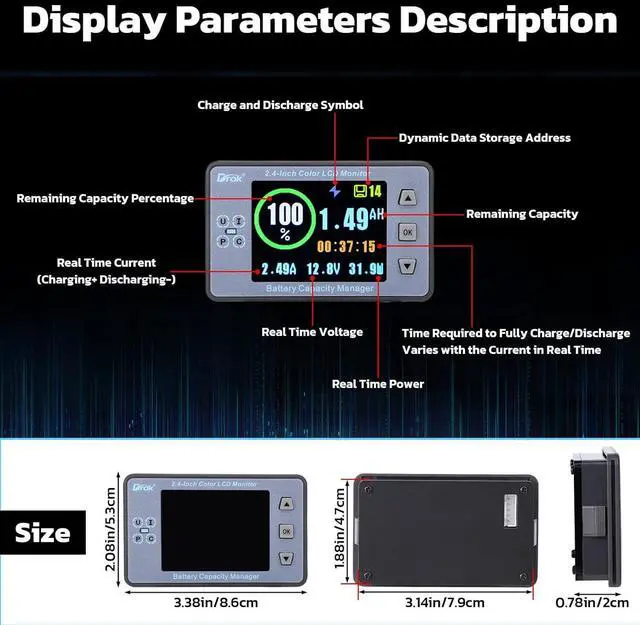

Display Board Size: 86*53*17mm/3.39*2.09*0.67in

Measure Board Size: 56*36*34mm/2.20*1.42*1.34in

Function

1.CLR: current clear function. When no-load current is not zero, enter this function, Short press to clear the no-load current.

2.BAT: set battery total capacity.

3.BPC: set available capacity percentage.

4.LED: set LCD screen backlight brightness. Level 0-10 can be adjusted

5.STE: set screen turn off time. when working time is longer than the set time, screen will auto turn off.

6.STI: set current value for turning off screen. When measure current is lower than the set value, screen will auto turn off. When measure current is higher than the set value, screen will auto turn on.

7.BKC: set the screen display colors, total 2 colors to choose, black-white and colorful.

8.LAG: set the language(English/Chinese).

9.LVP: Low voltage alarm. When voltage is lower than LVP value, the capacity will auto clear.

10.LBR: turn on/off backlight alarm. After turning on LBR, when the remain capacity is lower than 20% or voltage is lower than LVP, the backlight will flashing to alarm. When charging current is higher than STI, the backlight will also flash.

11.ADS: Communication Address.

12.PAI: the value of current clear. After no-load current clear, the shunt might make current higher than zero, which can set PAI. When current is lower than the set value, the current value will zero.

13.OVP: the voltage value of max capacity. When battery voltage is higher than OVP, the capacity will auto fill up.
