Hantek TO1254D 4-Channel Oscilloscope 250MHz Bandwidth 1 GSa/s Sampling Rate 7-Inch Touchscreen Portable and Movable Signal Source + 4000-Point Multimeter

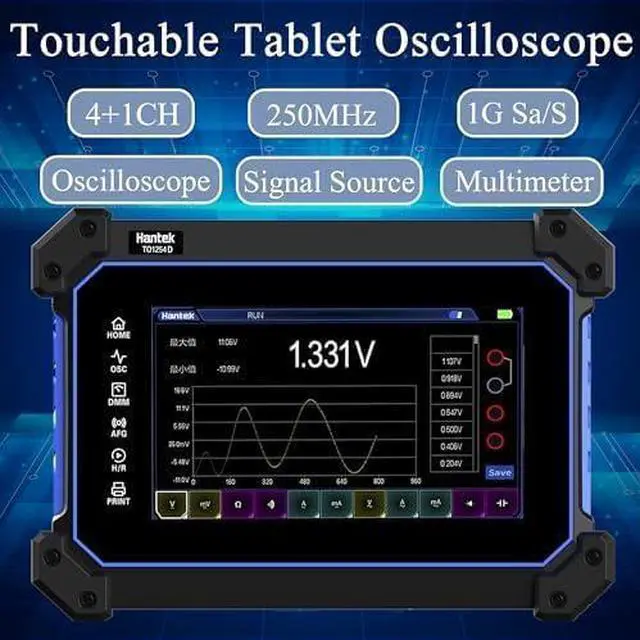

Parameter: 4+1CH oscilloscope, 250MHz bandwidth, 1GSa/s sampling rate, 8M depth storage; 5 trigger (Edge-triggered, Pulse Width, Video, Slope and Timeout Triggers); 25MHz Generator, Standard Waveform

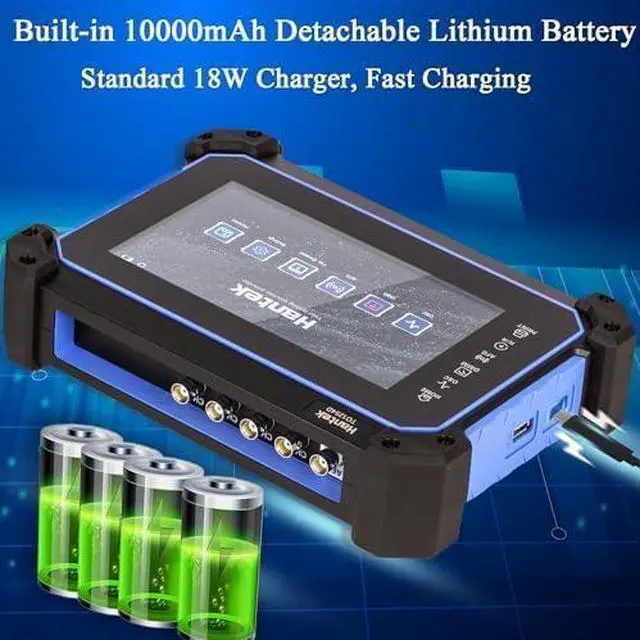

3 in 1 Functions: Built-in 250MHz Bandwidth Oscilloscope + 25MHz Generator + 4000 Counts Digital Multimeter; High parameters, high configuration, better meet your various demands; Built-in High Capacity Battery, easily portable and ready to use
Multimeter: 4000 points resolutions, support Voltage / Current / Resistance / Capacitance / Diode / ON-OFF measurement; Max Input Voltage: AC:600V, DC:600V; Max Input Current: AC:10A, DC:10A; Diode: 0~1.0V
Waveform Generator: 1CH Waveform Generator; 25MHz Frequency, 12bit resolution; Standard waveform(Sine/Square/Triangle/Noise/DC); Support AM/FM modulation, output high resistance and low resistance can be switched
Application: Built-in multiple functions, like data storage, frequency meter, FFT spectrum analyzer, math operations, 42 measurements, XY mode, 5 trigger and so on; Suitable for automotive testing, laboratory courses, etc.

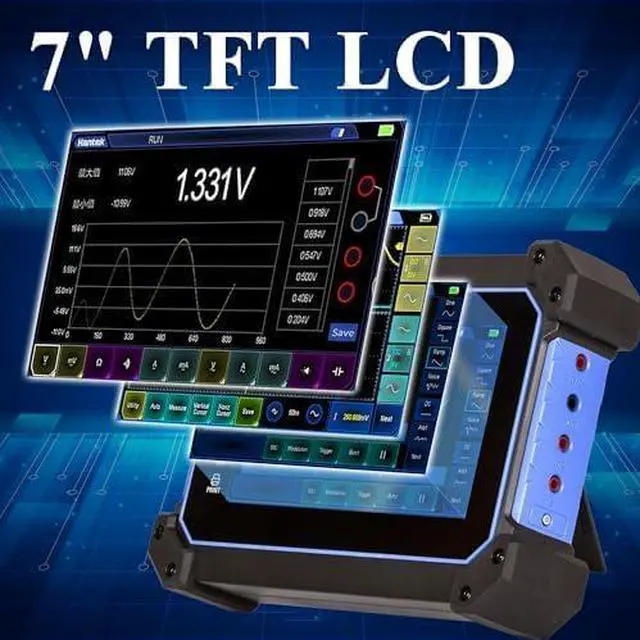

Multi-Touch Screen: 7 TFT LCD more intuitive, touchable screen, more convenient; A user-friendly interface, and a satisfactory interaction experience; Adjustable brightness and sound; Set auto-lock time and shutdown time
