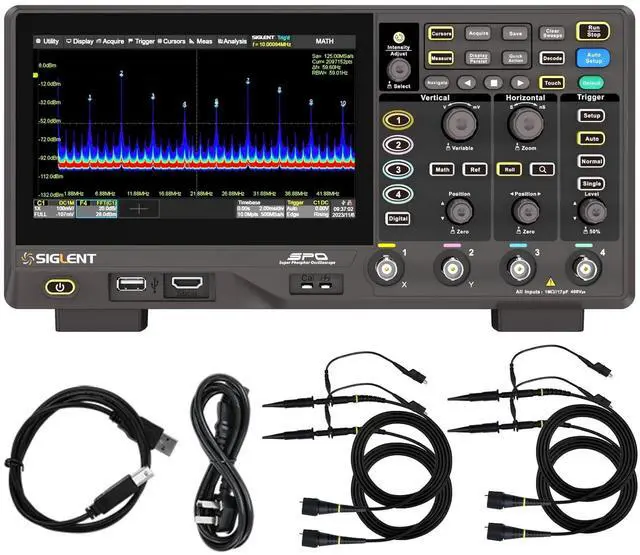

Siglent SDS814X HD -12bits Mixed Signal Oscilloscope (4 Channel / 100 MHz)
- 100MHz, 4 channels, 2GSa/s, 12-bit high resolution, 50Mpts memory depth mixed signal oscilloscope; 7 inch touch screen
- 4 analog channels / 100 MHz bandwidth
- 16 digital channels (requires option SDS800XHD-16LA and SLA1016 logic probe - sold separately)
- 12-bit analog/digital converter
- Waveform capture rate up to 80,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
High-resolution oscilloscopes have excellent signal detection and display capabilities, which help analyze the details and characteristics of signals
With a maximum memory depth of up to 100 Mpts,it's observing and analyzing long-duration signals, low-frequency signals, and transient phenomena.
SDS800X HD has a variety of triggering types, including edge, slope, delay, set/hold, and a variety of bus triggers (serial triggers).
Built-in FFT function, the maximum number of operation points is 2Mpts, 4 independent Math waveforms, and supports user-defined operation expressions.
| Channel | 4 (4CH Series: SDS804X HD, SDS814X HD, SDS824X HD), 2 (2CH Series: SDS802X HD, SDS812X HD, SDS822X HD) |
| Bandwidth (-3 dB) @50 *1 | 70Mhz:SDS804X HD, SDS802X HD; 100 MHz:SDS814X HD, SDS812X HD; 200 MHz:SDS824X HD, SDS822X HD. |
| Real time sampling rate | 2 GSa/s |
| Capture rate | 500,000 wfm/s |
| Memory depth | 70M and 100M Series: One channel mode: 50 Mpts/ch, Two channel mode: 25 Mpts/ch , Four channel mode: 10 Mpts/ch; 200M Series: One channel mode: 100 Mpts/ch, Two channel mode: 50 Mpts/ch, Four channel mode: 25 Mpts/ch |
| Standard Accessories | USB cable x 1, Quick start x 1, Passive probe x 1/channel, Certificate of calibration x 1, Power cord x 1; |
