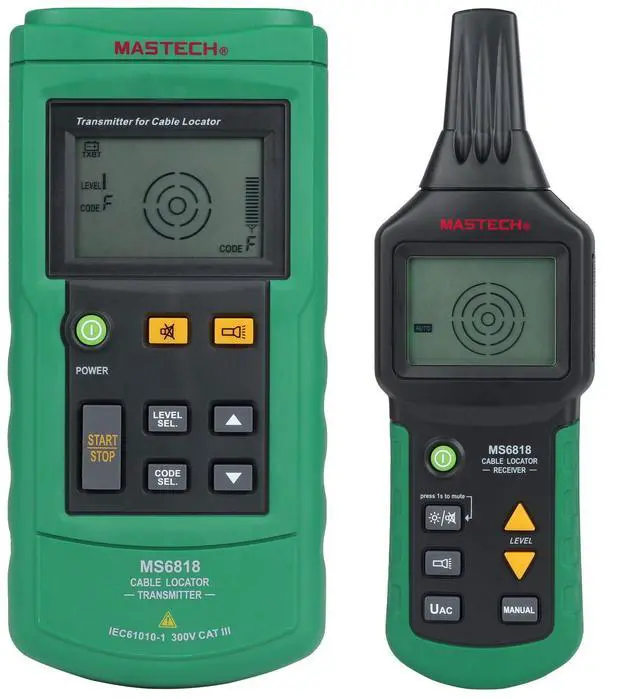

MS6818 Professional Cable Locator & Tester Underground Wire Tracker, Open/Short Circuit Finder, Cable Fault Diagnosis

Product Description:

Electrical professionals often need to trace cables or wiring systems, determine which fuse or circuit breaker corresponds to a specific circuit, or identify and trace metal pipes, heating lines, or underground cables. The new MS6818 Cable Tracer is designed to assist users in these tasks.

Working Principle:

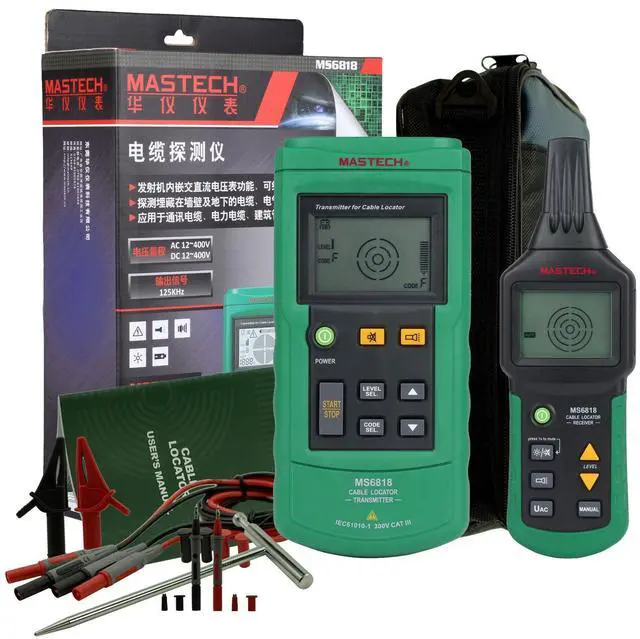

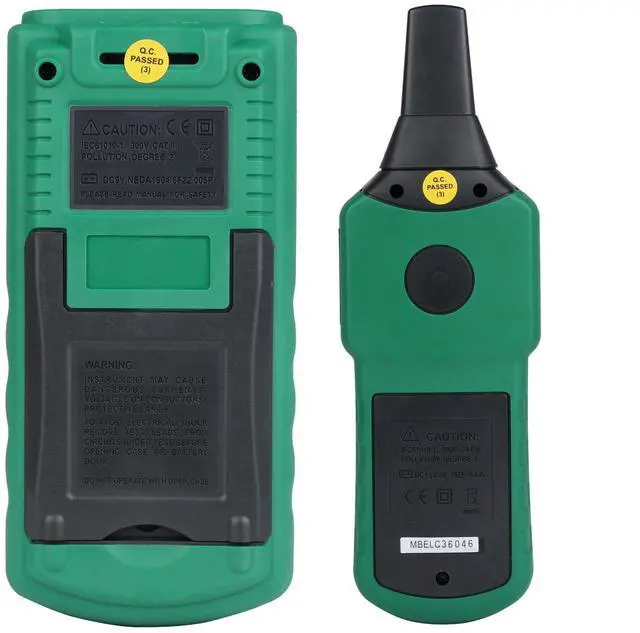

The MS6818 Cable Tracer consists of a transmitter and a receiver. The transmitter applies a modulated AC voltage to the target cable, generating an electric field around the cable. The receiver is equipped with a coil when placed near the conductor, the flux lines pass through the coil and into the receiver. This phenomenon induces a small voltage in the coil, which is processed by the receiver's electronic circuitry and displayed on the screen. A key feature of the MS6818 is that the transmitted signal is digitally encoded, ensuring clear signal reception and preventing false readings caused by interference fields (such as from electronic fluorescent ballasts or frequency converters).

Applications:

This instrument is widely used in communications cable installation, power cable construction, building pipeline installation, and maintenance of communications cables, power supply circuits, and heating lines. It is an essential tool for frontline construction and maintenance personnel.

Trace cables and electrical lines buried in walls and underground

Locate open and short circuits in electrical lines

Identify fuses and their associated circuits

Locate covered sockets and junction boxes

Detect open and short circuits in underfloor electric heating systems

Features:

Transmitter includes a built-in AC/DC voltmeter linearly measures 12400V AC/DC

Transmitter displays transmission power level, encoding, battery status, measured external voltage value and type, and high-voltage warning symbols all also displayed on the receiver

Transmitter has a self-test function; receiver sensitivity can be adjusted automatically or manually

Receiver has an auto-scan function; both transmitter and receiver feature a mute function for use in quiet environments such as hospitals

Additional transmitters can be used for expansion or signal differentiation

Compact, rugged, and portable design

Main Functions:

Trace buried cables, electrical lines, and water/gas pipes in walls and underground

Locate open and short circuits in buried cables and electrical lines

Identify fuses and their associated circuits

Locate covered sockets and junction boxes

Detect open and short circuits in underfloor electric heating systems

Built-in AC/DC voltmeter for 12400V measurements

Transmitter displays power level, encoding, battery status, external voltage, and high-voltage warning

Self-test function on transmitter; receiver sensitivity adjustable

Auto-scan and mute functions for quiet environments

Support for additional transmitters to expand or differentiate multiple signals

Compact, rugged, and portable

Technical Specifications:

Parameter Details

Voltage Measurement Range (Transmitter) 12V 400V (AC/DC)

Output Signal (Transmitter) 125 kHz

Max Voltage (Transmitter) 400V (AC/DC)

Cable Tracing Depth (Receiver) 0 2.5m (wall/underground cables)

Live Voltage Tracing Distance 0 0.4m

Environmental Specifications:

Parameter Transmitter Receiver

Operating Temperature 0°C ~ 40°C 0°C ~ 40°C

Storage Temperature -20°C ~ 60°C -20°C ~ 60°C

Relative Humidity (non-condensing) Up to 80% Up to 80%

Operating Altitude Up to 2000m Up to 2000m
