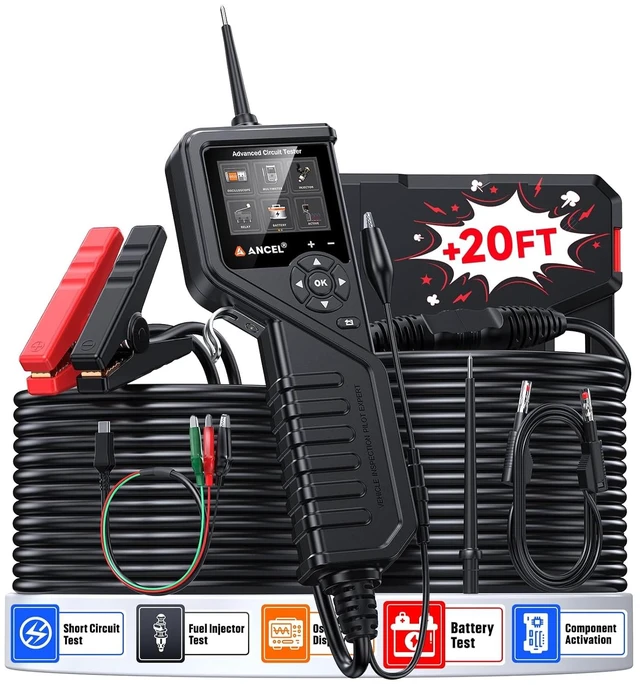

Main image of ANCEL PB600 Automotive Power Circuit Probe, 12-24V Elec. Short&Open Finder,Component Activation, Car Battery, Injector, and Relay Test, Multimeter & Oscilloscope Live Waveform Display, 30FT Cable

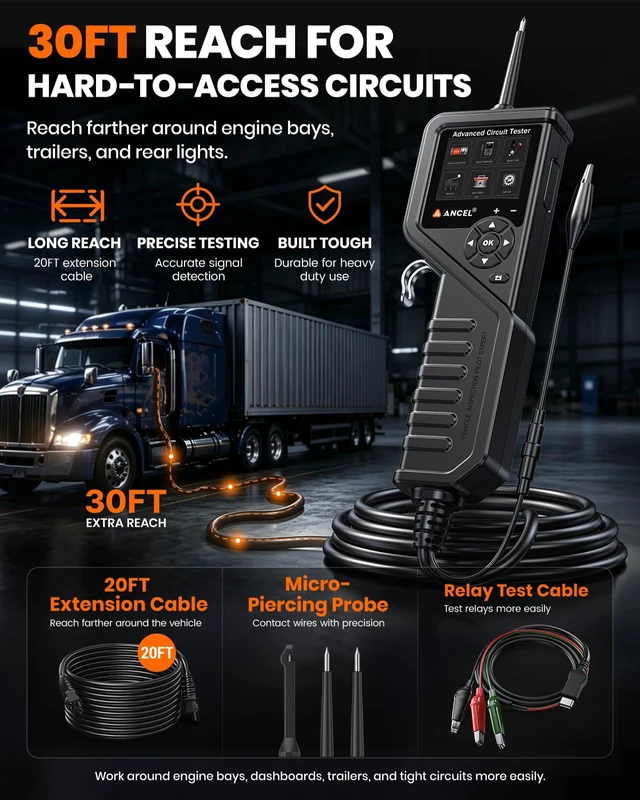

Alt view image 2 of 7 - ANCEL PB600 Automotive Power Circuit Probe, 12-24V Elec. Short&Open Finder,Component Activation, Car Battery, Injector, and Relay Test, Multimeter & Oscilloscope Live Waveform Display, 30FT Cable

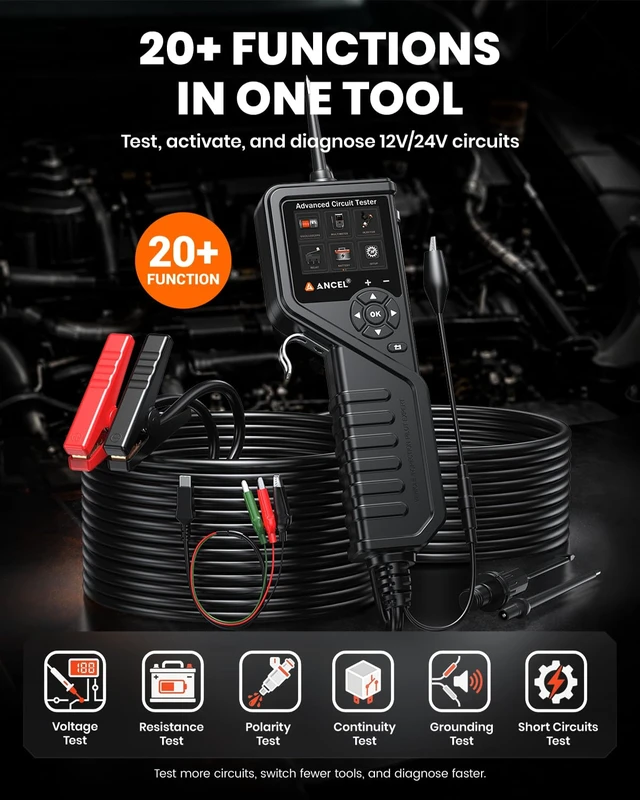

Alt view image 3 of 7 - ANCEL PB600 Automotive Power Circuit Probe, 12-24V Elec. Short&Open Finder,Component Activation, Car Battery, Injector, and Relay Test, Multimeter & Oscilloscope Live Waveform Display, 30FT Cable

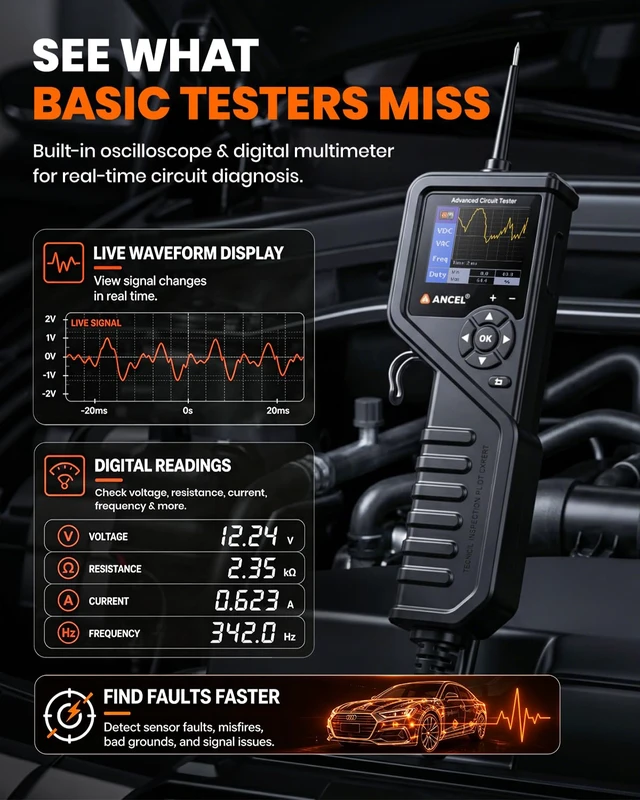

Alt view image 4 of 7 - ANCEL PB600 Automotive Power Circuit Probe, 12-24V Elec. Short&Open Finder,Component Activation, Car Battery, Injector, and Relay Test, Multimeter & Oscilloscope Live Waveform Display, 30FT Cable

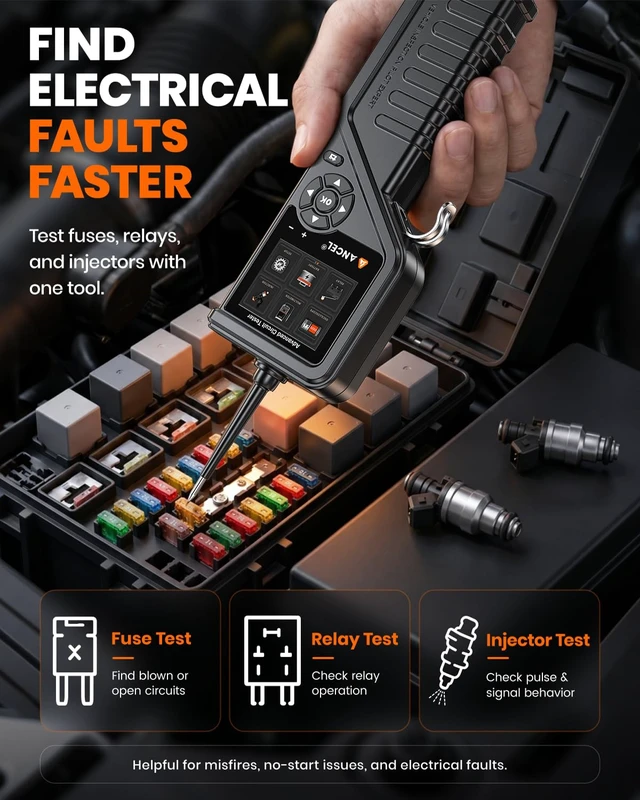

Alt view image 5 of 7 - ANCEL PB600 Automotive Power Circuit Probe, 12-24V Elec. Short&Open Finder,Component Activation, Car Battery, Injector, and Relay Test, Multimeter & Oscilloscope Live Waveform Display, 30FT Cable

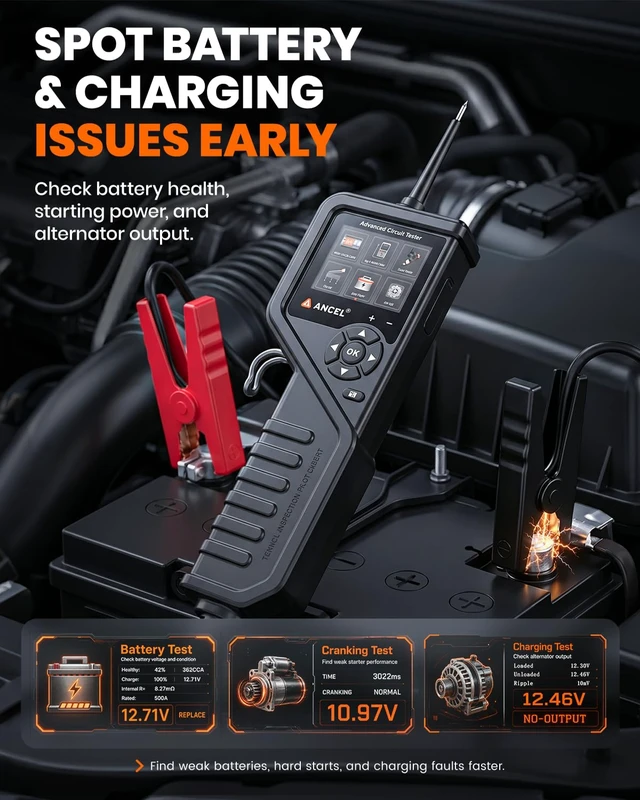

Alt view image 6 of 7 - ANCEL PB600 Automotive Power Circuit Probe, 12-24V Elec. Short&Open Finder,Component Activation, Car Battery, Injector, and Relay Test, Multimeter & Oscilloscope Live Waveform Display, 30FT Cable

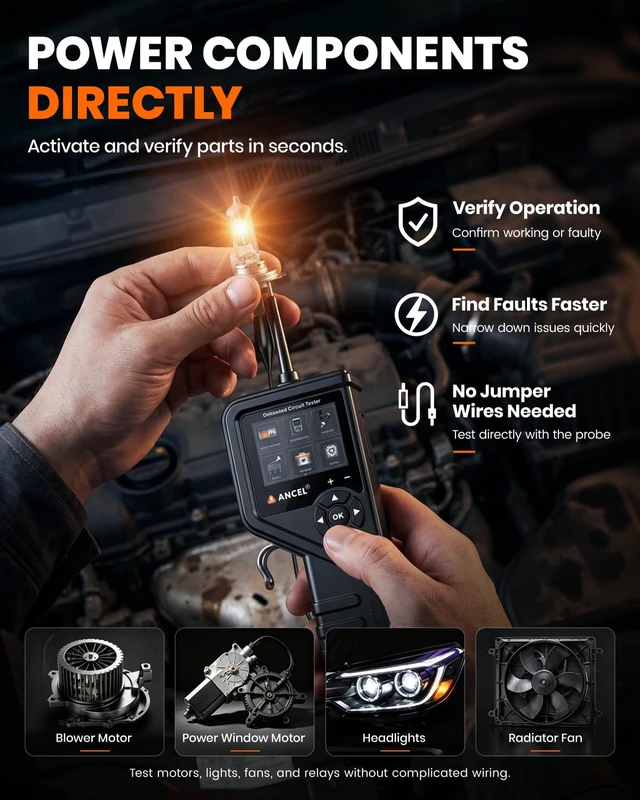

Alt view image 7 of 7 - ANCEL PB600 Automotive Power Circuit Probe, 12-24V Elec. Short&Open Finder,Component Activation, Car Battery, Injector, and Relay Test, Multimeter & Oscilloscope Live Waveform Display, 30FT Cable

Shop All TSUJ Products | Visit CoreDepot Store

ANCEL PB600 Automotive Power Circuit Probe, 12-24V Elec. Short&Open Finder,Component Activation, Car Battery, Injector, and Relay Test, Multimeter & Oscilloscope Live Waveform Display, 30FT Cable

Be the first to review this product...

REAL-TIME WAVEFORM & SIGNAL ANALYSIS: Monitor automotive electrical signals with live waveform and digital display modes. Test DC voltage, AC voltage, frequency and duty cycle to help diagnose changing electrical signals beyond basic voltage readings.
ESSENTIAL ELECTRICAL MEASUREMENTS: Measure voltage, resistance and diode characteristics for everyday automotive electrical diagnostics. The built-in continuity function sounds an alert when resistance is below 30, helping identify connected circuits and troubleshoot wiring.
DEDICATED FUEL INJECTOR TESTING: Analyze fuel injector control signals with waveform and digital display modes. Monitor injector pulse characteristics, voltage and signal changes to assist with fuel injection system diagnostics.
4-PIN & 5-PIN RELAY TESTING: Test common automotive 4-pin and 5-pin relays using the included relay test cable and leads. Quickly check relay operation and identify whether a relay is functioning properly.

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

COMPLETE BATTERY SYSTEM DIAGNOSTICS: Evaluate more than battery condition alone. The built-in battery module includes Battery Test, Cranking Test and Charging Test to help check battery performance and the vehicle's starting and charging systems.
ACTIVATE COMPONENTS WITH POWER OR GROUND: Apply battery power or ground directly through the probe tip to activate and test electrical components without jumper wires. Use the Left or Right control to supply positive or negative battery current during component testing.
QUICK PN JUNCTION & DIODE CHECK: Check PN junctions and diode characteristics to assist with electrical component diagnostics. The PN-Test function provides a dedicated option for diode testing within the PB600 menu.
CUSTOM SETTINGS & SOFTWARE UPDATE SUPPORT: Customize tool settings including language, key beep and self-test functions. The setup menu also supports update mode and tool information for convenient software maintenance.

power probe with oscilloscope

Use Multimeter Mode for accurate resistance and diode checks, then switch to Oscilloscope Mode to view real-time waveforms, frequency, and duty cycle. Together, they give you a clearer view of circuit conditions and changing electrical signals.

Component Activation
