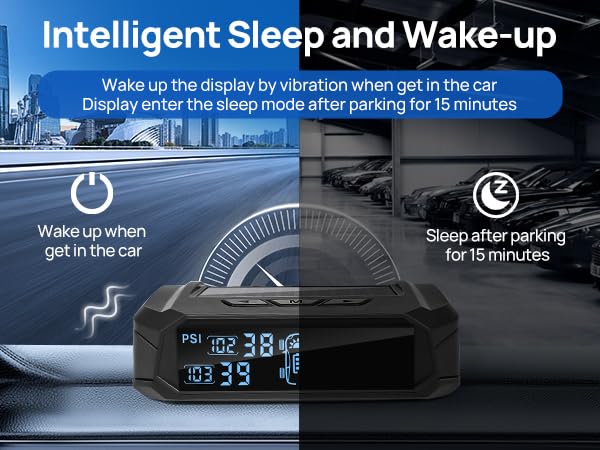

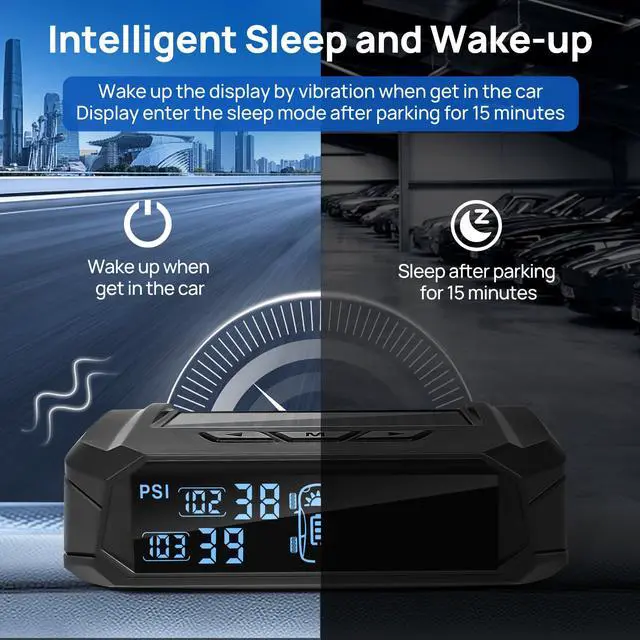

Auto Set Alarm Value & Auto Sleep mode
XM Series RV/Trailer TPMS
Multiple Alarm Modes—Ensuring Driving Safety in All Aspects

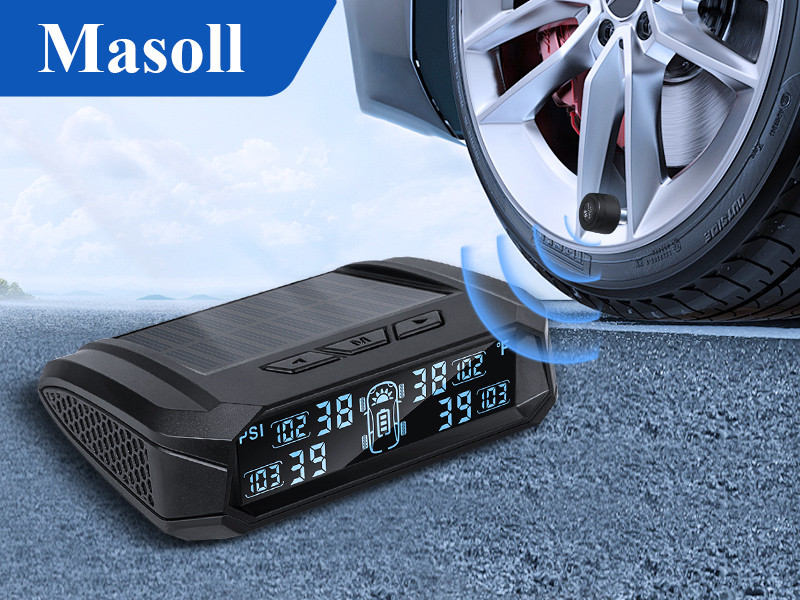

433.92Mhz Wireless Transmission Technology and Auto Setup Alarm Value

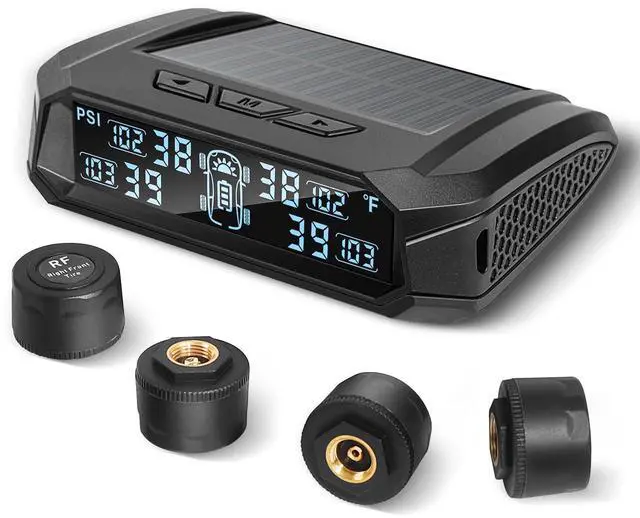

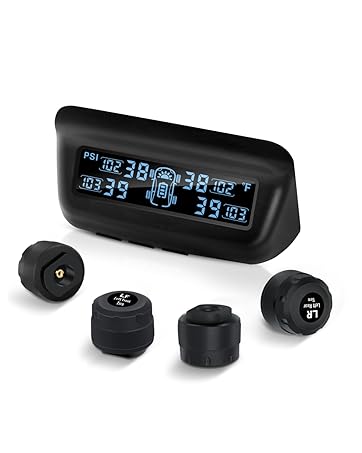

Masoll TPMS uses 433.92Mhz wireless transmission technology, sensors easily screwed onto the tire valve and display placed on center console. The TPMS system is suggested for vehicle with 4 tires which is maximum 36 ft long.
With Auto Setup Alarm value function,The monitor will automatically configures the current pressure as reference point when tire sensors installed,No need manual set the high and low pressure alert value ,very user-friendly!
High Quality and Reliable Sensor-Ensure best performance in any environments
Tire pressure sensors are with anti-theft, waterproof and dustproof design, easily handle the extreme envieriment. The TPMS sensors also come with low power consumption which make the sensors batteries work long to 2 years, with high pressure accuracy of 1.5psi to give more peace of mind.
1. Anything i need to pay attention to during the installation?
Please turn on the monitor before sensors installation, if the monitor is turned on after sensors installed, drive the car for 5~10 minutes then the data will be shown on screen.
2. Do i need to set the high and low pressure alert value?
No. Set the tires to standard pressure before sensors installed, the system will auto set the current pressure when installed the sensor as reference pressure, when pressure is +25% PSI higher or -15% PSI lower than Reference Pressure, it alerts.

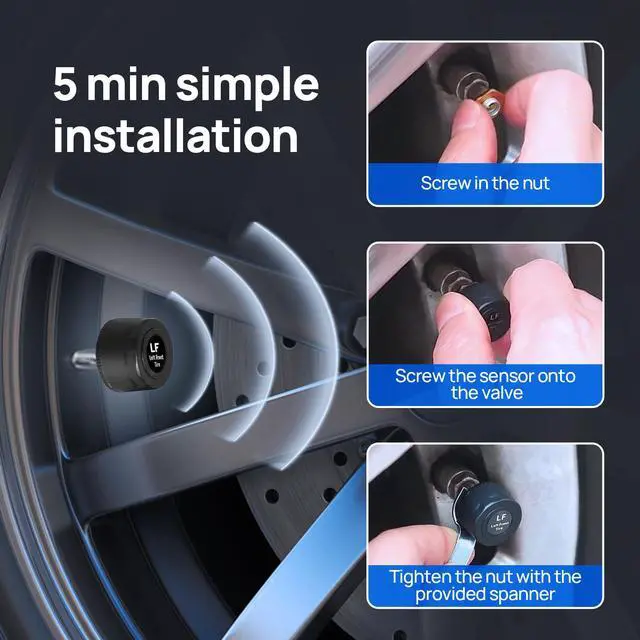

3. What the provided 4 piece hex nuts and 1 piece spanner for?
The sensors are with anti-theft design, if you want to implement this function, screw in the nut and screw the sensor onto the tire valve, tighten the nut with the spanner towards the sensor direction. It cann't be easily removed with nut tightened.
4. How long will the TPMS system last?
The TPMS sensors are designed with low power consumption and they will last long to 2 years. If user get low sensor battery alert from the display, replace with new CR1632 battery.
Compare These Masoll TPMS
 M14 Solar TPMS |  M13 Solar TPMS |  M23 Solar TPMS |  XM-3 TPMS with 4 Sensors |  Gen 2 TPMS Sensors for GM |  XM-3 TPMS with 8 Sensors |  TPMS Sensors for GM | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Number of Sensors | 4 | 4 | 4 | 4 | 4 | 8 | 4 |
Sensor Type | Extenal, Easy to Install | Extenal, Easy to Install | Extenal, Easy to Install | Extenal, Easy to Install | Extenal, Easy to Install | Extenal, Easy to Install | Extenal, Easy to Install |
Fitment | Most 4 wheels vehicle | Most 4 wheels vehicle | Most 4 wheels vehicle | 4 Wheels RV and Trailer | For Ford Lincoln Mercury | 8 Wheels Vehicle | For Chevy Buick Cadillac GMC |
Interchange OE part numbers | None | None | None | None | 9L3Z-1A-189-A, 9L3Z1A189A, ect | None | 13598771, 13598772, 13586335 |

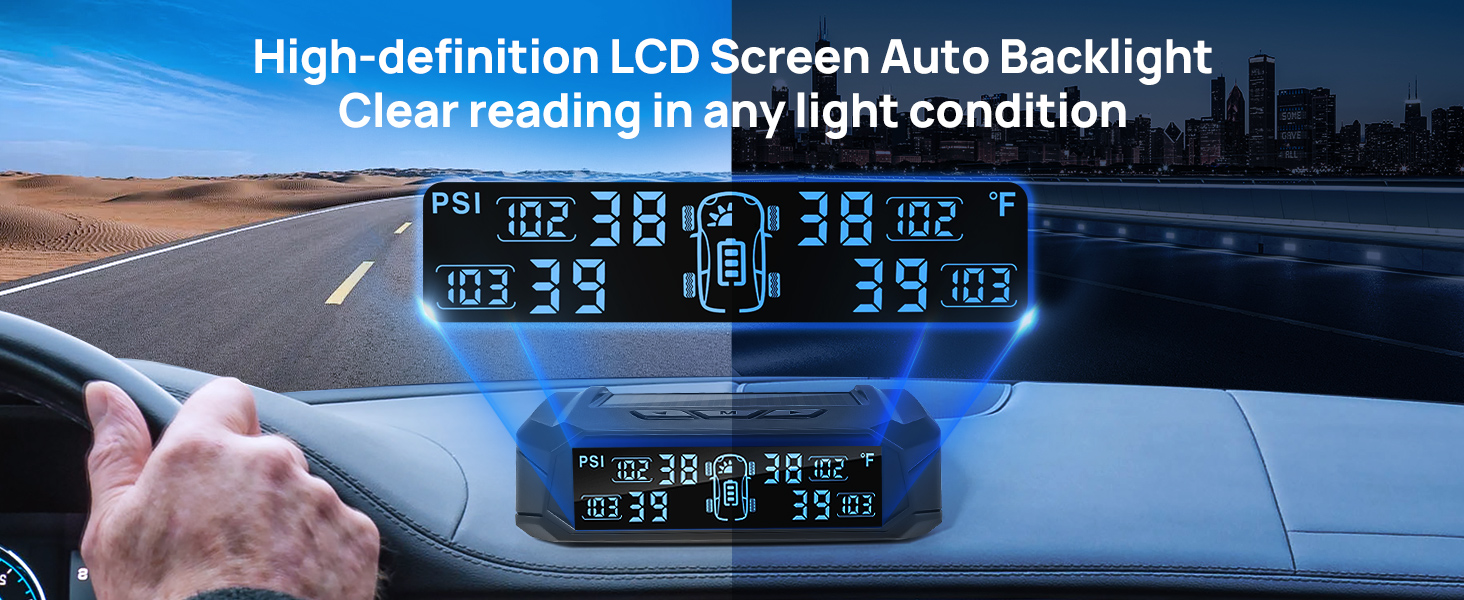

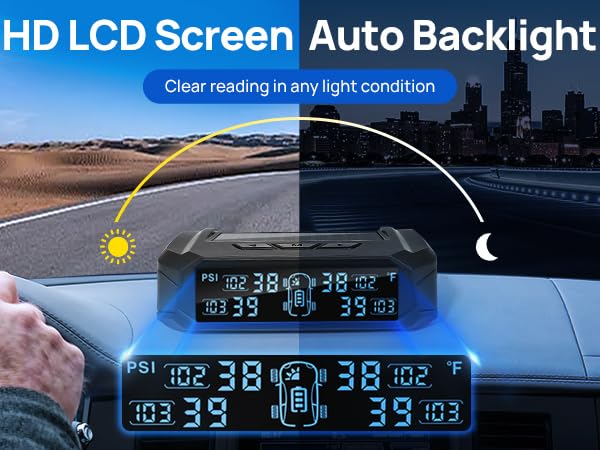

Display | With LCD Display | With LCD Display | With Color LCD Display | With Color LCD Display | Orignal Dashboard Display | With Color LCD Display | Orignal Dashboard Display |
Auto Set Alarm Value | ? | ? | ? | ? | ? | ? | ? |
Auto Calibration Alarm Value | ? | ? | ? | ? | ? | ? | ? |
Monitor Place | Placed flat on the dashboard | Stick it on the Windshield | Placed flat on the dashboard | Placed flat on the dashboard | None | Placed flat on the dashboard | None |

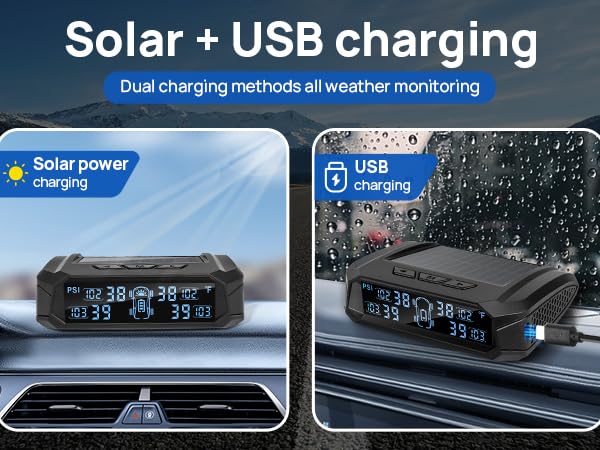

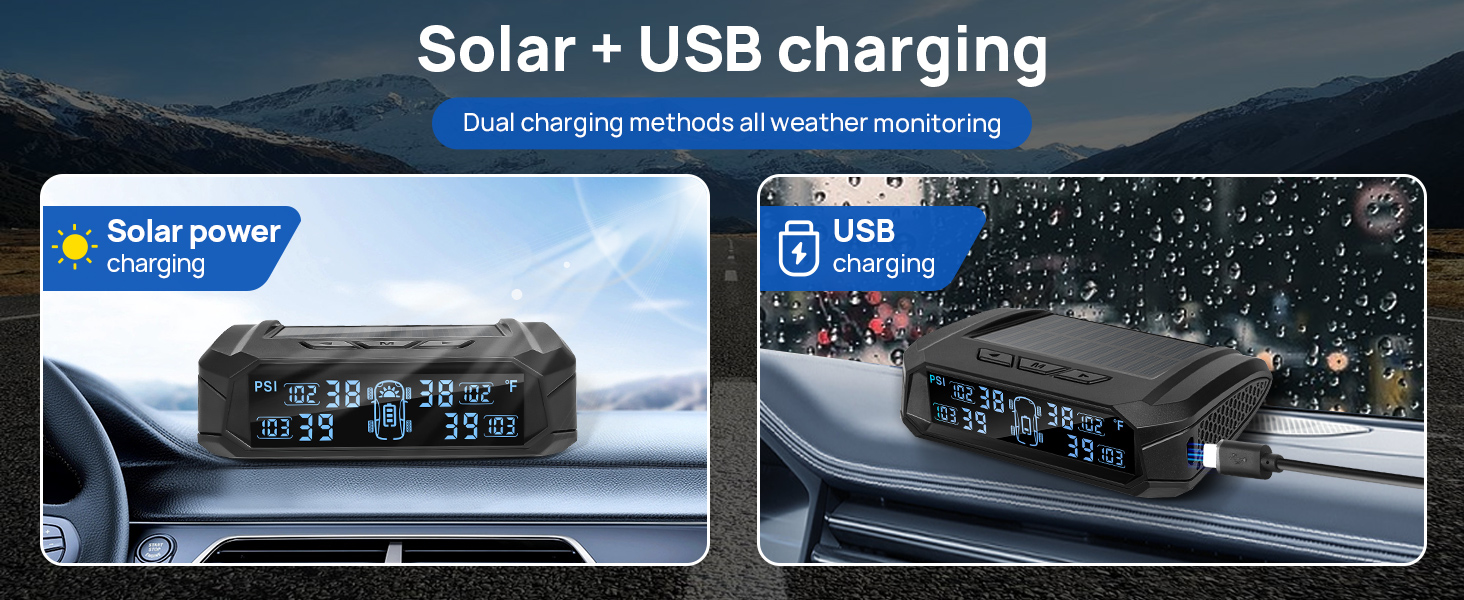

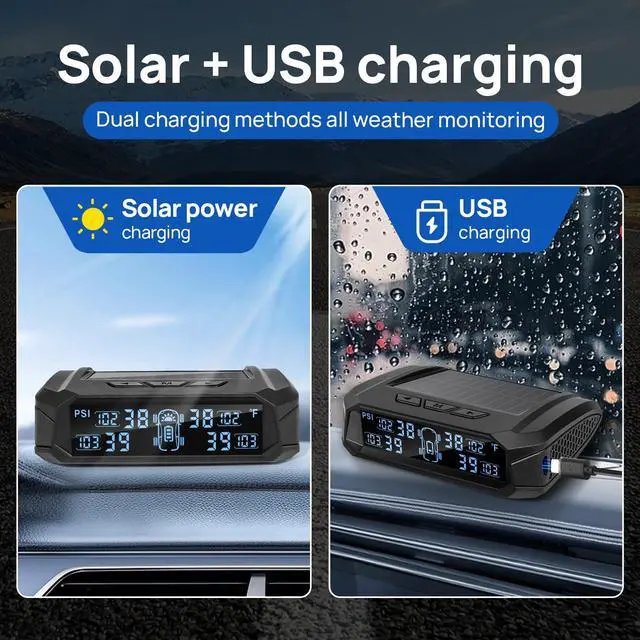

Monitor Charging | Solar and USB Charging | Solar and USB Charging | Solar and USB Charging | USB Charging | No need | USB Charging | No need |
Sensor Battery Type | CR1632 | CR1632 | Sensor Battery Type | Sensor Battery Type | CR1632 | Sensor Battery Type | CR1632 |
Sensor Battery Replaceable | ? | ? | ? | ? | ? | ? | ? |

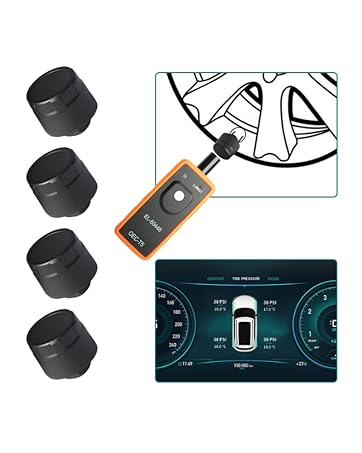

TPMS Relearn Tool | Not Needed | Not Needed | Not Needed | Not Needed | Needed and Included | Not Needed | Needed and Included |

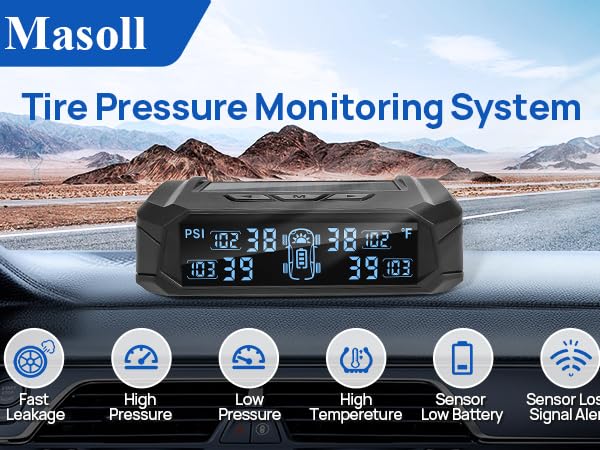

Multiple Alarm Modes—Ensuring Driving Safety in All Aspects
| Fast Leakage Warning | immediate alarm when tire punctured |
|---|---|
| High Pressure Warning | alarm when tire pressure get +25% PSI of Reference Pressure |
| Low Pressure Warning | alarm when tire pressure get -15% PSI of Reference Pressure |
| High Tempereture Warning | alarm when tire temperature higher than 158? |
| Sensor Low Battery Alert | alarm when the sensor battery voltage less than 2.0V, change with new battery CR1632 |
| Sensor Lost Signal Alert | pressure and temperature showing ----- when display didn't receive the sensor transmission |
433.92Mhz Wireless Transmission Technology and Auto Setup Alarm Value
Masoll TPMS uses 433.92Mhz wireless transmission technology, sensors easily screwed onto the tire valve and display placed on center console. The TPMS system is suggested for vehicle with 4 tires which is maximum 36 ft long.
With Auto Setup Alarm value function,The monitor will automatically configures the current pressure as reference point when tire sensors installed,No need manual set the high and low pressure alert value ,very user-friendly!
High Quality and Reliable Sensor-Ensure best performance in any environments
Tire pressure sensors are with anti-theft, waterproof and dustproof design, easily handle the extreme envieriment. The TPMS sensors also come with low power consumption which make the sensors batteries work long to 2 years, with high pressure accuracy of 1.5psi to give more peace of mind.
1. Anything i need to pay attention to during the installation?
Please turn on the monitor before sensors installation, if the monitor is turned on after sensors installed, drive the car for 5~10 minutes then the data will be shown on screen.
2. Do i need to set the high and low pressure alert value?
No. Set the tires to standard pressure before sensors installed, the system will auto set the current pressure when installed the sensor as reference pressure, when pressure is +25% PSI higher or -15% PSI lower than Reference Pressure, it alerts.
3. What the provided 4 piece hex nuts and 1 piece spanner for?
The sensors are with anti-theft design, if you want to implement this function, screw in the nut and screw the sensor onto the tire valve, tighten the nut with the spanner towards the sensor direction. It cann't be easily removed with nut tightened.
4. How long will the TPMS system last?
The TPMS sensors are designed with low power consumption and they will last long to 2 years. If user get low sensor battery alert from the display, replace with new CR1632 battery.
Compare These Masoll TPMS
M14 Solar TPMS | M13 Solar TPMS | M23 Solar TPMS | XM-3 TPMS with 4 Sensors | Gen 2 TPMS Sensors for GM | XM-3 TPMS with 8 Sensors | TPMS Sensors for GM |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Number of Sensors | ||||||
| 4 | 4 | 4 | 4 | 4 | 8 | 4 |
| Sensor Type | ||||||
| Extenal, Easy to Install | Extenal, Easy to Install | Extenal, Easy to Install | Extenal, Easy to Install | Extenal, Easy to Install | Extenal, Easy to Install | Extenal, Easy to Install |
| Fitment | ||||||
| Most 4 wheels vehicle | Most 4 wheels vehicle | Most 4 wheels vehicle | 4 Wheels RV and Trailer | For Ford Lincoln Mercury | 8 Wheels Vehicle | For Chevy Buick Cadillac GMC |
| Interchange OE part numbers | ||||||
| None | None | None | None | 9L3Z-1A-189-A, 9L3Z1A189A, ect | None | 13598771, 13598772, 13586335 |
| Display | ||||||
| With LCD Display | With LCD Display | With Color LCD Display | With Color LCD Display | Orignal Dashboard Display | With Color LCD Display | Orignal Dashboard Display |
| Auto Set Alarm Value | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Auto Calibration Alarm Value | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Monitor Place | ||||||
| Placed flat on the dashboard | Stick it on the Windshield | Placed flat on the dashboard | Placed flat on the dashboard | None | Placed flat on the dashboard | None |
| Monitor Charging | ||||||
| Solar and USB Charging | Solar and USB Charging | Solar and USB Charging | USB Charging | No need | USB Charging | No need |
| Sensor Battery Type | ||||||
| CR1632 | CR1632 | Sensor Battery Type | Sensor Battery Type | CR1632 | Sensor Battery Type | CR1632 |
| Sensor Battery Replaceable | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| TPMS Relearn Tool | ||||||
| Not Needed | Not Needed | Not Needed | Not Needed | Needed and Included | Not Needed | Needed and Included |
