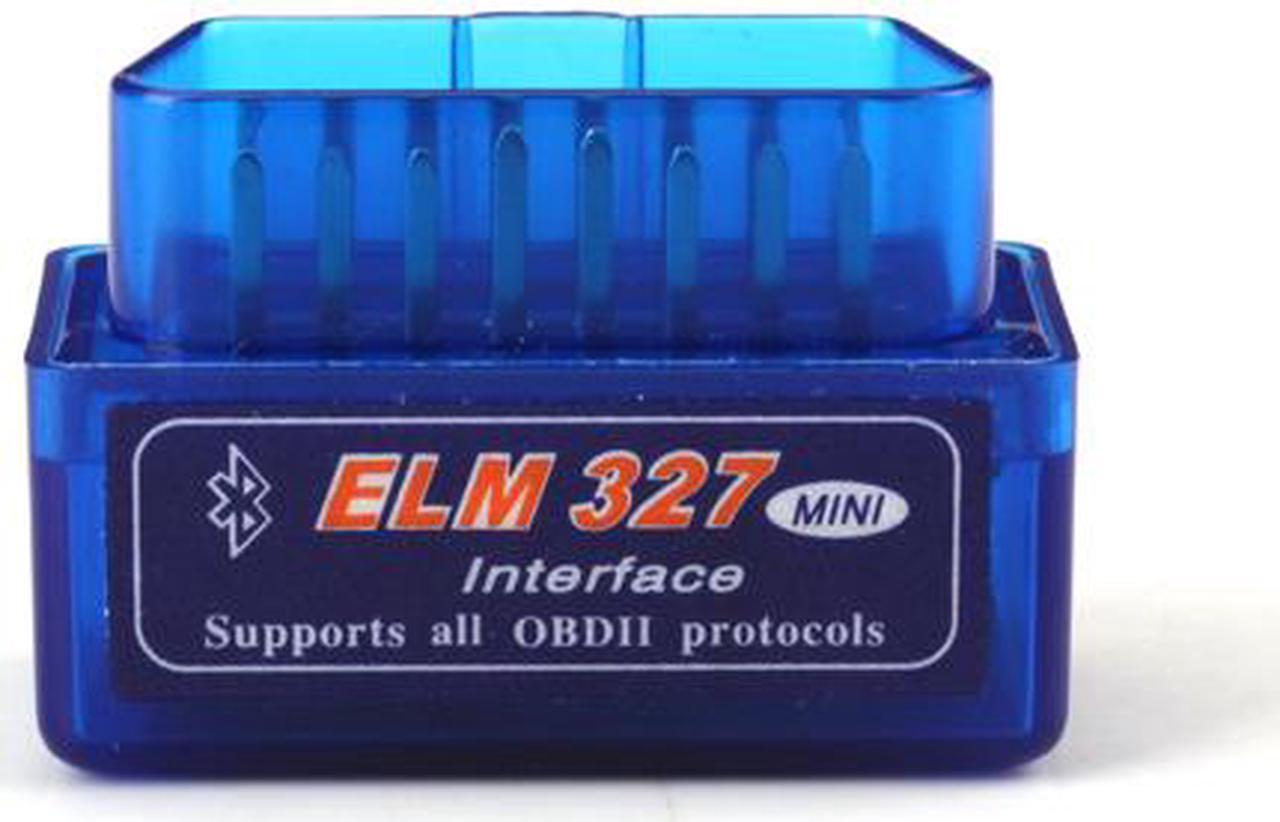

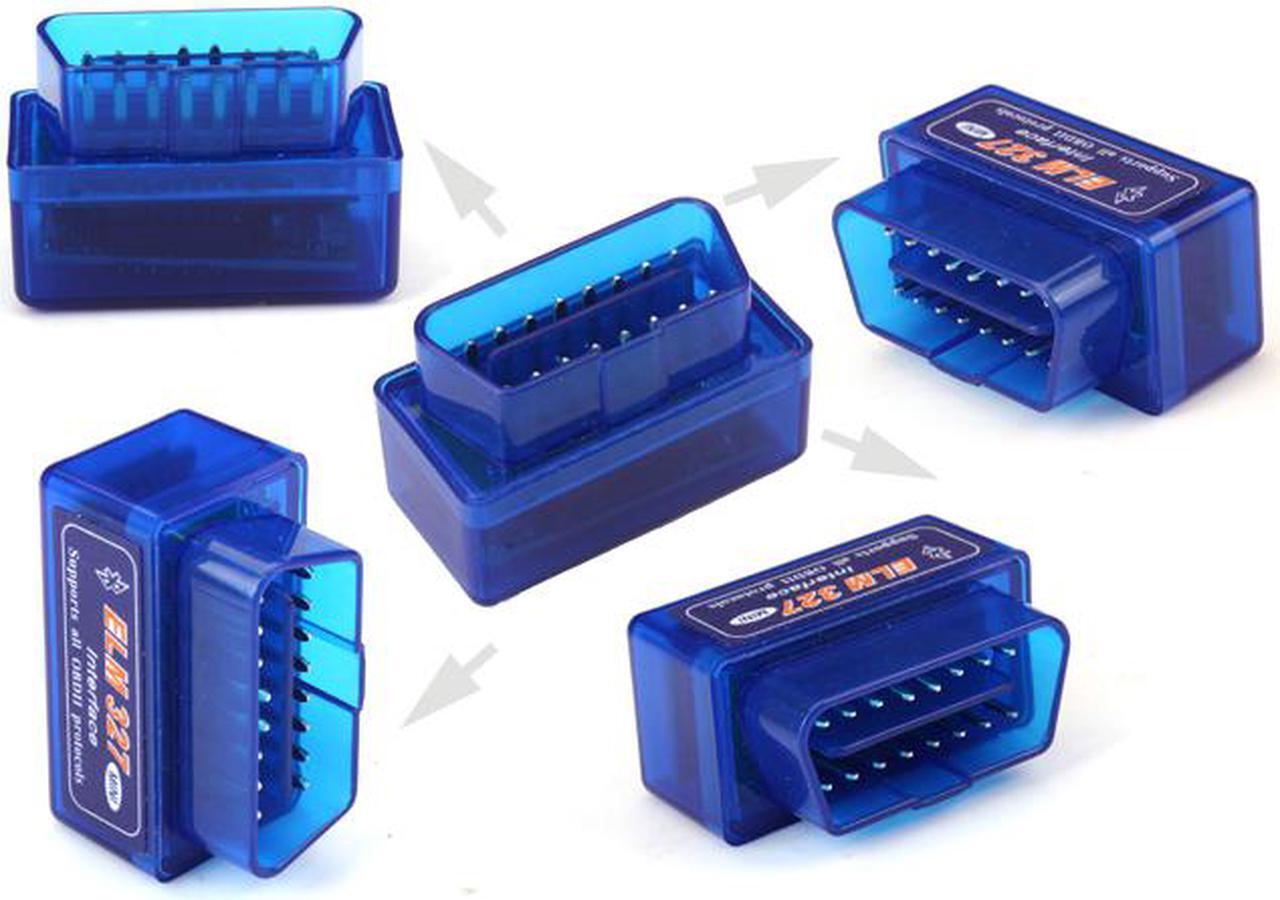

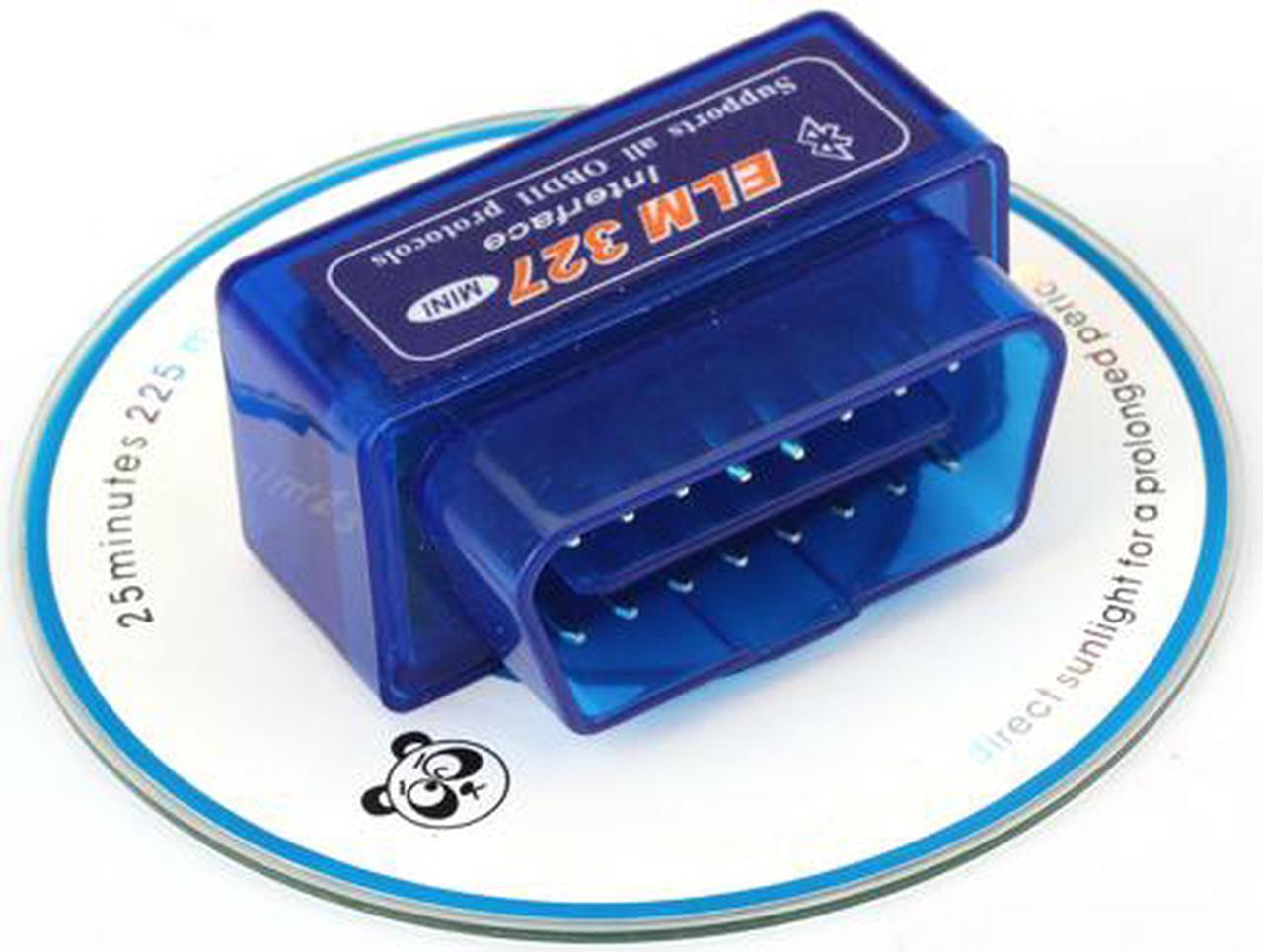

SUPER Mini ELM327 Bluetooth OBD2 V1.5 Smart Car Diagnostic Interface ELM 327 Wireless Scan Tool

Super Mini Elm327 Bluetooth V 2.1 Latest
Version ATTENTION: It only works with car (can not support Diesel or Truck). It only works with Android 4.0 -Android 4.4 version.
Bluetooth Version must be: 2.0 Please connect the item to your phone through bluetooth OBD II option. ELM327 can do MOST of the OBDII vehicles, but it CAN NOT do all models. It CAN NOT work on IOS, if you need an item which work on IOS, pls buy our WIFI ELM327 If the CD is broken, pls
download the software from: 360diag. net. Sorry for the inconvenience to you
Highlights: It supports almost OBD-II protocols. It is the latest version 2.1 Bluetooth connection, no Batteries, Cables, or Switches. Bluetooth 5~ 10 meters Retrieve Fault Codes (DTCs) and clear Check Engine lights. Can also be used with a PC with a Bluetooth Card.

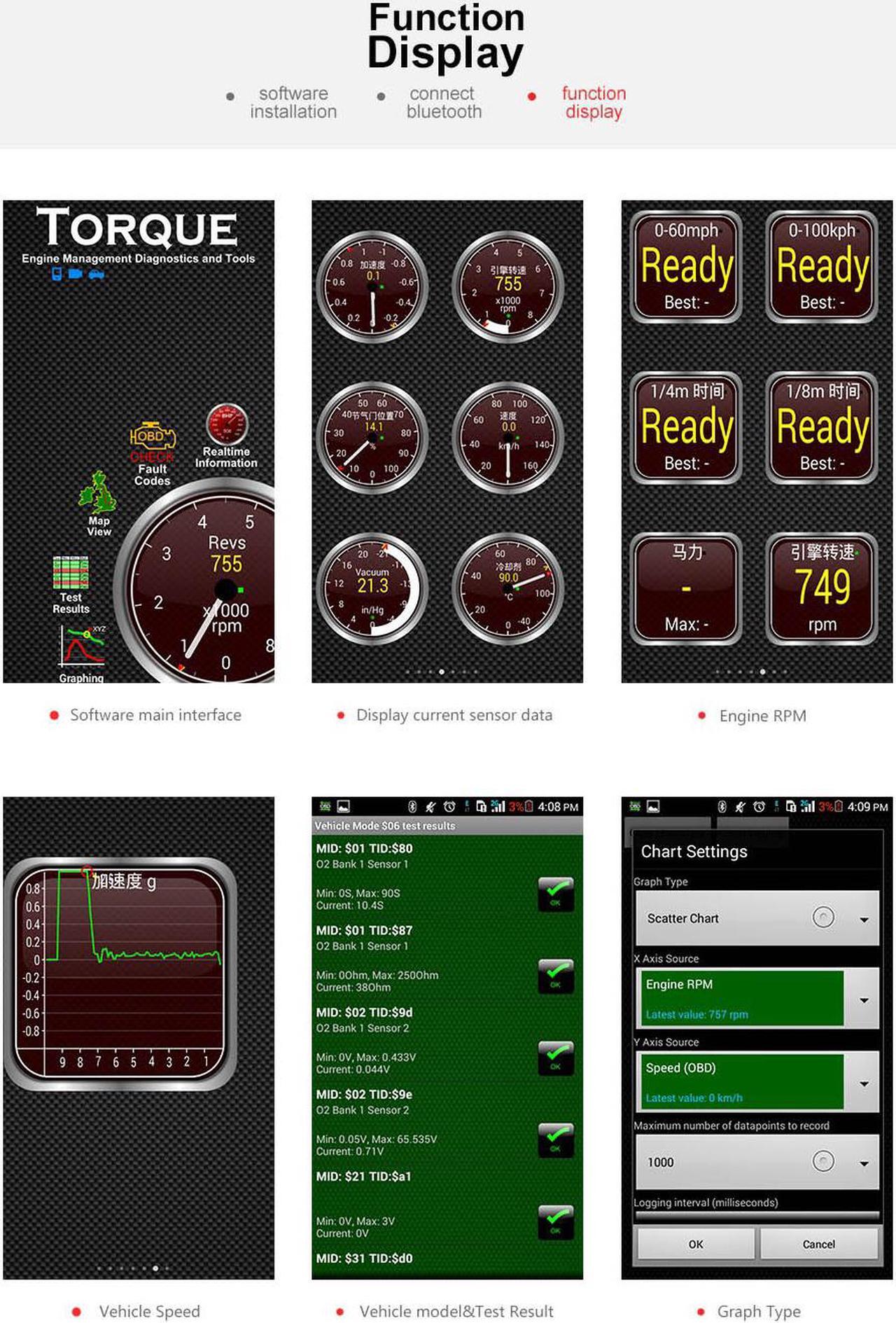

Features: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). Clear trouble codes and turn off the MIL ("Check Engine" light) Set the maximum number of responses to obtain Remove spaces from ECU responses (to speed data transmission) Store a unique identifier in EEPROM Set the CAN mask and filter with one command Easily switch between variable and fixed CAN message lengths Send CAN remote frames (RTRs) Display current sensor data, including: Engine RPM Calculated Load Value Coolant Temperature Fuel System Status Vehicle Speed Short Term Fuel Trim Long Term Fuel Trim Intake Manifold Pressure Timing Advance Intake Air Temperature Air Flow Rate Absolute Throttle Position Oxygen sensor voltages/associated short term fuel trims Fuel System status Fuel Pressure Many others... Our scanner is suitable to all car brands, but not all car models. Before you make order, please check whether your car model has one of the following protocols.
Multi-Protocol Support: 1. ISO9141-2(5 baud init, 10.4K baud) 2. ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 3. ISO14230-4 KWP (fast init, 10.4 Kbaud) 4. ISO15765-4 CAN (11bit ID, 500 Kbaud) 5. ISO15765-4 CAN (29bit ID, 500 Kbaud) 6. ISO15765-4 CAN (11bit ID, 250 Kbaud) 7. ISO15765-4 CAN (29bit ID, 250 Kbaud) A. SAE J1939 CAN (29bit ID, 250*Kbaud) B. USER1 CAN (11*bit ID, 125*Kbaud) C. USER2 CAN (11*bit ID, 50*kbaud) *default settings (user adjustable)
Vehicle Coverage: Works on almost OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles Alfa Romeo/ Ad/ Bentley/ BW/ C-adillac/ C-hevrolet/ Chrysl/ Citroen/ Daewoo/ Fiat/ F-ord/ G-M/ Hod/ Hyundai/ Isuzu/ Jaguar/ J-eep/ Kia/ Land

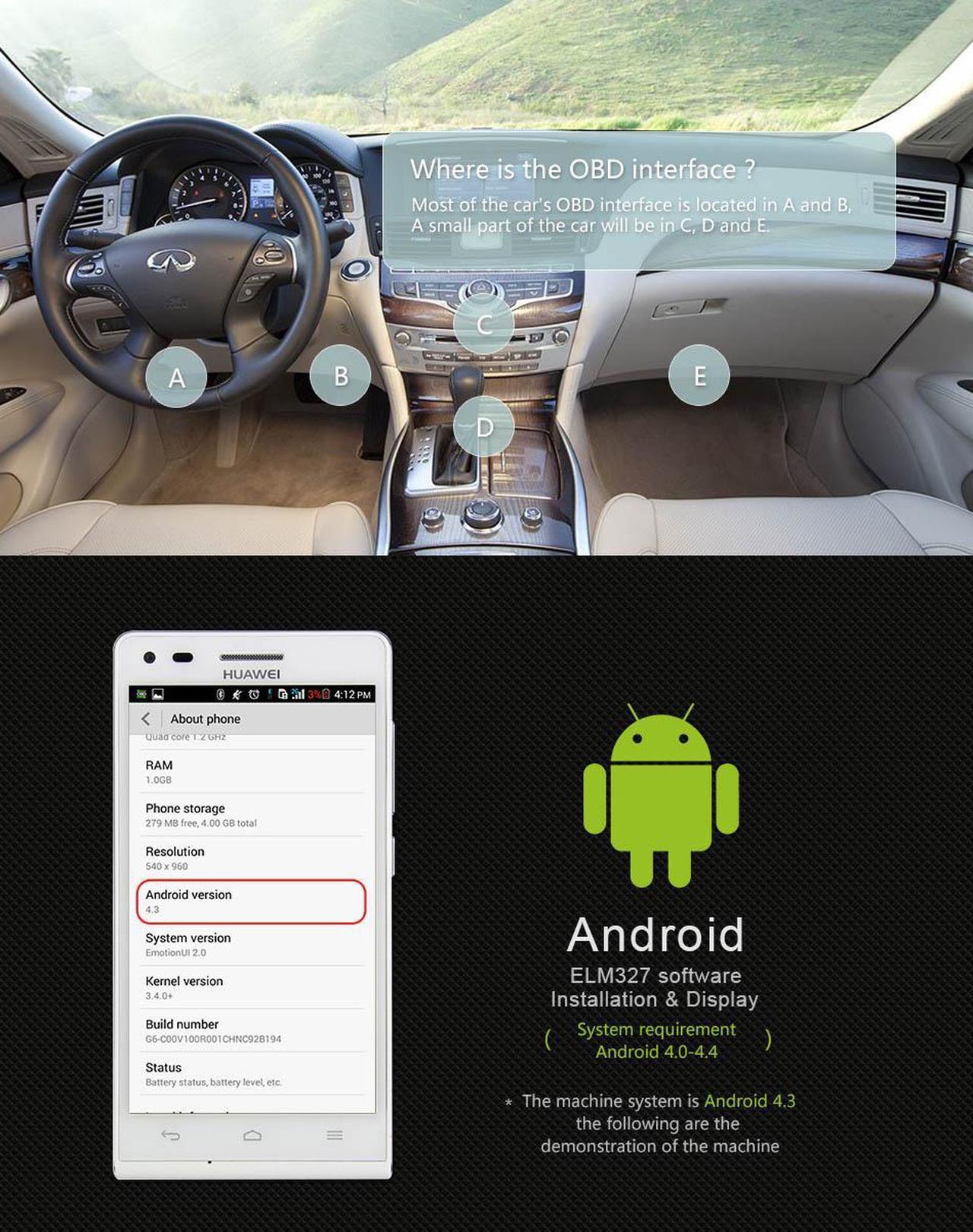

Rover/ Lexus/ Mazda/ Mercury/ Mini/ N-issan/ Mitsubishi/ Opel/ P-eugeot/ Posch/ Renault/ Rover/ Saab/ Seat/ Skoda/ Toyt/ Vauxhall/ V-olvo/ VW For your information: For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.
Software Included: Scantool_net113win (Full Version) Easy
OBDII V 2.2 (Free Version) OBD2Spy (Demo Version) Scan Master-ELM (Demo Version) wOBDCRAZY (Demo Version) This hardware can match much other software still! But most of them are not free! Works for Windows98/ME/2000/XP/Vista & 7! This tool does not match abs and airbag system!

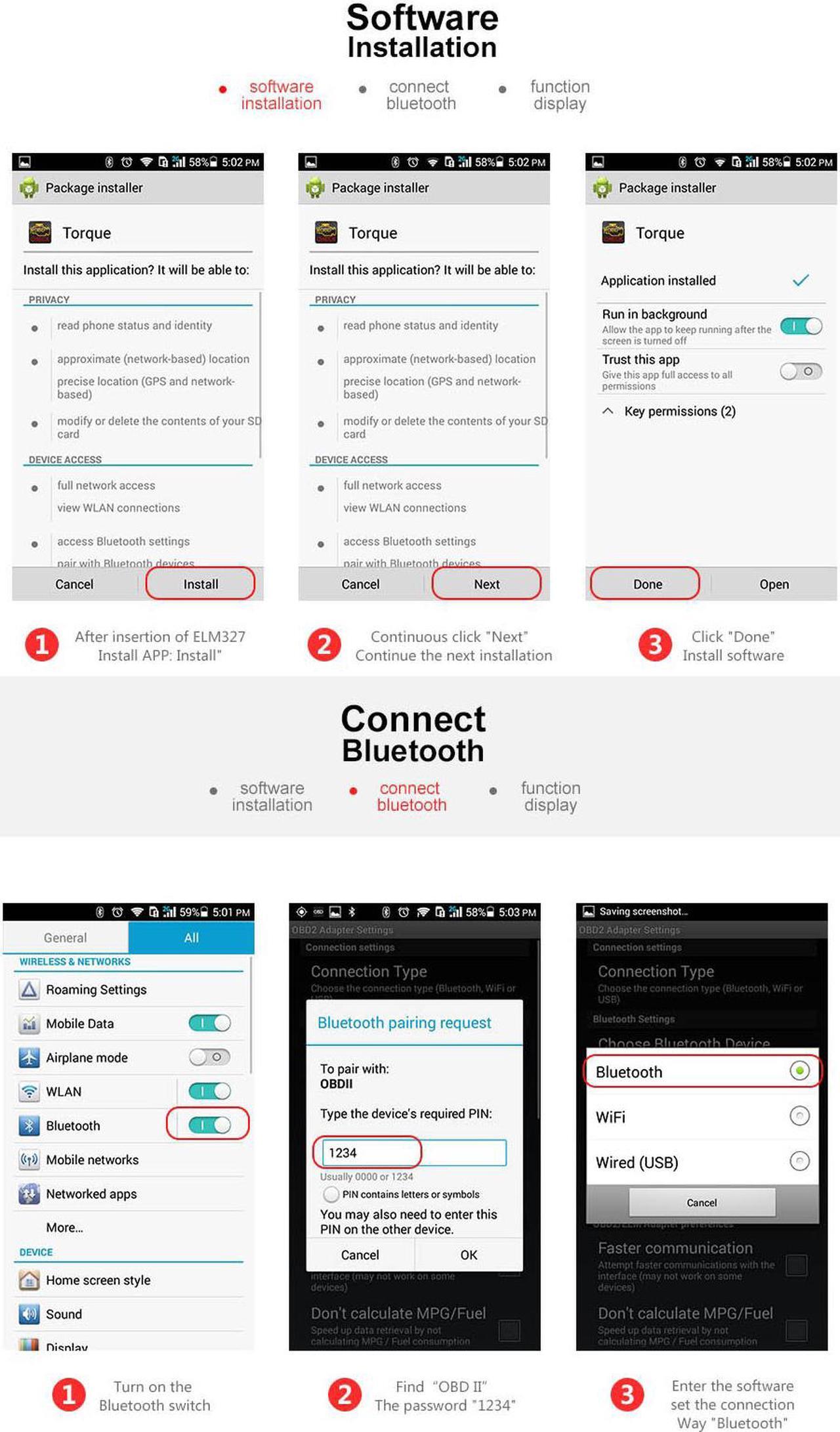

Bluetooth pair code: 1234 Main
Control Chip: PIC18F2480

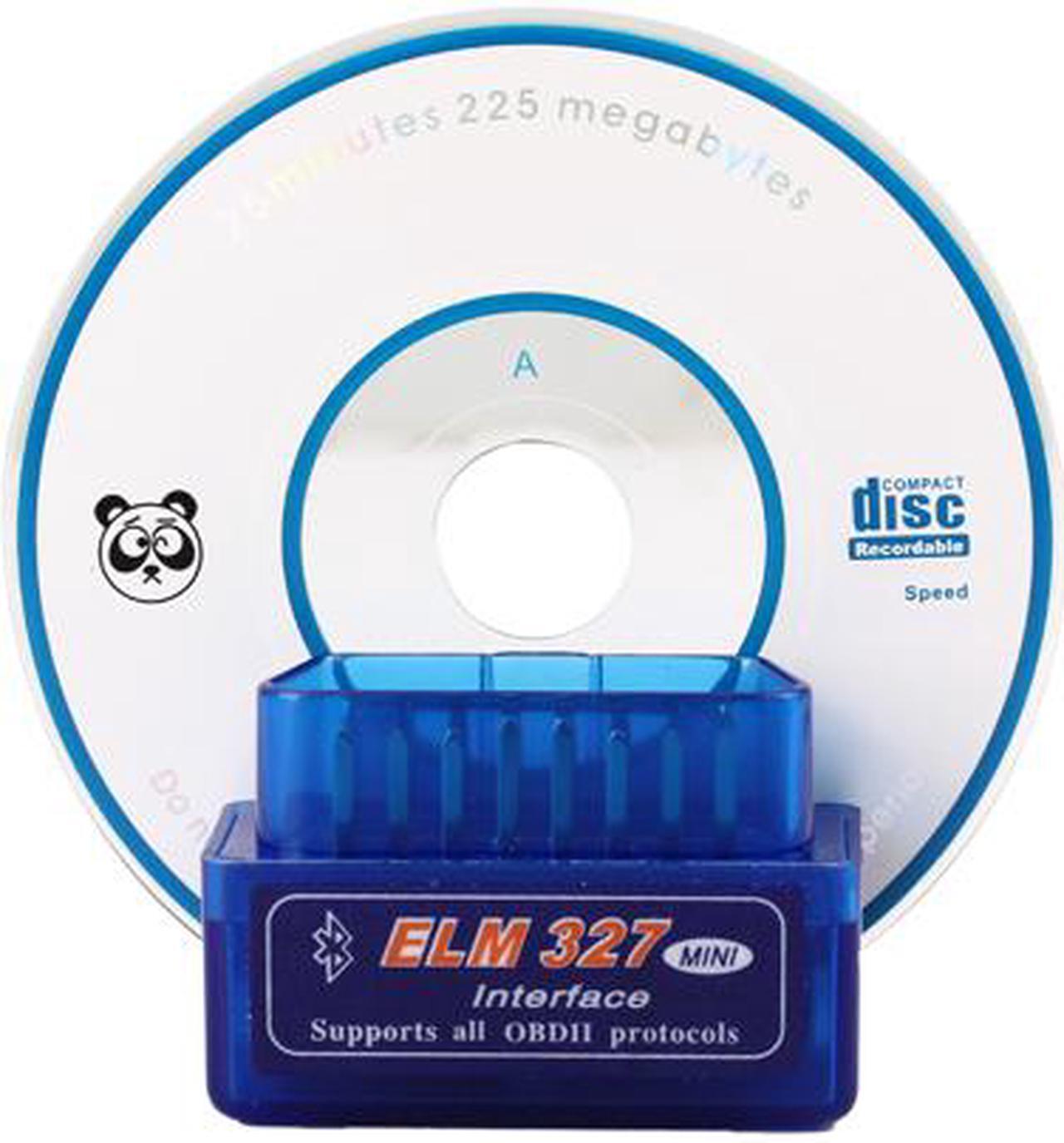

Packing List: A. 1*EOBD / OBD2 Bluetooth Diagnostic Interface B.
1*CD FAQ:
Q: What's the version of this unit?
A: It's V 2.1 version of this unit
Q: What's the difference for the Version V 1.5 and V 2.1?
A: The V 1.5 version one can do much more car models than V 2.1 one. V 1.5 Version can support SAE J1850 PWM( 41.6K baud) and SAE J1850 VPW( 10.4K baud) Protocols, but ELM327 V 2.1 can not support If you need ELM327 V 1.5, pls
kindly check it here:
http: //kingbolen. aliexpress. com/store/group/ELM327-V1-5-Version/803871_502521179. html Q. What's the Password of the
Bluetooth?
A: It's "1234", bluetooth
version must be: 2.0
Q: If it can do all most car models and diesel car models?
A: No, it can just support most standard OBD II car models, Dieser car models can't be supported
Q: Which android system phone can compatible? If it can compatible with Iphone?
A: Please kindly use Android V 4.0 - 4.4. The Iphone can't be supported
Q: Why my computer can't connect with this
Bluetooth?
A: This unit is with V 2.0 version Bluetooth, check your computer if it's V 2.0 version, or please use V 2.0 bluetooth adapter
Q: Why my phone can't connect with the
Bluetooth?
A: Please kindly check if you choose the bluetooth connect way in software setting
Q: My phone can connect with the unit, but it can't find my car?
A: 1. please check ifyou choose the "OBD II" adapter of " adapter choice" in setting software. 2. check if your android system version is V 4.0 - 4.4. 3. check the protocol of this car if it can be supported, and try with more new cars
Q: If I still have question, what should I do now?
A: please kindly contact with the Seller, please don't ever open a dispute or just left a negative feedback. Thank you.
