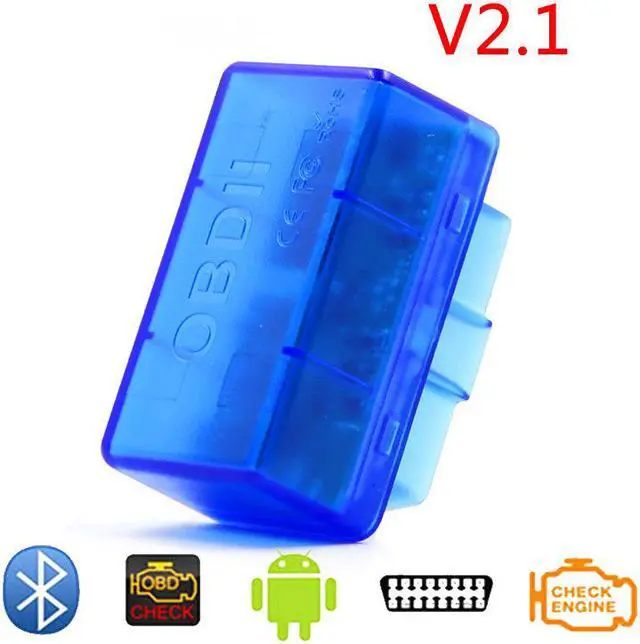

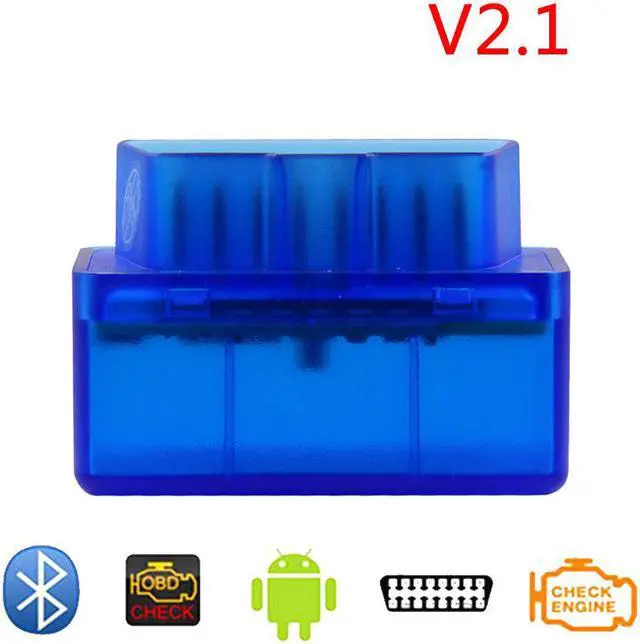

Car-detector Diagnostic Tool Super Mini ELM327 OBD2 V2.1 Bluetooth Code Reader Scanner OBD II Bluetooth Adapter Tools

Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth. Supports All OBD2 Protocol works on Android Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database). Top 4 Reasons To Get Mini OBD2
Bluetooth Scanner:
1.
Software Version: V 2.1 (depending on software)
2.
Hardware Version: V 2.1
3. Works with all OBD-II compliant vehicles
4.
Wireless (Bluetooth) Supported protocols: 1. ISO9141-2 (5 baud init, 10.4 Kbaud) 2. ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 3. ISO14230-4 KWP (fast init, 10.4 Kbaud) 4. ISO15765-4 CAN (11bit ID, 500 Kbaud) 5. ISO15765-4 CAN (29bit ID, 500 Kbaud) 6. ISO15765-4 CAN (11bit ID, 250 Kbaud) 7. ISO15765-4 CAN (29bit ID, 250 Kbaud) Mini OBD2
Bluetooth Scanner Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check
Engine" light) 3: Display current sensor data, including:
4: Engine
RPM 5: Calculated Load
Value 6: Coolant
Temperature 7: Fuel System
Status 8: Vehicle
Speed 9: Short Term
Fuel Trim 10: Long Term
Fuel Trim 11: Intake Manifold
Pressure 12: Timing
Advance 13: Intake Air
Temperature 14: Air
Flow Rate 15: Absolute Throttle
Position 16: Oxygen sensor voltages / associated short term fuel trims 17: Fuel
System status 18: Fuel
Pressure 19: Many others Mini OBD2
Bluetooth Scanner Specifications:
Communication: Bluetooth 2.0
Master Chip: ST
Support System: Android and
Windows Working Voltage: 9v ~ 16v
Working Current: 35mA
Standby Current: 25mA
Operating temperature: -40? ~ 85?
Working Humidity: less than 60%
Size: 43mm * 25mm * 30mm
Compatible systems: Software
support platform: Windows XP, Windows 7/8, Android, Symbian.
Compatible software:
Window: Scan
Master-ELM, Scan
Tool. net, PCMSCAN ELM, etc.
Android: Torque, Dash
Command, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian: OBD
Scope

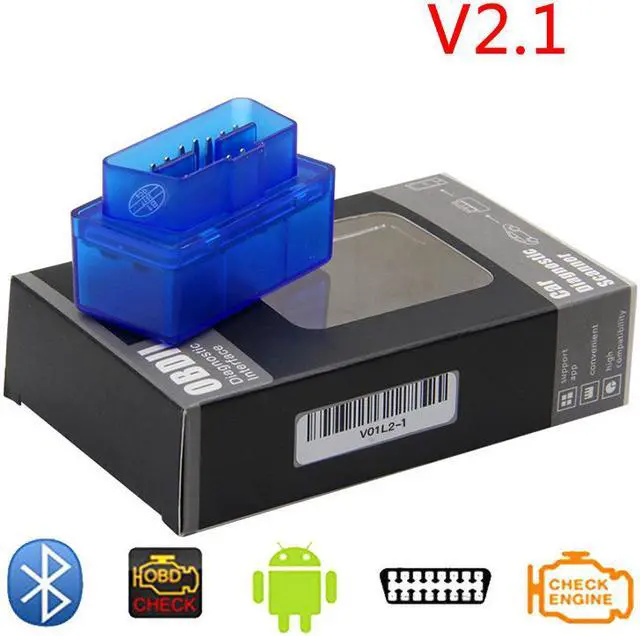

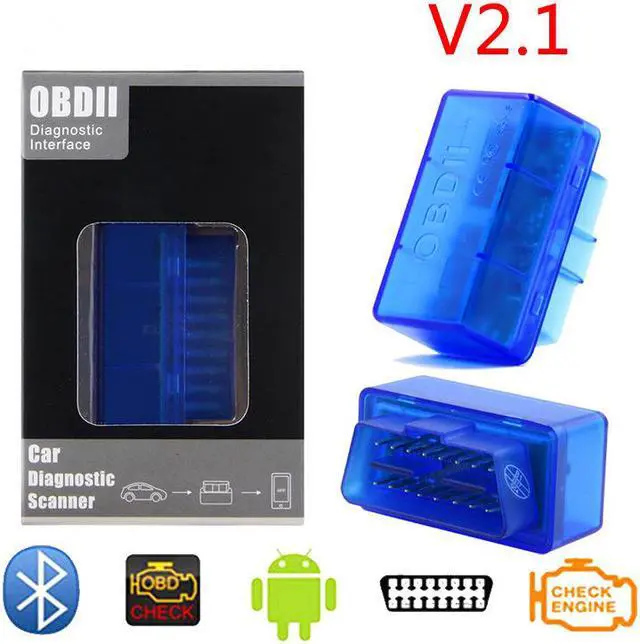

Package List: 1pc x Mini OBD2 Bluetooth 2.0 Scanner 1pc x Box
