Smekittly is fully committed to fulfilling home universal ceiling fan remote control kit for a simple and smart life. We creat affordable smart home kits and Dedicated to redefining the home experience with intelligent products and services.
Ceiling Fan Remote control Kit
Universal version, Wide Replacement,Fit for your mini fans.
Simple Tools, Simple Life
We creat simple, affordable smart home kits and Dedicated to redefining the home experience with intelligent products and services.

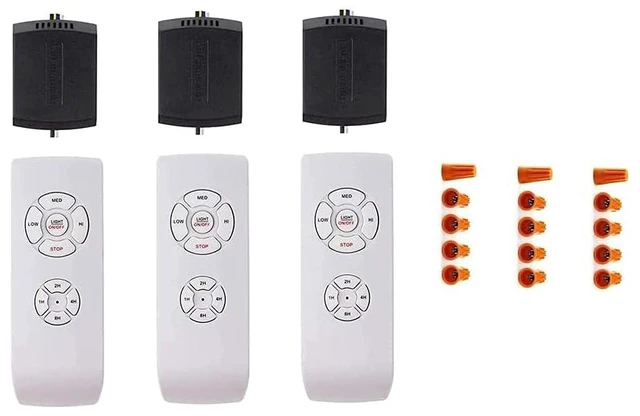

Packaging list:
- Ceiling fan remote *1
- Ceiling fan receiver *1
- Wall holder *1
- Screws *2
- Quick connectors *5
- Instruction *1

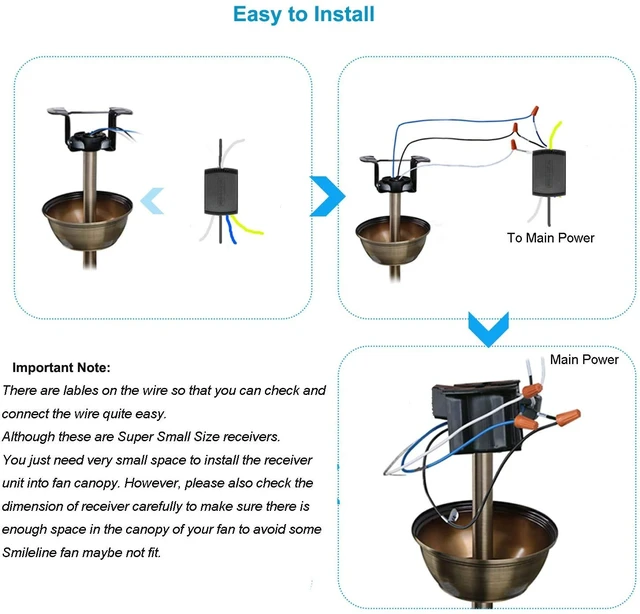

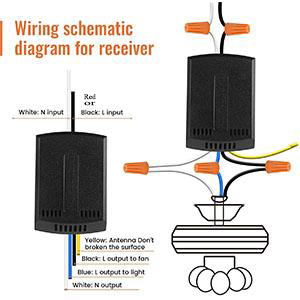

Easy to Install
Blue to Blue, Black to Black, White to White.
Just make sure you have room in ceiling fan for the remote box. only 5 wire hook up. The most challenging part was placing the receiver in the canopy. Connecting the receiver to the fan was child's play and the receiver to the house wiring was even easier.
- Operating Voltage: 85V-264V 50/60HZ
- Max Load Power: 145W / 10A for ceiling fan
- Max Load Power: 150W / 10A for led light, 500w for Incandescent
- Standby Power consumption: <0.5 W
- Working temperature: -20?~80?
- Remote Control: RF 433Mhz
Speed, Timing and Light wireless control
- 4 Fan Speeds: high/med/low/off
- 4 Timing by remote,1H/2H/4H/8H
- Light on/off, not dimmable
- The beep can be turned on/off through remote
Remote Control
- Simply adds this fan controller to your ceiling fan to remote controllable. Change your fan speed or turn on/off light from anywhere with included RF remote (batteries not included).

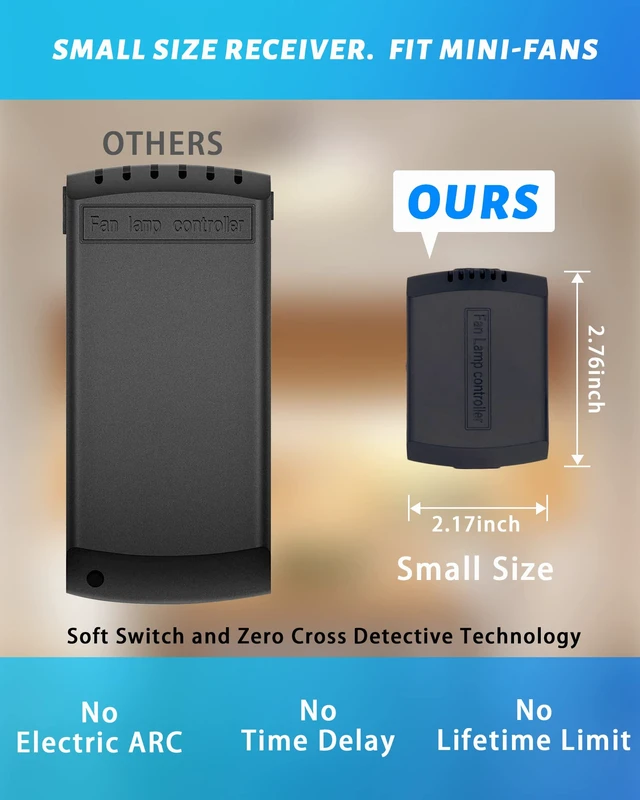

Small Size

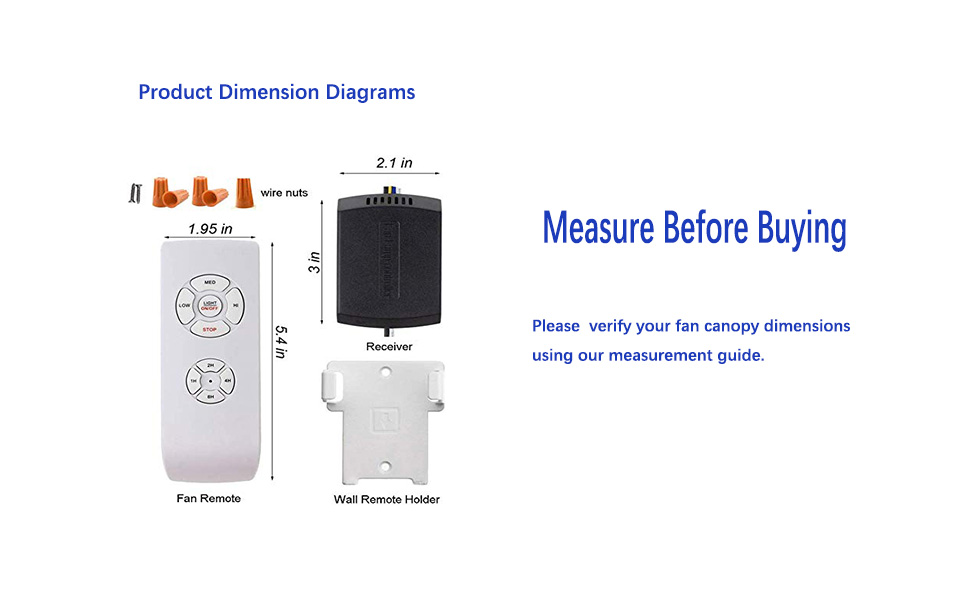

- Just need a super small space to install the receiver unit into most fans. This provides greater convenience for upgrades. Please check the size of mini receiver to ensure that there is enough space in the fan roof.(Receiver's L*W*D: 2*3*1 inch)
Universal Fit
- The size of our receiver can fit 98% Ceiling fan light.
- Smallest size transmitter in the market,easy to slip into the canopy.
- Check the dimension of your fan light canopy to make sure there is enough space in the canopy of your fan before buy.
Follow these easy steps to get your fan and light working again quickly.
Issue 1: Remote has no response, receiver indicator light is OFF
1. Check Your Power Supply
- Make sure the wall switch that controls your ceiling fan is turned ON.
- Check your home's electrical panel (breaker box) to ensure the circuit breaker for the ceiling fan is ON and has not tripped. If it has, reset it.
- Crucial Step: After checking, turn the wall switch OFF and back ON again. This resets the receiver.
2. Check Wiring Connections
- SAFETY FIRST: Always turn off power at the breaker before checking wires!
- Remove the fan's canopy cover and inspect all wire connections to the receiver. Ensure they are tight and secure.
- Pay special attention to the Black (Live/Hot), White (Neutral), and Green/Yellow (Ground) wires.
Issue 2: Remote cannot control fan or light
1. Check Remote Battery
- Check that the +/- signs on the battery match the diagram in the battery compartment.
- This is the most common fix! Please replace it with a brand new battery, even if the old one tests OK. Low voltage is often the issue.
Issue 3: Fan is not reversing
- Please Note Product Feature: This remote control kit does NOT include a reverse function. The reverse function is typically controlled by a physical switch on the fan motor housing itself (located just below the blades). Please consult your fan's manual or look for this switch on the fan.

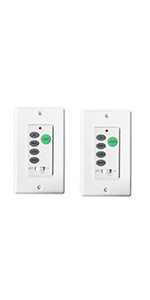

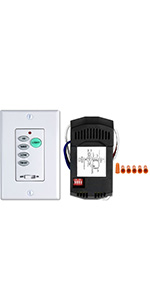

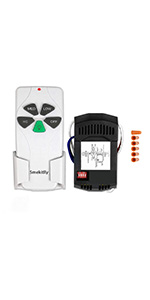

 Ceiling fan remote control kit with light dimmer |  Small size ceiling fan remote control kit 2 pack |  Small size ceiling fan remote control kit 3 pack |  UC9050T ceiling fan remote control kit |  UC9050T ceiling fan remote | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — no data | — no data |
| Control method | REMOTE RF 433MHz | REMOTE RF 433MHz | REMOTE RF 433MHz | Wired Transmitter With R28 Receiver Kit | Wired Transmitter |
| Input Voltage | 80-264V | 80-264V | 80-264V | 80-264V | 80-264V |
| Max Power for fan | 145W | 145W | 145W | 145W | 145W |
| Max Power for Light | 500W(incandescent) / 150W(LED) / Support CFL | 500W(incandescent) / 150W(LED) / Support CFL | 500W(incandescent) / 150W(LED) / Support CFL | 500W(incandescent) / 150W(LED) / Support CFL | 500W(incandescent) / 150W(LED) / Support CFL |
| Battery | 9V Battery (NOT INCLUDE) | 2XAAA (NOT INCLUDE) | 2XAAA (NOT INCLUDE) | Wired Transmitter | Wired Transmitter |
| Fan speed | High / Med / Low / Stop/Dimmer | High / Med / Low / Stop | High / Med / Low / Stop | High / Med / Low / Stop | High / Med / Low / Stop/Dimmer |
| Timing | 1H / 2H / 4H / 8H | 1H / 2H / 4H / 8H | 1H / 2H / 4H / 8H | 1H / 2H / 4H / 8H | 1H / 2H / 4H / 8H |
| Reverse Feature | NO | NO | NO | NO | NO |
| Receiver size | LxWxD: 4.7X2X1 inch | LxWxD: 2X3X1 inch | LxWxD: 2X3X1 inch | LxWxD: 4.7X2X1 inch | no data |
| Accessories | Wall holder / Quick connectors | Wall holder / Quick connectors | Wall holder / Quick connectors | Wall mount/ Quick connectors | Wall holder / Quick connectors |
