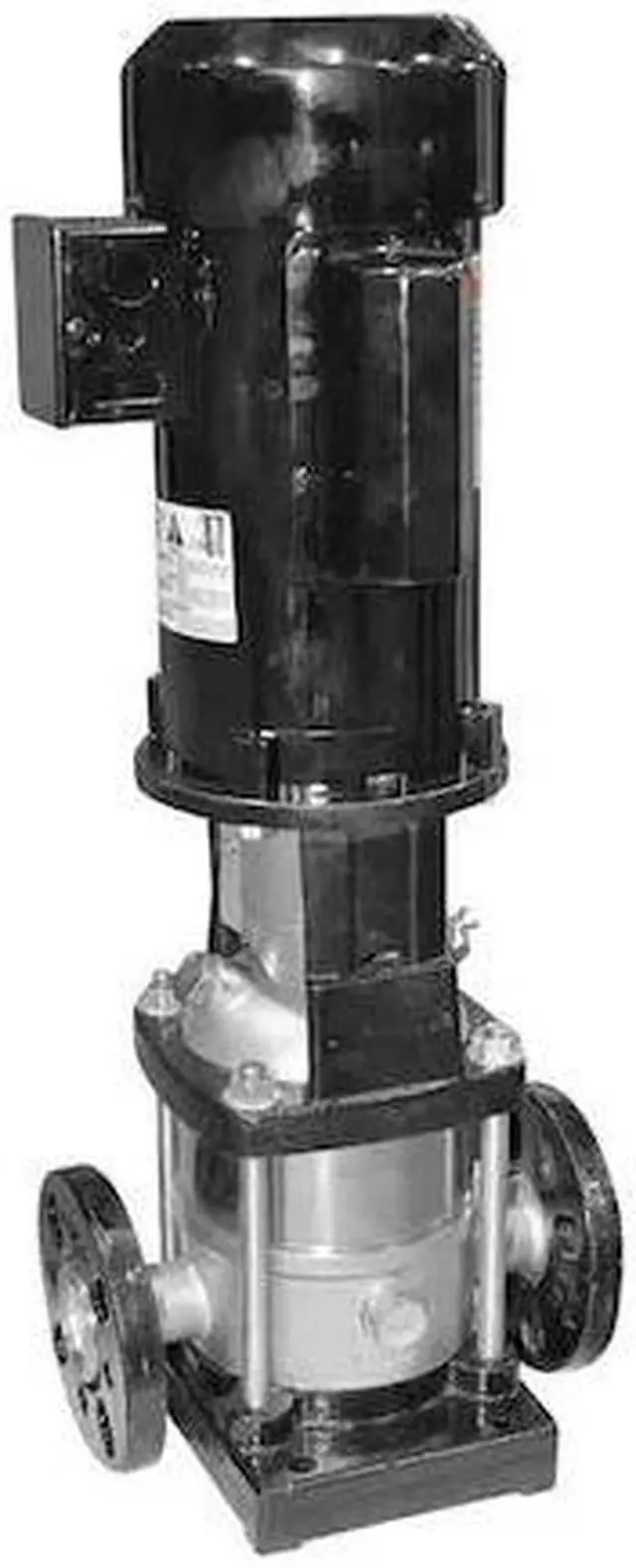

Booster Pump, 1 HP, 1 Ph, 5 Stages

Vertical Multistage Booster PumpsInline design allows pump to be installed in a horizontal plane, where suction and discharge connections are in the same plane and have the same pipe sizes. Closed stainless steel impeller with silicon carbide, stainless steel, and EPDM seals. Pumps feature high-pressure performance at low flow, making them suitable for use in pressure-boosting systems, boiler feed applications, ultra filtration and reverse osmosis system. Compact size allows installation in tight spaces. Continuous-duty motor.3450 rpm with NEMA 56C frameMotor enclosure: TEFCMax. case pressure: 362 psiMax. liquid temp.: 248°FMax. viscosity: 100 SSUBooster Pump, Vertical Multi-Stage, 1 HP, 1 Phase, Voltage 115/208-230, 12.2/6.3-6.1 Amps, Inlet/Outlet 1-1/4 In. FNPT, Stages 5, Max. Pressure (PSI) 66, Housing Material Stainless Steel, Max. Case Pressure (PSI) 362, Max. Liquid Temp. (F) 248, Motor Enclosure TEFC, Motor RPM 3450, For Use With Nonflammable Liquids Compatible with Pump Component Materials, Agency Compliance UL, Manufacturers Warranty Length 1 Year, Includes Manual
