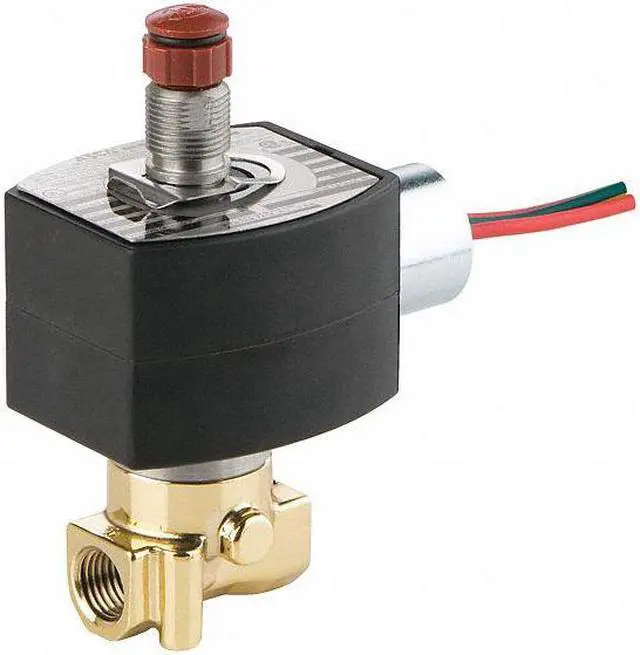

ASCO EF8314H301 12/DC Solenoid Valve, 3-Way, 2-Position, Configurable, 1/4 in

The ASCO EF8314H301 12/DC is a stainless steel solenoid valve featuring a direct acting mechanism with a 3-way/2-position valve design. It operates on 12V DC electrical supply and includes the necessary coil and seal components. Fluid compatibility: Air, Inert Gas. It has an orifice diameter of 1/16 inch. Coil enclosure rated Explosion-Proof and Watertight with a Class F coil insulation rating, supporting use in both indoor and outdoor conditions. The valves nominal pipe size is 1/4 inch, with NPTF inlet and outlet connections, and a configurable starting position.

Key Features:

• - Body Material: Stainless steel
• - Valve Design: 3-Way/2-Position, 2-Position
• - Operating Voltage: 12V DC
• - Coil enclosure rated Explosion-Proof and Watertight
• - Coil Insulation Class: F
• - Electrical Connections: 1/2 in Conduit with 18 in Leads
• - Fluid Compatibility: Air, Inert Gas
• - Maximum Fluid Temperature: 149°F
• - Maximum Operating Pressure Differential (Air/Inert Gas): 130 psi
• - Minimum Operating Pressure Differential (Air/Inert Gas): 0 psi
• - Orifice Diameter: 1/16 in
• - Nominal Pipe Size: 1/4 in
• - Inlet and Outlet Connection Type: NPTF
• - Includes: Coil and Seal
• - Flow characteristics defined by orifice diameter and differential pressure (orifice diameter: 1/16 in; differential pressure: 0130 psi)
• - Overall Dimensions: Length 1-5/8 in, Width 2 in, Height 4-3/8 in
• - Seal Material: NBR
• - Standards: UL Listed
• - Environmental Rating: Indoor, Outdoor
• - Valve Starting Configuration: Configurable
