ASCO 8215G010 Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe

California Proposition 65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.

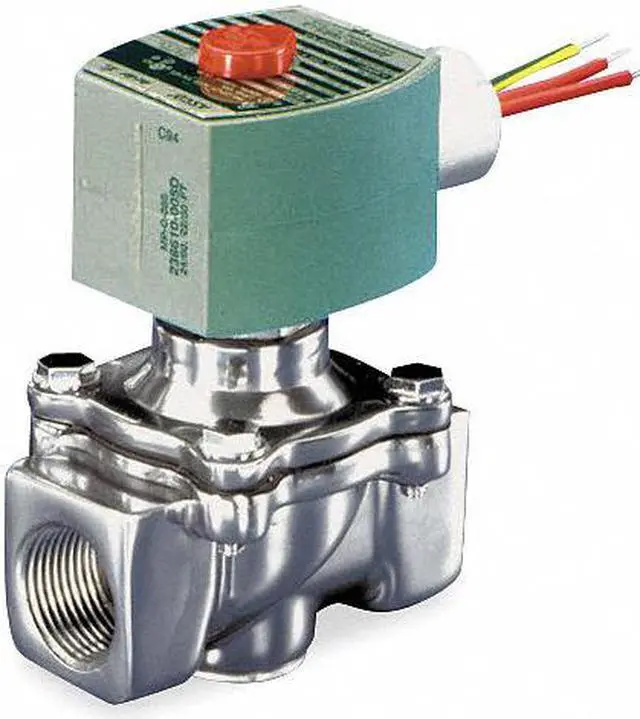

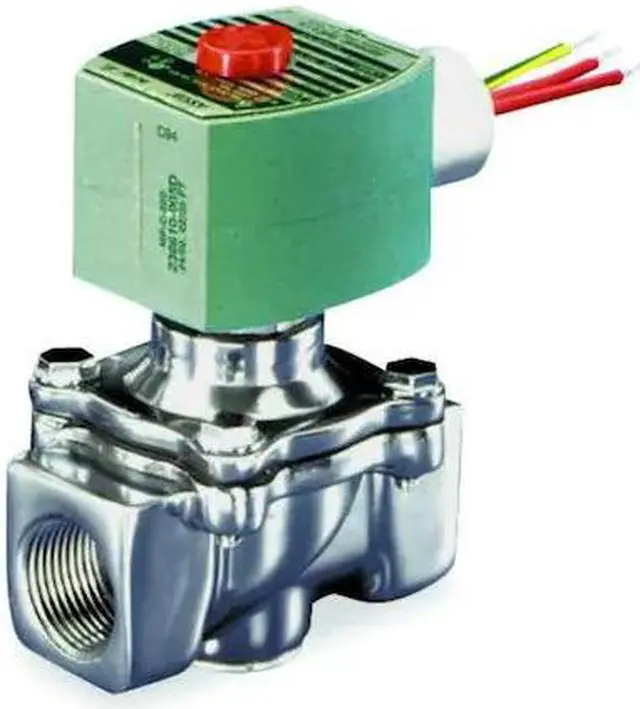

The ASCO 8215G010 is a 2-way, 2-position solenoid valve with a normally closed configuration, designed for controlling the flow of air, vacuum, and fuel gas. It is a direct-acting valve; rated for operation with a differential pressure of 0 to 50 psi (air, water, inert gases). The aluminum body includes a coil for electrical actuation. The valve operates at 120V AC and is compatible with ambient temperatures of 32°F to 125°F, with a fluid temperature of up to 125°F. It features NPTF inlet and outlet ports: 3/8 in, and supports an operating pressure differential of 0 to 50 psi for air, water, and inert gases. The valve is suited for indoor and outdoor use; IP65 rating for protection against dust and water ingress.

Key Features:

• - Valve Design: 2-Way/2-Position, Normally Closed
• - Body Material: Aluminum
• - Orifice Diameter: 3/4 in
• - Nominal Pipe Size: 3/8 in
• - Pressure Range: 0 to 50 psi for Air/Inert Gas and Water
• - Valve Type: direct-acting valve; rated for operation with a differential pressure of 0 to 50 psi (air, water, inert gases)
• - Electrical: 120V AC, 60 Hz, 10.1 W coil wattage with 18 in leads
• - Environmental Rating: Indoor and outdoor use; IP65 enclosure; NEMA 1, 2, 3, 3S, 4, 4X
• - Temperature Range: Ambient 32°F to 125°F; Fluid max 125°F
• - Includes: Coil and seal (NBR material)
• - Response Time: 120 milliseconds
• - Connections: NPTF threaded inlet and outlet
• - Certifications: CSA, FM, UL
