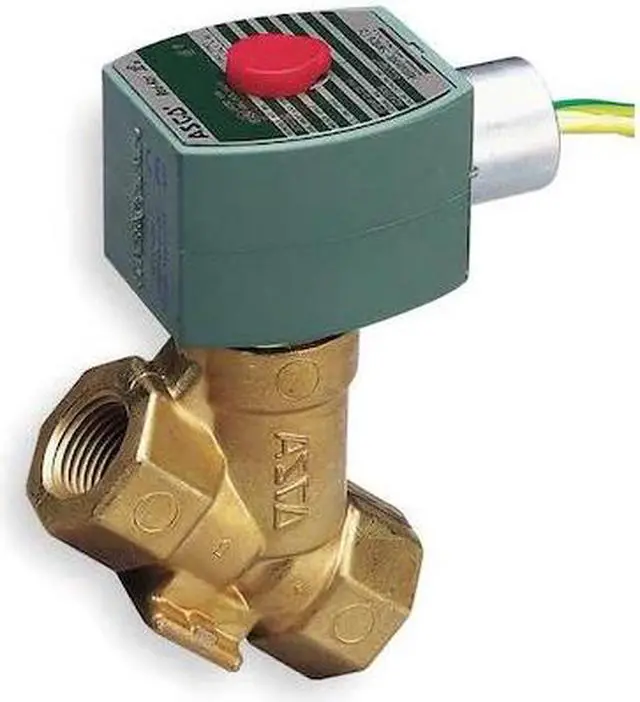

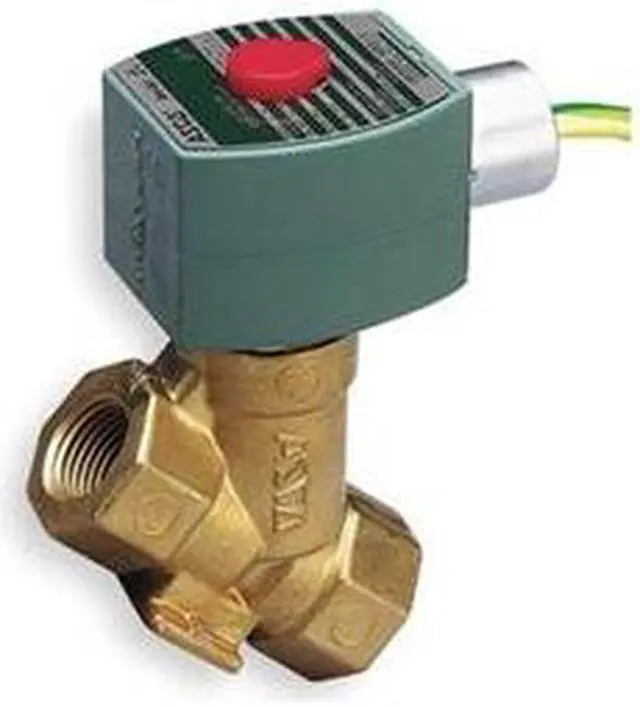

ASCO 8222G049 Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe

California Proposition 65: This product contains a chemical known to the State of California to cause cancer. California Proposition 65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.

The ASCO 8222G049 is a pilot operated, normally closed solenoid valve suitable for steam flow control in systems operating within ambient temperatures 32°F125°F and steam fluid temperatures up to 353°F. Constructed with a brass body and PTFE seals, this valve supports operation within ambient temperatures ranging from 32°F to 125°F and fluid temperatures up to 353°F for steam. Automation-capable control of steam flow via external signals; 3/4 in nominal pipe size connection; 120V AC coil operation, featuring NPTF inlet and outlet ports and a Y-shape diaphragm valve design with a 2-position, 2-way configuration.

Key Features:

• - Valve Body Material: Brass
• - Seal Material: PTFE
• - Valve Type: High Temperature
• - Operation Type: Pilot Operated
• - Valve Starting Configuration: Normally Closed
• - Valve Ways: 2-Way
• - Valve Positions: 2-Position
• - Nominal Pipe Size: 3/4 in
• - Orifice Diameter: 1/2 in
• - Center Line Pipe Center Size: 4-1/64 in
• - Maximum Ambient Temperature: 125°F
• - Minimum Ambient Temperature: 32°F
• - Maximum Fluid Temperature (Steam): 353°F
• - Maximum Operating Pressure Differential (Steam): 135 psi
• - Minimum Operating Pressure Differential (Water): 2 psi
• - Coil Enclosure: Watertight; junction box not included
• - Coil Insulation Class: H
• - Electrical Connections: 1/2 in Conduit with 18 in Leads
• - Frequency: 50 Hz, 60 Hz
• - Includes Coil: Yes
• - Environmental Rating: Indoor/outdoor washdown environments; hazardous-location suitability not specified.
• - Standards: CSA, UL Listed
• - NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
• - Dimensions (L x W x H): 2-3/4 in x 1-15/16 in x 4-13/16 in
• - Voltage: 120V AC
• - Wattage: 10.1 W

. This item has been restricted from sale in the following state(s): []
