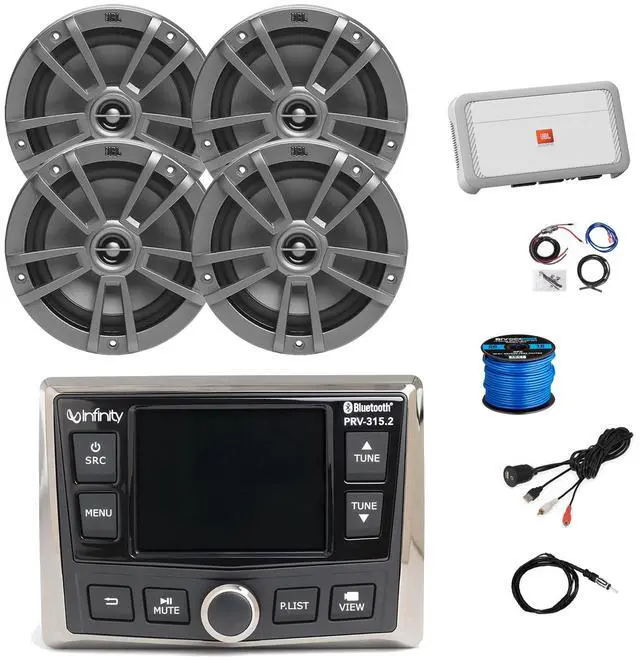

Infinity PRV-315.2 Marine Gauge Style USB Bluetooth AM/FM/WB Radio Receiver, 4x 6.5" 180W Multi-Element Gray Marine Speakers, 4-Channel Amplifier w/Kit, Wire, Antenna, USB/AUX Adapter (Bulk Packaging)

Receiver:

• AM/FM Bluetooth Audio Streaming


• 4 x 50 Watts


• Aux Input


• 3 1/2" cutout; 4 1/8" O.D.


• USB Input for USB Drives


• 3 Pair of RCA Pre-outs


• Charging Through USB


• Wired/Wireless Remote-Ready


• 6-Channel Preamp Outputs


• Marine-Grade Watertight Face

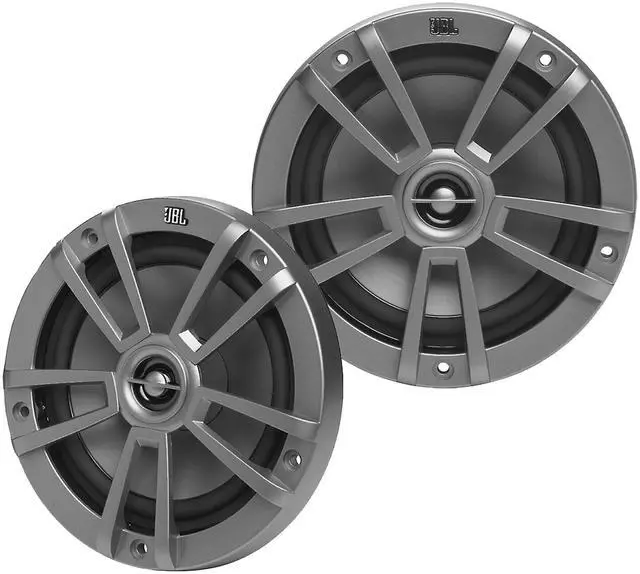

Speakers:

• 6-1/2" (160mm) Marine Two-way Speaker with 1/2" (13mm) tweeter


• Power Handling: 60W rms, 180W peak


• Sensitivity (@ 2.83V): 90dB


• Frequency Response: 60Hz – 20kHz


• Nominal Impedance: 4 ohms


• IPx5 Rated


• Grille Mounted Tweeters


• Polymer Basket


• Individually Voiced


• Harman Standard Reliability Tested


• Bulk Packaging

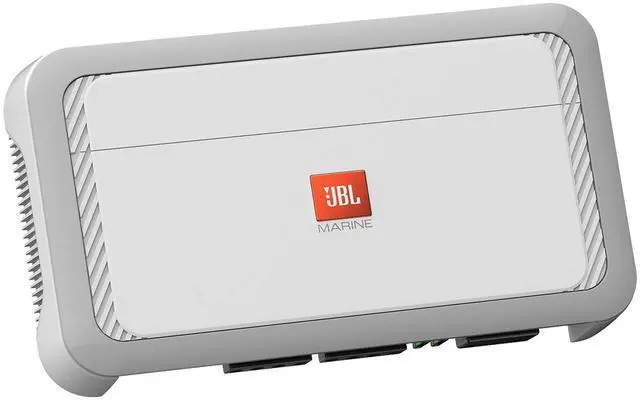

Amplifier:

• 4 channel Marine amplifier


• 75 watts RMS x 4 at 4 ohms (100 watts RMS x 4 at 2 ohms)


• 200 watts RMS x 2 at 4 ohms in bridged mode (4-ohm stable in bridged mode)


• Variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels


• Preamp and speaker-level inputs


• Preamp outputs


• Fuse rating: 30A x 2


• 8-gauge power and ground leads recommended wiring and hardware not included with amplifier


• WxHxD=320mm x 51.3mm x 180mm WxHxD=12-5/8 x 2-1/16 x 7-1/8

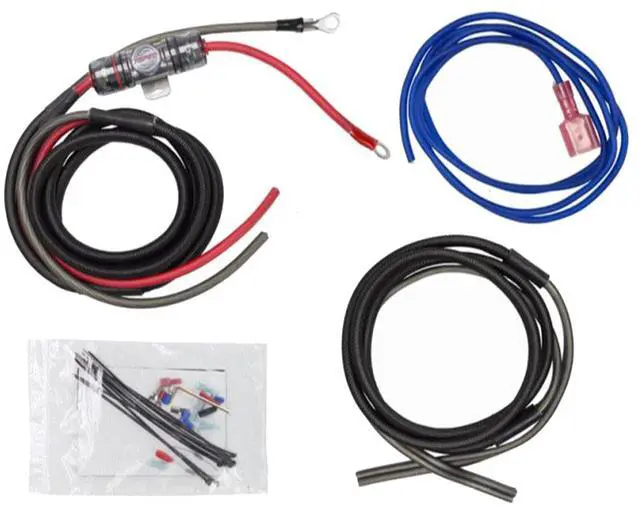

Amplifier Wiring Kit:

• Designed tor motorcycles


• 6 feet of red and black T-Spec OFC power and ground wire with a T-Spec V8MANL fuse holder and 60 amp fuse protected by a black nylon braid


• Pre-terminated ring terminals make connections to the battery simple


• Two 4 foot pieces of 16 gauge OFC speaker wire protected by black nylon mesh makes upgrading the factory speaker wires or adding new speakers a smart choice


• Upgrading Harmon Kardon System – Two 47-ohm .5 watt resistors to keep the factory radio outputs active


• All the necessary installation hardware is included along wtth a 4 × 6 inch hook and loop mounting pad for micro-amplifiers to hold the amplifier securely in place

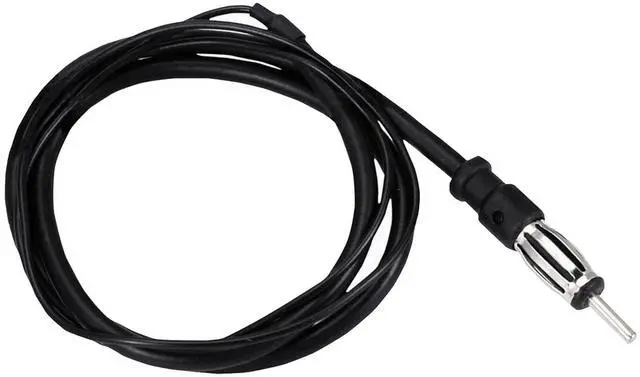

Antenna:

• Weather Resistant


• 40" Braided Cable.


• Full AM/FM reception.

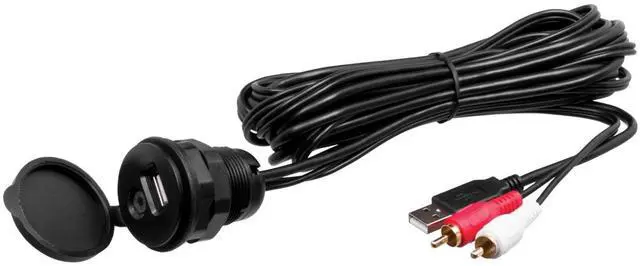

AUX/USB Adaptor:

• USB to RCA pass-through extension cable


• Cable Length: 3m (10ft)

Speakers Wire:

• Connects audio speakers to your Audio Video (A/V) receiver or amplifier.


• Marine grade tinned wire


• Oxygen Free Copper (OFC)


• Length: 50 Feet


• Gauge: 16
