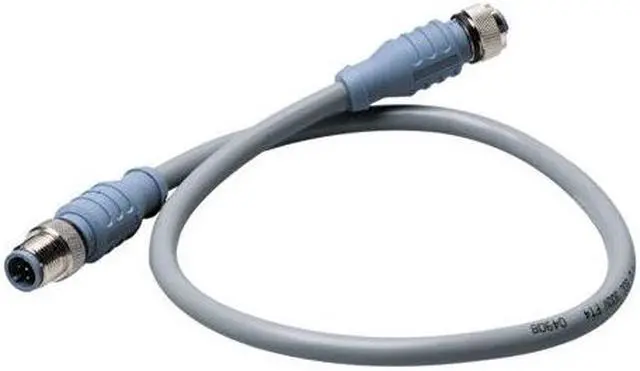

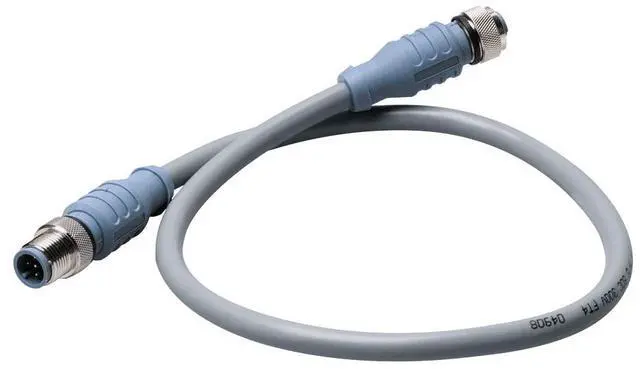

MARETRON MICRO DOUBLE ENDED CORDSET 8 METER CM-CG1-CF-08.0
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Mechanical Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded
Body Mat/Color: Thermoplastic
PUR/Blue-Gray Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel Connector
Outside Diameter: 0.59?
Electrical Current Rating: 4.0 Amps
Voltage Rating: 250
VCableOuter Jacket Mat/Color: PVC/Gray Conductor
Insulation Material: HDPE (data pair), SRPVC (power pair) Number of
Conductors: 4X22 AWG, 22 AWG Drain Wire
Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)Approvals (Cable)
UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable)
CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V
FT4 NMEA: NMEA 2000 Approved
Body Mat/Color: Thermoplastic
PUR/Blue-Gray Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel Connector
Outside Diameter: 0.59?
Electrical Current Rating: 4.0 Amps
Voltage Rating: 250
VCableOuter Jacket Mat/Color: PVC/Gray Conductor
Insulation Material: HDPE (data pair), SRPVC (power pair) Number of
Conductors: 4X22 AWG, 22 AWG Drain Wire
Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)Approvals (Cable)
UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable)
CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V
FT4 NMEA: NMEA 2000 Approved
