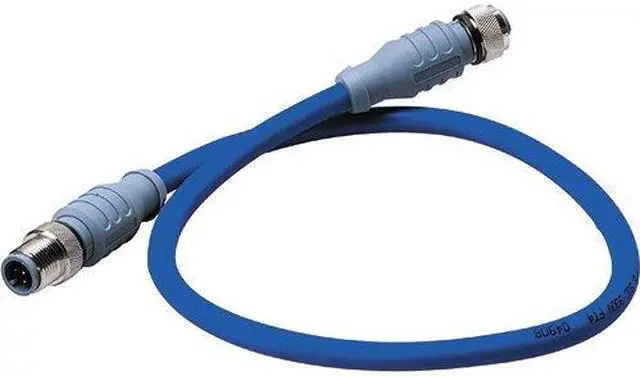

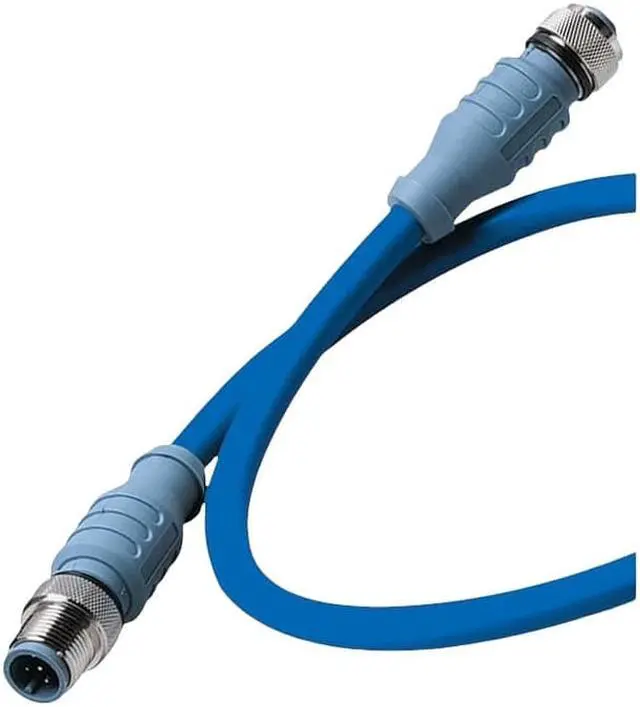

MARETRON MID DOUBLE-ENDED CORDSET-10M BLUE
- Maretron
- see title
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Maretron Mid Double-Ended Cordset - 10 M BlueMechanical:Contact Carrier Mat/Color: Thermoplastic PUR/Blue-GrayMolded Body Mat/Color: Thermoplastic PUR/Blue-GrayContact Mat/Plating: Brass/GoldCoupling Nut Mat/Plating: Brass/NickelConnector Outside Diameter: 0.59"Electrical Current Rating: 4.0 AmpsVoltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/GrayConductor Insulation Material: PE (data pair), PVC (power pair)Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)ENVIRONMENTAL Protection Class: IEC IP68, NEMA 1,3,4,6PTemperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 ApprovedIEC: IEC 61162-3
