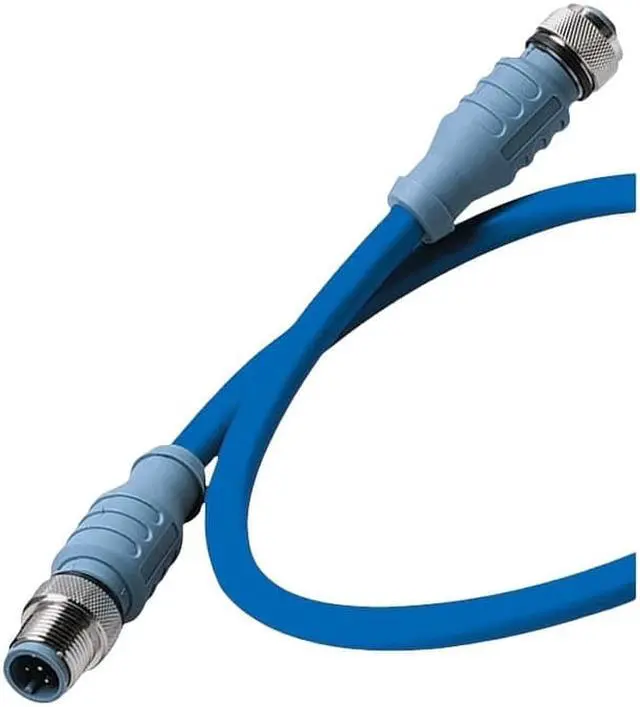

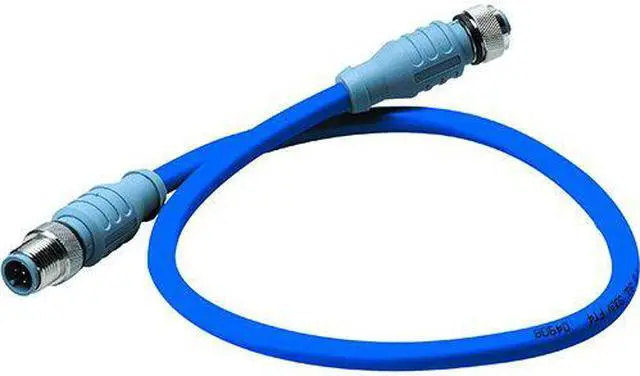

Maretron Mid Double-Ended Cordset - 5
M BlueMechanical: Contact
Carrier Mat/Color: Thermoplastic PUR/Blue-GrayMolded
Body Mat/Color: Thermoplastic
PUR/Blue-GrayContact Mat/Plating: Brass/GoldCoupling
Nut Mat/Plating: Brass/NickelConnector
Outside Diameter: 0.59"E lectrical
Current Rating: 4.0
AmpsVoltage Rating: 250
VCable Outer Jacket Mat/Color: PVC/GrayConductor
Insulation Material: PE (data pair), PVC (power pair) Number of
Conductors: 2x16 ( 1.29 mm) AWG, Data 2x20 ( 0.81 mm) AWG, 20 ( 0.81 mm) AWG Drain Wire
Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair) ENVIRONMENTAL
Protection Class: IEC IP68, NEMA 1, 3, 4, 6PTemperature
Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS (Cable)
UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable)
CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V
FT4 NMEA: NMEA 2000
ApprovedIEC: IEC 61162-3
M BlueMechanical: Contact
Carrier Mat/Color: Thermoplastic PUR/Blue-GrayMolded
Body Mat/Color: Thermoplastic
PUR/Blue-GrayContact Mat/Plating: Brass/GoldCoupling
Nut Mat/Plating: Brass/NickelConnector
Outside Diameter: 0.59"E lectrical
Current Rating: 4.0
AmpsVoltage Rating: 250
VCable Outer Jacket Mat/Color: PVC/GrayConductor
Insulation Material: PE (data pair), PVC (power pair) Number of
Conductors: 2x16 ( 1.29 mm) AWG, Data 2x20 ( 0.81 mm) AWG, 20 ( 0.81 mm) AWG Drain Wire
Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair) ENVIRONMENTAL
Protection Class: IEC IP68, NEMA 1, 3, 4, 6PTemperature
Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS (Cable)
UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable)
CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V
FT4 NMEA: NMEA 2000
ApprovedIEC: IEC 61162-3
