Humminbird XP-9-HW-T In-hull Transducer - 710276-1 XP 9 HW T

Humminbird XP 9 HW T Transducer
Brand New
Includes One Year Warranty
Product # 710276-1

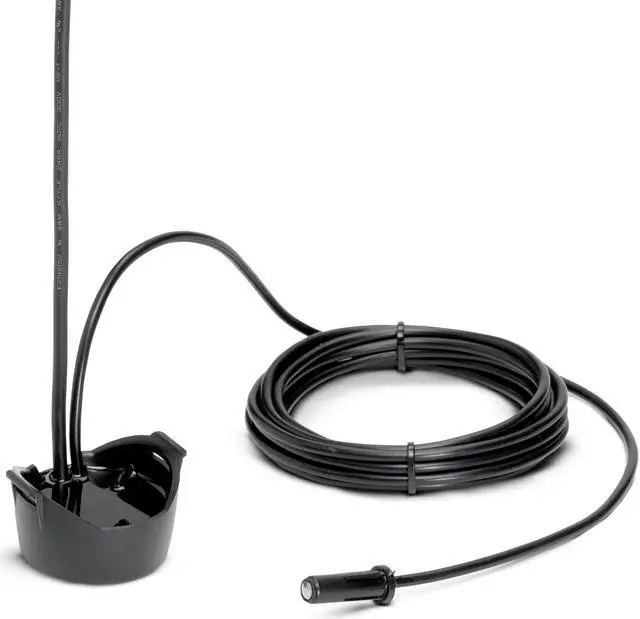

The Humminbird XP-9-HW-T is an in-hull transducer designed to glue inside single layer fiberglass hulls. It has a built-in temperature sensor and Dual Spectrum CHIRP 2D Sonar technology producing a high-frequency beam in a wide cone angle. The transducer employs a dual spectrum such that the user gets a clear, well-defined coverage of the fish-holding structures.


Operating on the frequency range of 150-220 kHz, Dual Spectrum CHIRP 2D offers imaging in two different modes, wide mode (140-200 kHz) that delivers maximum coverage and narrow mode (180-240 kHz) that provides maximum detail. The transducer can scan up to a depth of 1, 200 feets below water.


XP-9-HW-T Features:



In-hull Transducer
Cable Length: 15 Feet
Dual Spectrum CHIRP 2D Sonar
150-220 kHz Full Spectrum
Built-In Temperature Sensor
Narrow Band: 180-240 kHz (Max. Details)
Wide Band: 140-200 kHz (Max. Coverage)
Max.
Depth: 1200ft (365m)

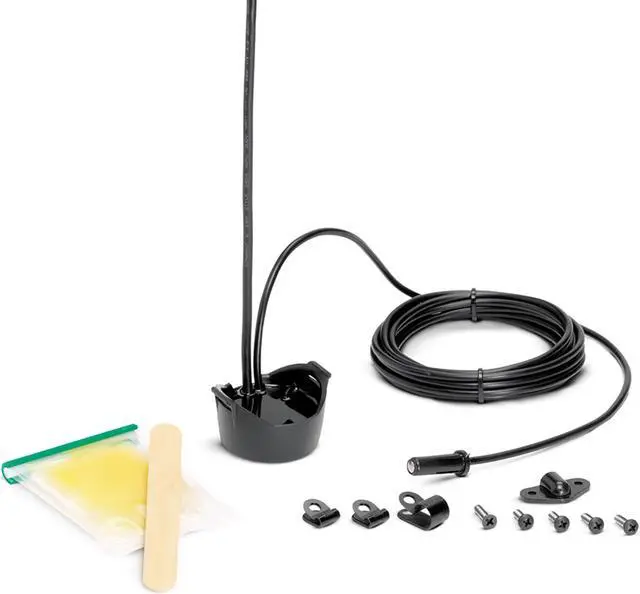

Glue-in Installation
